Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States
Supported model
Data version 2024-11

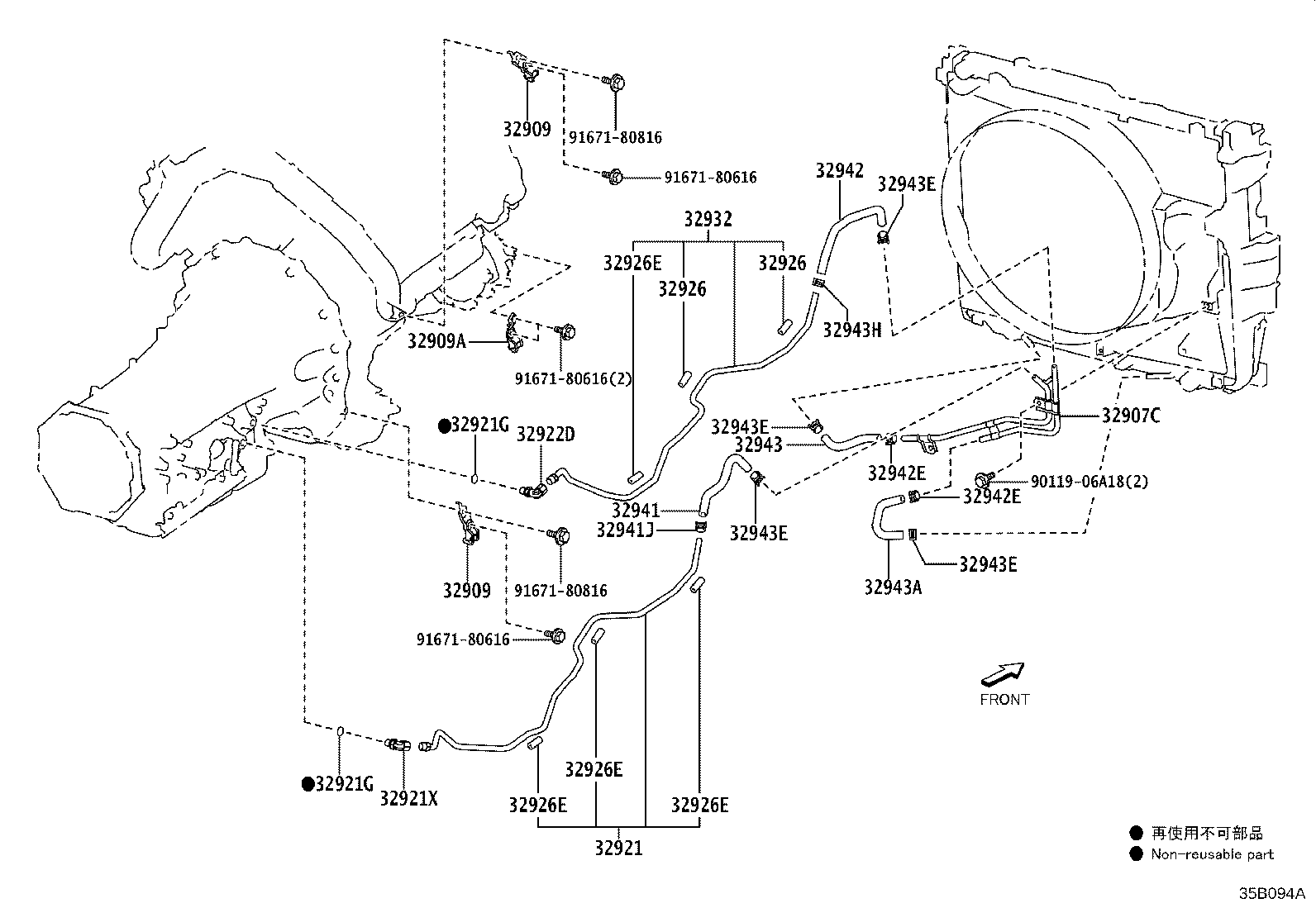

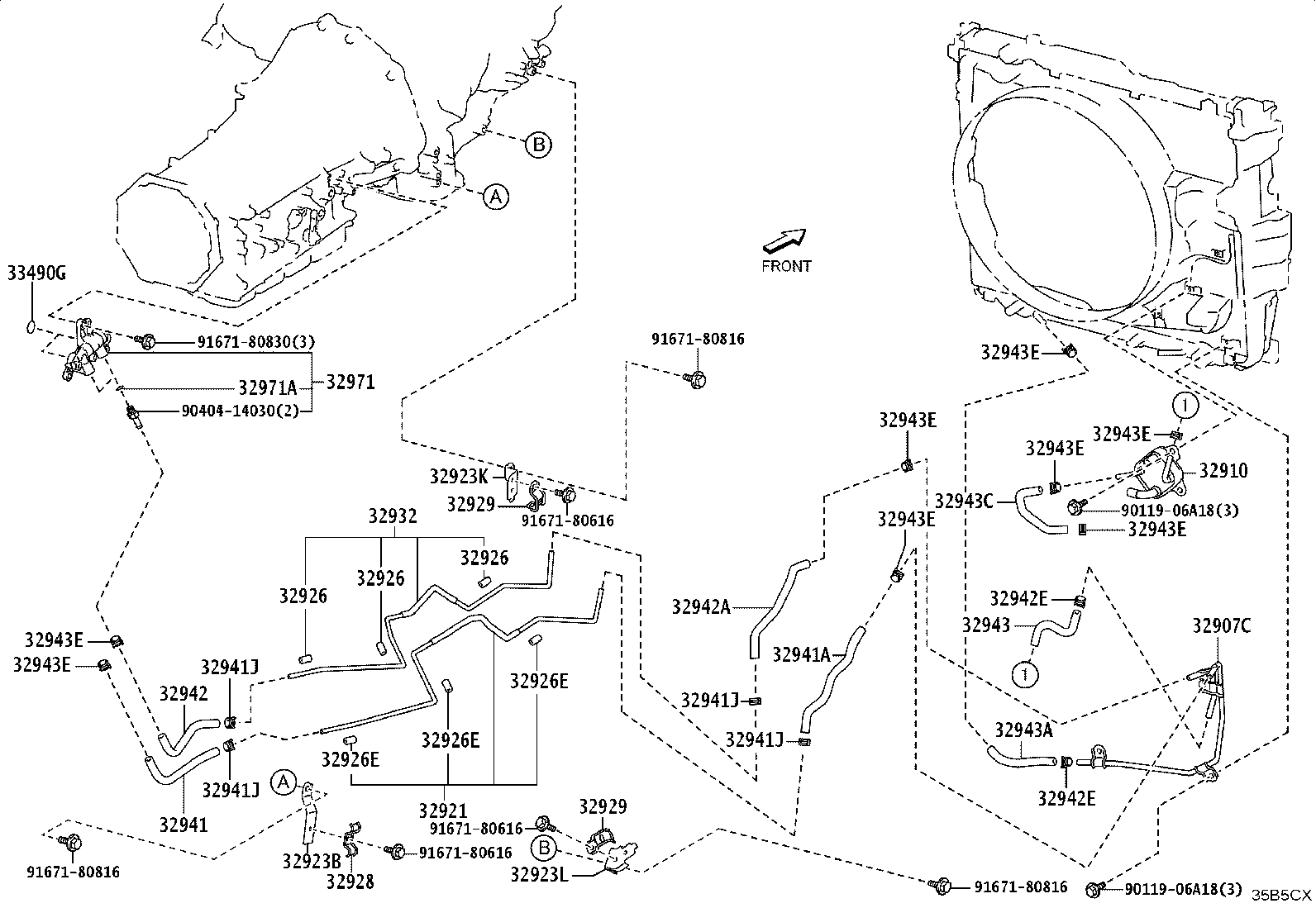

Oil Cooler & Tube (ATM)
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32909 | Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1 |
| 32909A | Clamp Sub-assy, Transmission Oil Cooler Tube, NO.2 |
| 32910 | Cooler Assy, Oil |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921X | Union OR Elbow, Oil Cooler Inlet |
| 32922D | Union OR Elbow, Oil Cooler Outlet |
| 32923B | Clamp, Automatic Transmission Oil Cooler Tube, NO.1 |
| 32923K | Clamp, Automatic Transmission Oil Cooler Tube, NO.2 |
| 32923L | Clamp, Automatic Transmission Oil Cooler Tube, NO.3 |
| 32926 | Cushion, Oil Cooler Tube(ATM) |
| 32926E | Cushion, Oil Cooler Tube, NO.2(ATM) |
| 32928 | Clamp, Flexible Hose, NO.1 |
| 32929 | Clamp, Flexible Hose, NO.2 |
| 32932 | Tube, Oil Cooler Outlet |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941A | Hose, Oil Cooler Inlet, NO.2 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942A | Hose, Oil Cooler Outlet, NO.2 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943A | Hose, Transmission Oil Cooler, NO.2 |
| 32943C | Hose, Transmission Oil Cooler, NO.3 |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
| 32943H | Clip, NO.4(FOR OIL COOLER HOSE) |
| 32971 | Thermostat, Transmission Oil |
| 32971A | Ring, O(FOR TRANSMISSION OIL THERMOSTAT) |
| 33490G | Ring, O (FOR TRANSMISSION OIL COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
