Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States
Supported model
Data version 2024-11

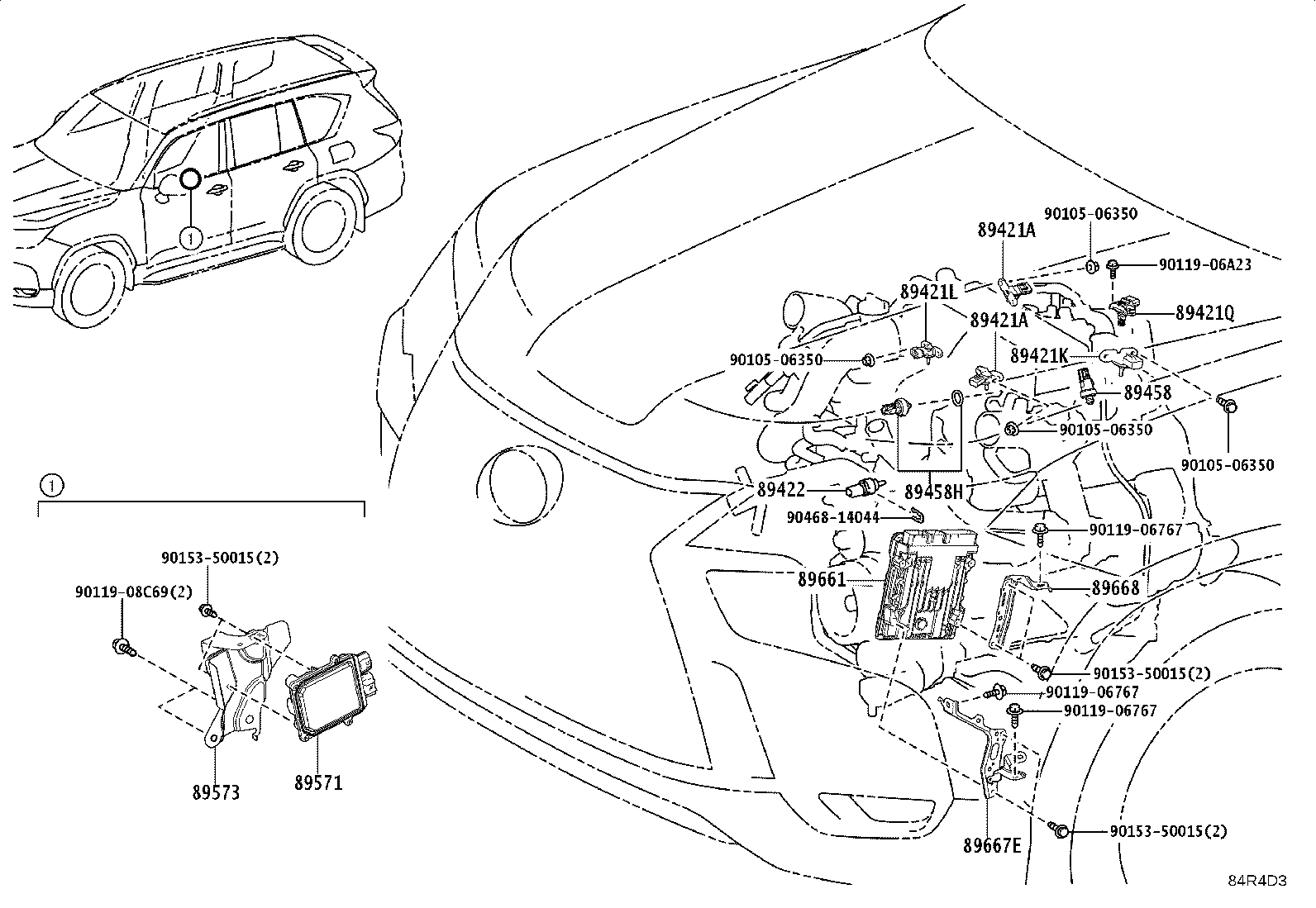

Electronic Fuel Injection System
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89421A | Sensor, Turbo Pressure |
| 89421K | Sensor, Turbo Pressure, NO.1 |
| 89421L | Sensor, Turbo Pressure, NO.2 |
| 89421Q | Sensor, Turbo Pressure, NO.3 |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89458 | Sensor, Fuel Pressure |
| 89458H | Sensor, Fuel Pressure, NO.2 |
| 89571 | Computer, Fuel Pump Control |
| 89573 | Bracket, Fuel Pump Control Computer |
| 89661 | Computer, Engine Control |
| 89667E | Bracket, Engine Control Computer, NO.1 |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
