Toyota Lexus LX Series
2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States
Supported model
Data version 2024-11

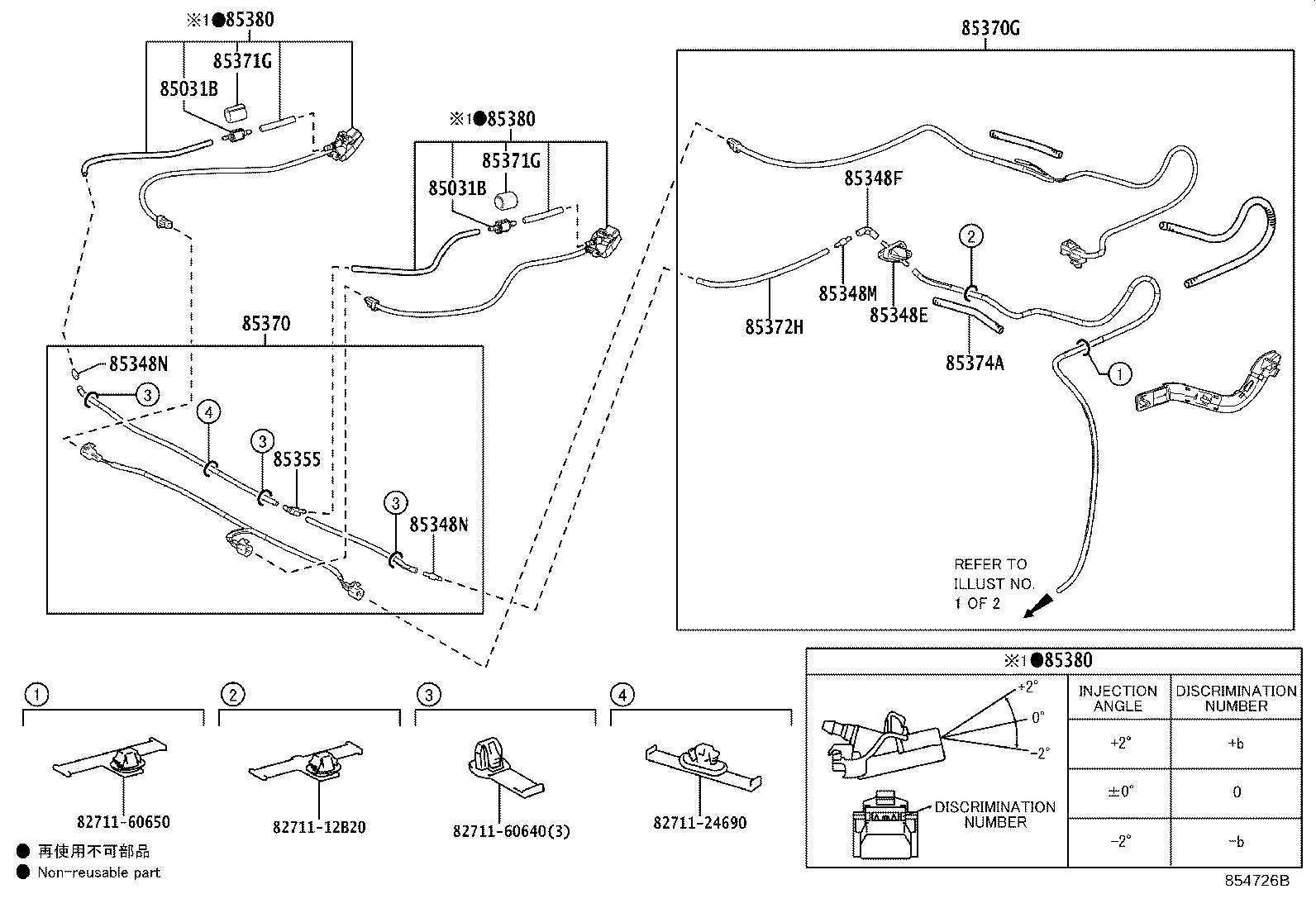

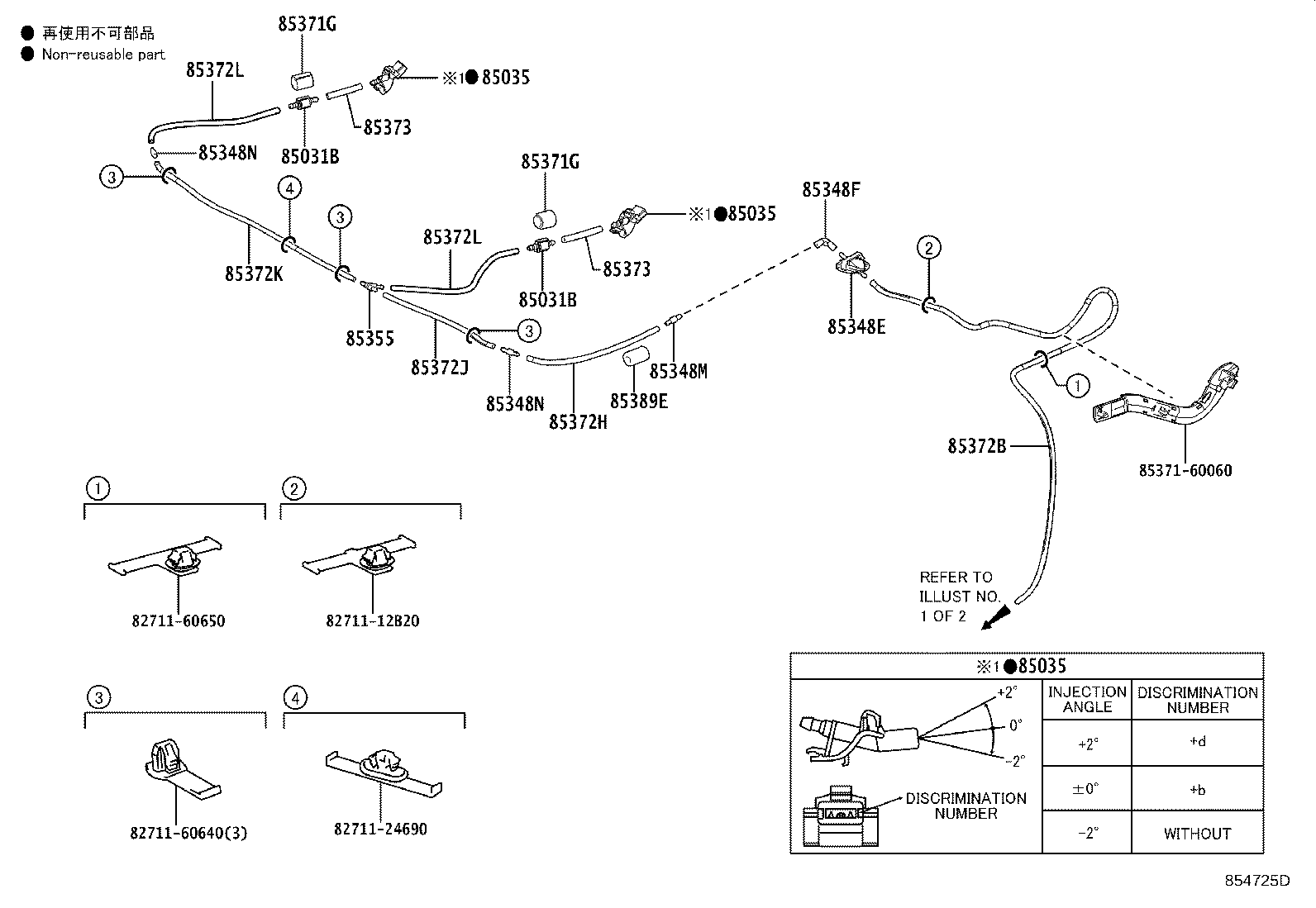

Windshield Washer
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031B | Valve Sub-assy, Washer |
| 85035 | Nozzle Sub-assy, Washer |
| 85301 | Inlet Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85317 | Wiring Assy, Washer |
| 85319D | Packing, Front Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85333 | Filter, Windshield Washer Jar |
| 85336D | Packing, Windshield Washer Jar |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348F | Joint, Windshield Washer Elbow, NO.3 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85348M | Joint, Windshield Washer Hose, NO.3 |
| 85348N | Joint, Windshield Washer Hose, NO.4 |
| 85355 | Valve, Windshield Washer Hose |
| 85370 | Hose Assy, Windshield Washer |
| 85370G | Hose Assy, Windshield Washer, NO.2 |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371G | Protector, Front Washer |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85372L | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6 |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85374A | Protector, Washer Hose |
| 85380 | Nozzle & Hose Assy, FR Washer |
| 85389E | Protector, Windshield Washer, NO.2 |
| 85397 | Switch Assy,Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
