Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

51 part groups · 11 illustrations

Illustrations

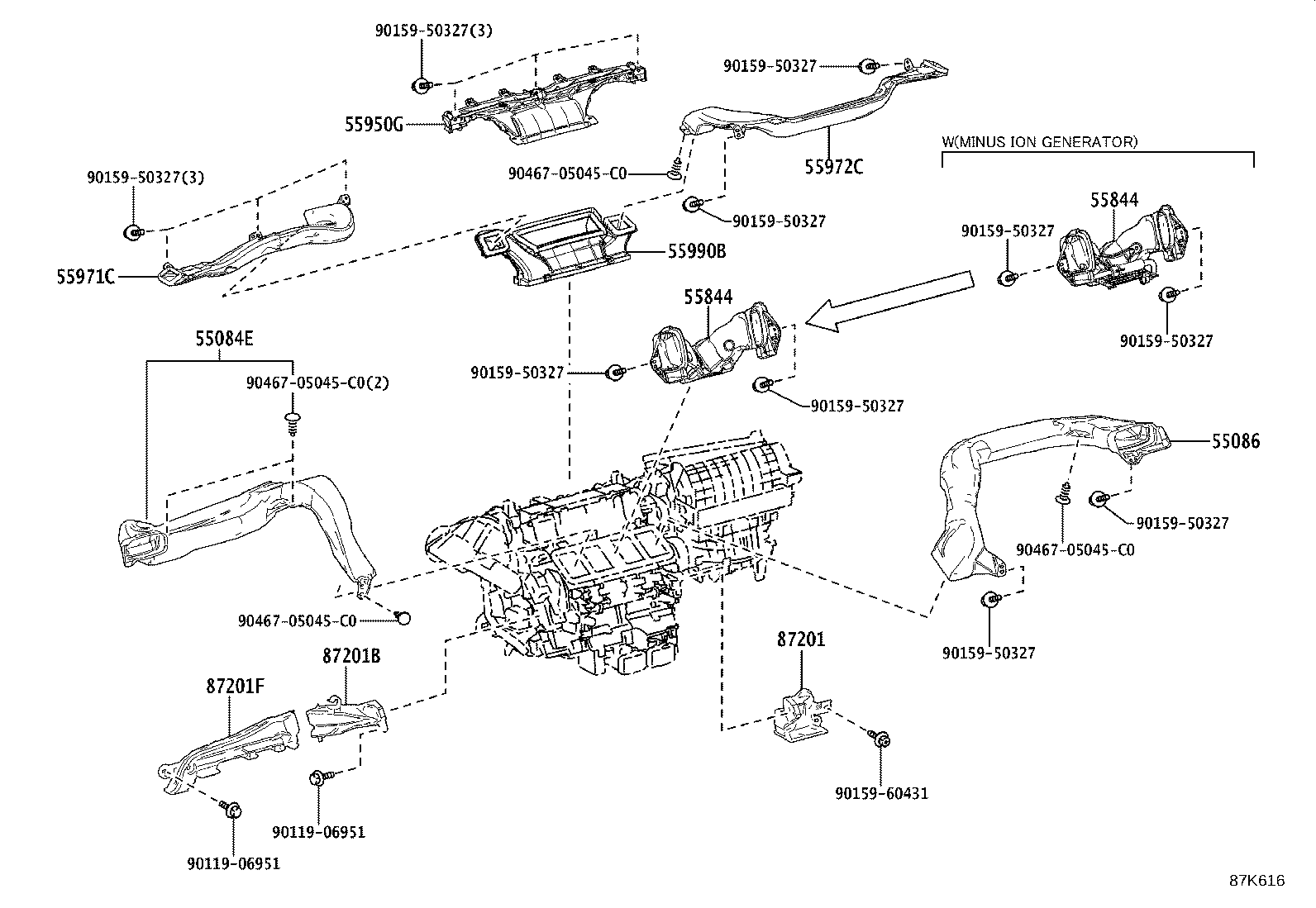

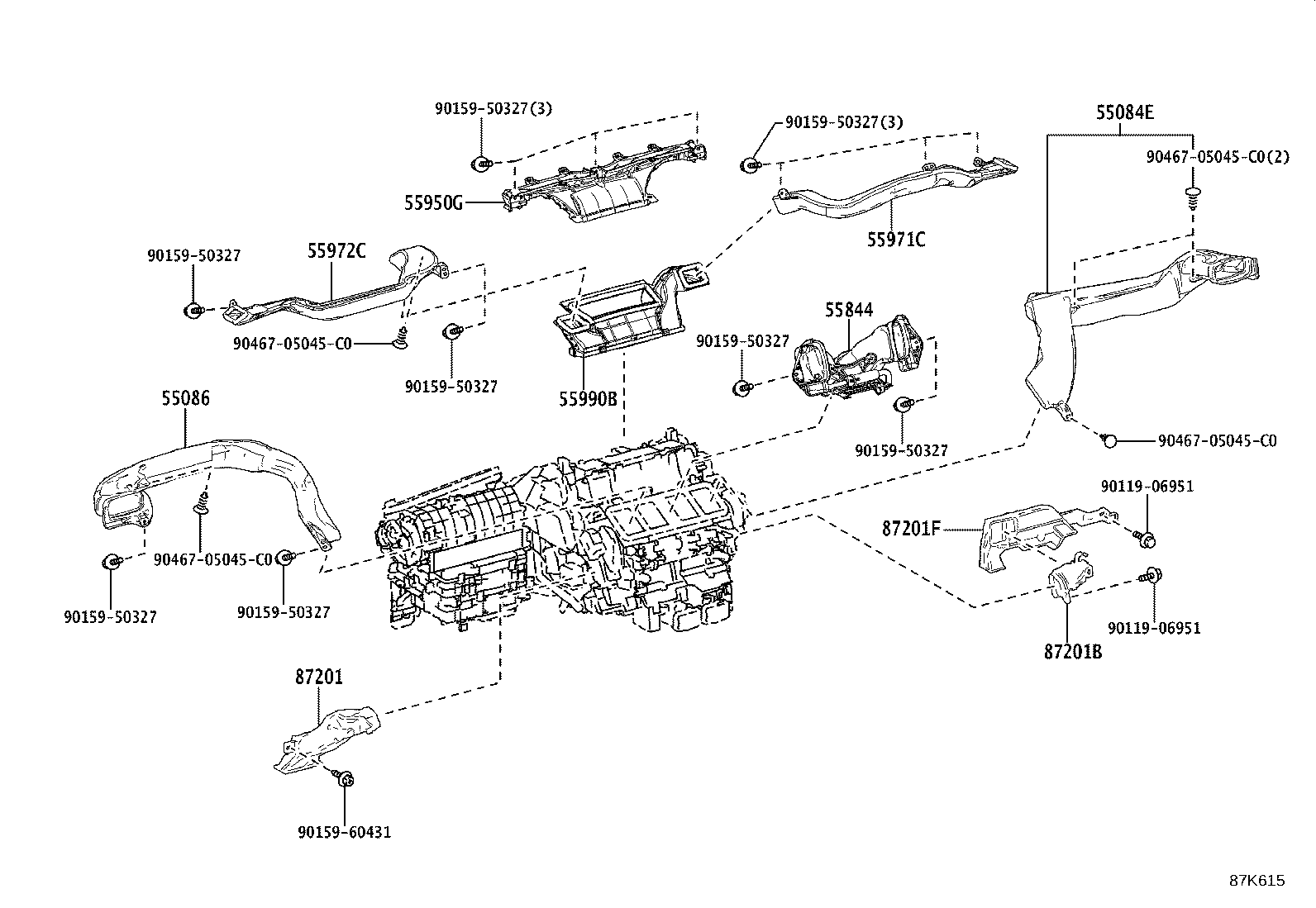

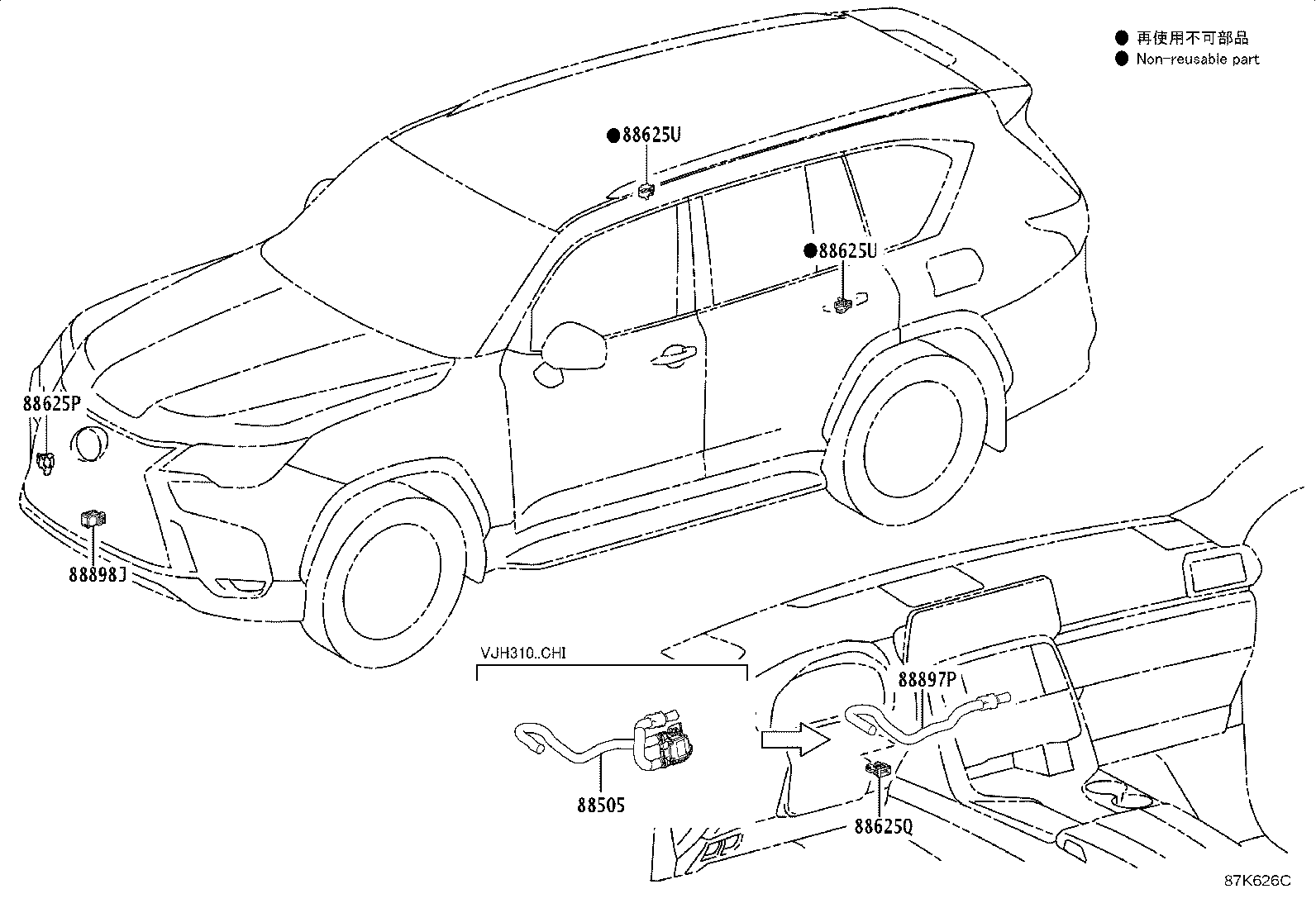

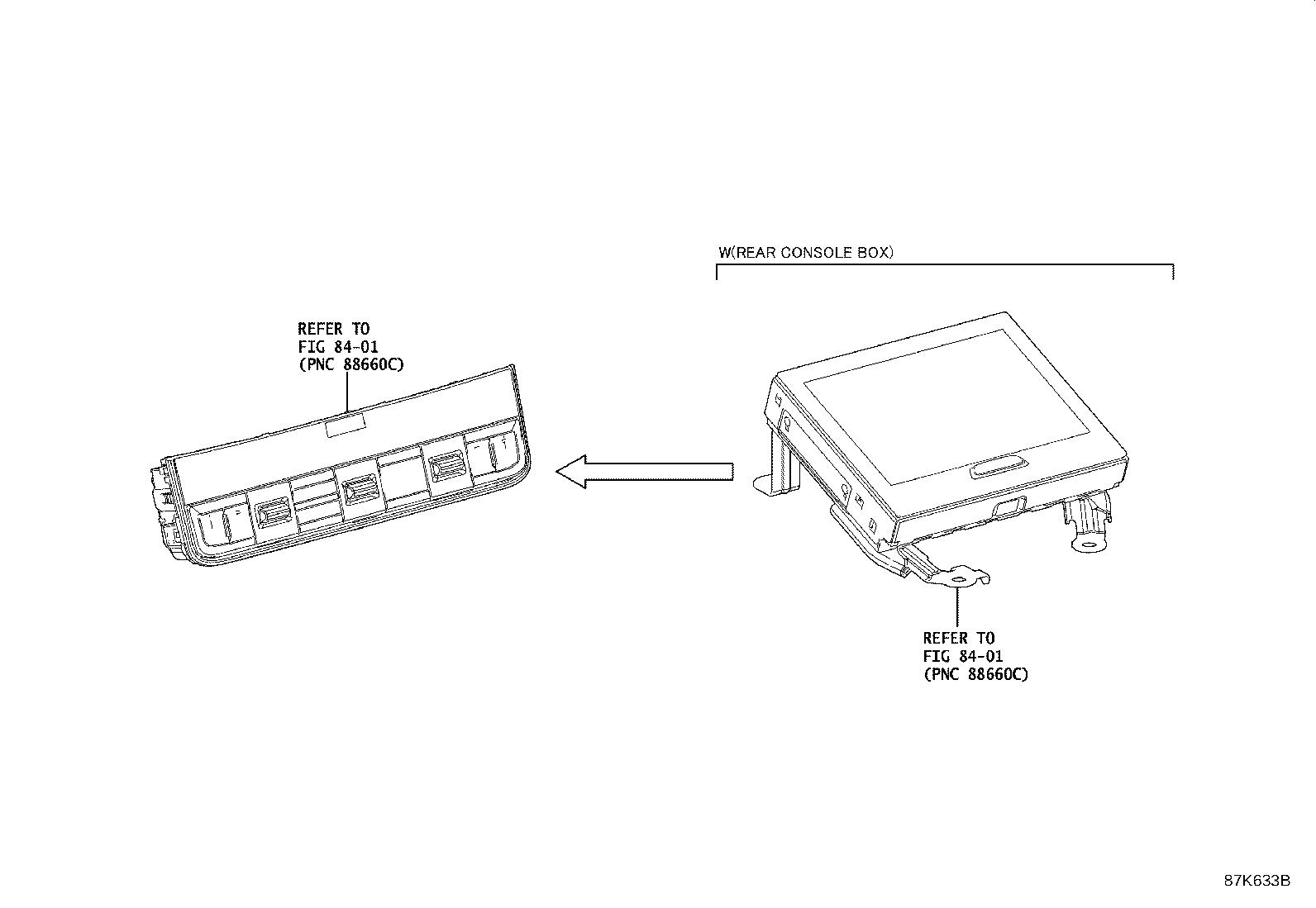

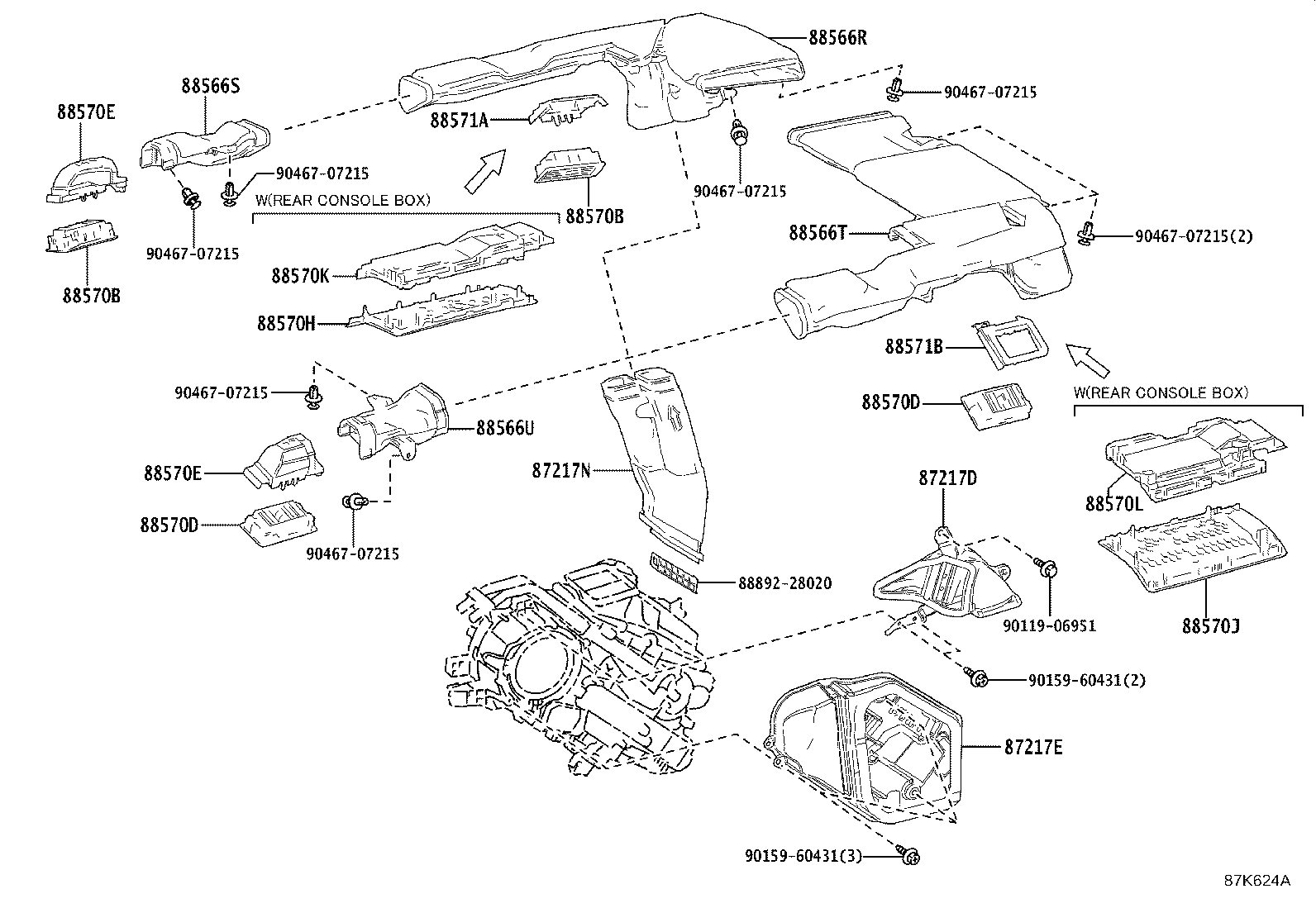

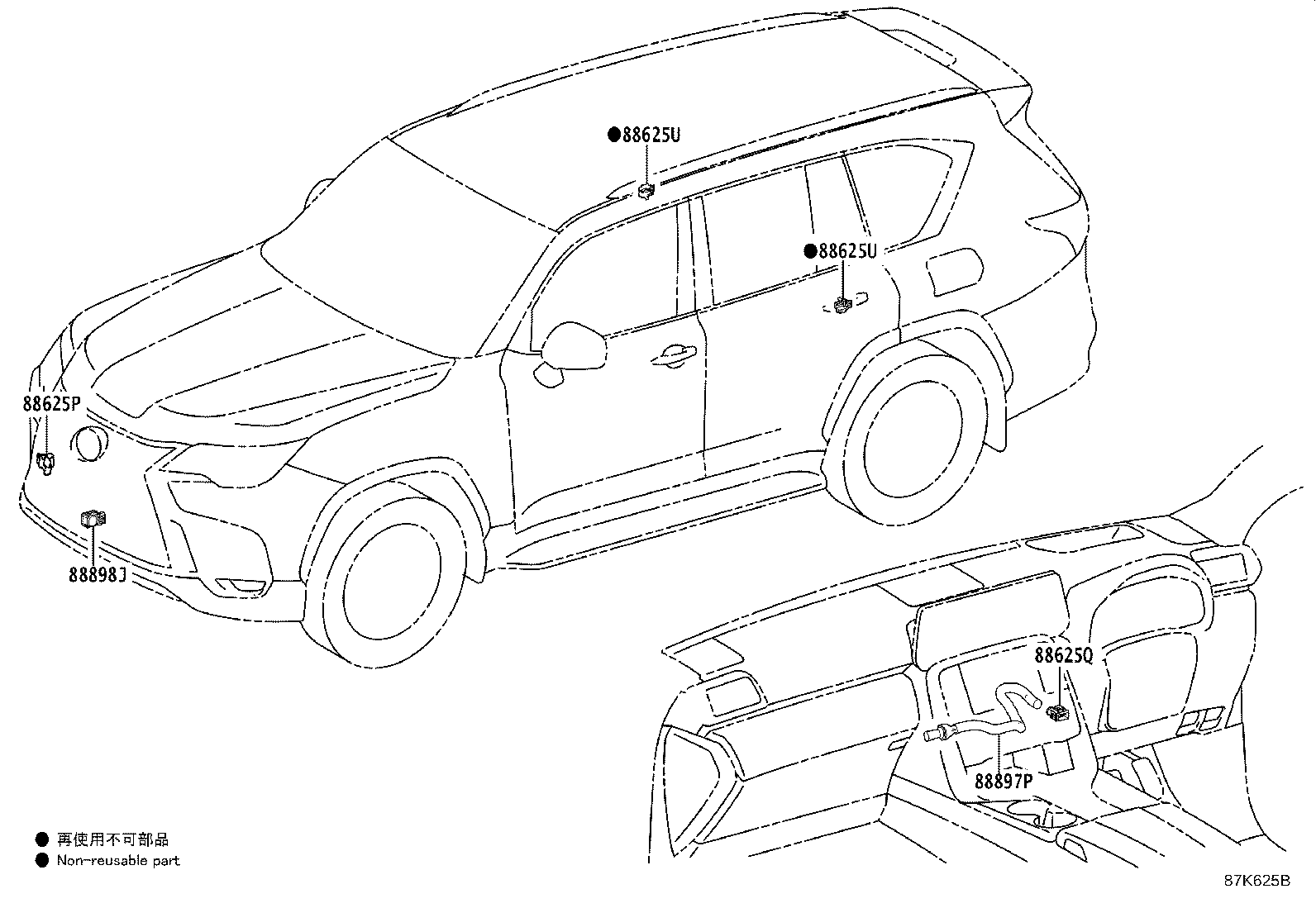

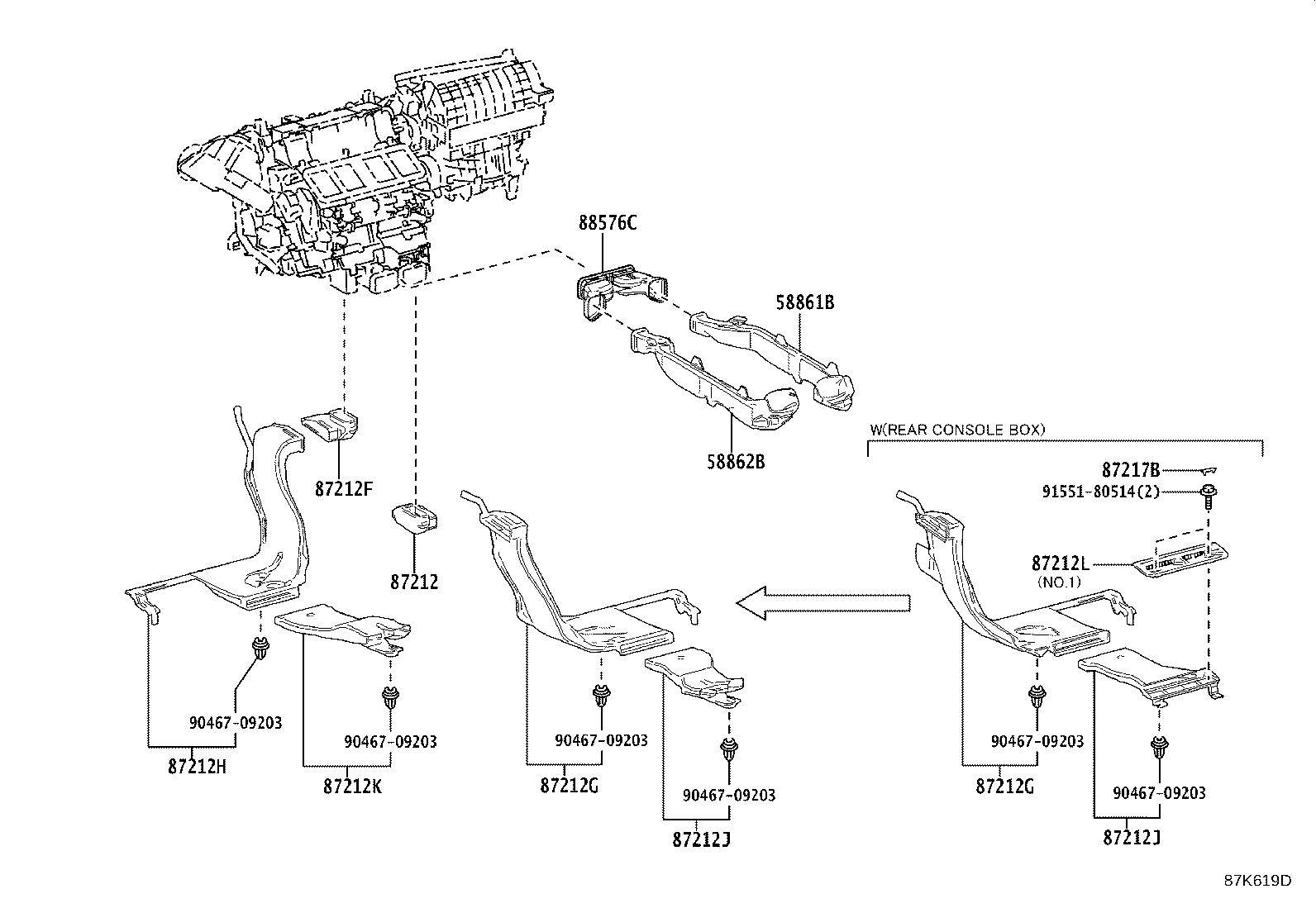

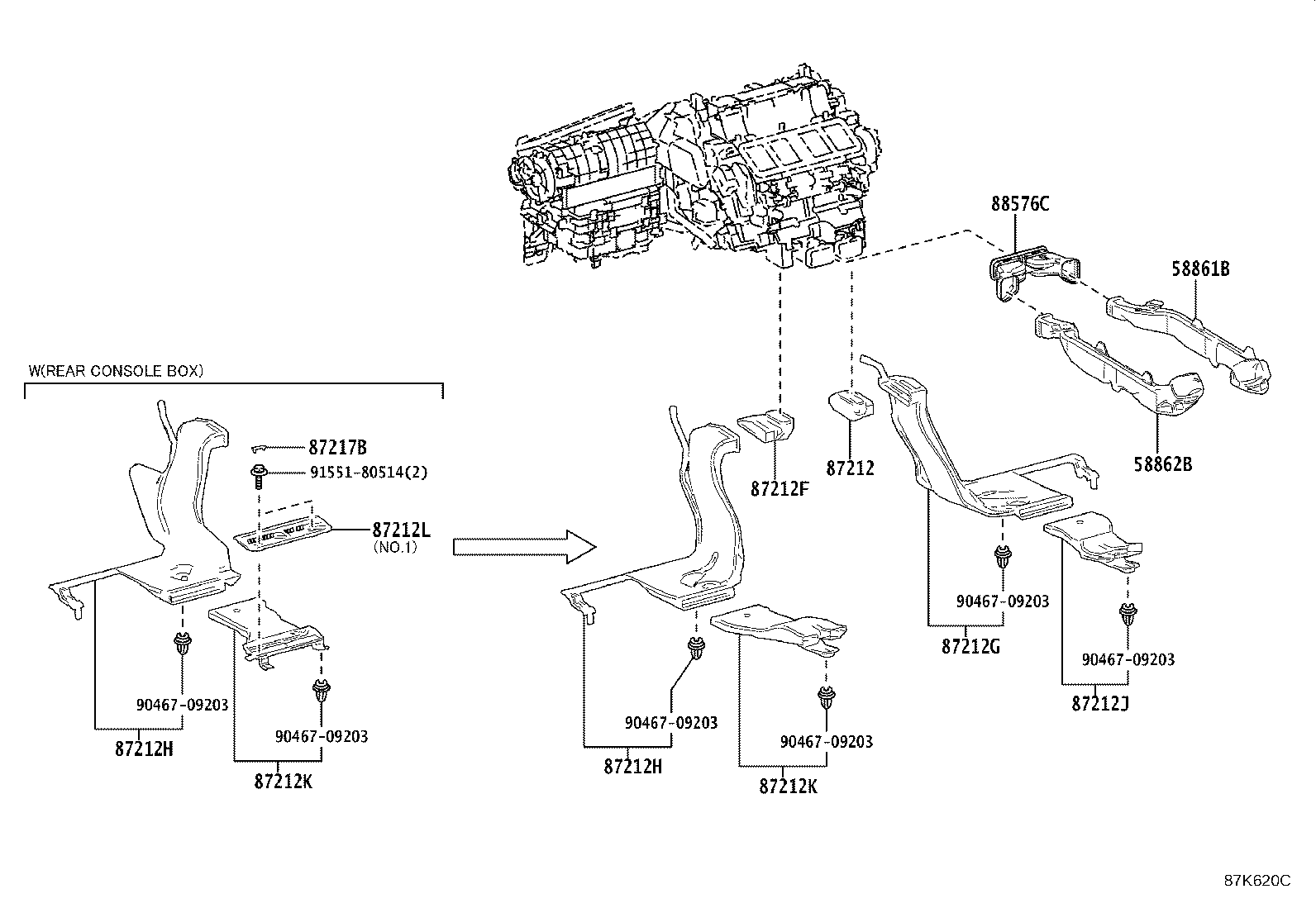

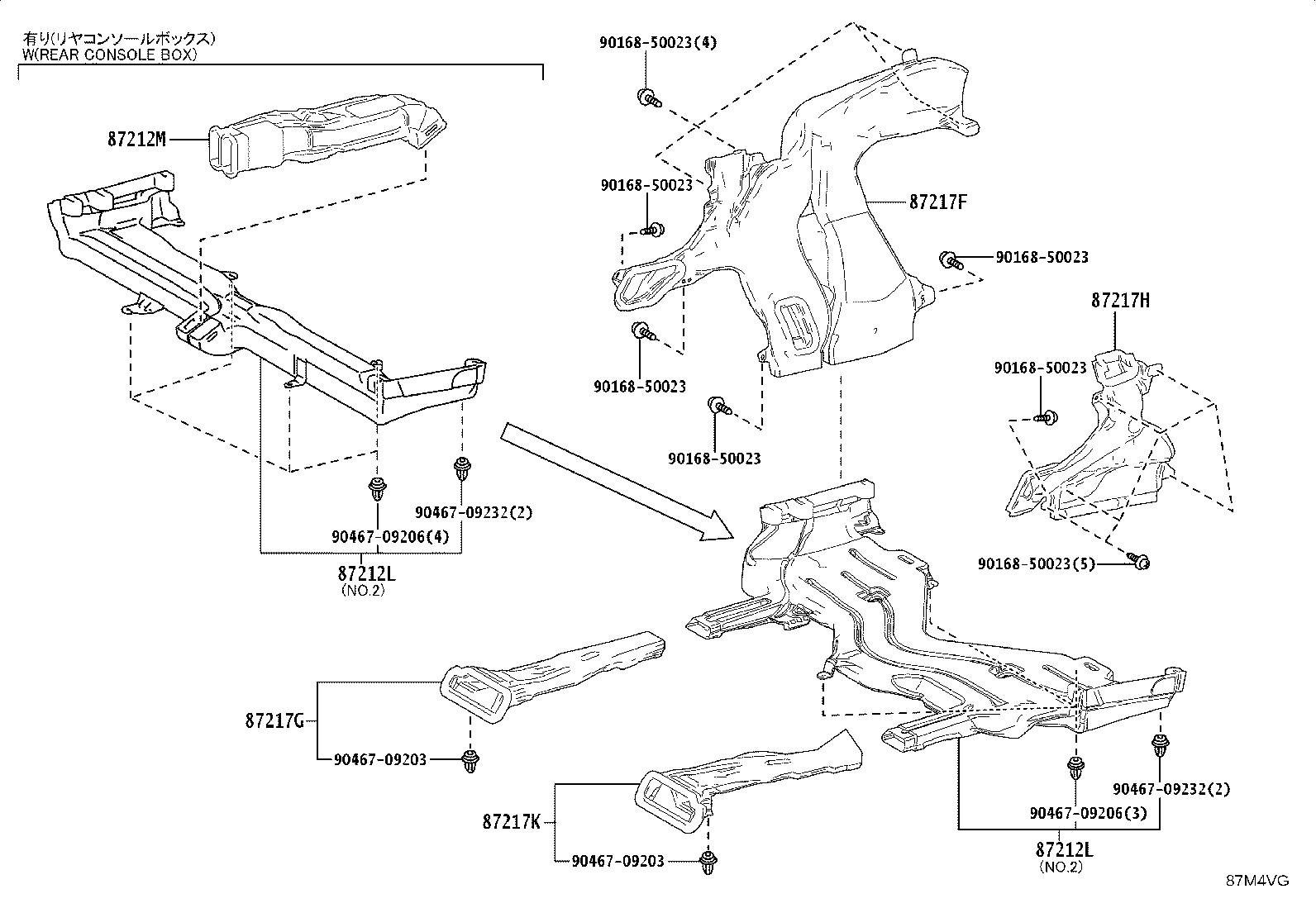

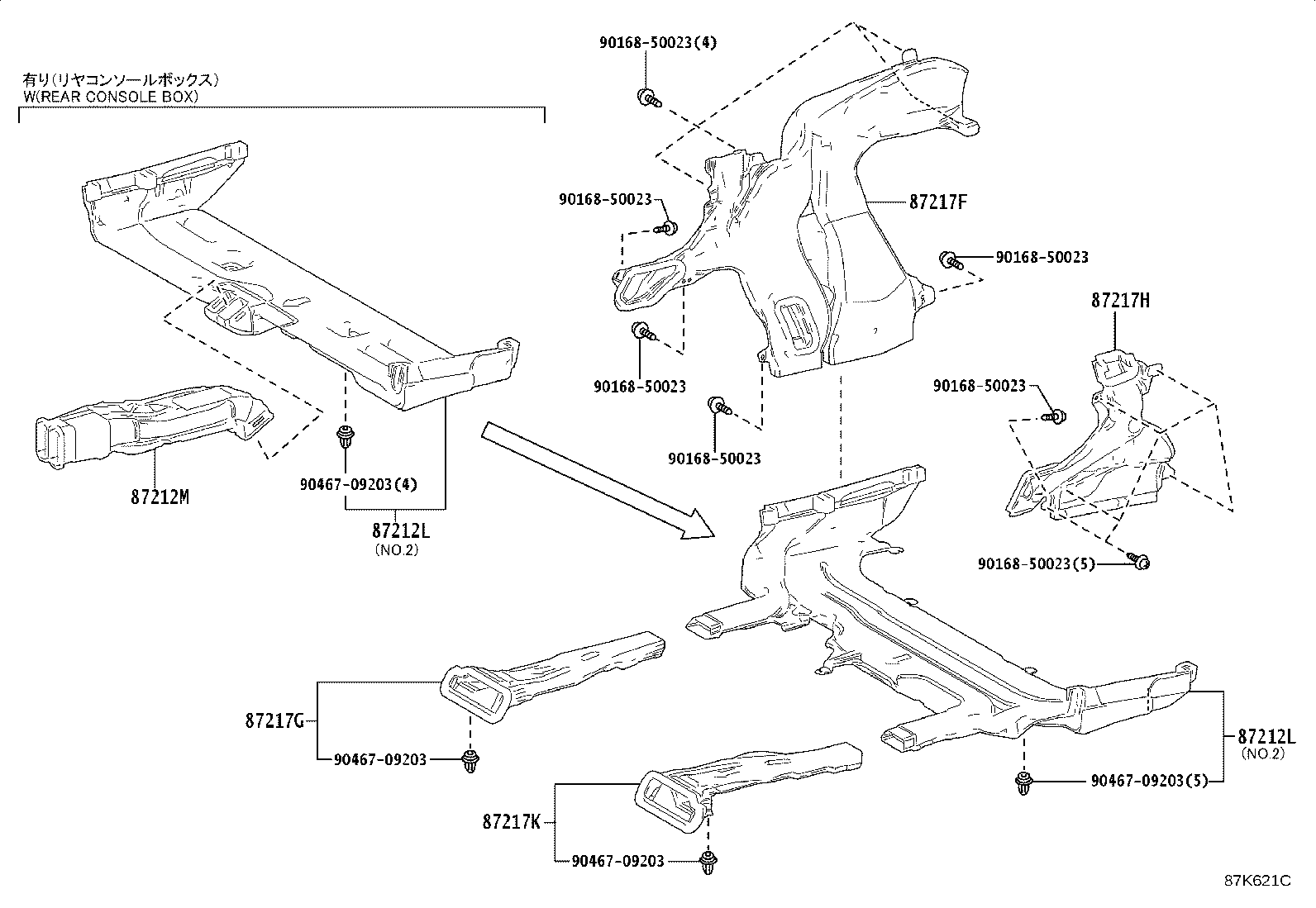

Figure 87K613E 87K613E 2021-12 → — Figure 87K633B 87K633B 2021-12 → — Figure 87K616 87K616 2021-12 → — Figure 87K615 87K615 2021-12 → — Figure 87K619D 87K619D 2021-12 → — Figure 87K620C 87K620C 2021-12 → — Figure 87K621C 87K621C 2021-12 → — Figure 87M4VG 87M4VG 2024-11 → — Figure 87K624A 87K624A 2021-12 → — Figure 87K626C 87K626C 2021-12 → — Figure 87K625B 87K625B 2021-12 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55844 Duct, Heater TO Register, NO.2
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
84012A Control & Panel Sub-assy, Integration
84113K Bracket, Switch, RH
84113L Bracket, Switch, LH
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87212K Duct, Air, Rear NO.6
87212L Duct, Air, Rear NO.7
87212M Duct, Air, Rear NO.8
87217B Plug, Air Duct
87217D Duct, Air, Rear Side NO.1
87217E Duct, Air, Rear Side NO.2
87217F Duct, Air, Rear Side NO.3
87217G Duct, Air, Rear Side NO.4
87217H Duct, Air, Rear Side NO.5
87217K Duct, Air, Rear Side NO.6
87217N Duct, Air, Rear Side NO.9
88505 Duct Sub-assy,Air Conditioner
88566R Duct, Air, Rear Roof NO.1
88566S Duct, Air, Rear Roof NO.2
88566T Duct, Air, Rear Roof NO.3
88566U Duct, Air, Rear Roof NO.4
88570B Grille Assy, Air Outlet, NO.1
88570D Grille Assy, Air Outlet, NO.2
88570E Grille Assy, Air Outlet
88570H Grille Assy, Air Outlet, NO.3
88570J Grille Assy, Air Outlet, NO.4
88570K Grille Assy, Air Outlet, NO.5
88570L Grille Assy, Air Outlet, NO.6
88571A Grille, Air Outlet
88571B Grille, Air Outlet
88576C Duct, Cooler Air, NO.1
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625U Thermistor, Cooler (DUCT SENSOR)
88897P Aspirator
88898J Sensor, Smog Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
