Heating & Air Conditioning - Water Piping

40 part groups · 12 illustrations

Illustrations

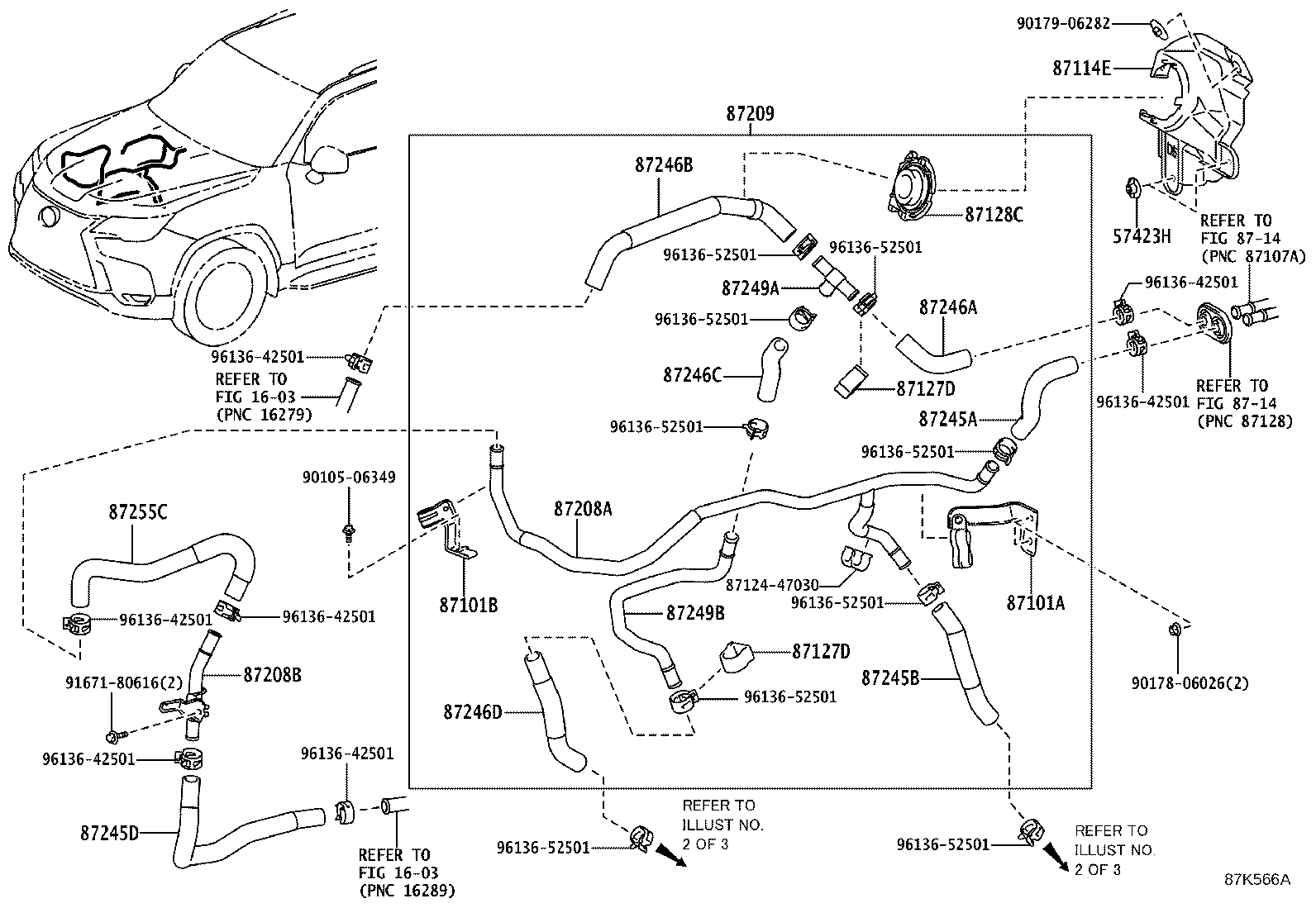

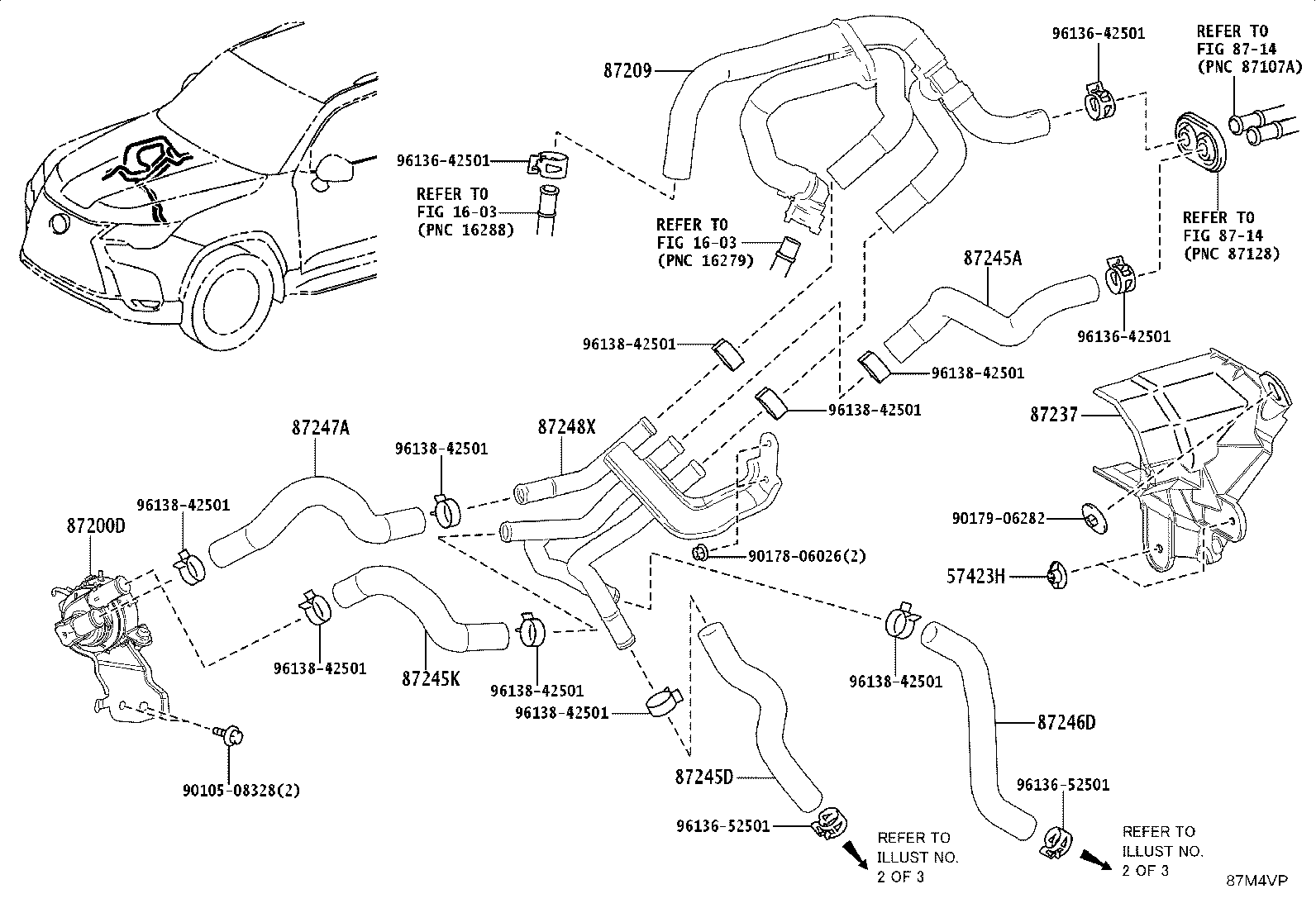

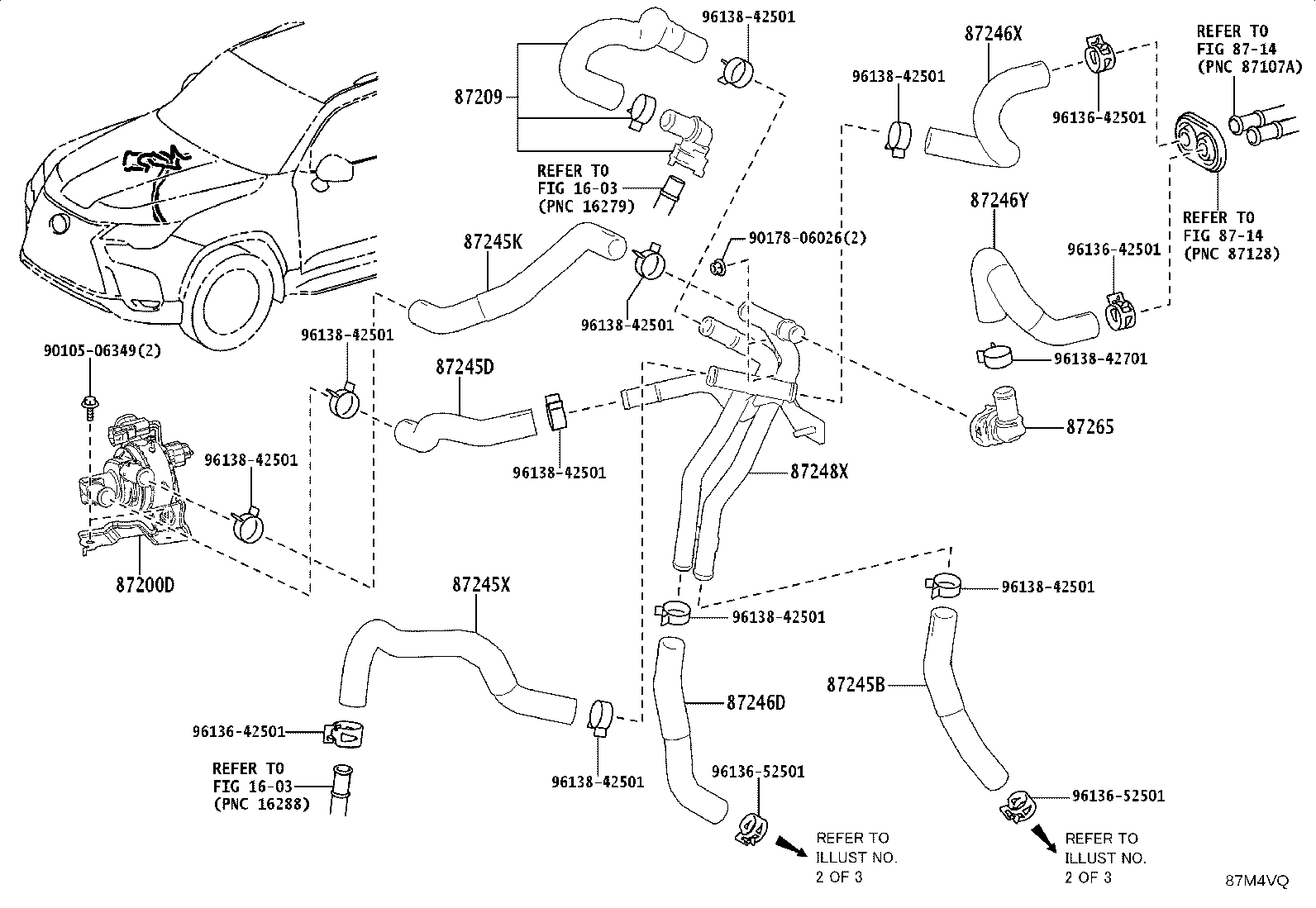

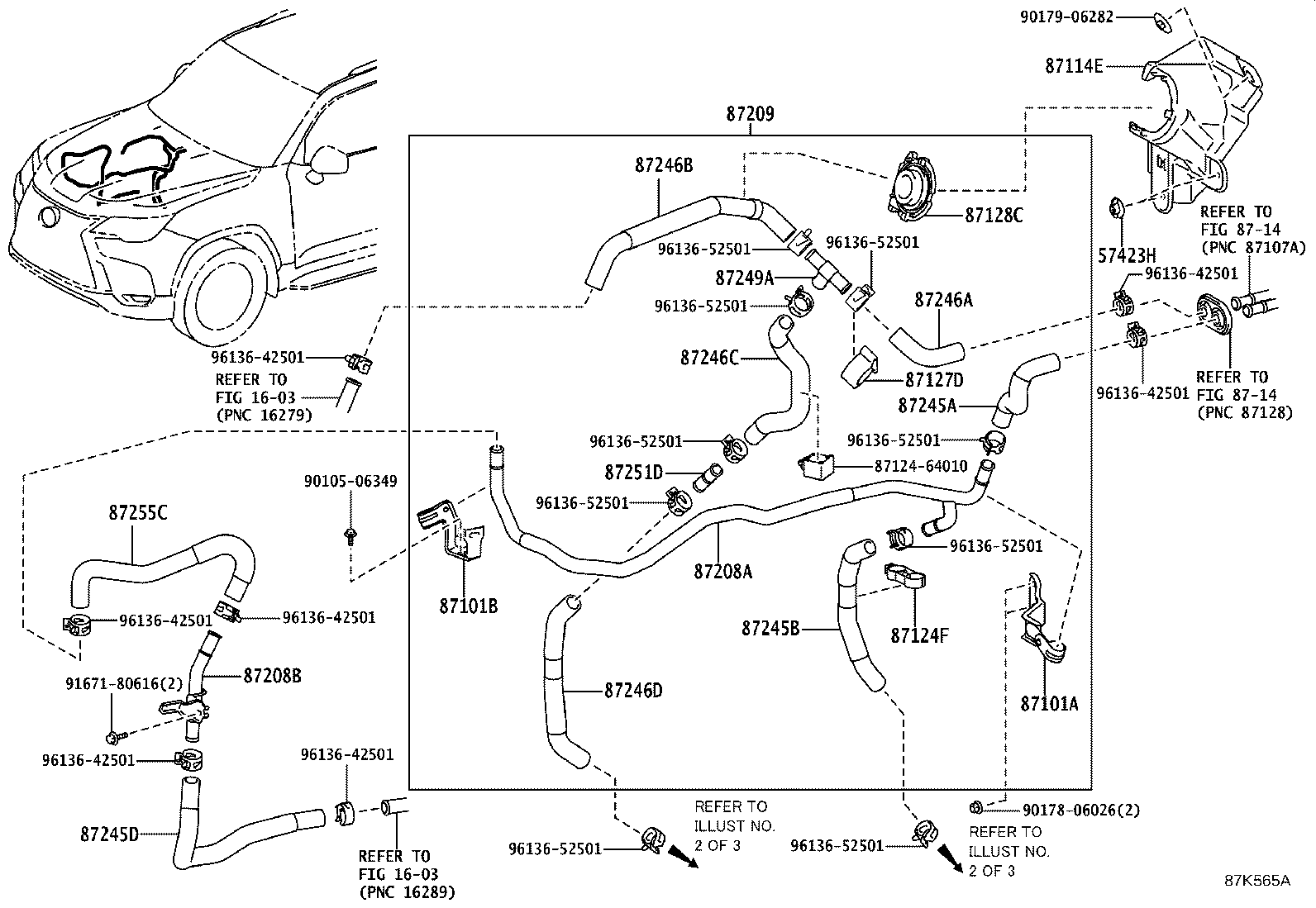

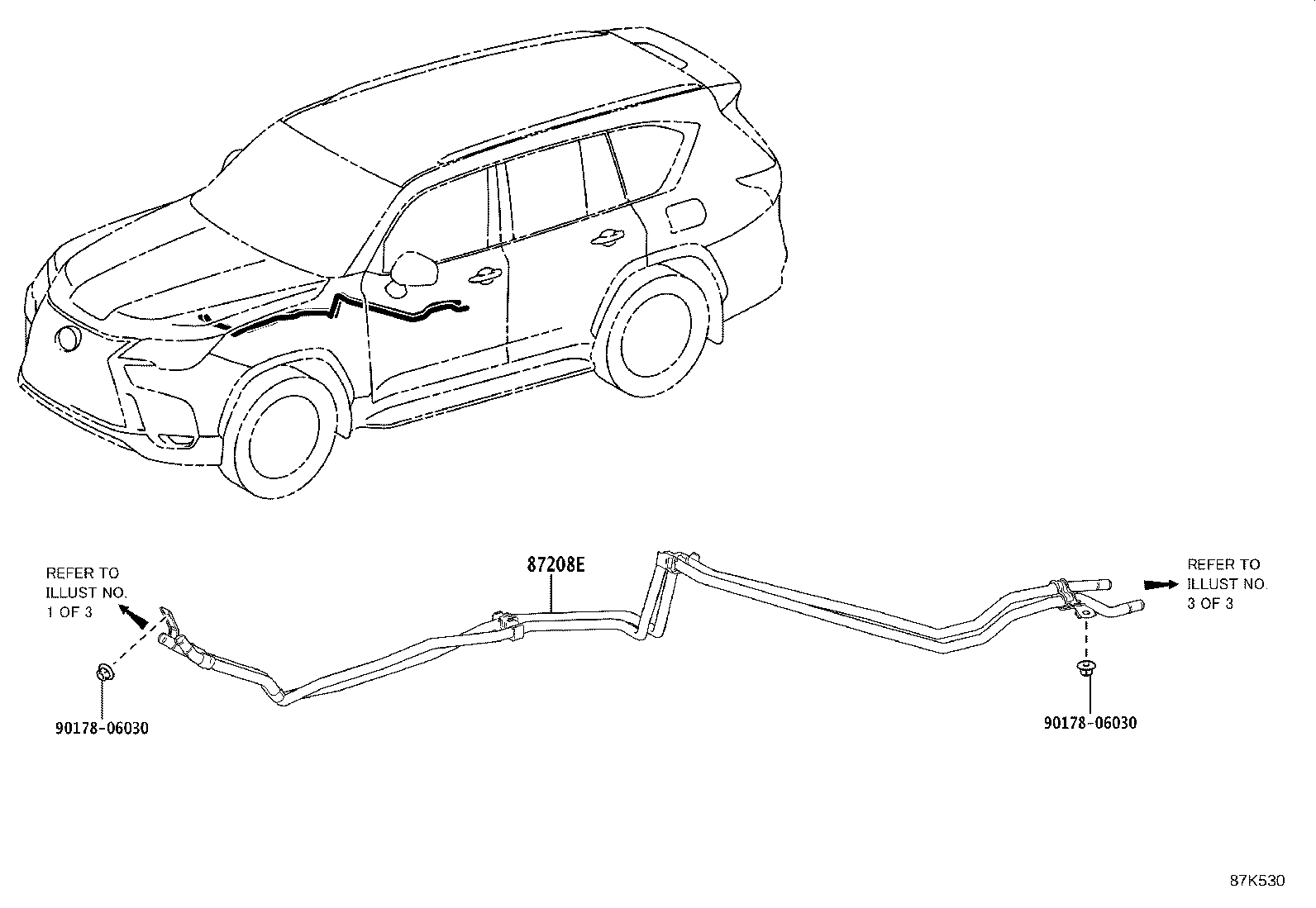

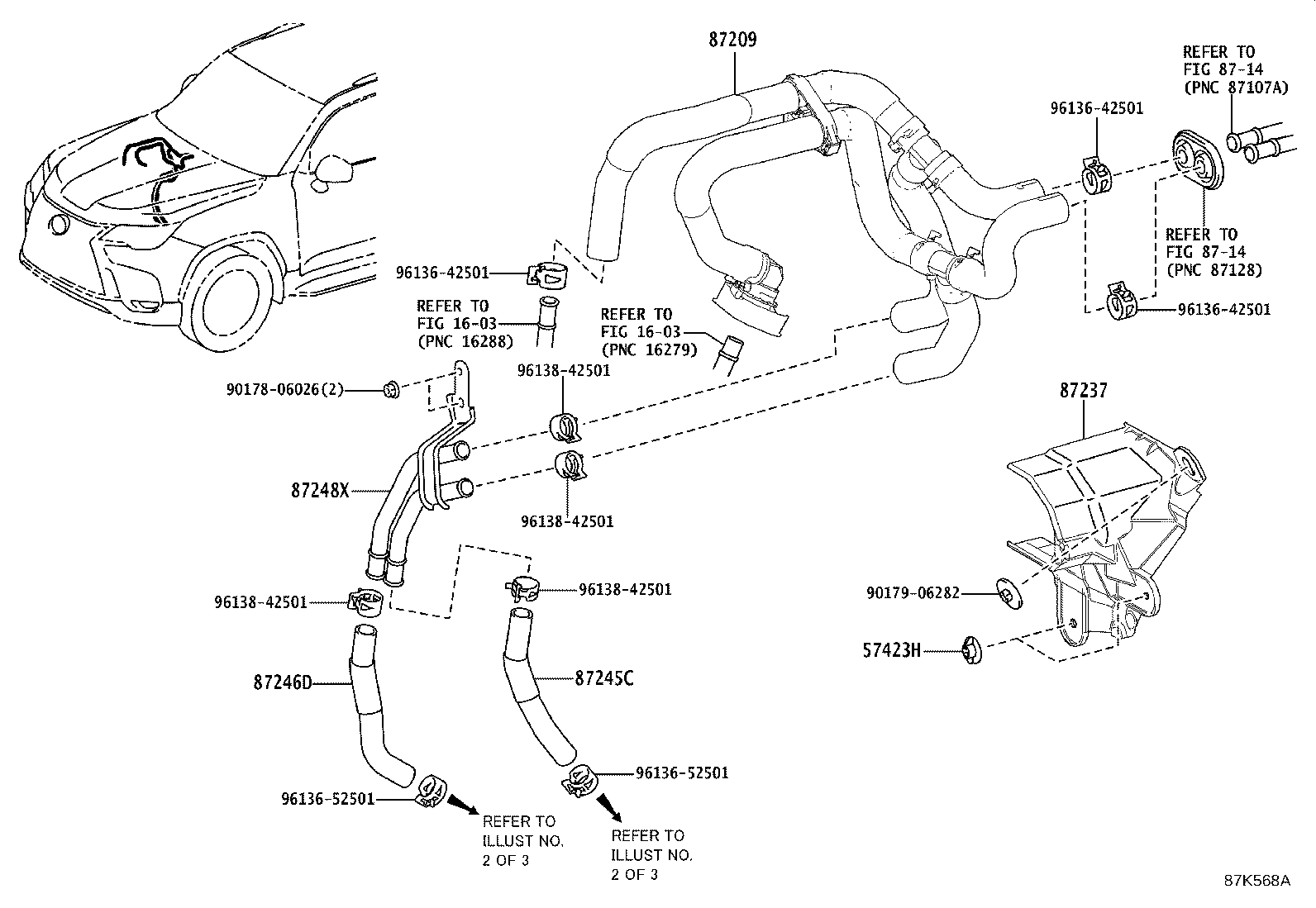

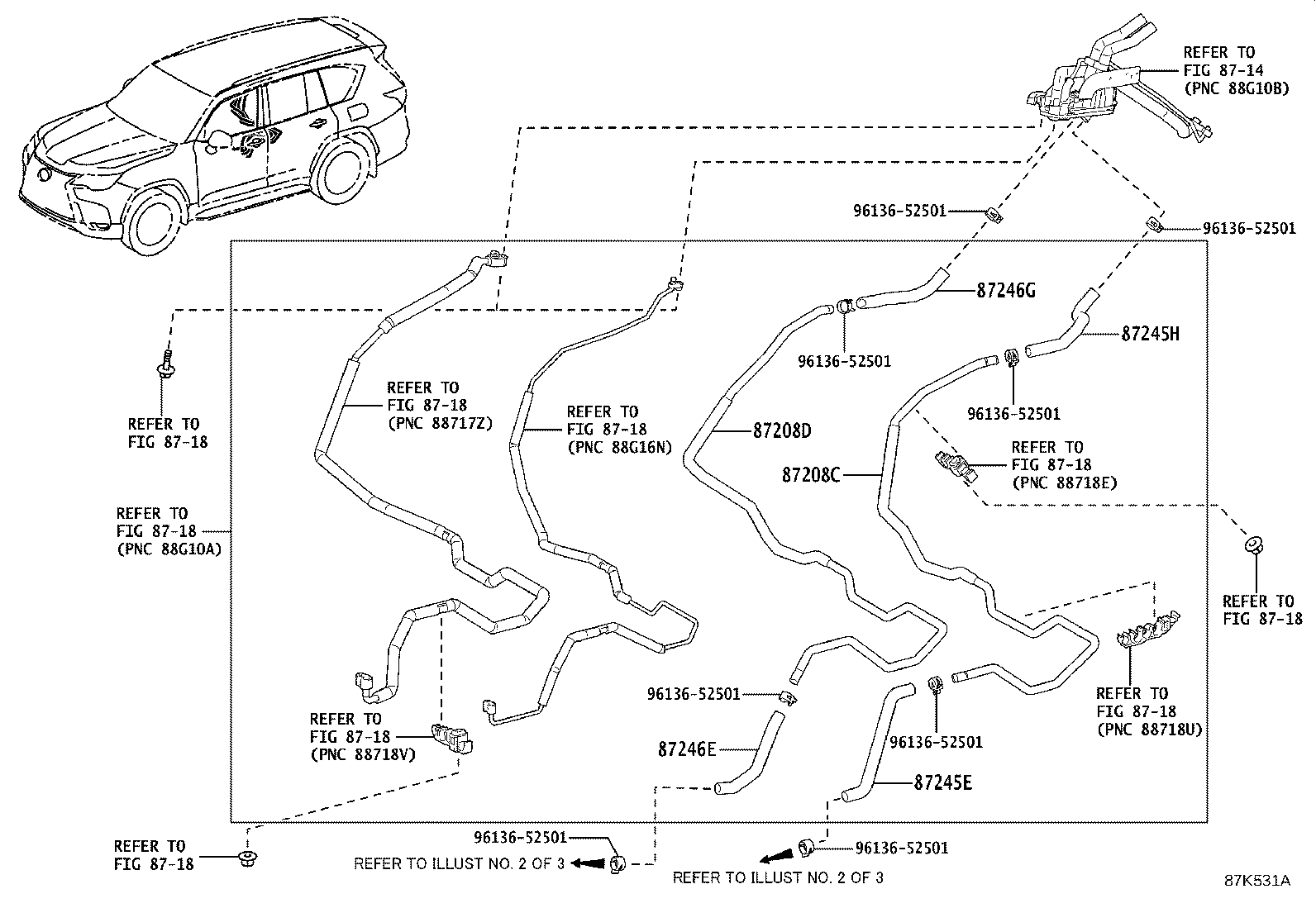

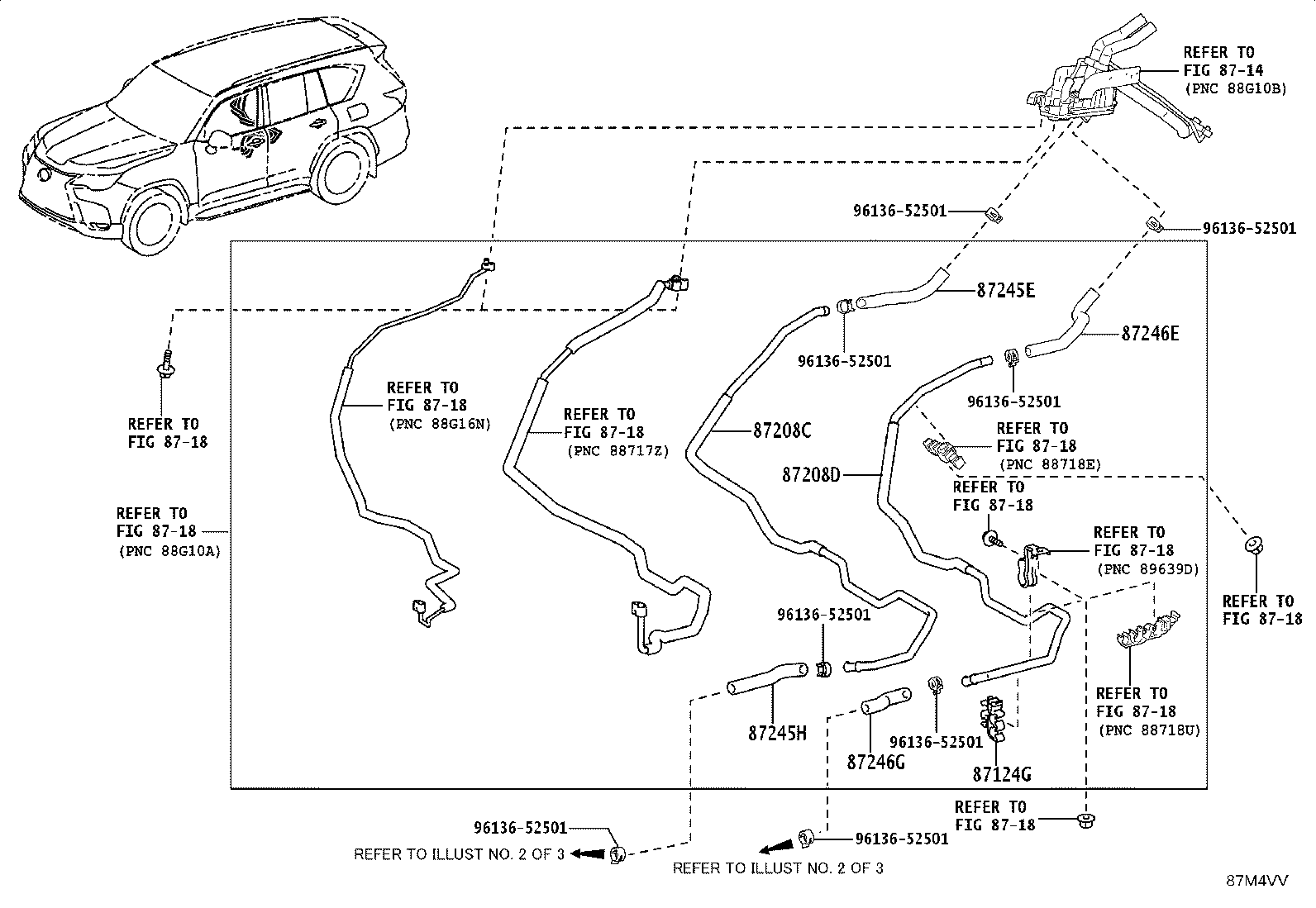

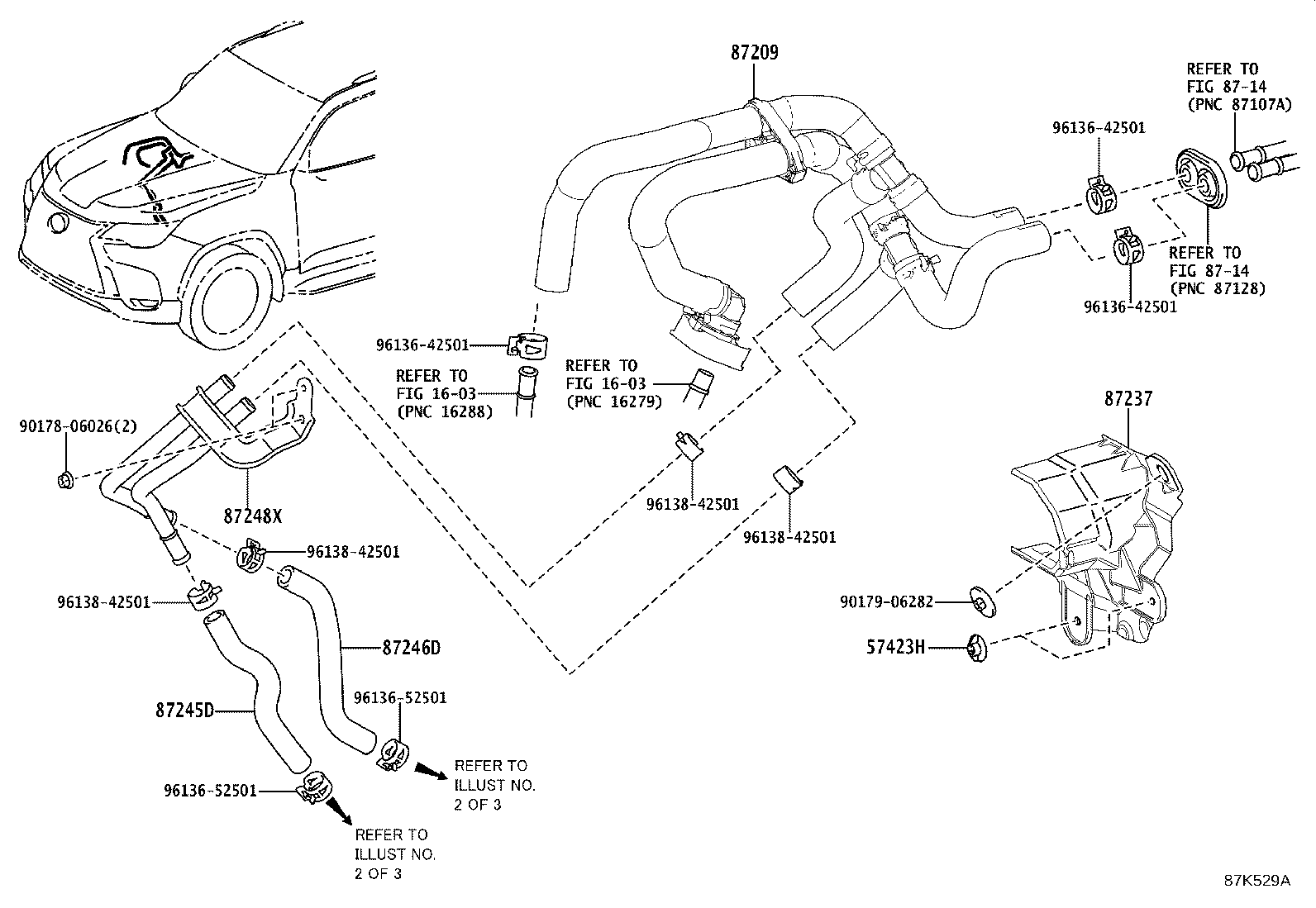

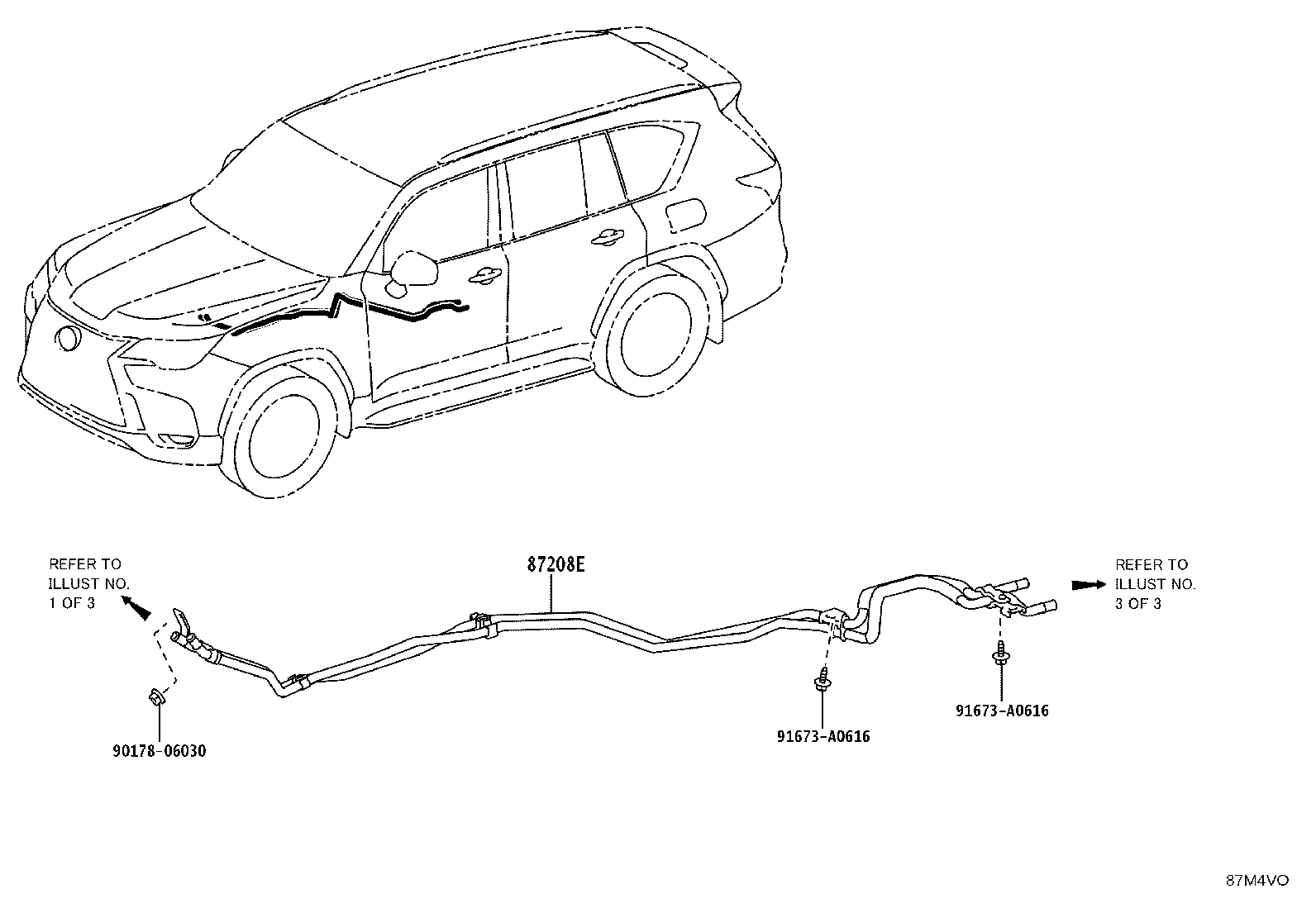

Figure 87K564A 87K564A 2021-12 → — Figure 87K565A 87K565A 2021-12 → — Figure 87K566A 87K566A 2021-12 → — Figure 87K567A 87K567A 2021-12 → — Figure 87K568A 87K568A 2021-12 → — Figure 87K529A 87K529A 2021-12 → — Figure 87M4VQ 87M4VQ 2024-11 → — Figure 87M4VP 87M4VP 2024-11 → — Figure 87K530 87K530 2021-12 → — Figure 87M4VO 87M4VO 2024-11 → — Figure 87K531A 87K531A 2021-12 → — Figure 87M4VV 87M4VV 2024-11 → —

Part groups

PNCDescription
57423H Clamp, Heater Cover
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87114E Cover, Heater, NO.1
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87127D Packing, Heater Hose, NO.1
87128C Grommet, Heater, NO.2
87200D Accessory Assy, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87209 Hose Sub-assy, Water
87237 Cover, Heater Piping
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87245K Hose, Heater Water, Inlet K
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87246X Hose, Heater Water
87246Y Hose, Heater Water
87247A Hose, Heater Water, A
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251D Joint, Water, NO.1
87255C Hose, Rear Heater Water Inlet, C
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
