Toyota Lexus LX450

1995-11 → 1998-01 · chassis FZJ80 · catalogue 792440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

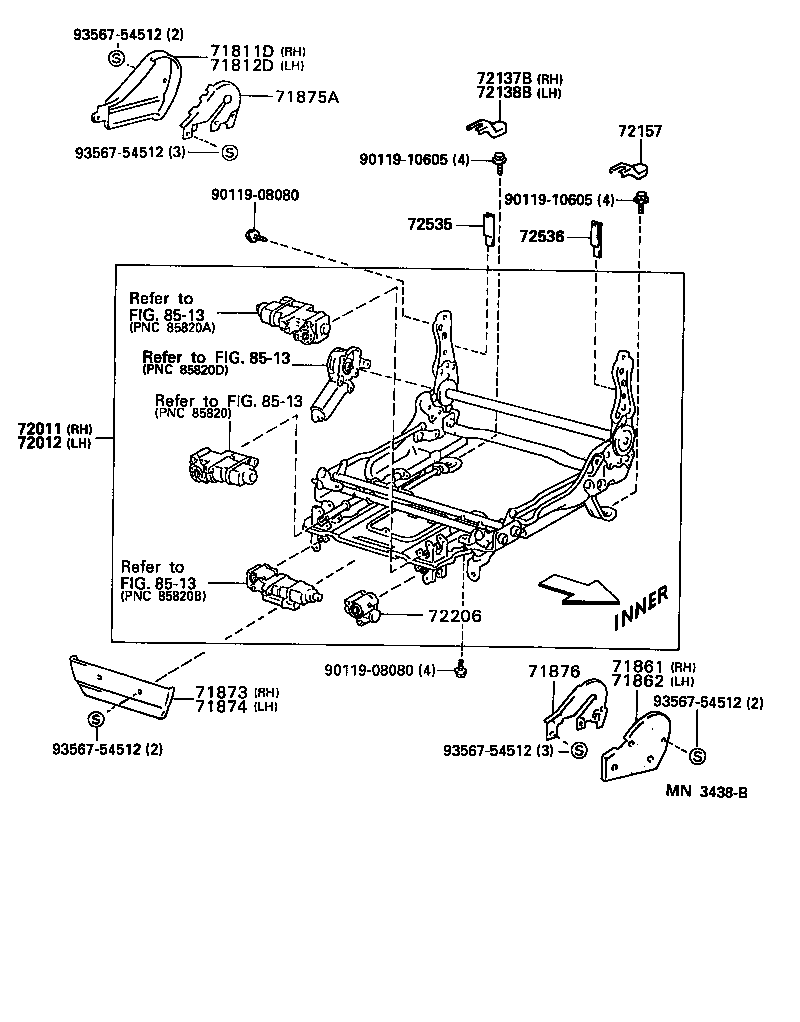

Exploded illustration MN3438B 9356754512 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (1 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (1 parts) 72137B — COVER, SEAT TRACK, RH (1 parts) 72138B — COVER, SEAT TRACK, LH (1 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 72157 — COVER, SEAT TRACK BRACKET, INNER (1 parts) 9356754512 — not listed in this catalogue 9011910605 — not listed in this catalogue 9011908080 — not listed in this catalogue 9011910605 — not listed in this catalogue 72535 — GUIDE, RECLINING PAWL, RH (1 parts) 72536 — GUIDE, RECLINING PAWL, LH (1 parts) 8513 — not listed in this catalogue 8513 — not listed in this catalogue 8513 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (1 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (1 parts) 8513 — not listed in this catalogue 72206 — HOUSING SUB-ASSY, POWER SEAT, NO.2 (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (1 parts) 9011908080 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (1 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 9356754512 — not listed in this catalogue 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 9356754512 — not listed in this catalogue 9356754512 — not listed in this catalogue
MN3438B · 16 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-60030-E1 note Shield, Front Seat Cushion, RH
1995-11 → 1998-01 ended
FZJ80 —
71812D — Shield, Front Seat Cushion, LH
71812-60030-E1 note Shield, Front Seat Cushion, LH
1995-11 → 1998-01 ended
FZJ80 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-60030-E1 note Shield, Front Seat Cushion, Inner RH
1995-11 → 1998-01 ended
FZJ80 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-60030-E1 note Shield, Front Seat Cushion, Inner LH
1995-11 → 1998-01 ended
FZJ80 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-60010 Shield, Front Seat Cushion, Lower RH
1995-11 → 1998-01 ended
FZJ80 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-60010 Shield, Front Seat Cushion, Lower LH
1995-11 → 1998-01 ended
FZJ80 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-60010-E1 note Cover, Reclining Adjuster Inside, RH
1995-11 → 1998-01 ended
FZJ80 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-60010-E1 note Cover, Reclining Adjuster Inside, LH
1995-11 → 1998-01 ended
FZJ80 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-60110 Adjuster Sub-assy, Front Seat, Outer RH
1995-11 → 1998-01 ended
FZJ80 —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72020-60021 Adjuster Sub-assy, Front Seat, Outer LH
1995-11 → 1998-01 ended
FZJ80 —
72137B — Cover, Seat Track, RH
72137-60012-E0 note Cover, Seat Track, RH
1995-11 → 1998-01 ended
FZJ80 —
72138B — Cover, Seat Track, LH
72138-60012-E0 note Cover, Seat Track, LH
1995-11 → 1998-01 ended
FZJ80 —
72157 — Cover, Seat Track Bracket, Inner
72157-60041-E1 note Cover, Seat Track Bracket, Inner
1995-11 → 1998-01 ended
FZJ80 —
72206 — Housing Sub-assy, Power Seat, NO.2
72206-30040 Housing Sub-assy, Power Seat, NO.2
1995-11 → 1998-01 ended
FZJ80 —
72535 — Guide, Reclining Pawl, RH
72535-60030 Guide, Reclining Pawl, RH
1995-11 → 1998-01 ended
FZJ80 —
72536 — Guide, Reclining Pawl, LH
72536-60010 Guide, Reclining Pawl, LH
1995-11 → 1998-01 ended
FZJ80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
