Toyota Lexus LX450
1995-11 → 1998-01 · chassis FZJ80 · catalogue 792440 · United States
Discontinued model
Data version 1998-01

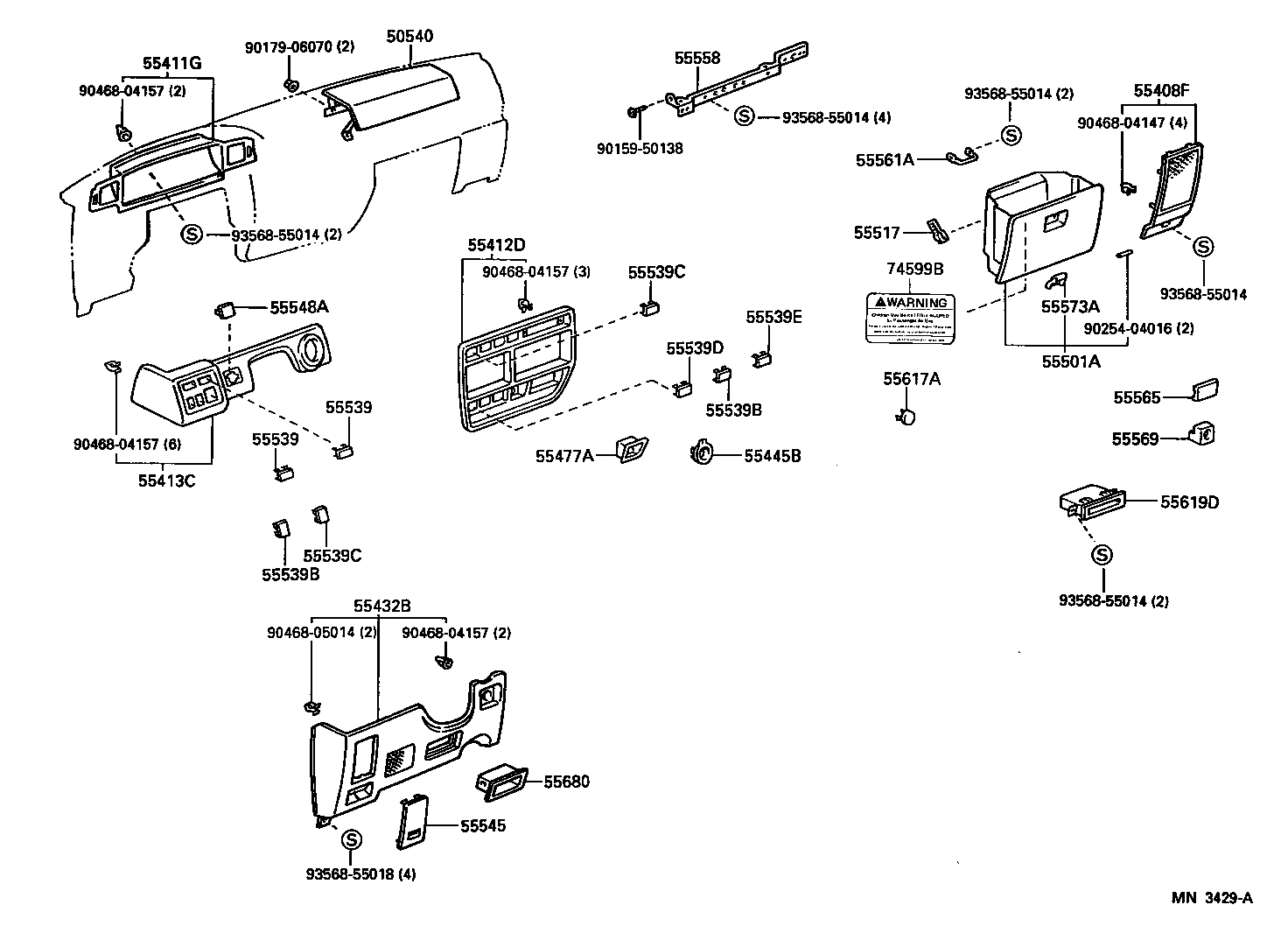

Instrument Panel & Glove Compartment
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307 | Reinforcement Sub-assy, Instrument Panel, Lower |
| 55313 | Panel, Instrument, Lower LH |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55356A | Plate, Instrument Panel, Lower |
| 55358A | Protector, Edge, NO.2 |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55382 | Bracket, Finish Panel Mounting, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413C | Panel, Instrument Cluster Finish, Center NO.2 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55445B | Plate, Instrument Panel Finish |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55501A | Door Sub-assy, Glove Compartment |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55558 | Reinforcement, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55573A | Hinge, Glove Compartment Door |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55617A | Cover, Throttle Knob Hole |
| 55619D | Cover, Cup Holder Hole |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950 | Nozzle Assy, Defroster |
| 55955A | Plate, Defroster Nozzle Opening, NO.1 |
| 55956D | Plate, Defroster Nozzle Opening, NO.2 |
| 55959 | Cover, Defroster Nozzle Opening, NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971A | Duct, Side Defroster Nozzle, NO.1 |
| 55972 | Duct, Side Defroster Nozzle, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74681C | Retainer, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
