Toyota Lexus LX450

1995-11 → 1998-01 · chassis FZJ80 · catalogue 792440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 2 illustrations

Illustrations

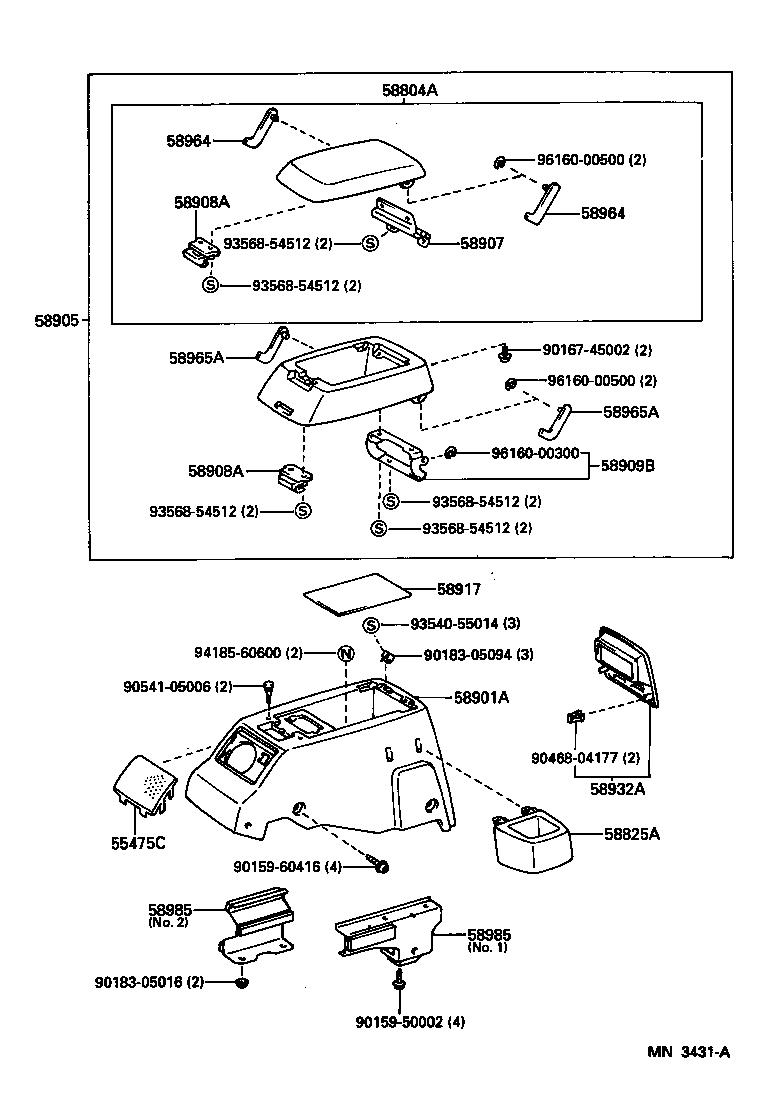

Figure MN3430 MN3430 1995-11 → — Figure MN3431A MN3431A 1995-11 → —

Part groups

PNCDescription
55395B Bracket, Console Mounting, NO.3
55396B Bracket, Console Mounting, NO.4
55398A Bracket, Console Mounting, NO.6
55475C Panel, Instrument Panel Speaker, NO.4
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58821C Panel, Console, Upper
58825A Pocket, Console Box
58871 Cushion, Console Box
58872A Cushion, Console Box, NO.2
58875 Spacer, Console Box
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58909B Retainer Sub-assy, Console Compartment
58917 Mat, Box Bottom, NO.2
58932A Garnish, Rear Console Box
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58985 Retainer, Console Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
