Toyota Lexus LX450
1995-11 → 1998-01 · chassis FZJ80 · catalogue 792440 · United States
Discontinued model
Data version 1998-01

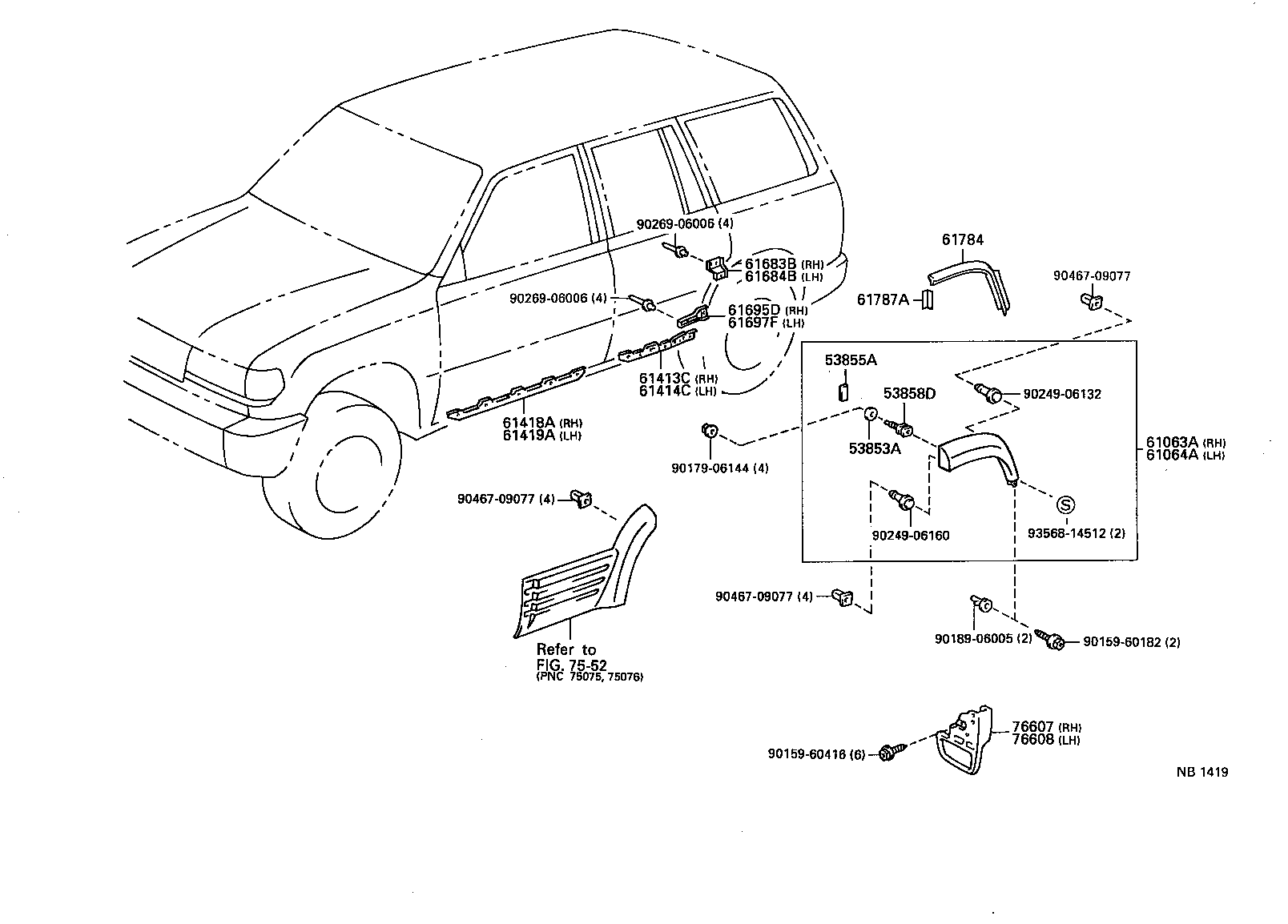

Side Member
57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53853A | Pad, Rear Wheel Opening Extension |
| 53855A | Pad, Rear Wheel Opening Extension, NO.3 |
| 53858D | Bolt, Wheel Opening |
| 60131 | Pillar Sub-assy, Center Body, NO.2 RH |
| 60132 | Pillar Sub-assy, Center Body, NO.2 LH |
| 61021C | Pillar Sub-assy, Front Body, RH |
| 61022C | Pillar Sub-assy, Front Body, LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61031 | Extension Sub-assy, Quarter Panel, Rear Lower RH |
| 61032 | Extension Sub-assy, Quarter Panel, Rear Lower LH |
| 61063A | Extension Sub-assy, Rear Wheel Opening, NO.2 RH |
| 61064A | Extension Sub-assy, Rear Wheel Opening, NO.2 LH |
| 61181A | Bracket, Instrument Side, RH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61261 | Channel, Roof Drip, RH |
| 61262 | Channel, Roof Drip, LH |
| 61267A | Channel, Roof Drip Side, Rear RH |
| 61268 | Channel, Roof Drip Side, Rear LH |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61413C | Reinforcement, Rocker Panel, NO.2 RH |
| 61414C | Reinforcement, Rocker Panel, NO.2 LH |
| 61418A | Reinforcement, Rocker Panel, RH |
| 61419A | Reinforcement, Rocker Panel, LH |
| 61605E | Panel, Quarter, RH |
| 61606E | Panel, Quarter, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61659B | Retainer, Rear Door Open Switch Set, RH |
| 61659C | Retainer, Rear Door Open Switch Set, LH |
| 61665B | Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH |
| 61666B | Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH |
| 61683B | Bracket, Rear Wheel Opening, NO.1 RH |
| 61684B | Bracket, Rear Wheel Opening, NO.1 LH |
| 61695D | Bracket, Rear Wheel Opening, NO.3 |
| 61697F | Bracket, Rear Wheel Opening, NO.3 LH |
| 61703G | Panel Sub-assy, Quarter, Inner RH |
| 61704H | Panel Sub-assy, Quarter, Inner LH |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61733A | Panel, Roof Side, Inner Front RH |
| 61734A | Panel, Roof Side, Inner Front LH |
| 61784 | Pad, Rear Wheel Opening Extension, NO.2 |
| 61787A | Pad, Rear Wheel Opening Extension, NO.3 Rear |
| 61824C | Pad, Noise Shutter, NO.1 |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
