Toyota Lexus LX450

1995-11 → 1998-01 · chassis FZJ80 · catalogue 792440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 8 illustrations

Illustrations

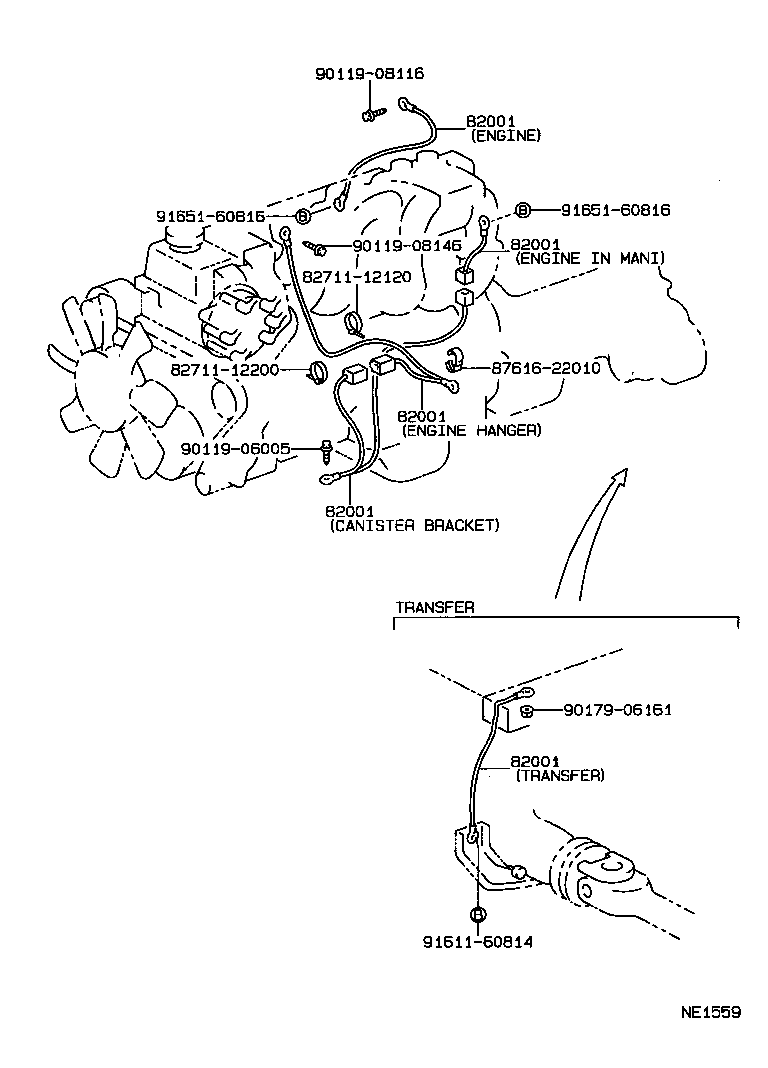

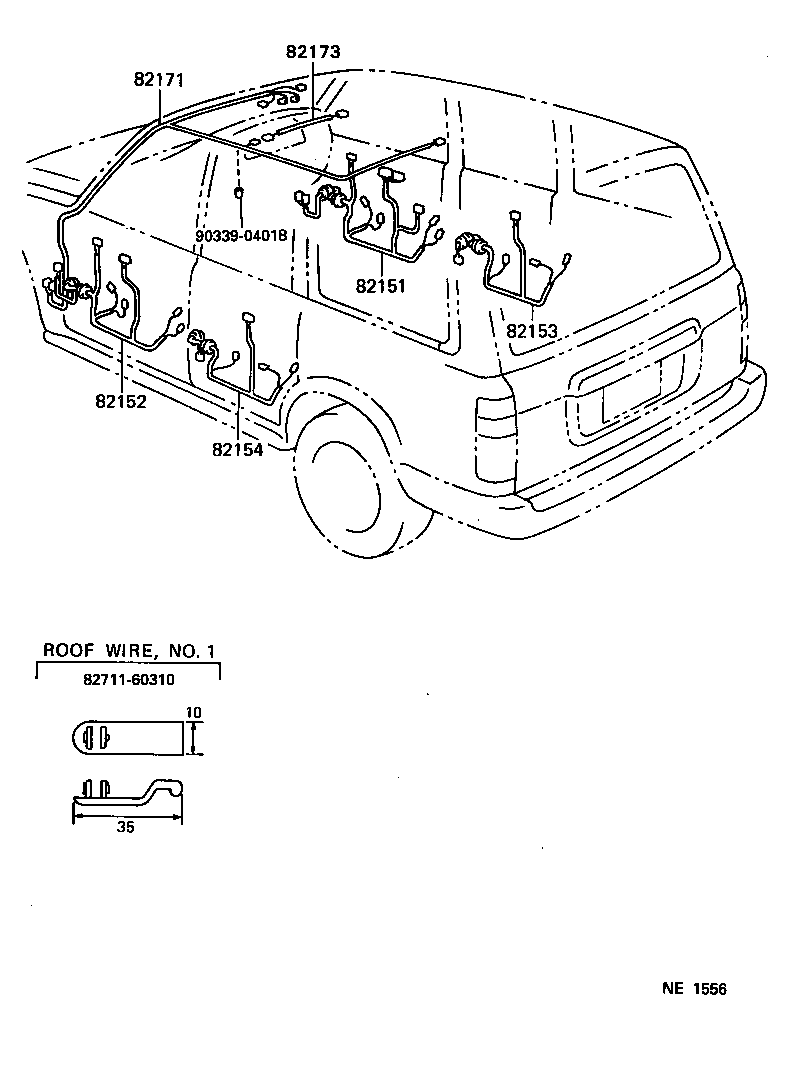

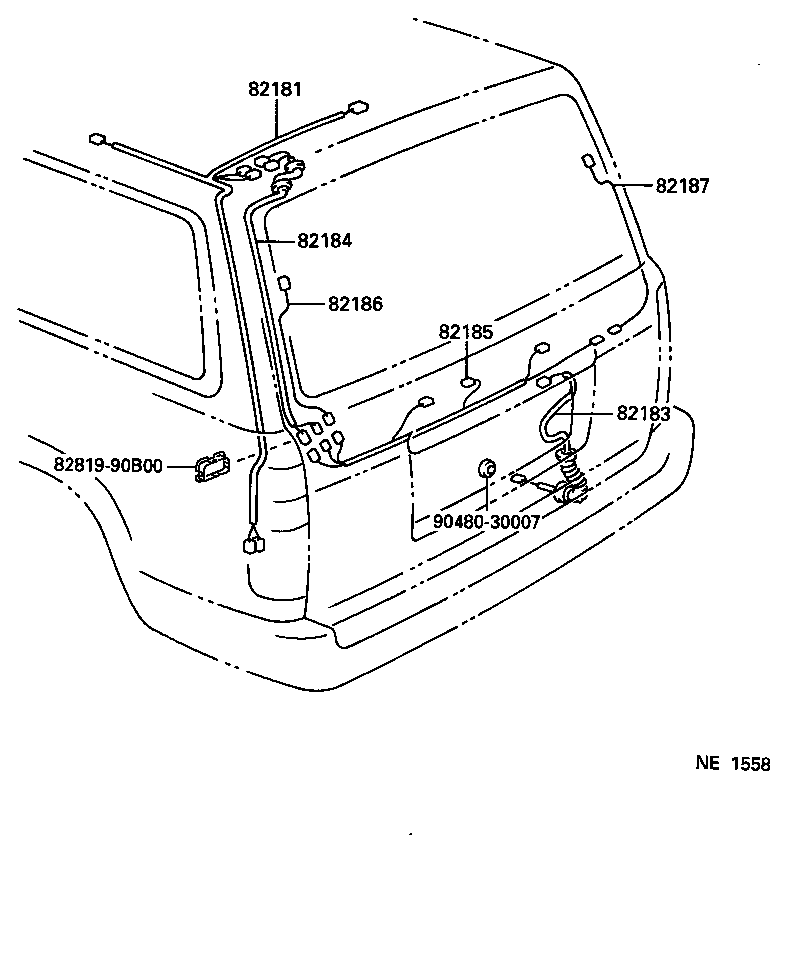

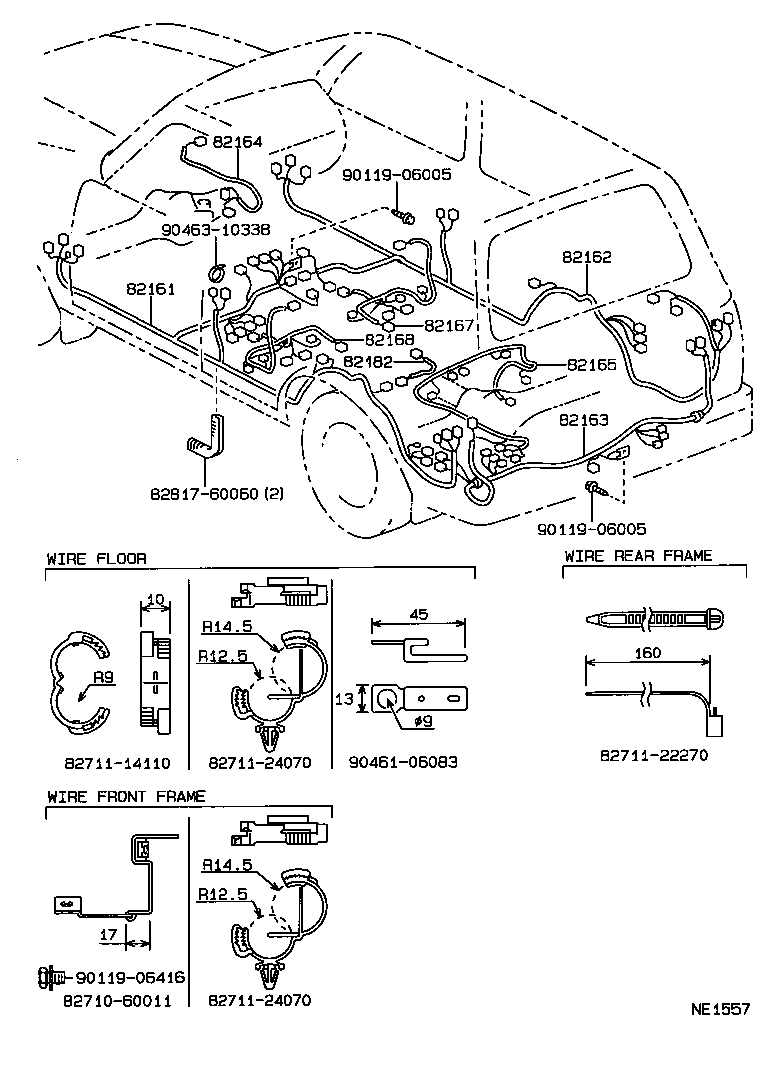

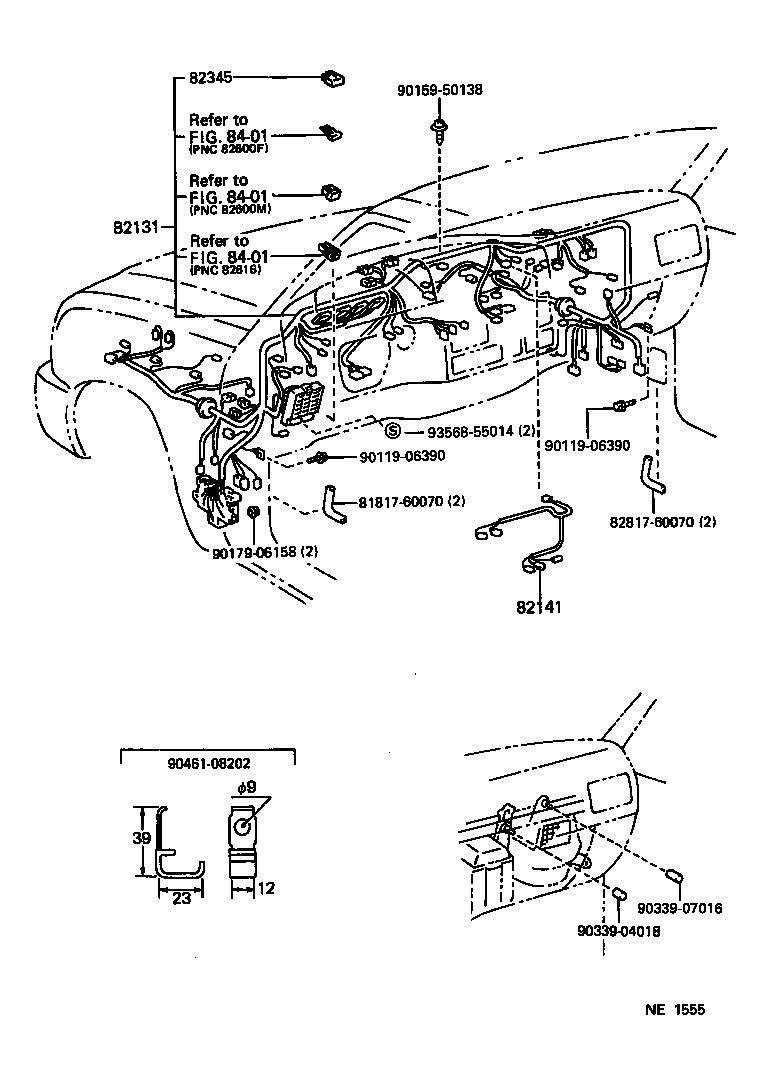

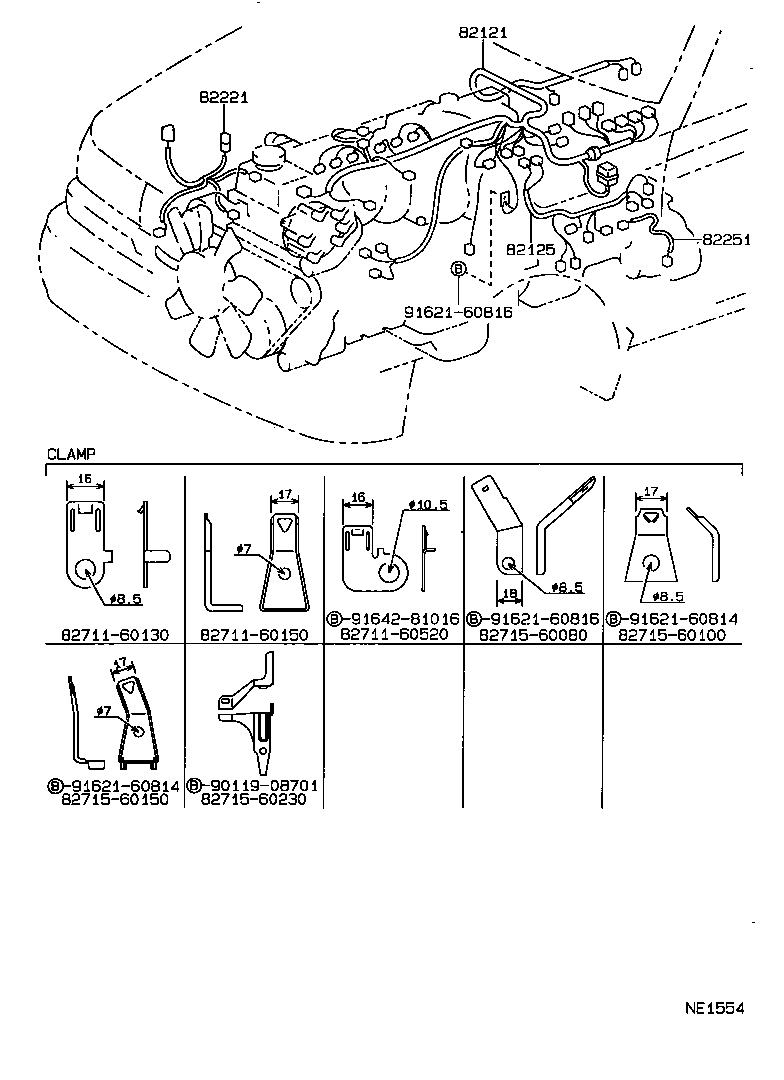

Figure NE1553 NE1553 1995-11 → — Figure NE1554 NE1554 1995-11 → — Figure NE1555 NE1555 1995-11 → — Figure NE1556 NE1556 1995-11 → — Figure NE1557 NE1557 1995-11 → — Figure NE1558 NE1558 1995-11 → — Figure NE1559 NE1559 1995-11 → — Figure 824133 824133 1995-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82345 Diode
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
