Toyota Lexus LX450

1995-11 → 1998-01 · chassis FZJ80 · catalogue 792440 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 4 illustrations

Illustrations

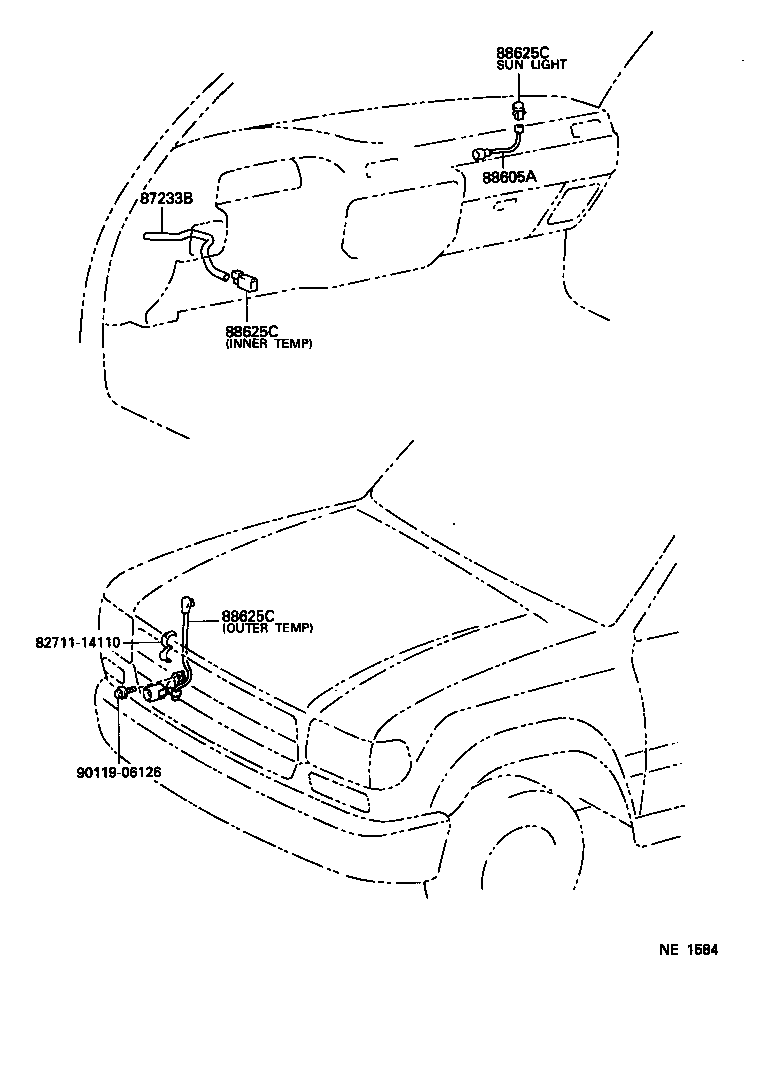

Figure NE1582 NE1582 1995-11 → — Figure NE1583A NE1583A 1995-11 → — Figure MEQ058A MEQ058A 1995-11 → — Figure NE1584 NE1584 1995-11 → —

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87233B Hose, Air
88605A Harness Sub-assy, Cooler Wiring
88625C Thermistor, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
