Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

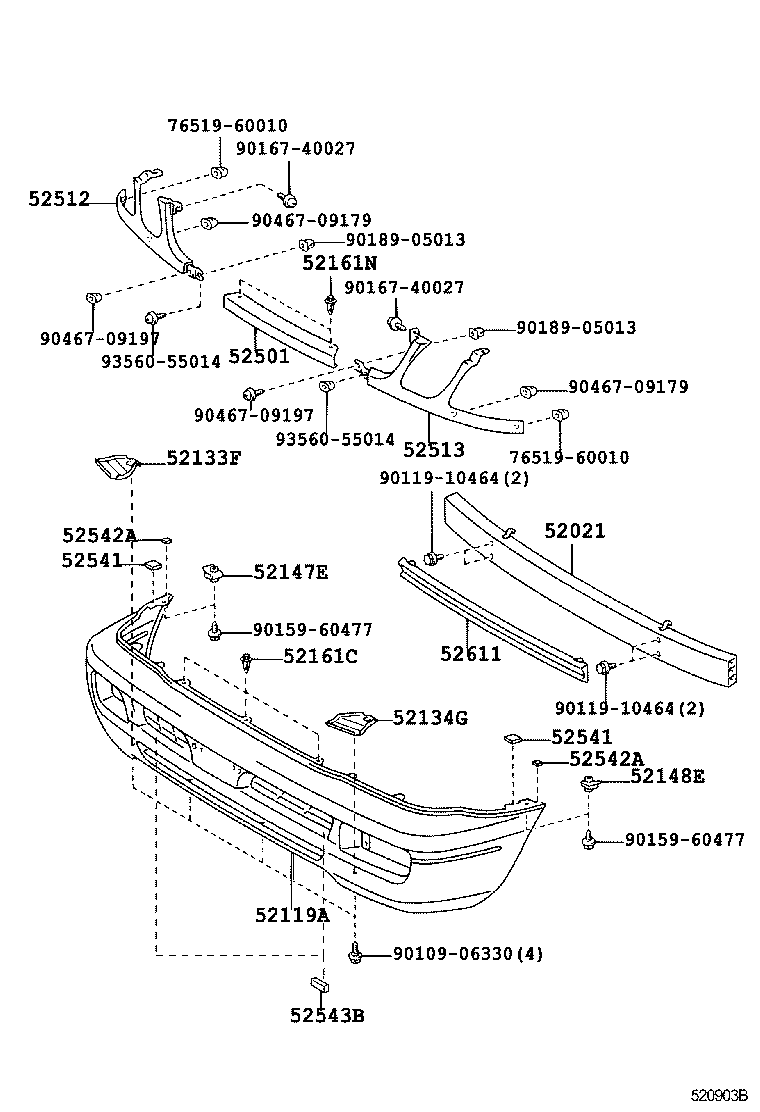

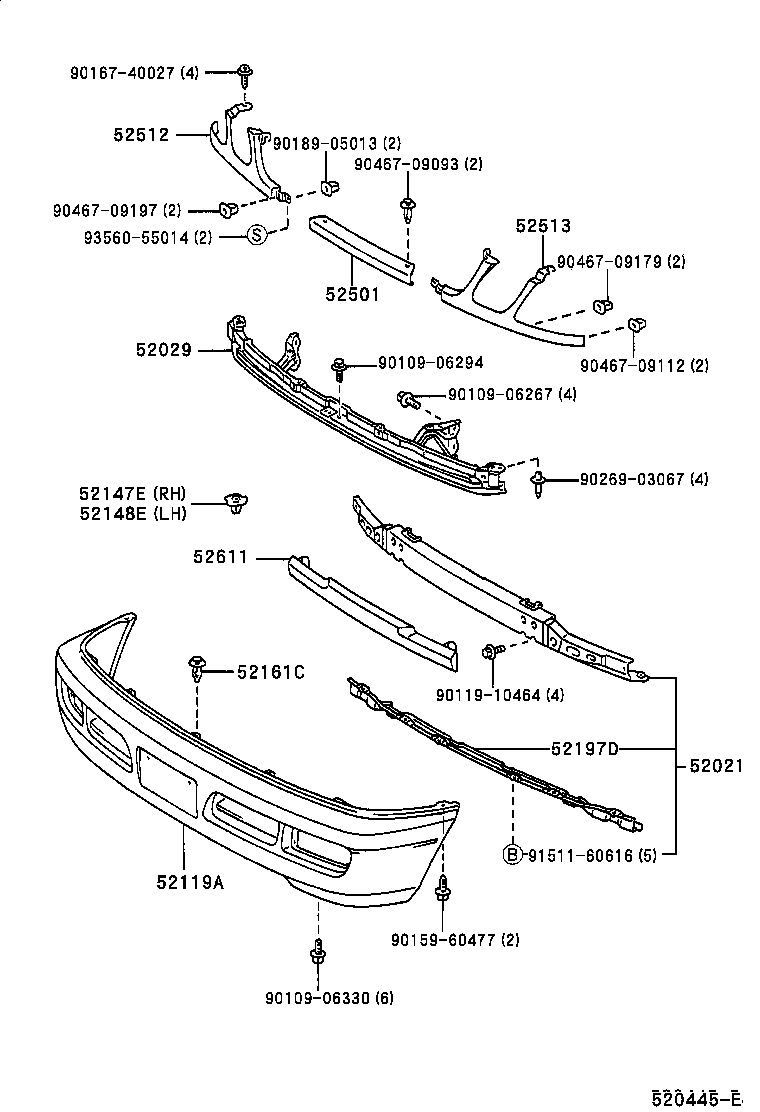

Figure 520358A 520358A 1998-01 → 1998-08 Figure 520445E 520445E 1998-08 → 2002-08 Figure 520903B 520903B 2002-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52119A Cover, Front Bumper
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52161N Piece, Filler Sub-assy, Front Bumper
52197D Reinforcement, Front Bumper Arm
52501 Filler Sub-assy, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52541 Protector, Front Bumper
52542A Protector, Front Bumper, NO.2
52543B Seal, Front Bumper
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
