Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

30 part groups · 4 illustrations

Illustrations

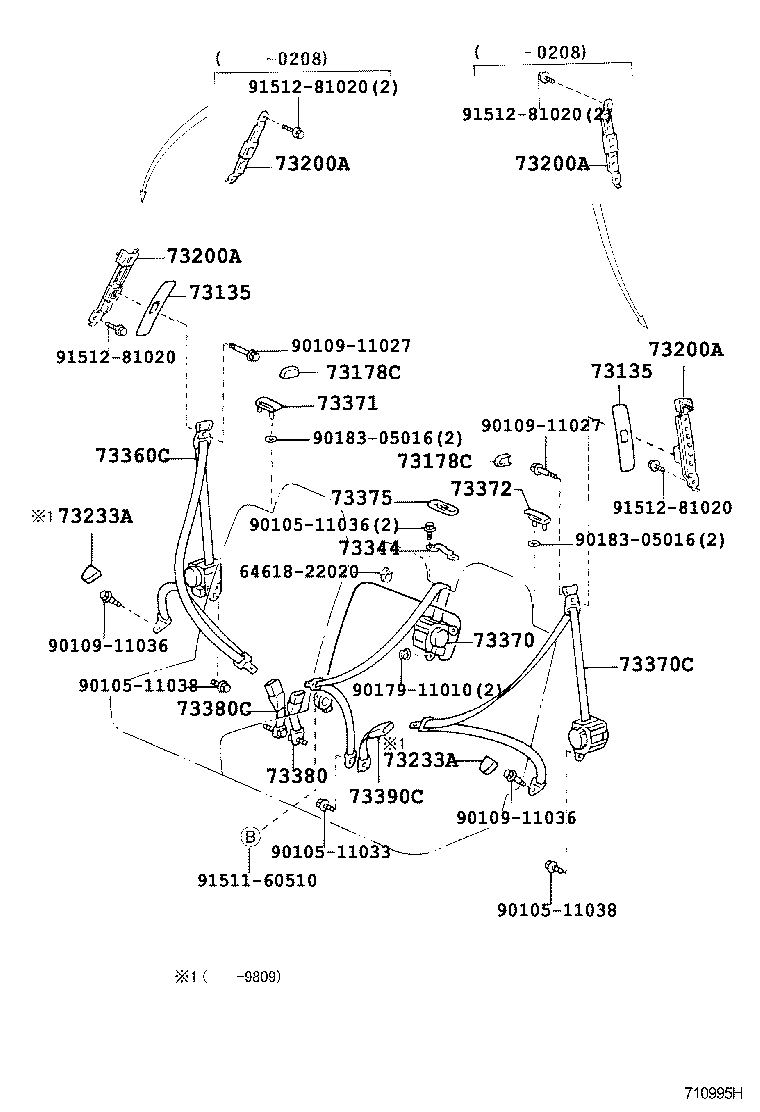

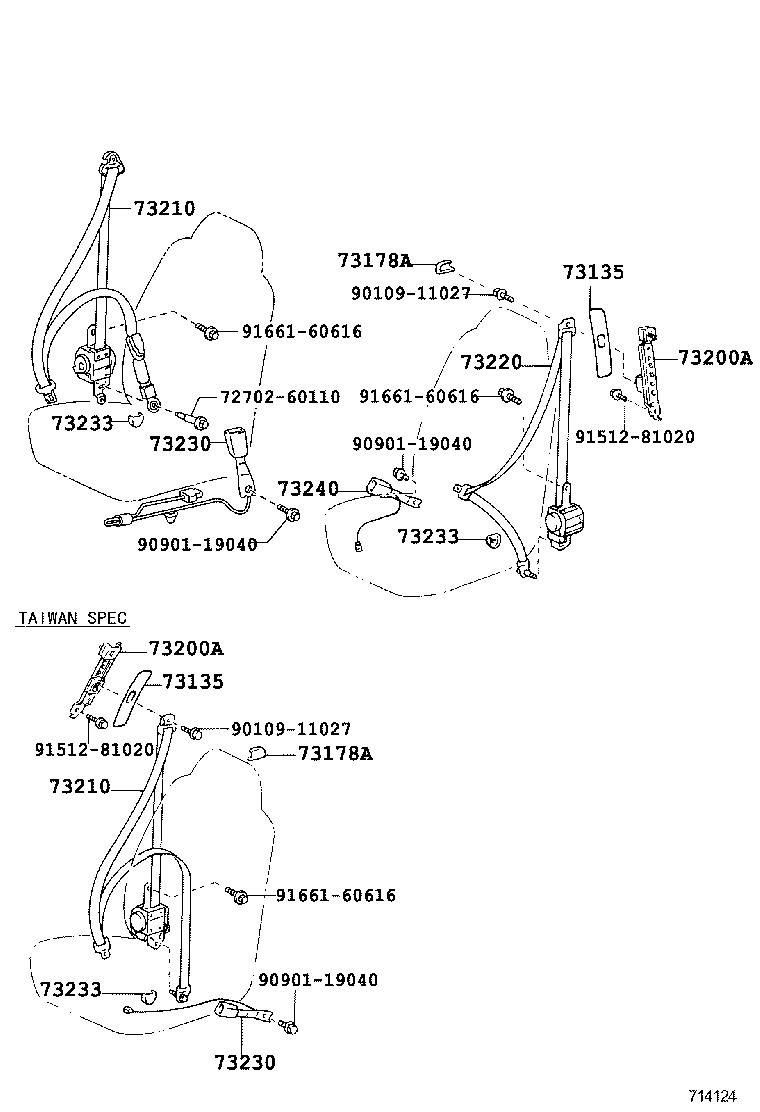

Figure 710990A 710990A 1998-01 → 2006-01 Figure 714124 714124 2006-01 → — Figure 710995H 710995H 1998-01 → — Figure 711022C 711022C 1998-01 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73233B Cover, Lap Belt Outer Anchor, Rear NO.2 Seat
73240 Belt Assy, Front Seat Inner, LH
73344 Guide, Rear Seat Shoulder Belt, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73375 Cover, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
