Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

18 part groups · 3 illustrations

Illustrations

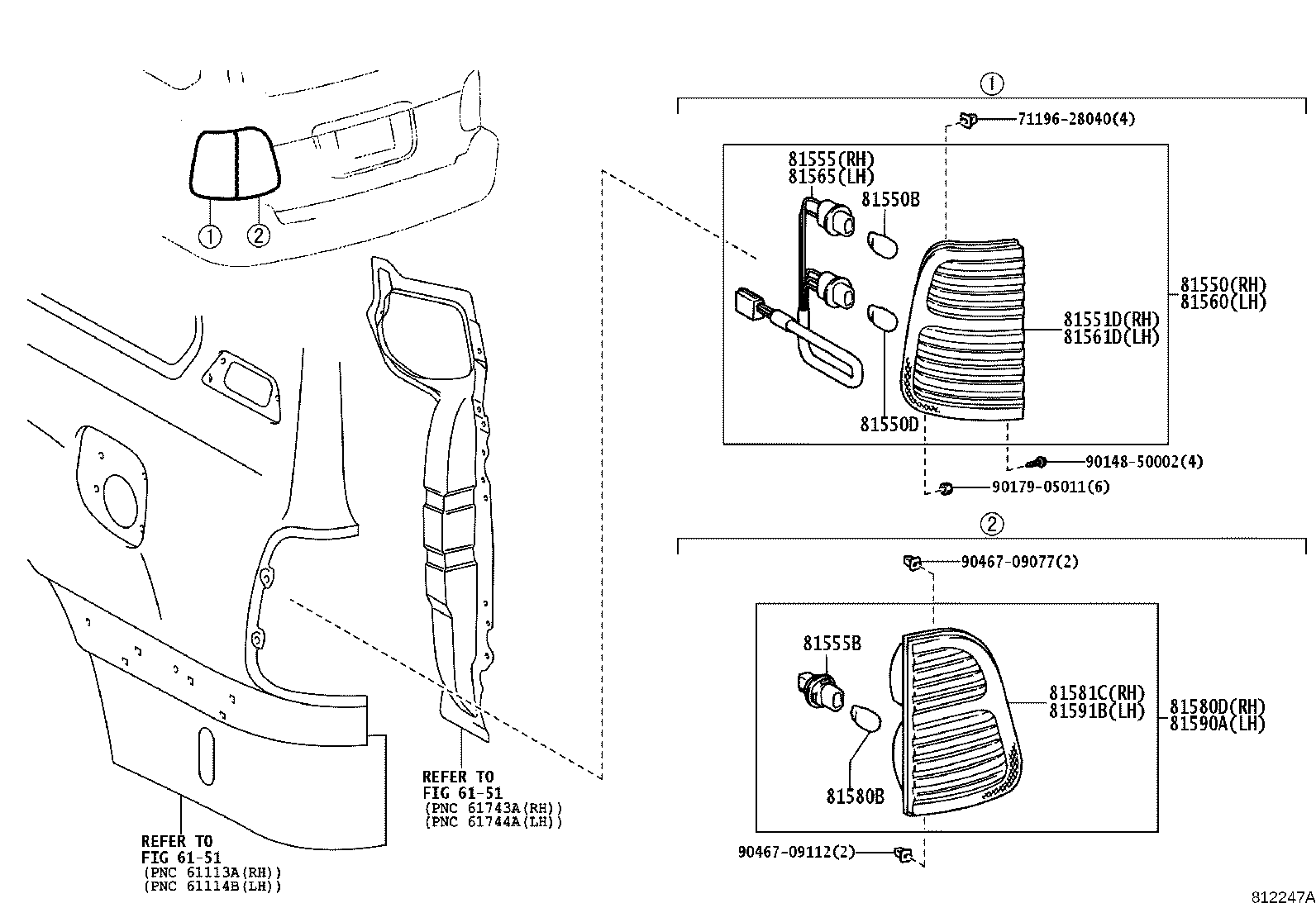

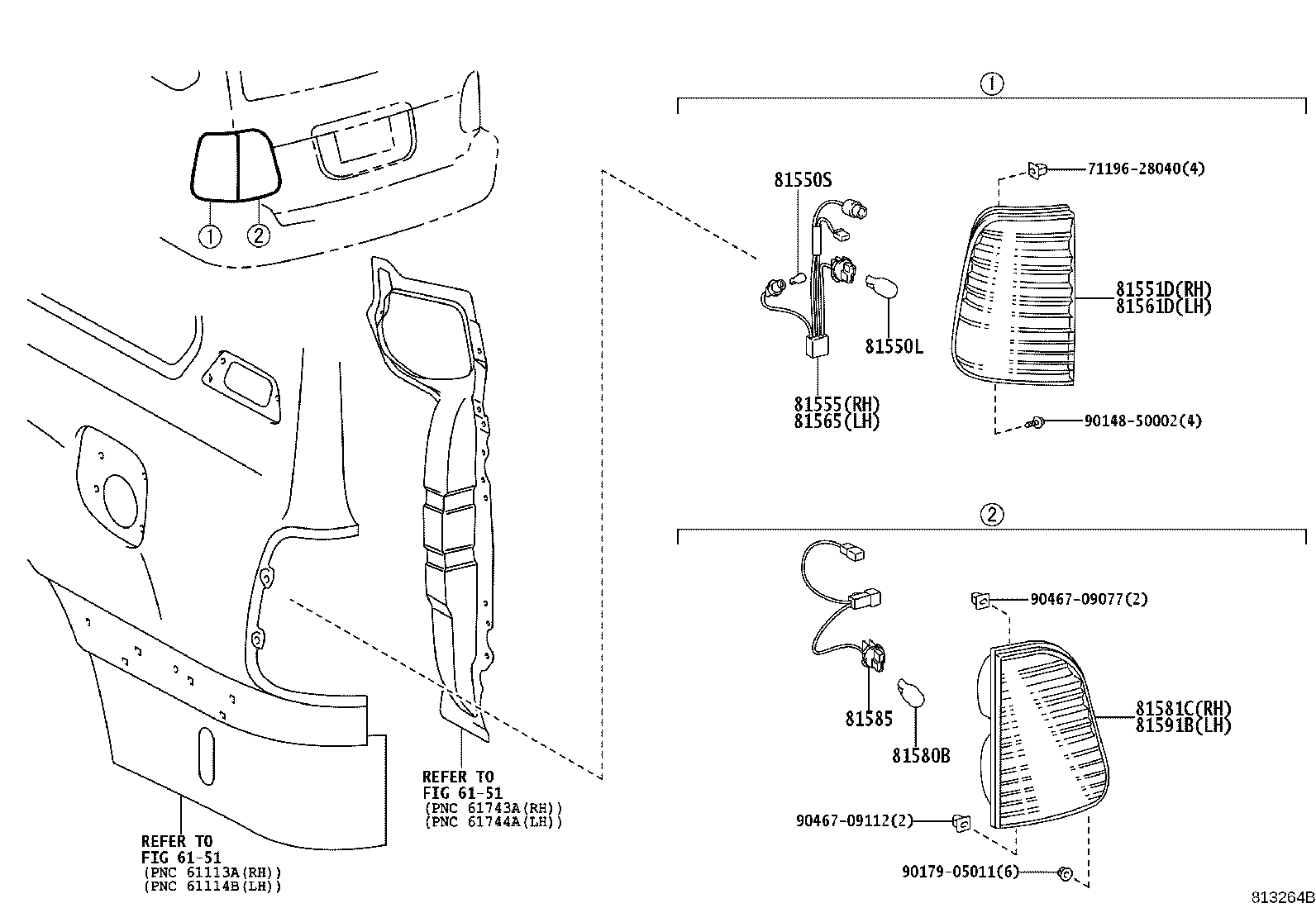

Figure 812246A 812246A 1998-01 → 2002-08 Figure 812247A 812247A 2002-08 → 2005-05 Figure 813264B 813264B 2005-05 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550D Bulb(FOR REAR COMBINATION LAMP)
81550L Bulb, Rear Turn Signal Lamp
81550S Bulb, Rear Side Marker Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555B Socket Plug, NO.1
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81580D Lamp Assy, Rear, RH
81580E Bulb
81581C Lens And Body, Rear Lamp, RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
