Toyota Lexus LX470
1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States
Discontinued model
Data version 2006-08
Meter
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

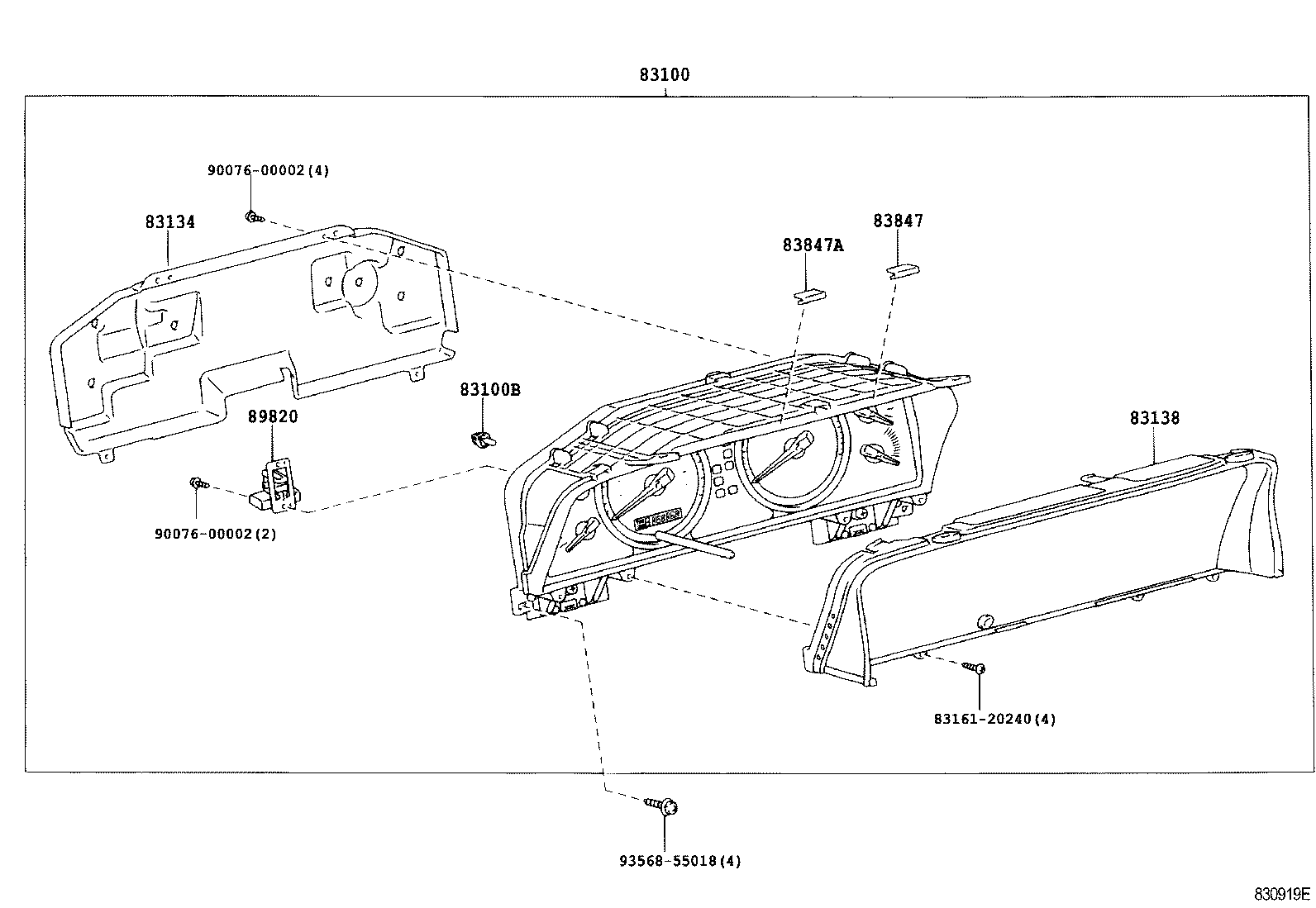

| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145U | Lens, Meter, NO.9 |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83247E | Plate, Mater Circuit, NO.4 |
| 83247H | Plate, Meter Circuit, NO.5 |
| 83847 | Cushion, Combination Speedometer, NO.1 |
| 83847A | Cushion, Combination Speedmeter |
| 89820 | Sensor Assy, Inclination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
