Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 2 illustrations

Illustrations

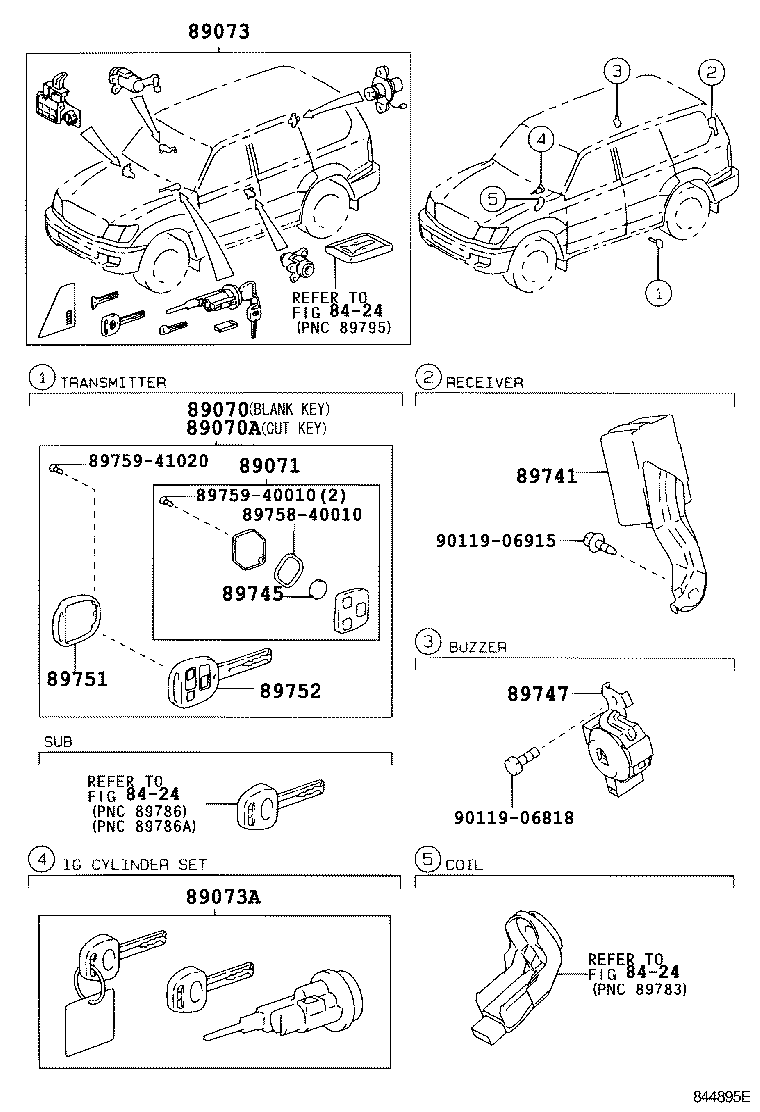

Figure 842323B 842323B 1998-01 → 2002-08 Figure 844895E 844895E 2002-08 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89747 Buzzer, Wireless Door Lock
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
