Toyota Lexus LX470
1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States
Discontinued model
Data version 2006-08

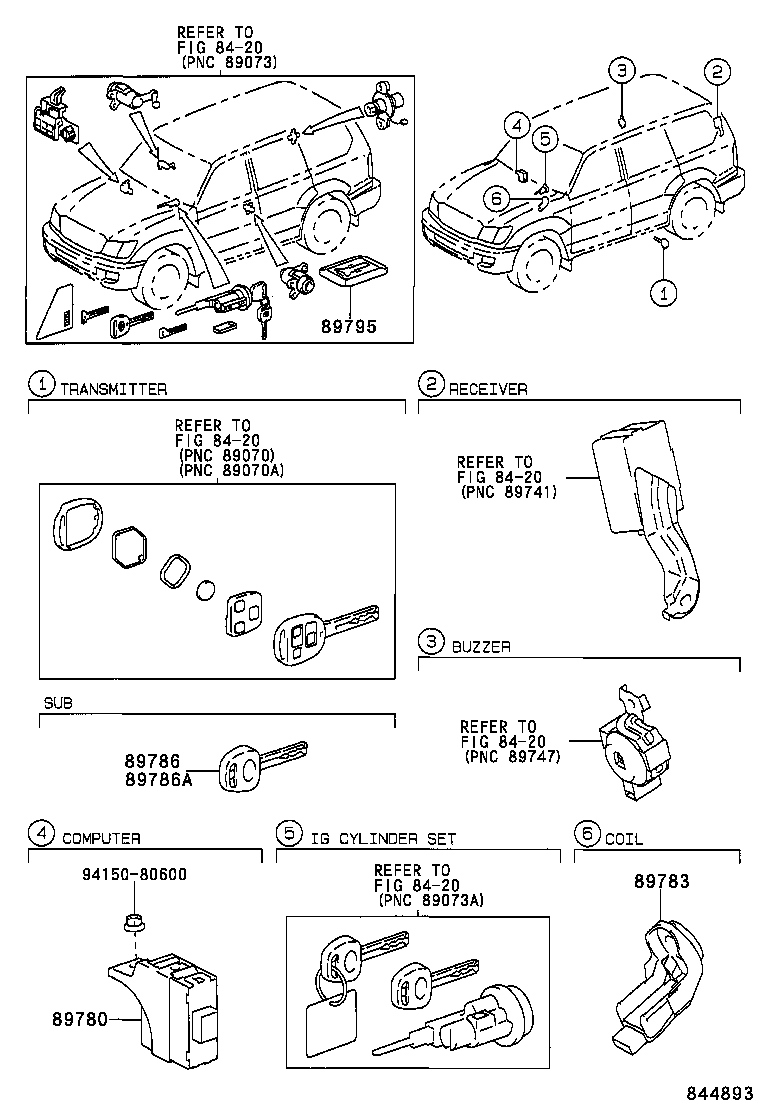

Anti-theft Device
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89786 | Transmitter, Transponder Key Sub |
| 89786A | Transmitter, Transponder Cut Key Sub |
| 89795 | Card, Transponder Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
