Toyota Lexus LX470

1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

19 part groups · 5 illustrations

Illustrations

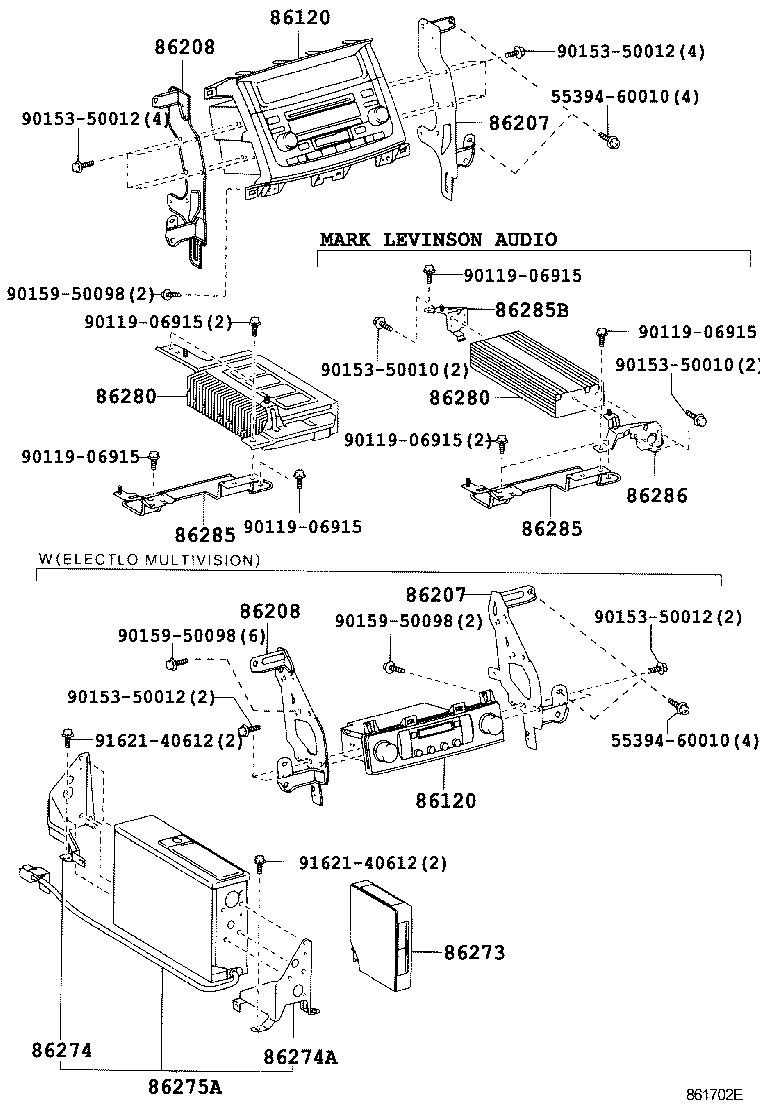

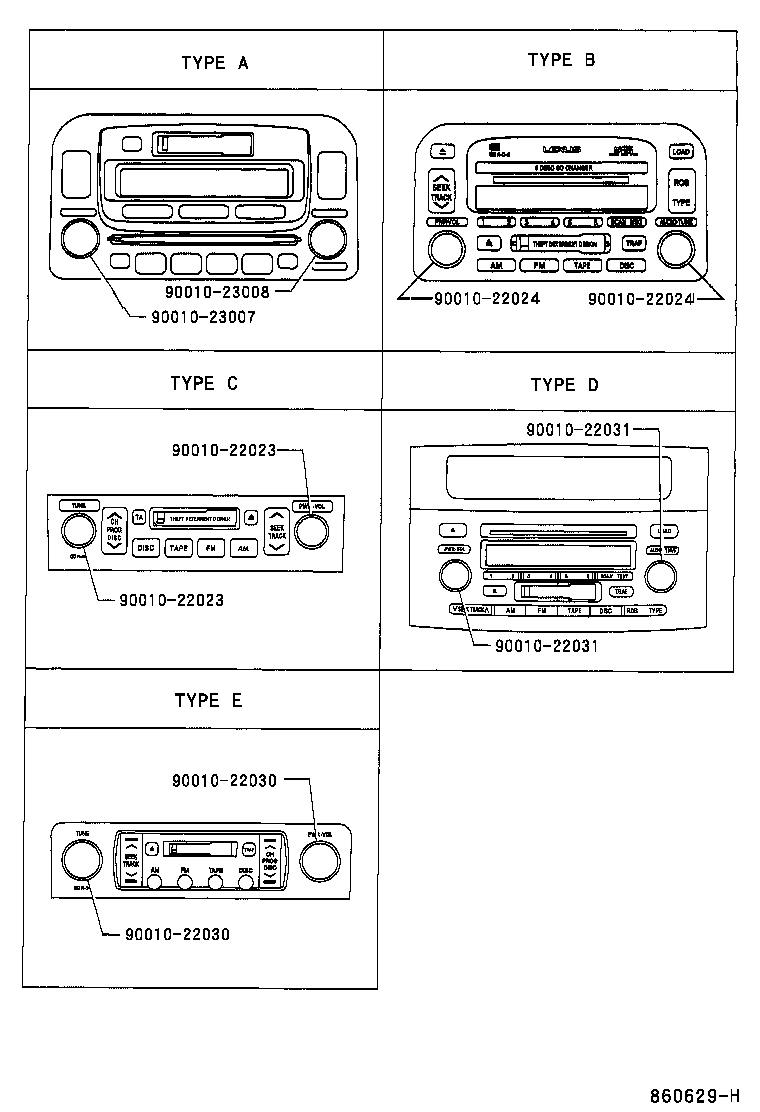

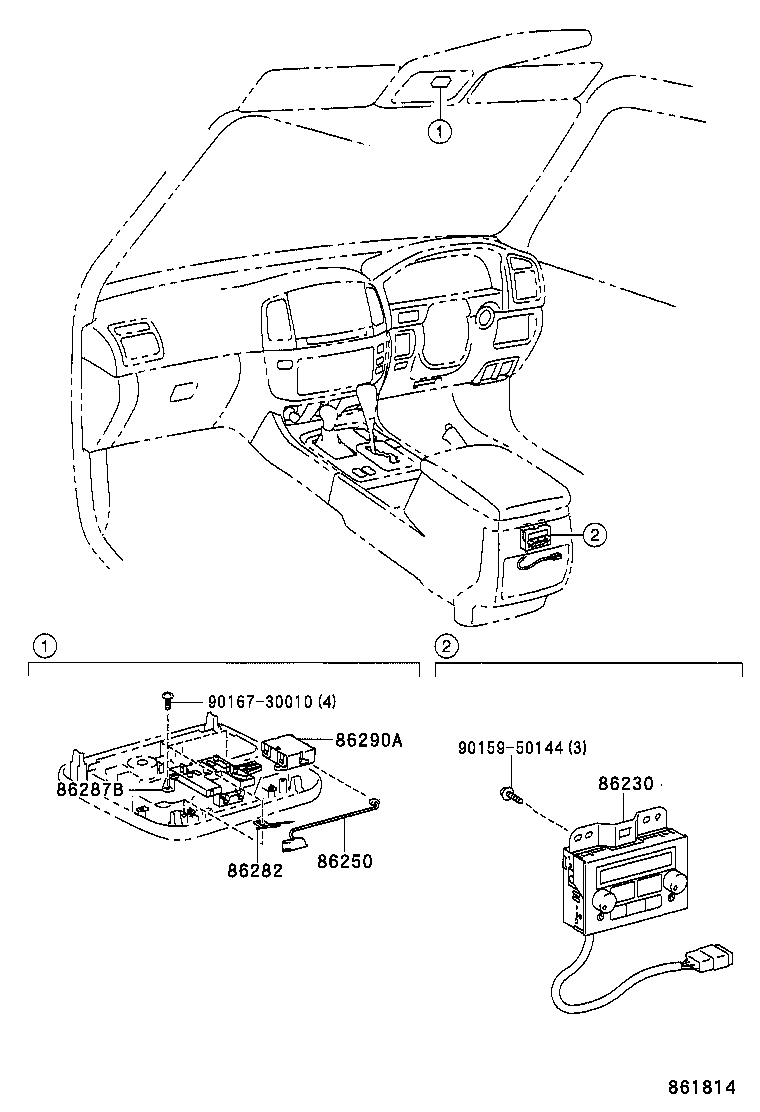

Figure 860656I 860656I 1998-01 → 2002-08 Figure 861702E 861702E 2002-08 → — Figure 860629H 860629H 1998-01 → — Figure 861814 861814 2002-08 → — Figure 861209A 861209A 1998-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86207 Bracket Sub-assy, Radio Receiver, RH
86208 Bracket Sub-assy, Radio Receiver, LH
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86230 Controller Assy, Stereo Component
86250 Microphone Assy, Amplifier
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86282 Bracket, Microphone
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
