Toyota Lexus LX470
1998-01 → 2007-08 · chassis UZJ100 · catalogue 792450 · United States
Discontinued model
Data version 2006-08
Telephone & Mayday

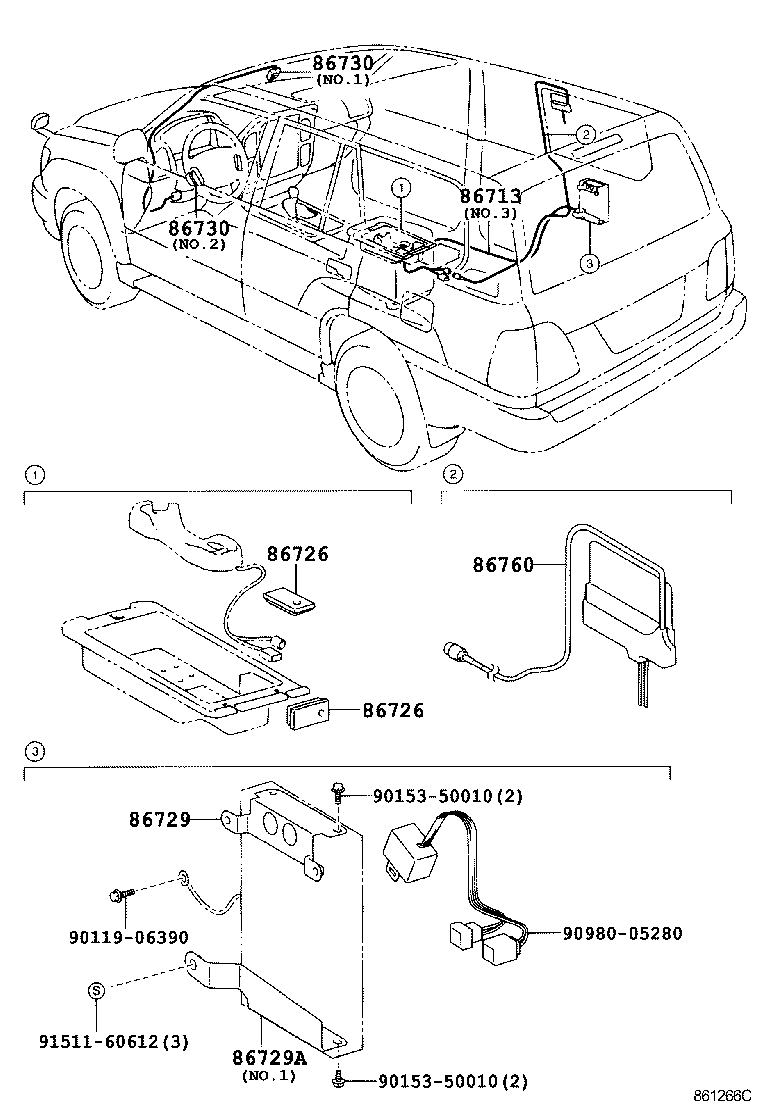

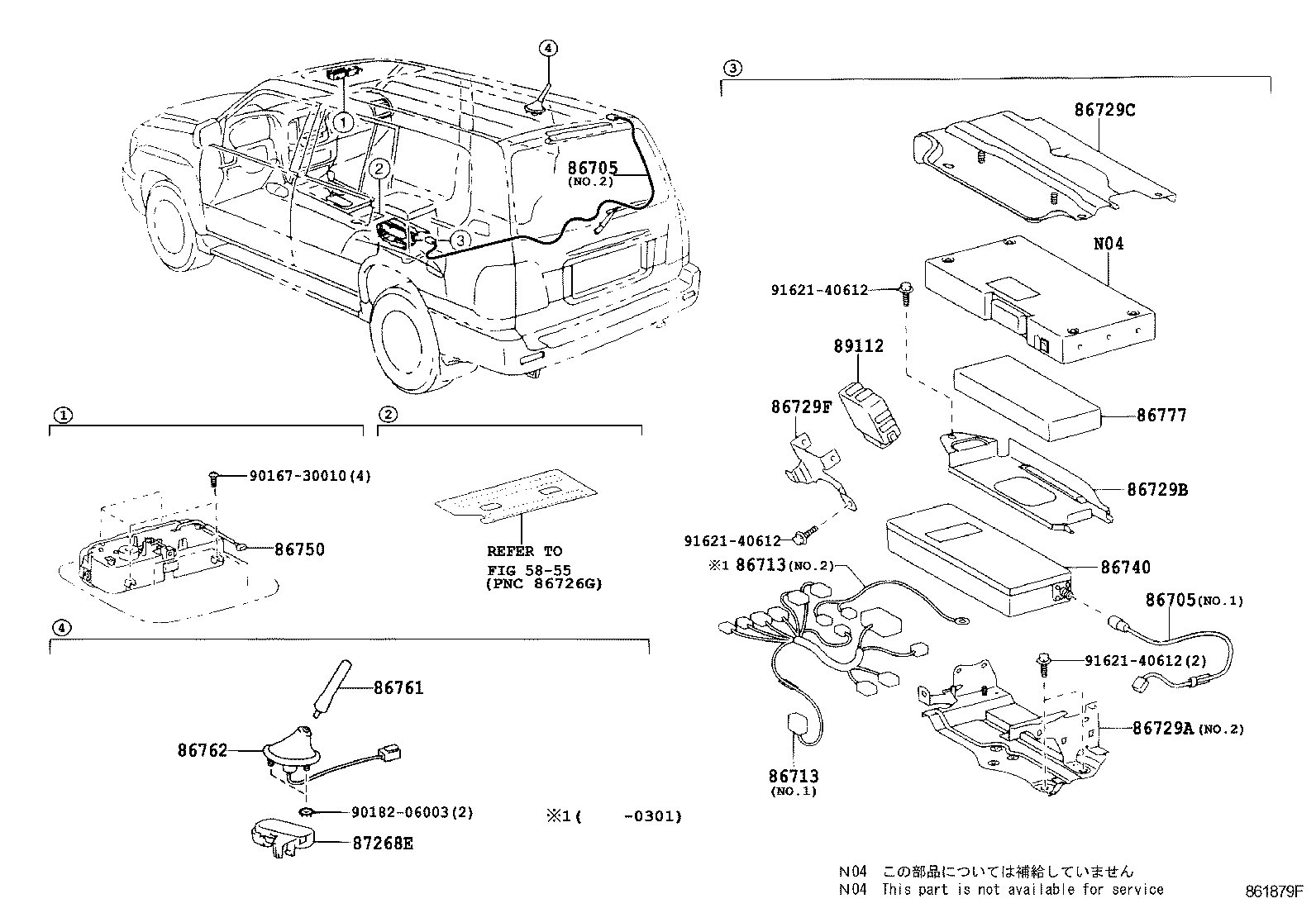

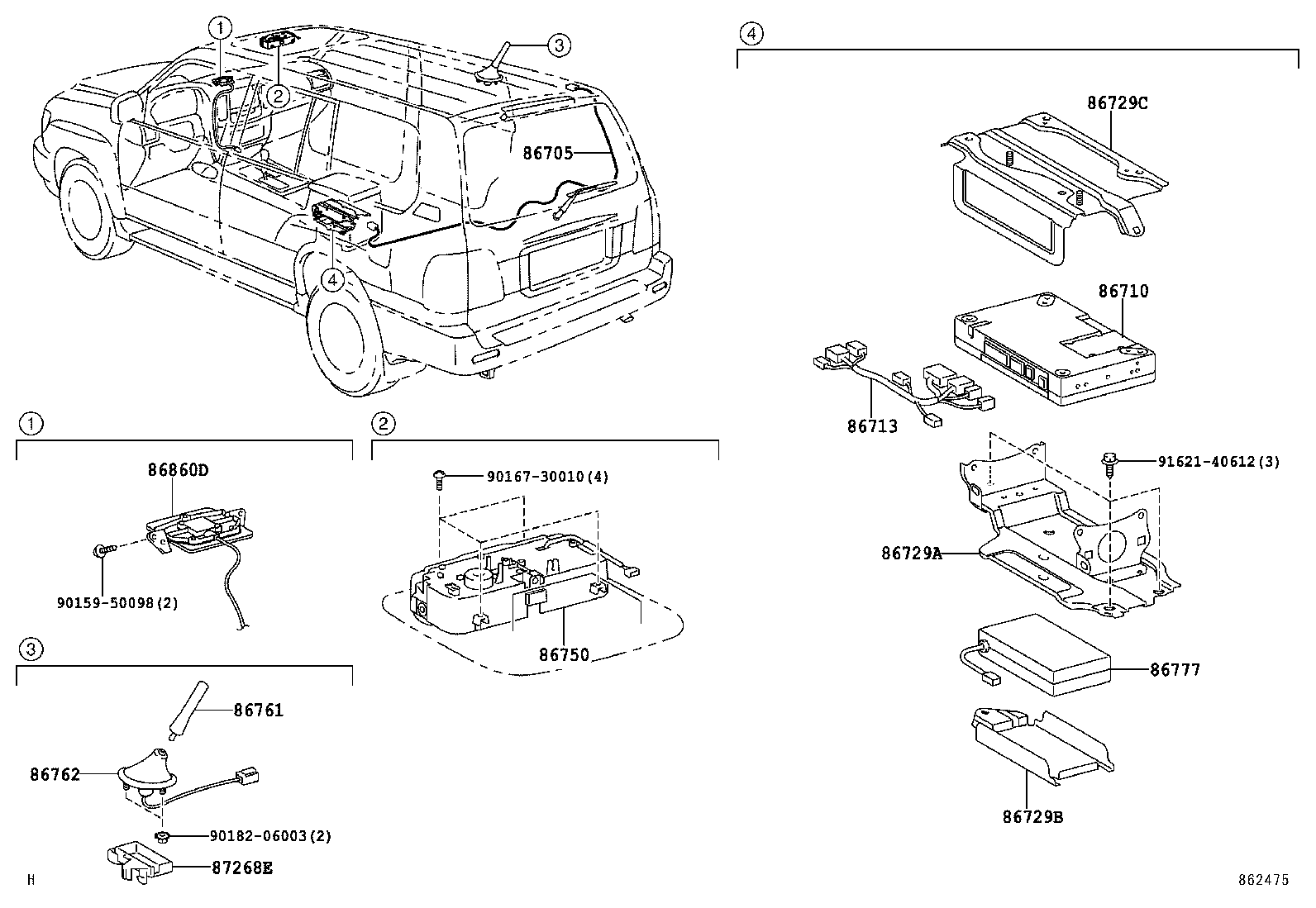

24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011L | Filter, Noise |
| 86705 | Cord Sub-assy, Telephone Antenna |
| 86710 | Computer Assy, Telephone |
| 86713 | Wire, Telephone Computer |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86723 | Wire, Mobilephone |
| 86724 | Guide, Curl Cord |
| 86726 | Cover, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86729A | Bracket, Mobilephone, NO.1 |
| 86729B | Bracket, Mobilephone, NO.2 |
| 86729C | Bracket, Mobilephone, NO.3 |
| 86729F | Bracket, Mobilephone, NO.4 |
| 86730 | Microphone Assy, Telephone |
| 86740 | Transceiver Assy, Telephone |
| 86750 | Switch Assy, Telephone |
| 86760 | Antenna Assy, Telephone |
| 86761 | Rod, Telephone Antenna |
| 86762 | Base, Telephone Antenna |
| 86777 | Battery, Mayday |
| 86860D | Antenna, Navigation |
| 87268E | Protector, Telephone Antenna |
| 89112 | Computer, Bus Buffer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
