Toyota Lexus LX570

2007-11 → present · chassis URJ201 · catalogue 792460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

20 part groups · 3 illustrations

Illustrations

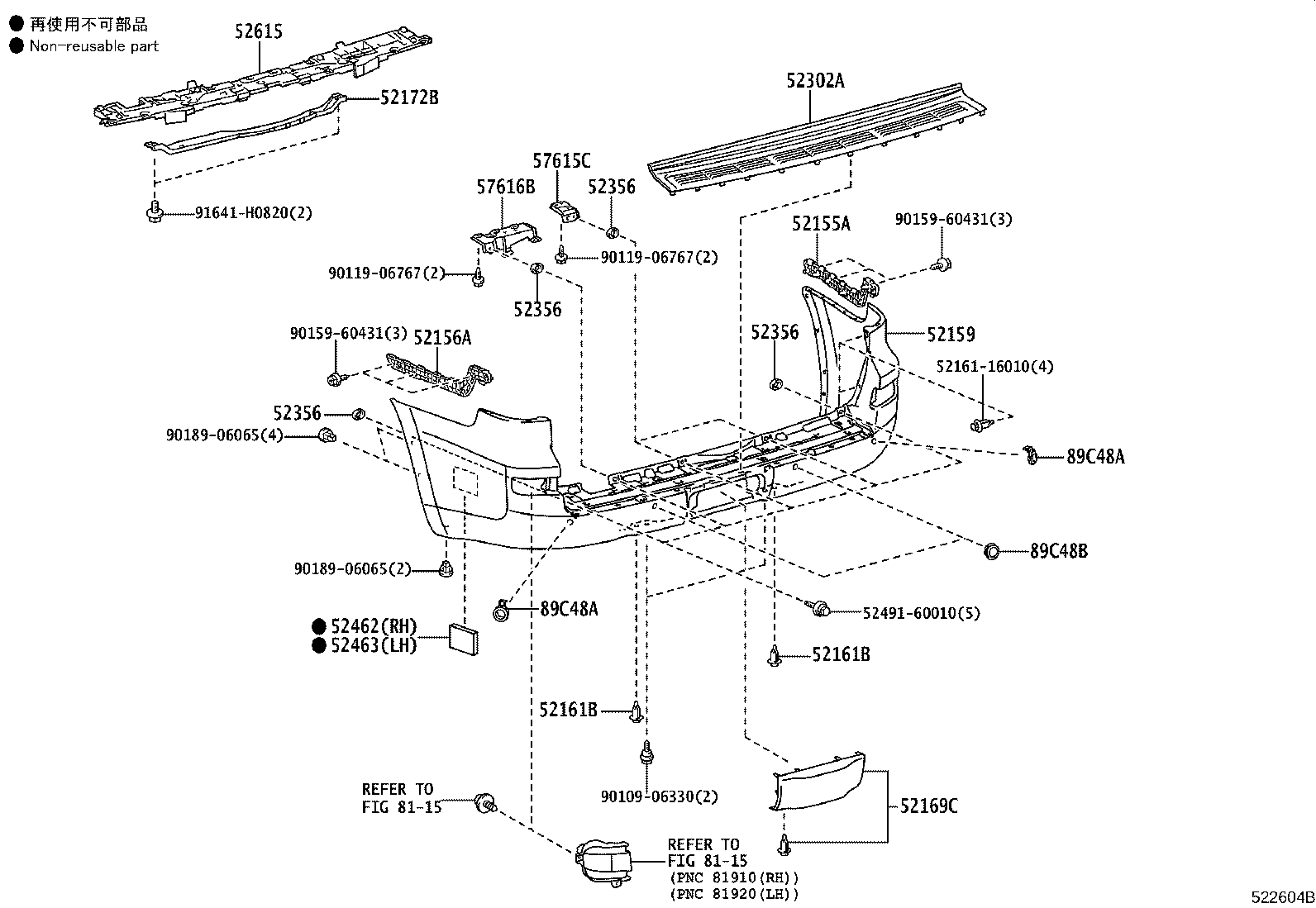

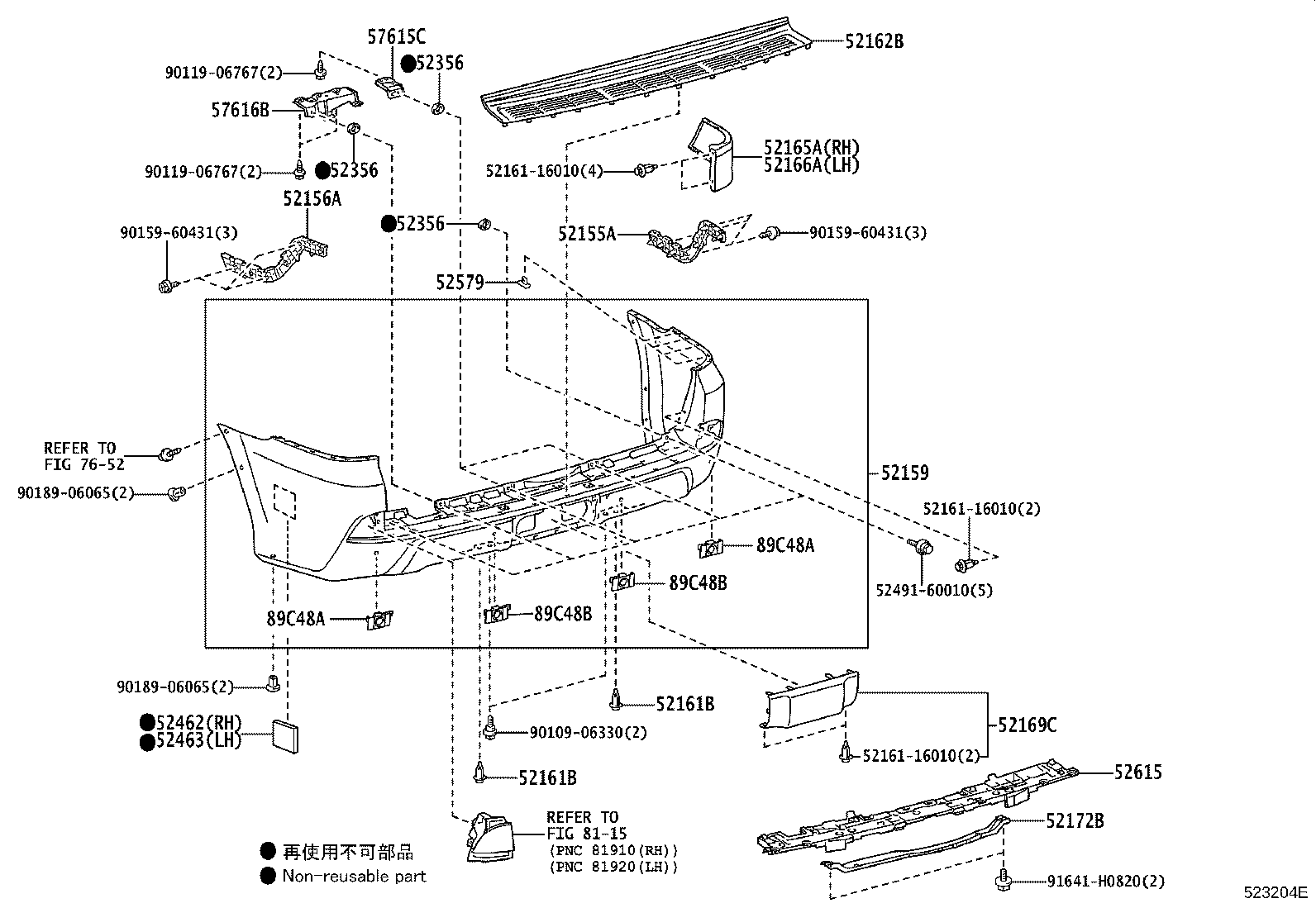

Figure 521873L 521873L 2007-11 → 2012-01 Figure 522604B 522604B 2012-01 → 2015-09 Figure 523204E 523204E 2015-09 → —

Part groups

PNCDescription
51776B Cover, Rear Step, NO.2
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52169C Cover, Rear Bumper, Lower
52172B Reinforcement, Rear Bumper, NO.2
52302A Step Sub-assy, Rear Bumper
52356 Cushion, Rear Bumper Step
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52579 Retainer, Rear Bumper Side, NO.3
52615 Absorber, Rear Bumper Energy
57615C Bracket, Rear Bumper Arm
57616B Bracket, Rear Bumper Arm
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
