Toyota Lexus LX570

2007-11 → present · chassis URJ201 · catalogue 792460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

12 part groups · 4 illustrations

Illustrations

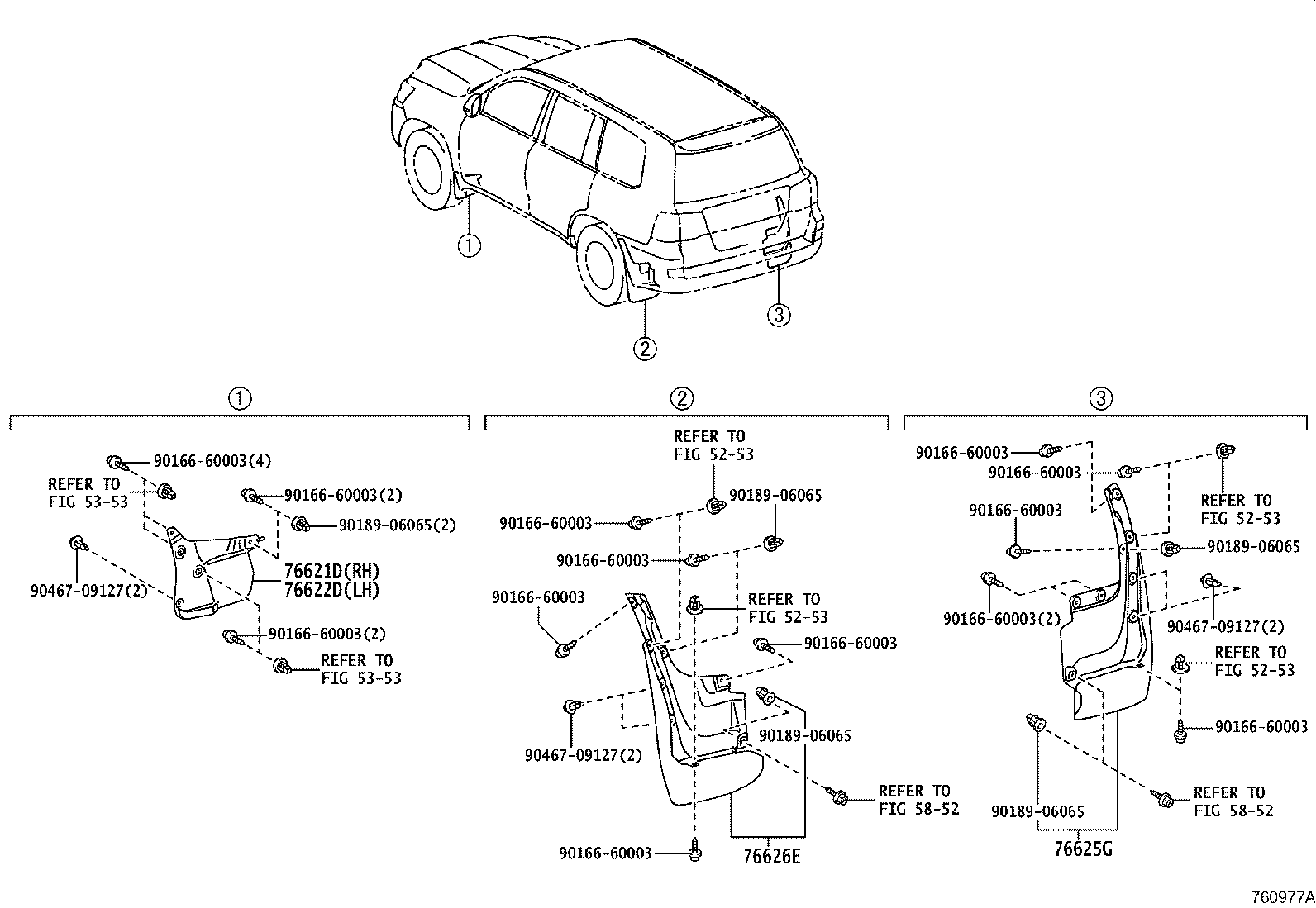

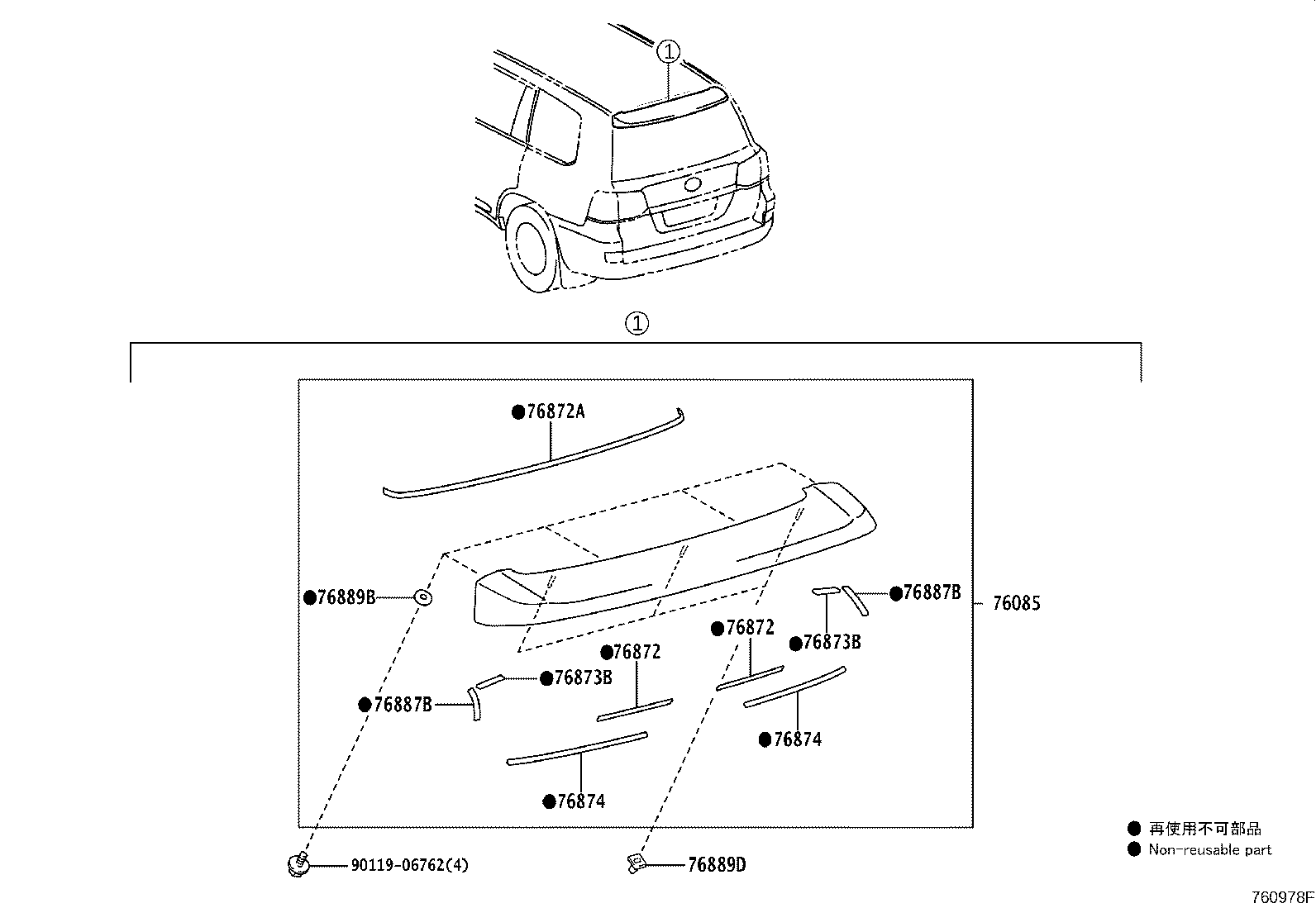

Figure 760633A 760633A 2007-11 → 2015-09 Figure 760977A 760977A 2015-09 → — Figure 760634A 760634A 2007-11 → 2015-09 Figure 760978F 760978F 2015-09 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625G Mudguard, Quarter Panel, Rear RH
76626E Mudguard, Quarter Panel, Rear LH
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76873B Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76887B Protector, Rear Spoiler Side, NO.2
76889B Seal, Rear Spoiler, NO.1
76889D Clip, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
