Headlamp

34 part groups · 3 illustrations

Illustrations

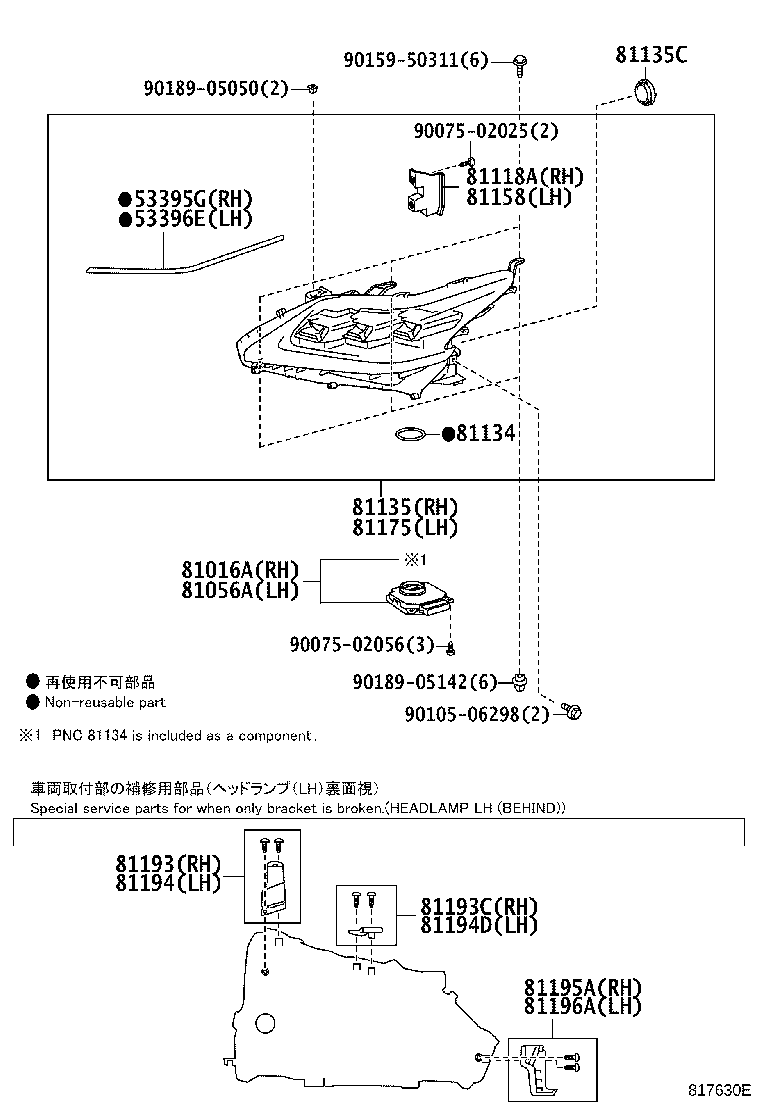

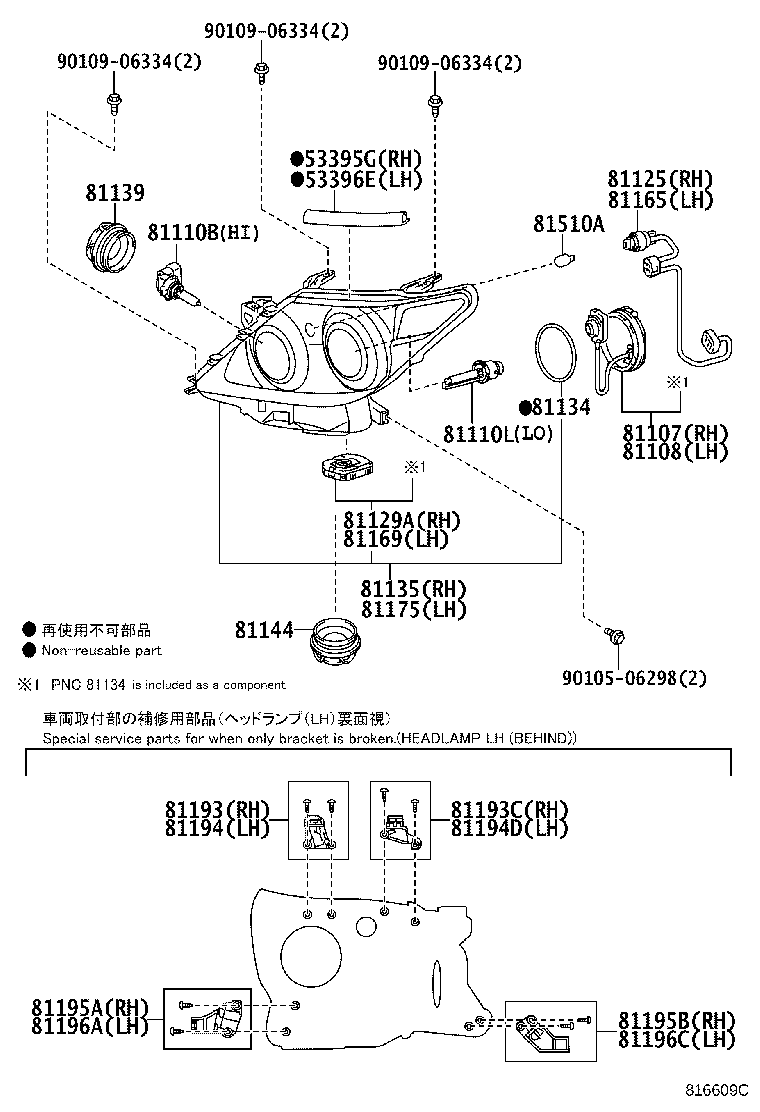

Figure 814531F 814531F 2007-11 → 2012-01 Figure 816609C 816609C 2012-01 → 2015-09 Figure 817630E 817630E 2015-09 → —

Part groups

PNCDescription
53395G Seal, Hood TO Front End Panel
53396E Seal, Hood TO Front End Panel, NO.2
81016A Computer Sub-assy, Headlamp, RH
81056A Computer Sub-assy, Headlamp, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81118A Bracket, Headlamp, RH
81125 Cord, Headlamp
81129A Reflector, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81158 Bracket, Headlamp, LH
81165 Cord, Headlamp, LH
81169 Reflector, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193C Retainer, RH Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81194D Retainer, LH Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81195B Retainer, RH Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81196C Retainer, LH Headlamp Protector, Lower LH
81510A Bulb, Front Turn Signal & Parking Lamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
