Toyota Lexus LX570

2007-11 → present · chassis URJ201 · catalogue 792460 · United States

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

25 part groups · 8 illustrations

Illustrations

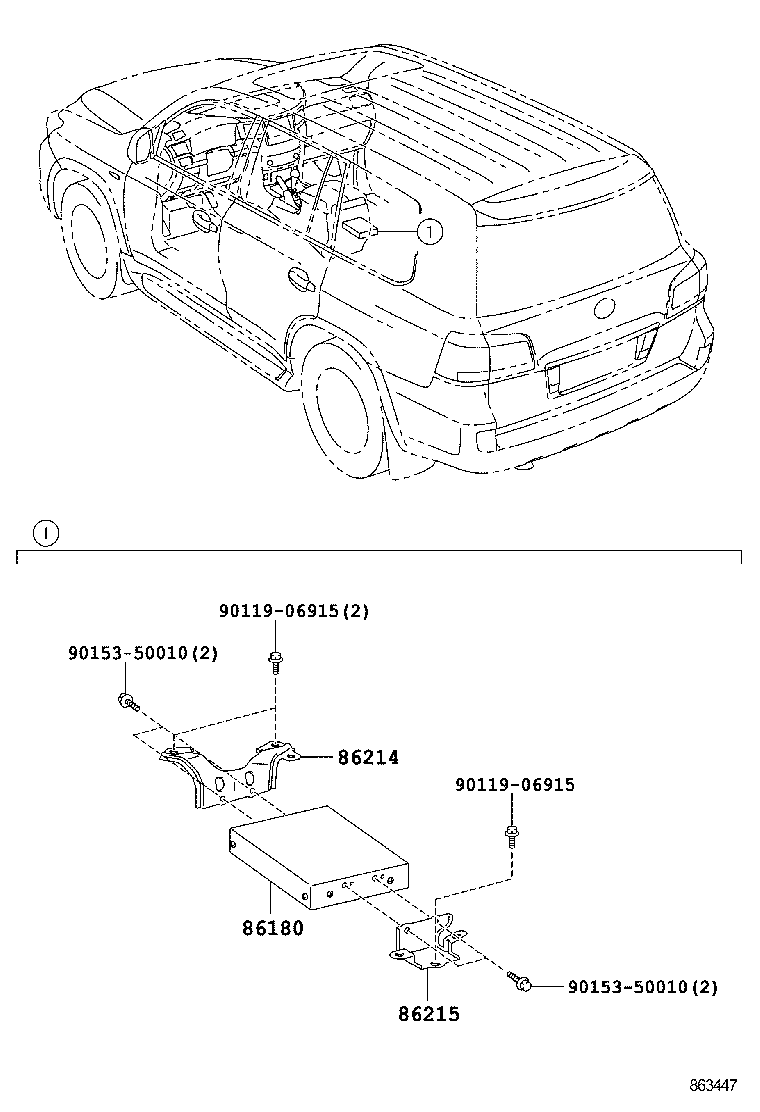

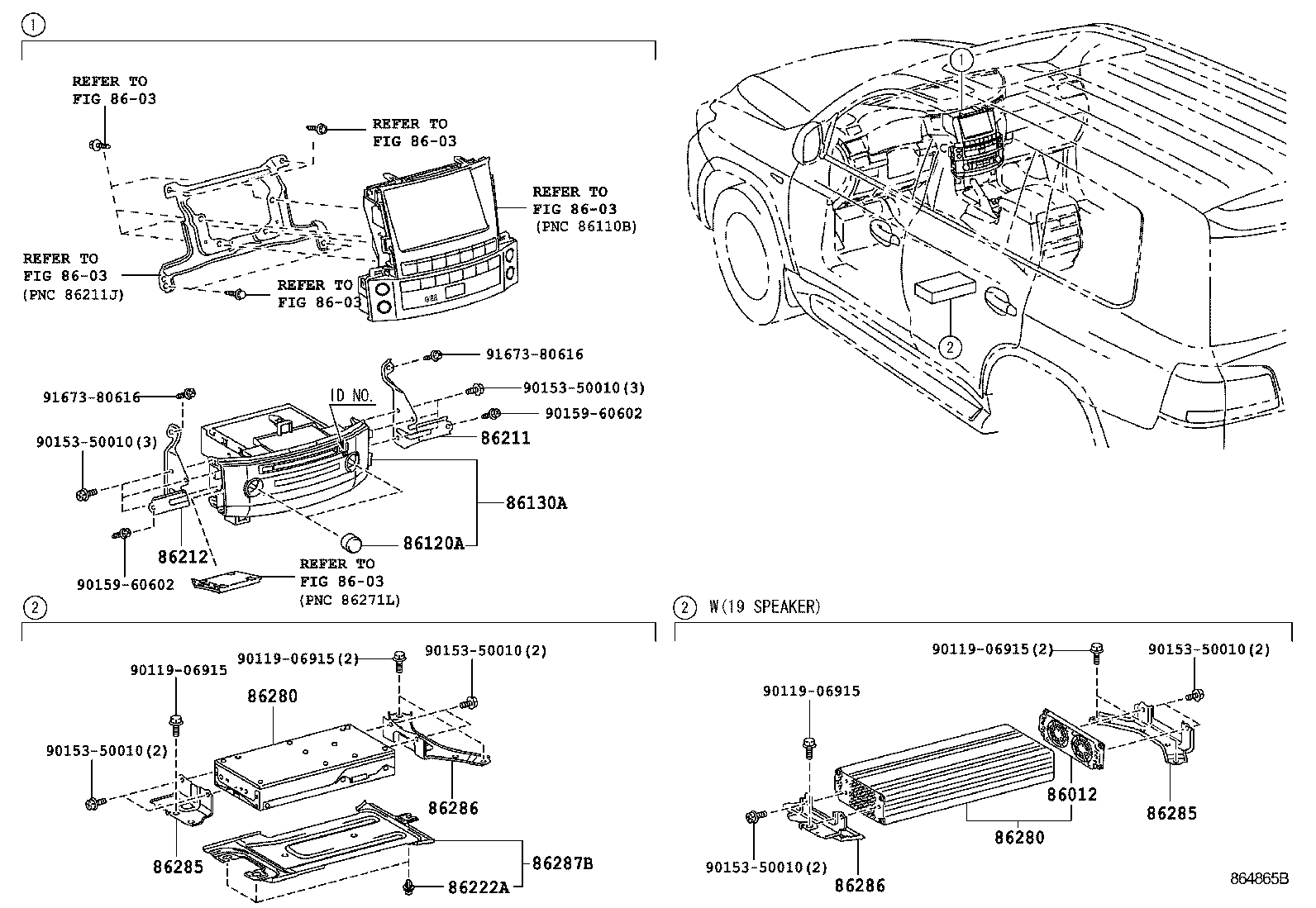

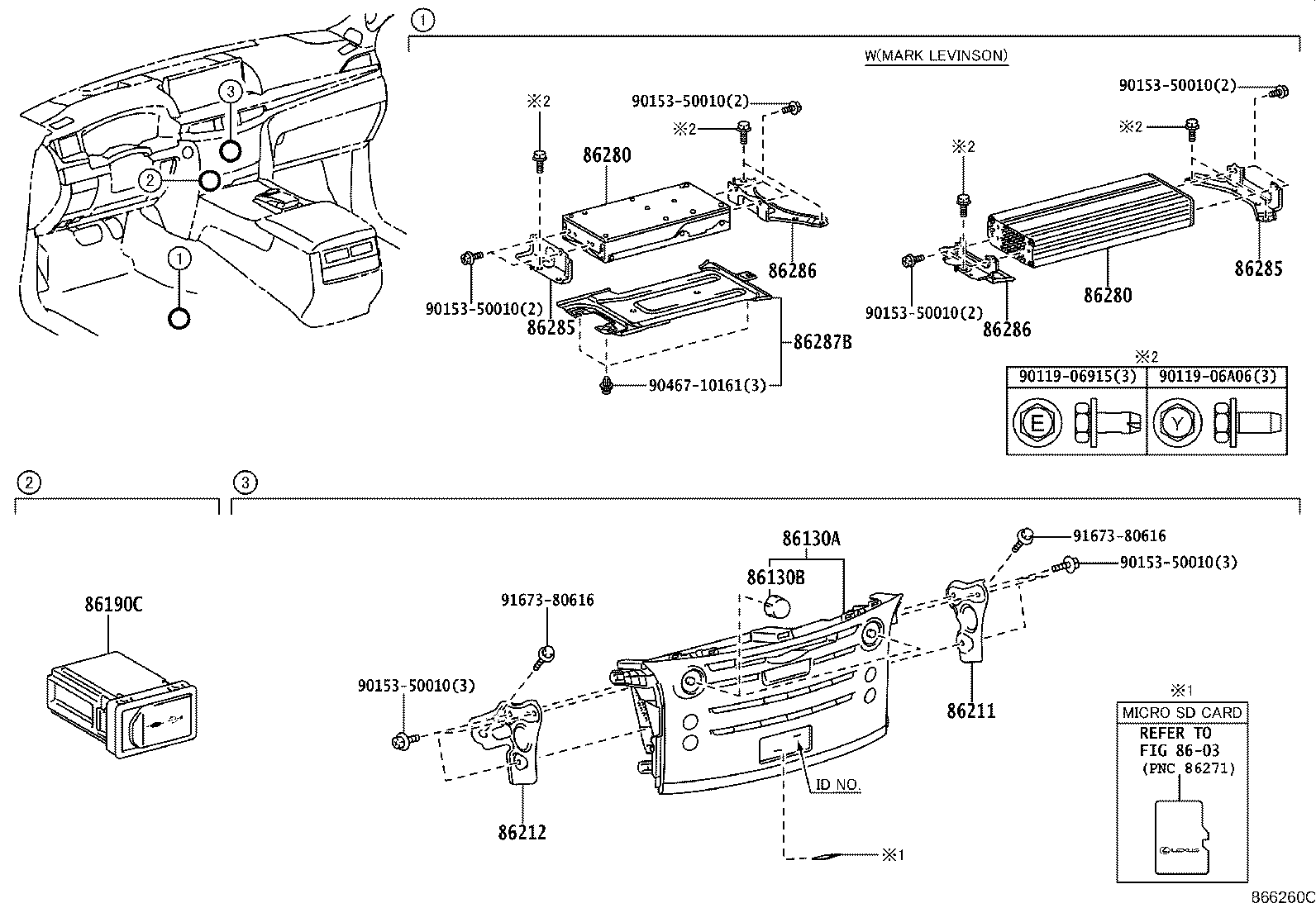

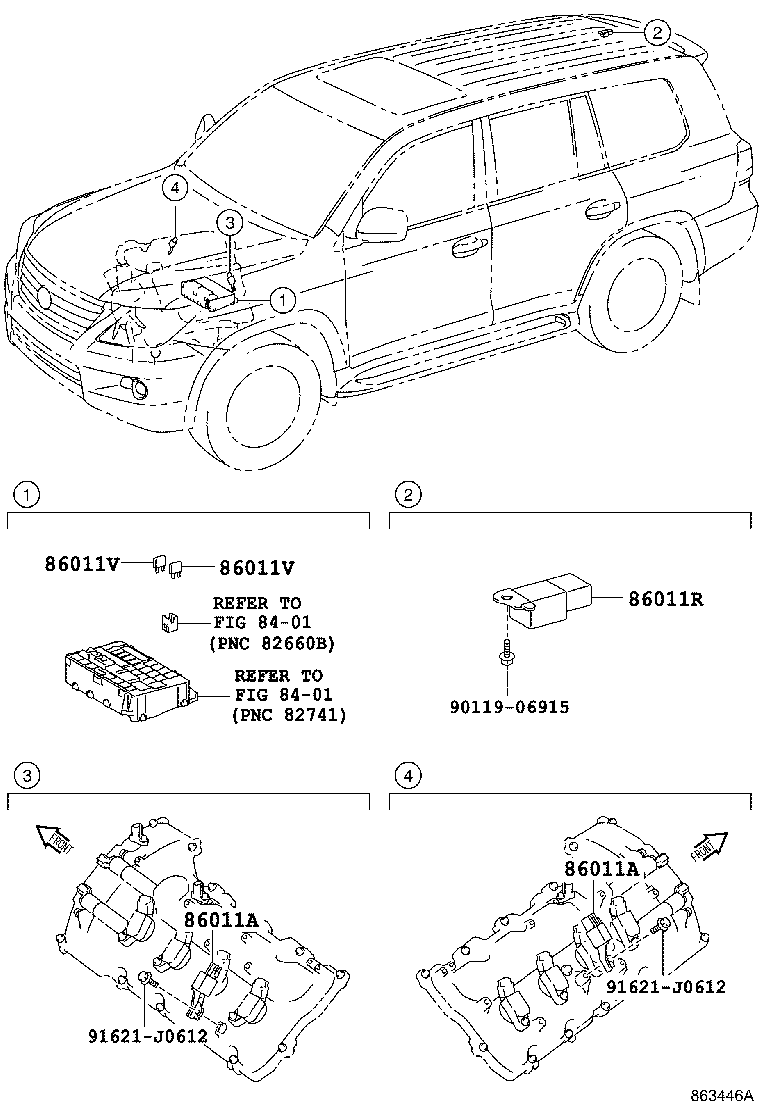

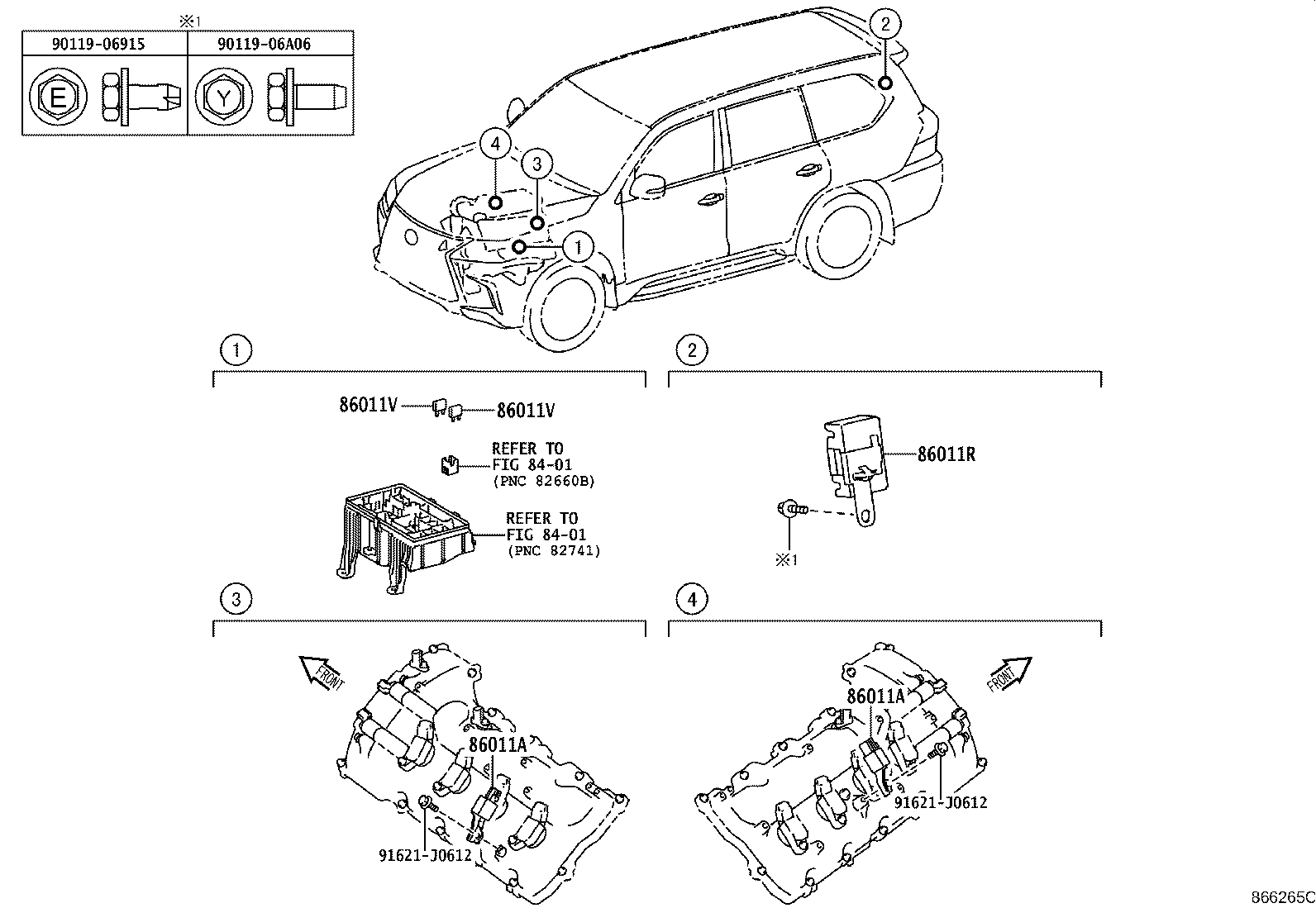

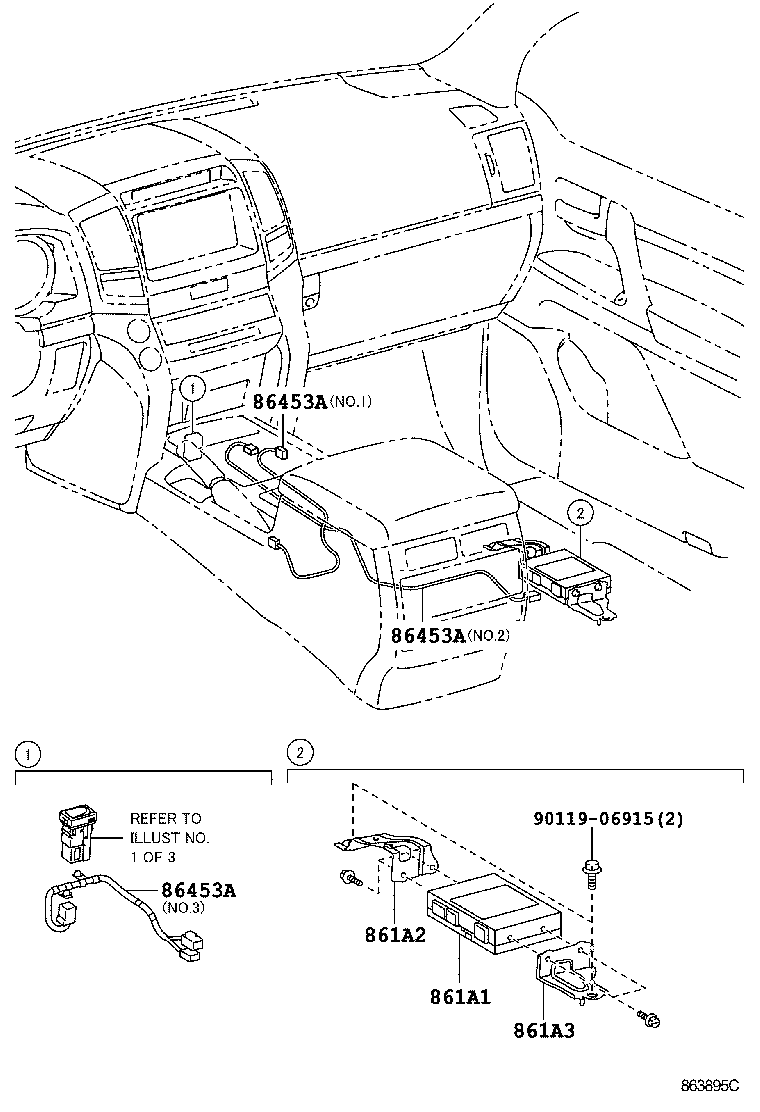

Figure 863459 863459 2007-11 → 2012-01 Figure 864865B 864865B 2012-01 → 2015-09 Figure 866260C 866260C 2015-09 → — Figure 863447 863447 2007-11 → 2009-07 Figure 863895C 863895C 2009-07 → 2012-01 Figure 864858 864858 2012-01 → 2015-09 Figure 866265C 866265C 2015-09 → — Figure 863446A 863446A 2007-11 → 2015-09

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86012 Parts Set, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86130A Receiver Assy, Multi-media Module
86130B Knob, Receiver Switch
86180 Tuner Assy, Stereo Component
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86214 Bracket, Radio, NO.4
86215 Bracket, Radio, NO.5
86222A Clip, Radio Receiver Bracket NO.1
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
86453A Wire, Multi-media Module
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
