Toyota Lexus LX570
2007-11 → present · chassis URJ201 · catalogue 792460 · United States
Supported model
Data version 2018-08
Telephone & Mayday

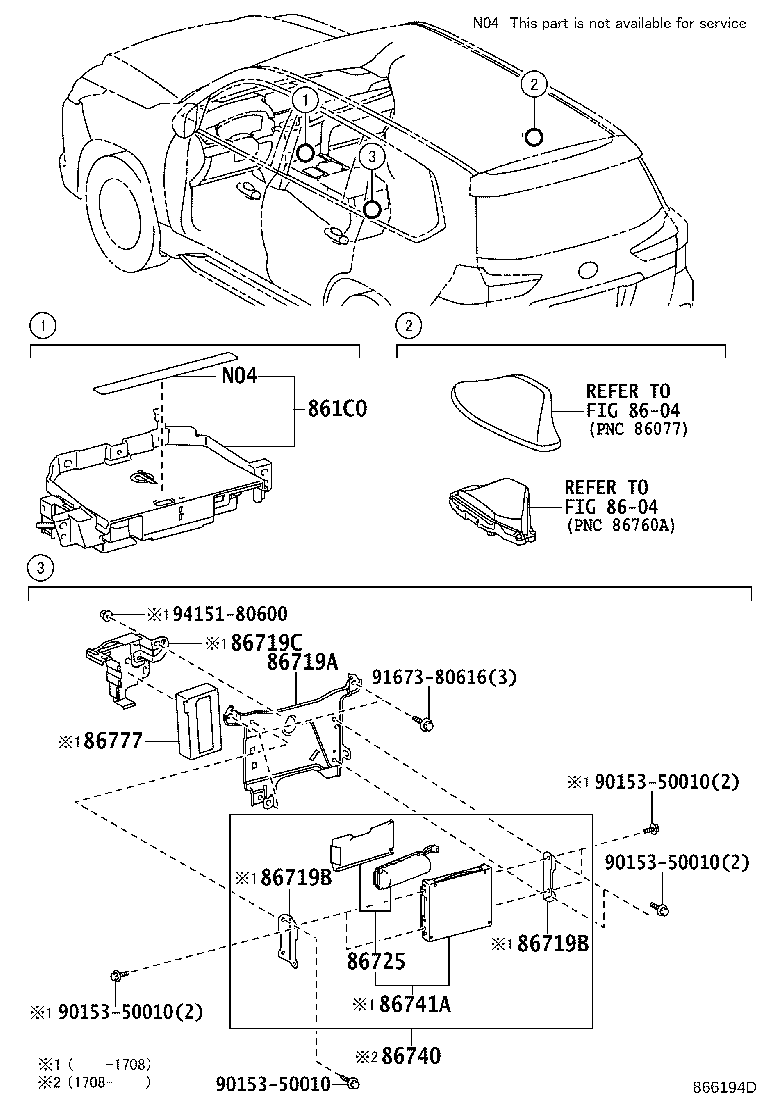

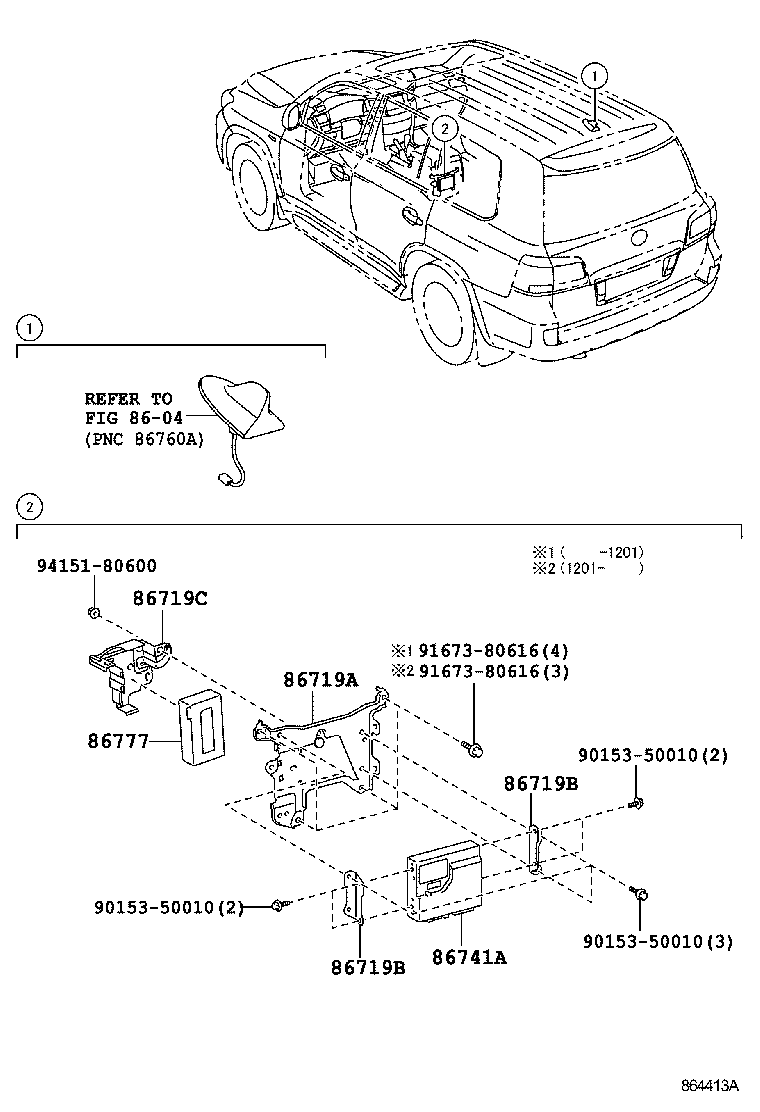

11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86710 | Computer Assy, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86719C | Bracket, Telephone NO.3 |
| 86725 | Battery, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86741A | Transceiver, Telematics |
| 86777 | Battery, Mayday |
| 89112 | Computer, Bus Buffer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
