Toyota Lexus LX600/700H

2021-12 → present · chassis VJA310,VJH310 · catalogue 792470 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

49 part groups · 8 illustrations

Illustrations

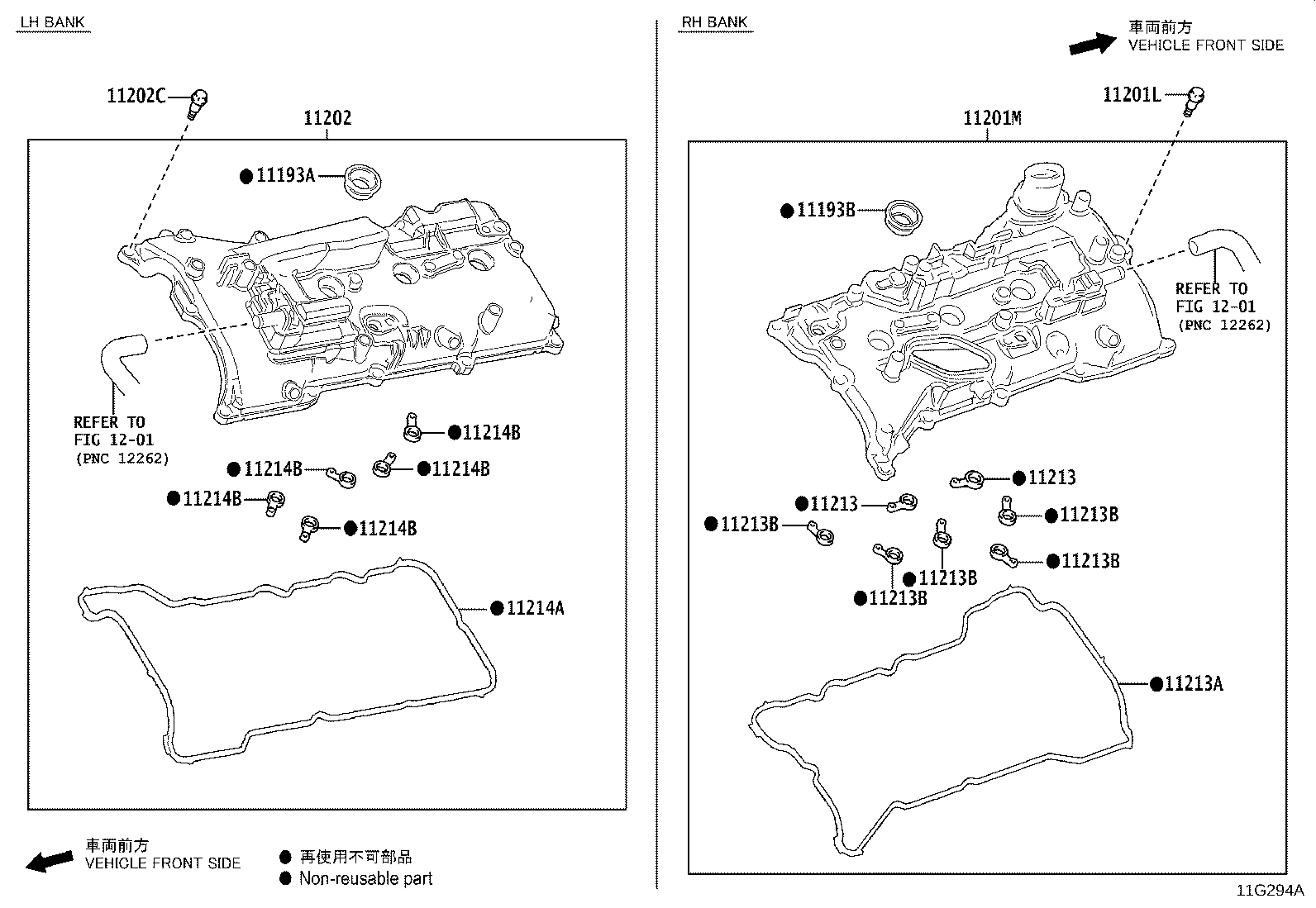

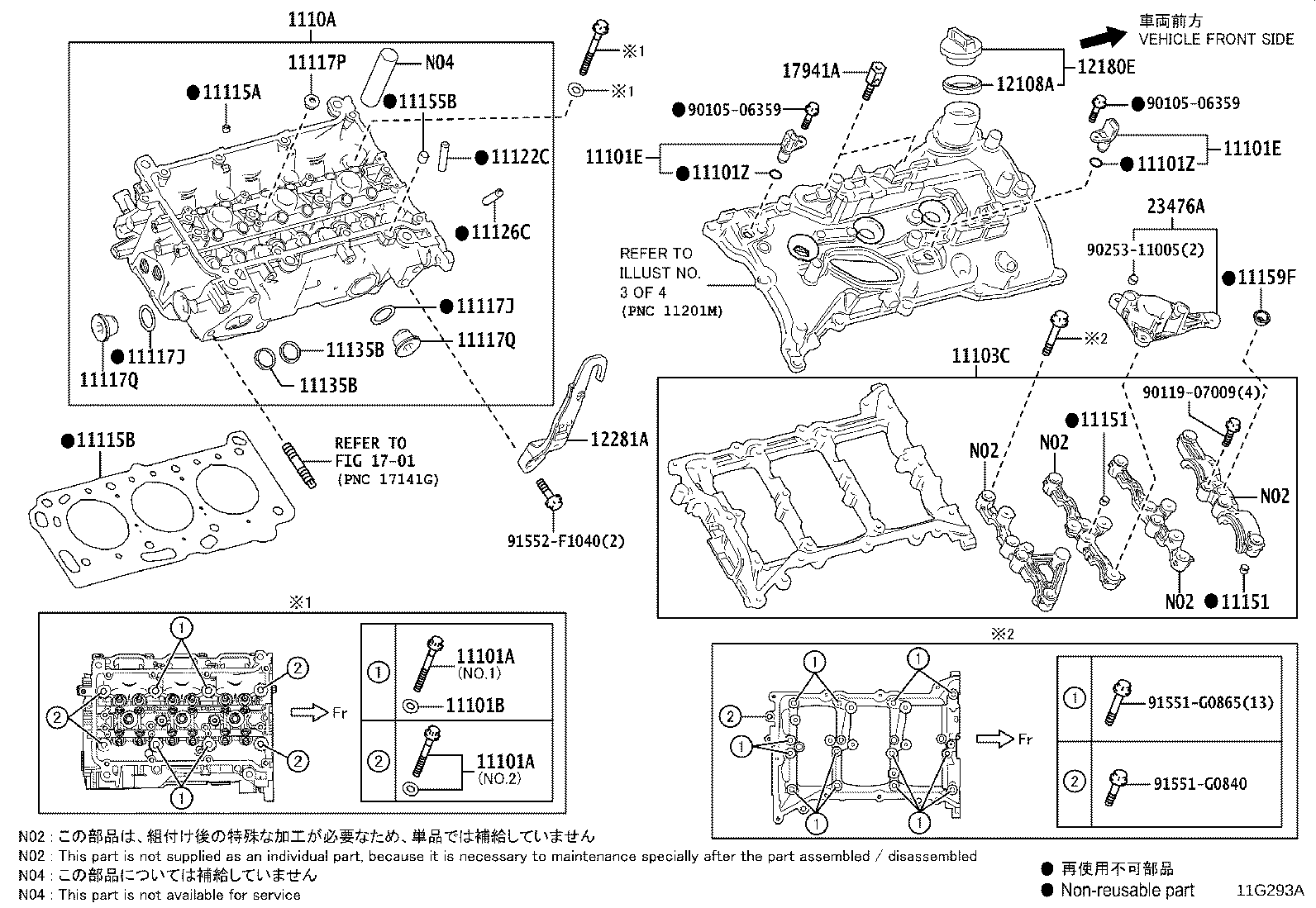

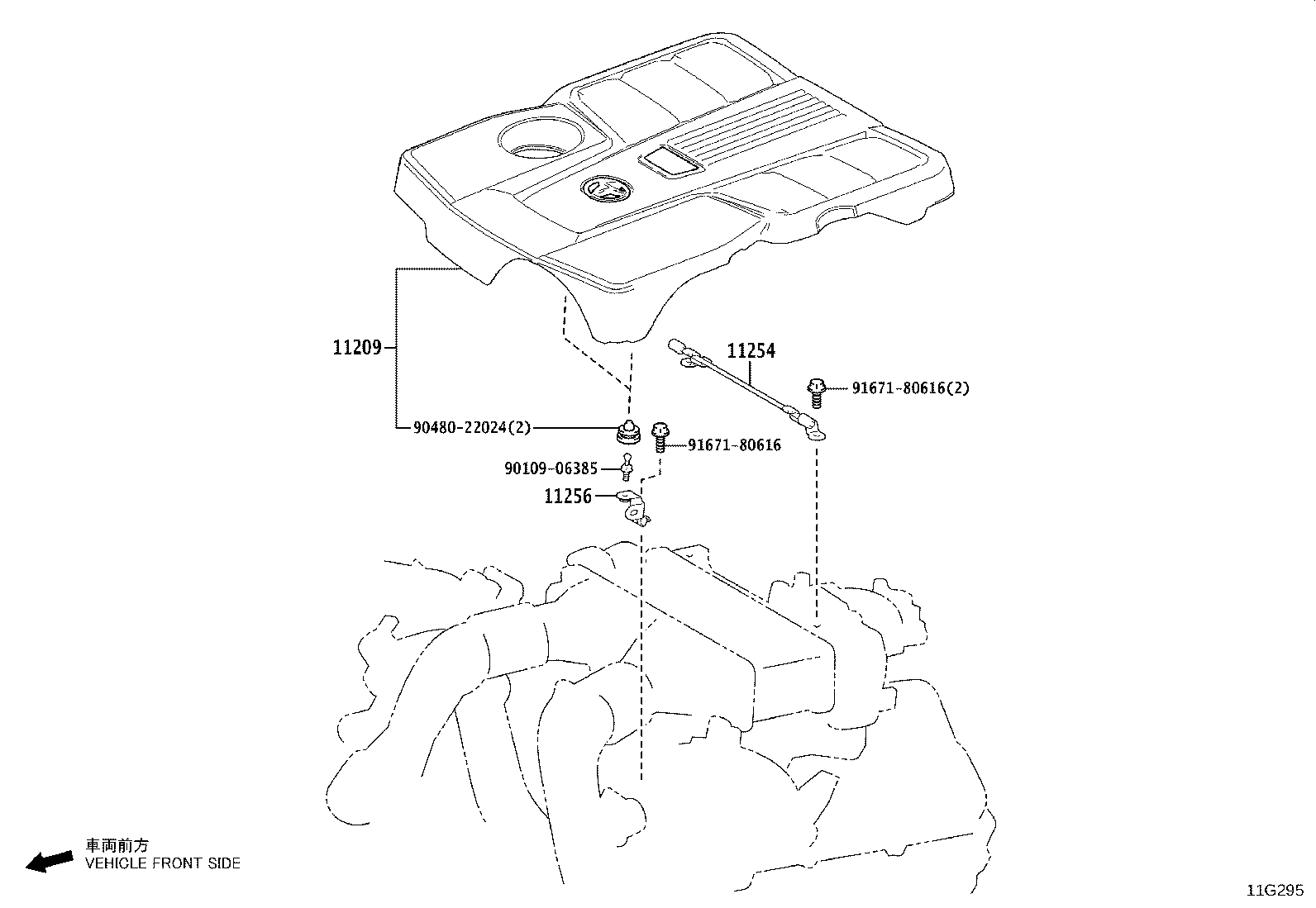

Figure 11G292A 11G292A 2021-12 → — Figure 11G292A 11G292A 2024-11 → — Figure 11G293A 11G293A 2021-12 → — Figure 11G293A 11G293A 2024-11 → — Figure 11G294A 11G294A 2021-12 → — Figure 11G294A 11G294A 2024-11 → — Figure 11G295 11G295 2021-12 → — Figure 11G295 11G295 2024-11 → —

Part groups

PNCDescription
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101Z O Ring, Cam Position Sensor
11102C Head Sub-assy, Cylinder, LH
11103C Housing Sub-assy, Camshaft, RH
11104A Housing Sub-assy, Camshaft, LH
1110A Head Sub-assy, Cylinder, RH
11115A Pin, Ring
11115B Gasket, Cylinder Head, RH
11116H Gasket, Cylinder Head, LH
11117E Plug, W/Head Straight Screw, NO.1
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11117K Plug, W/Head Straight Screw, LH NO.1
11117L Plug, W/Head Straight Screw, LH NO.2
11117N Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
11117P Plug, W/Head Straight Screw, RH NO.1
11117Q Plug, W/Head Straight Screw, RH NO.2
11122C Bush, Intake Valve Guide, RH
11122D Bush, Intake Valve Guide, LH
11126C Bush, Exhaust Valve Guide, RH
11126D Bush, Exhaust Valve Guide, LH
11135B Seat, Exhaust Valve, RH
11135C Seat, Exhaust Valve, LH
11151 Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
11153D Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING LH)
11155B Pin, Ring
11159F Gasket, Camshaft Bearing Cap Oil Hole, RH
11159G Gasket, Camshaft Bearing Cap Oil Hole, LH
11193A Gasket, Spark Plug Tube, LH
11193B Gasket, Spark Plug Tube, RH
11201L Bolt(FOR CYLINDER HEAD COVER RH)
11201M Cover Sub-assy, Cylinder Head, RH
11202 Cover Sub-assy, Cylinder Head, LH
11202C Bolt(FOR CYLINDER HEAD COVER LH)
11209 Cover Sub-assy, V-bank
11213 Gasket, Cylinder Head Cover
11213A Gasket, Cylinder Head Cover, RH NO.1
11213B Gasket, Cylinder Head Cover, RH NO.2
11214A Gasket, Cylinder Head Cover, LH NO.1
11214B Gasket, Cylinder Head Cover, LH NO.2
11254 Bracket, V-bank Cover, NO.1
11256 Bracket, V-bank Cover, NO.2
12108A Gasket(FOR OIL FILLER CAP)
12180E Cap Assy, Oil Filler
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
17941A Guide, Intercooler Air, NO.1
23476A Housing, Fuel Pump Lifter, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
