Toyota Lexus LX600/700H

2021-12 → present · chassis VJA310,VJH310 · catalogue 792470 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

26 part groups · 3 illustrations

Illustrations

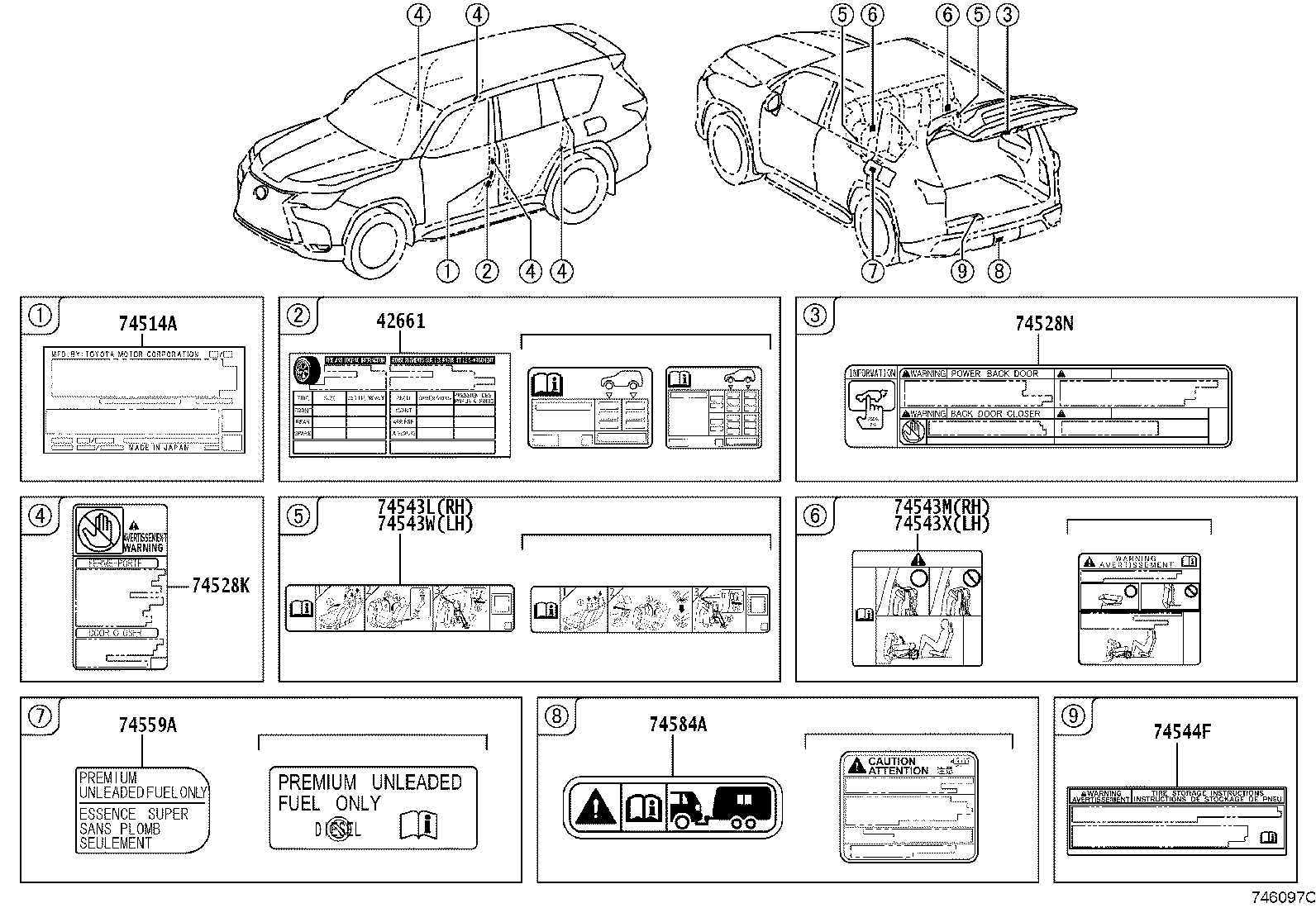

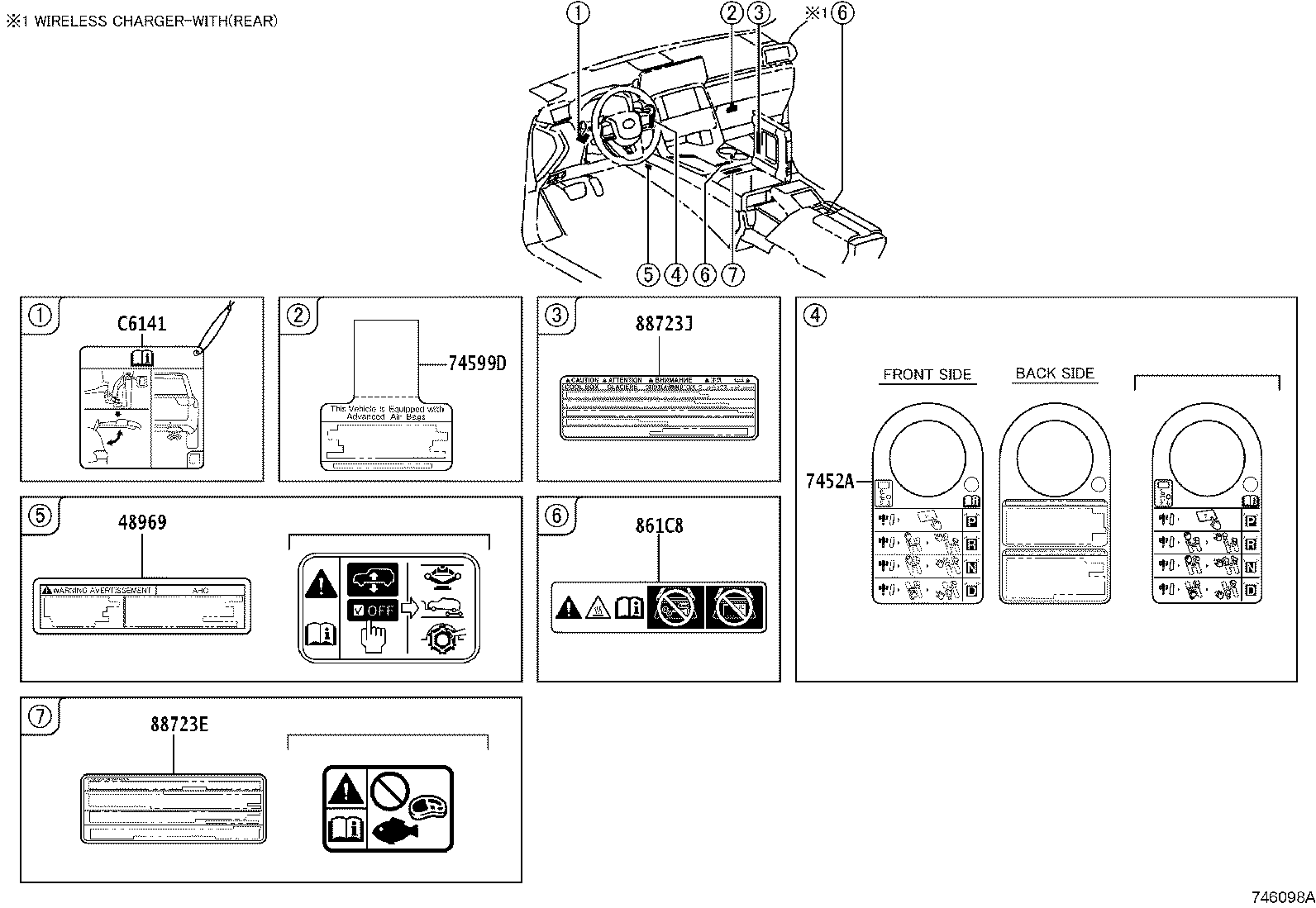

Figure 746096C 746096C 2021-12 → — Figure 746097C 746097C 2021-12 → — Figure 746098A 746098A 2021-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11285J Label, Coolant System Caution, NO.2
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
288A2A Label, Battery Location, NO.2
42661 Label, Tire Pressure Information
48969 Label, Jack UP Caution
74514A Label, Certification Regulation Information
74528K Label, Door Closer Caution
74528N Label, Back Door Caution, NO.2
7452A Label, Shift Control Information
74543L Label, Rear Seat Caution, NO.1
74543M Label, Rear Seat Caution, NO.2
74543W Label, Rear Seat Information, NO.3
74543X Label, Rear Seat Information, NO.4
74544F Label, Tire Carrier Caution
74559A Plate, Fuel Caution
74584A Label, Towing Caution
74599D Label, Driver & Passenger Airbag Information
81192A Seal, Headlamp
861C8 Label, Mobile Wireless Charger Caution
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
C6141 Label, Back Door OR Luggage Compartment Door Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
