Toyota Lexus LX600/700H

2021-12 → present · chassis VJA310,VJH310 · catalogue 792470 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

185 part groups · 19 illustrations

Illustrations

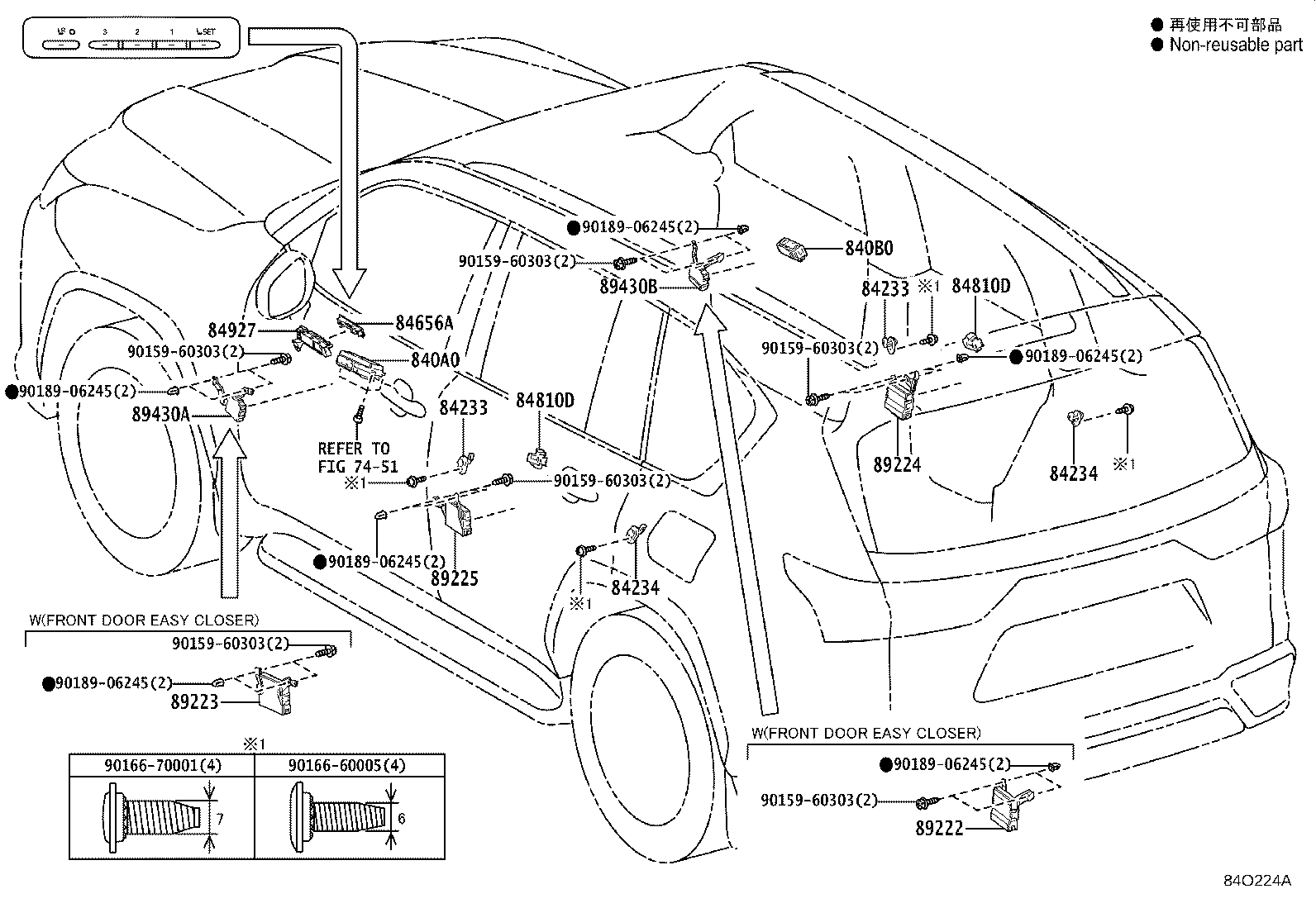

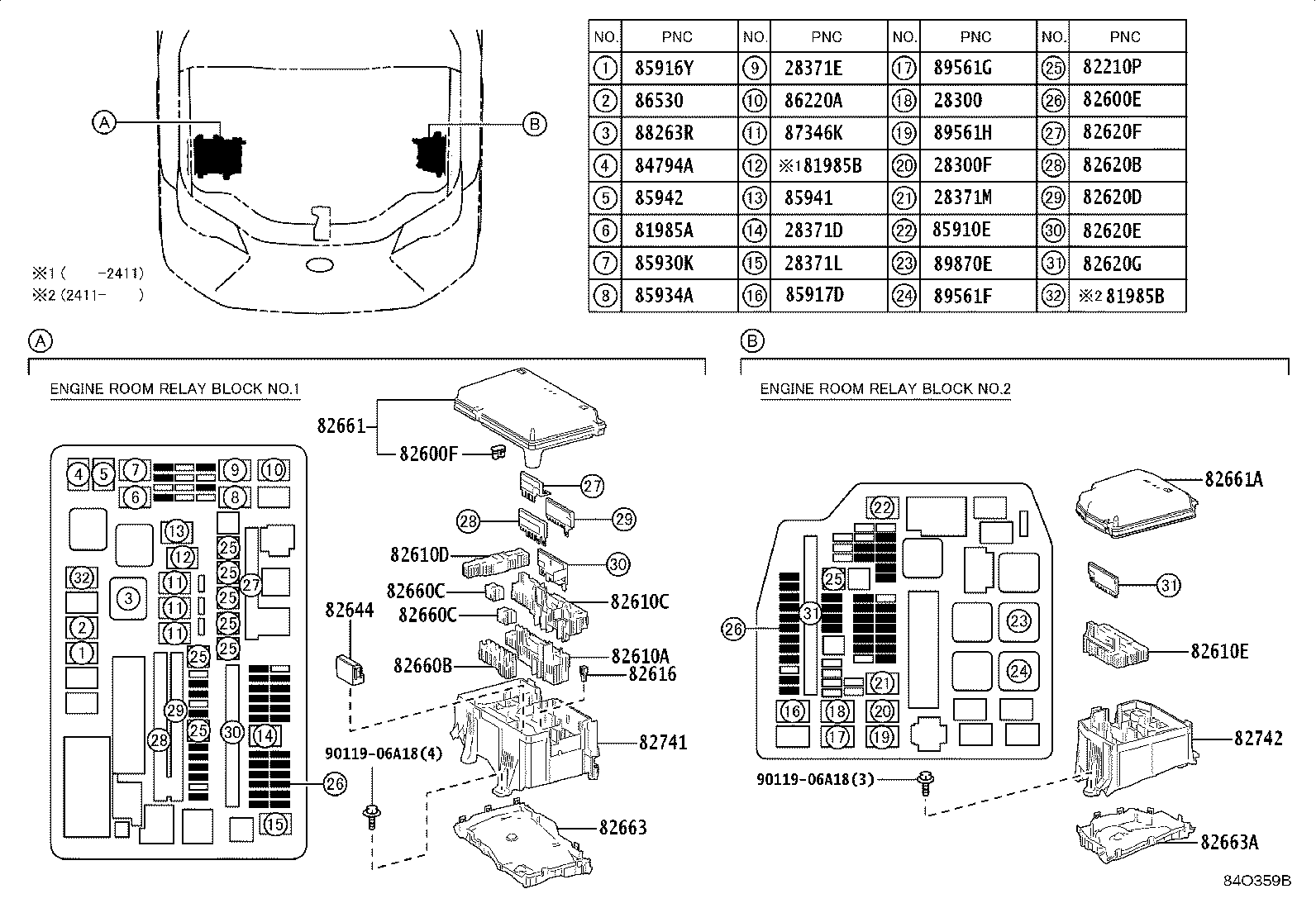

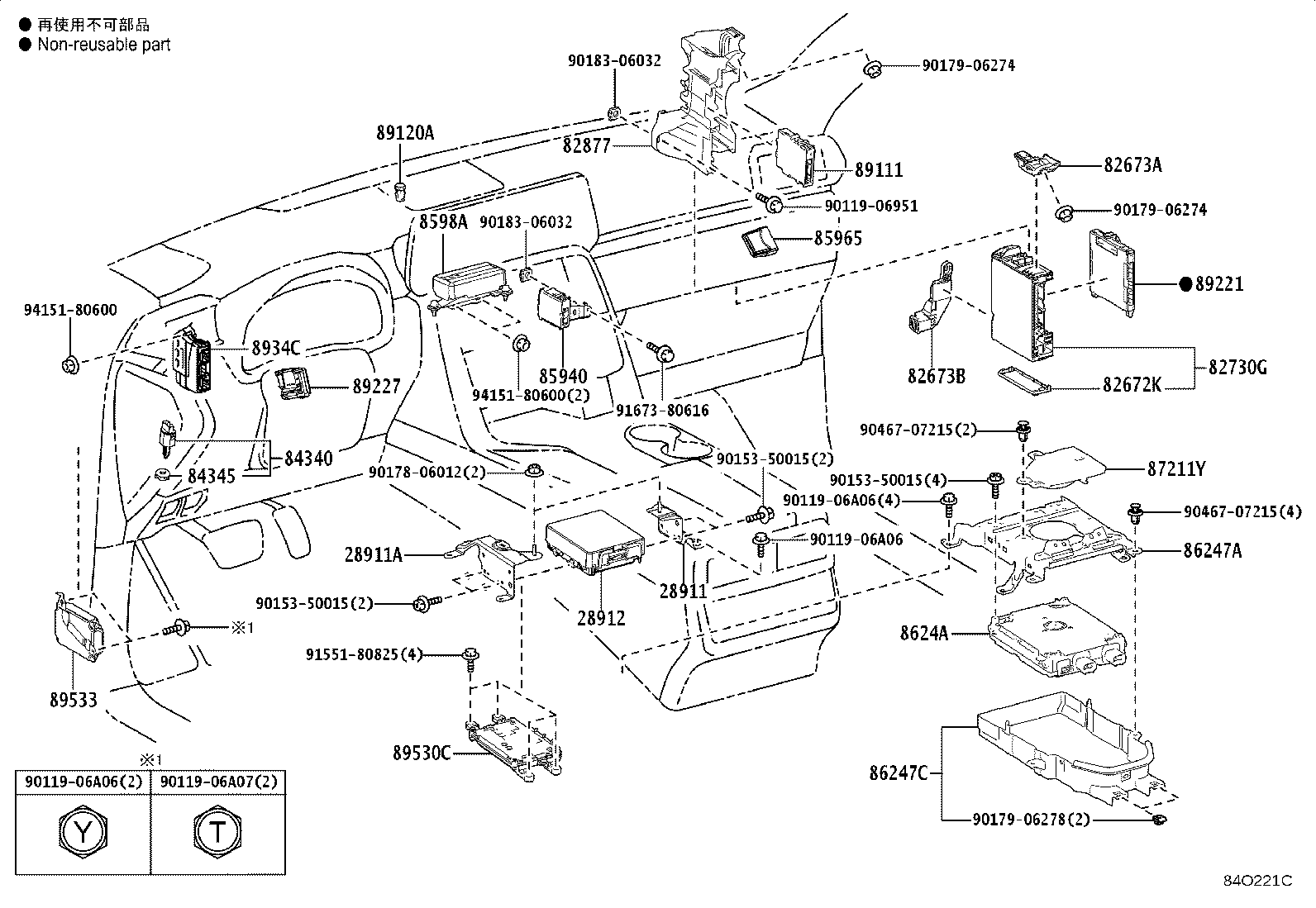

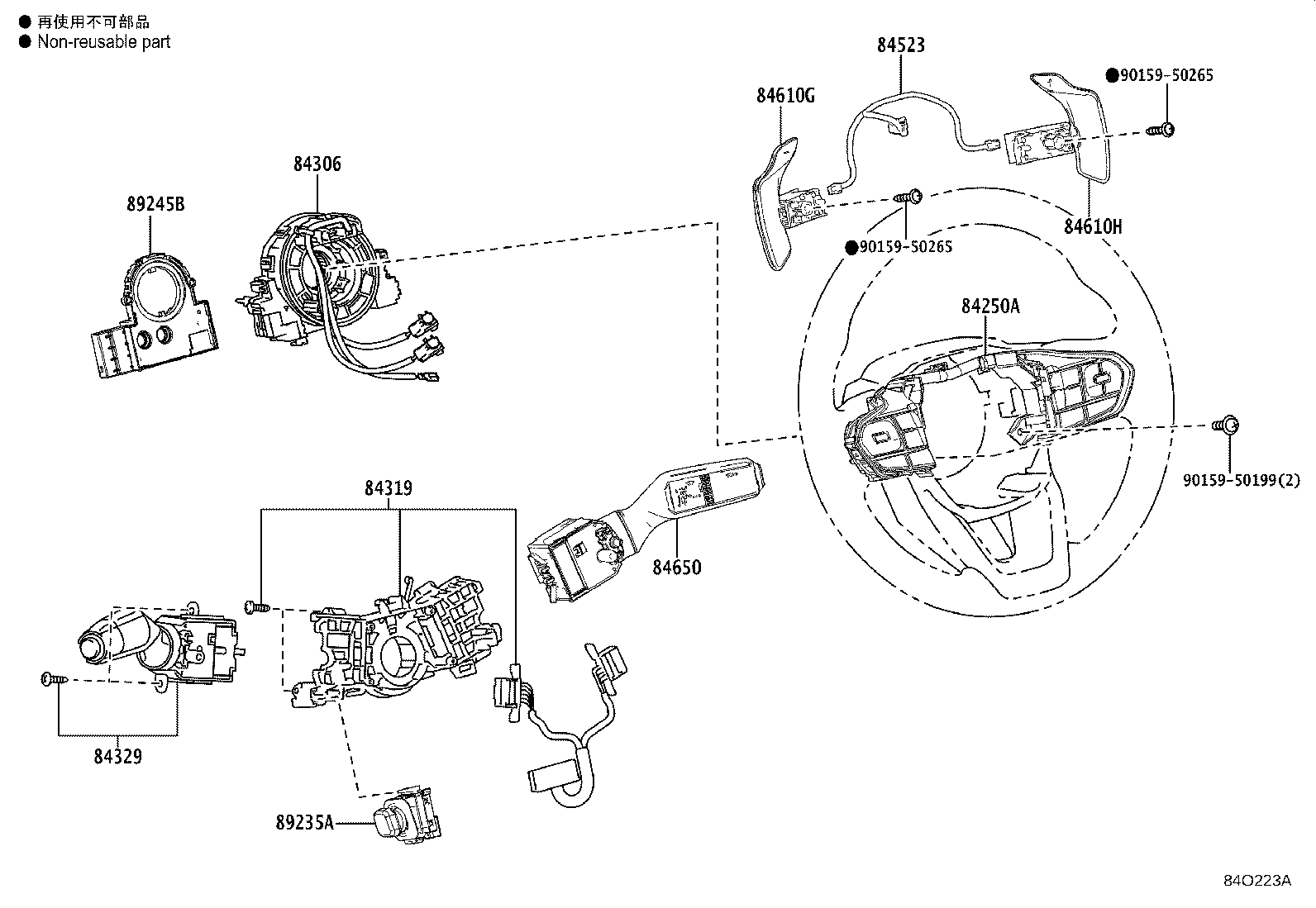

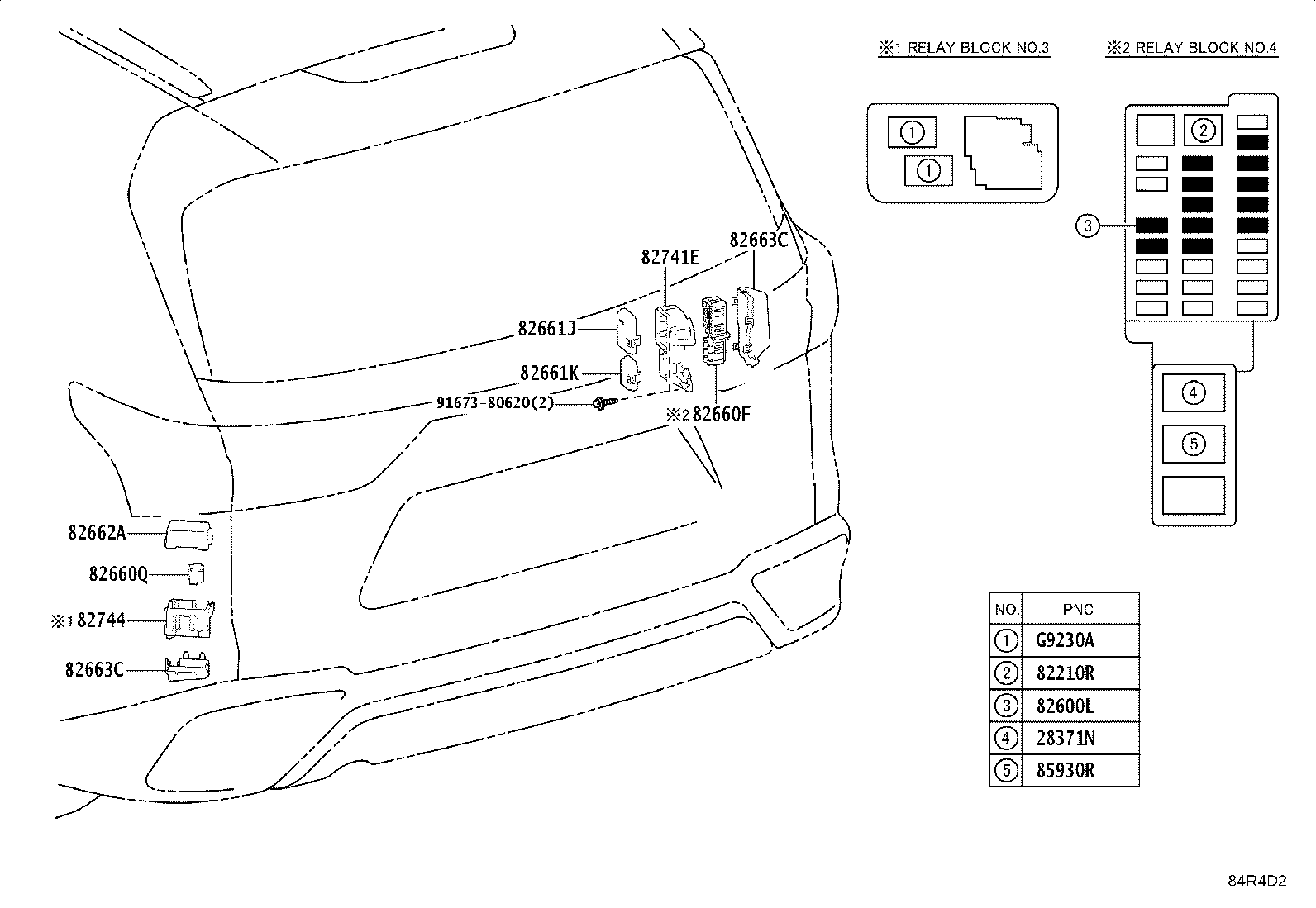

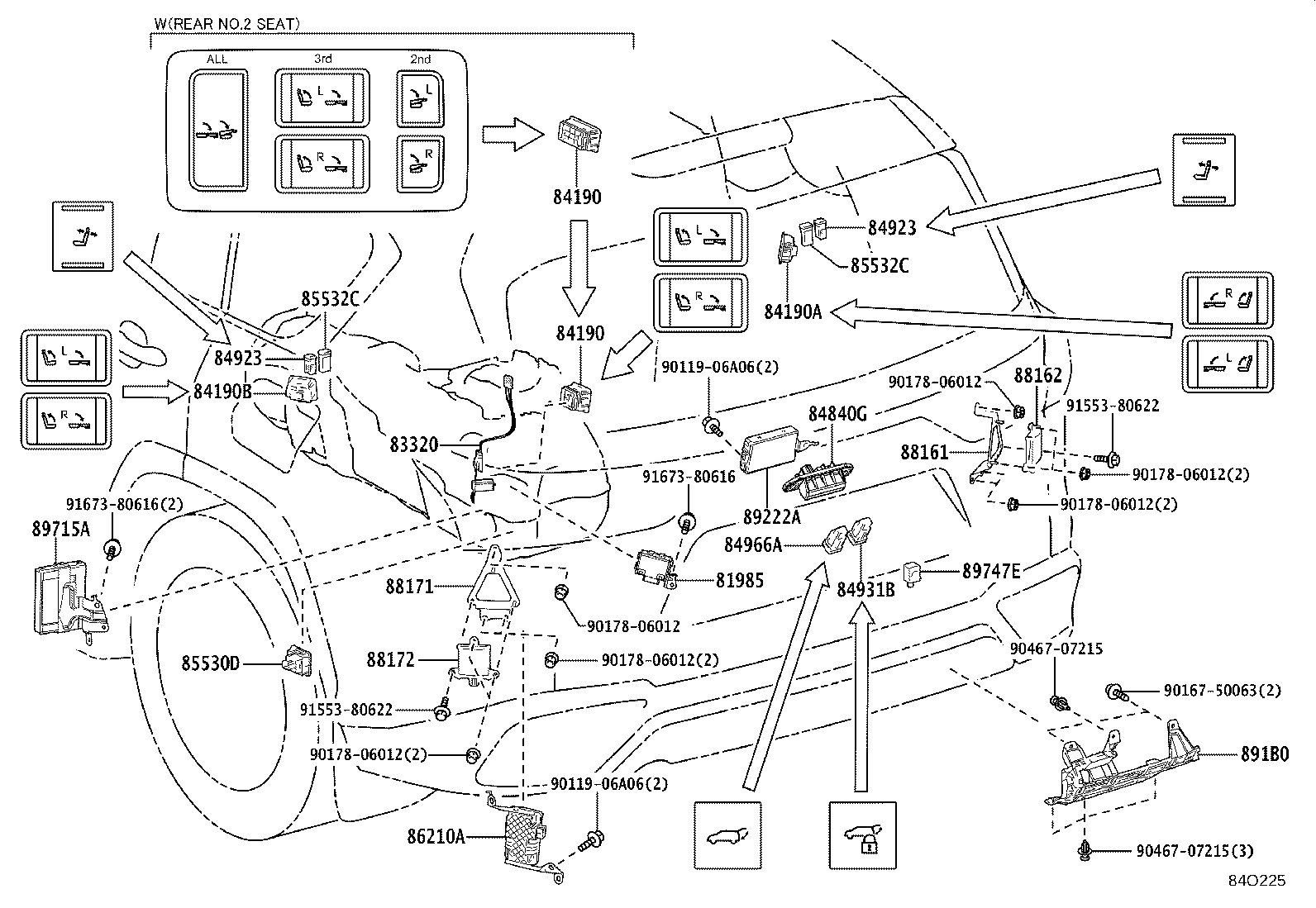

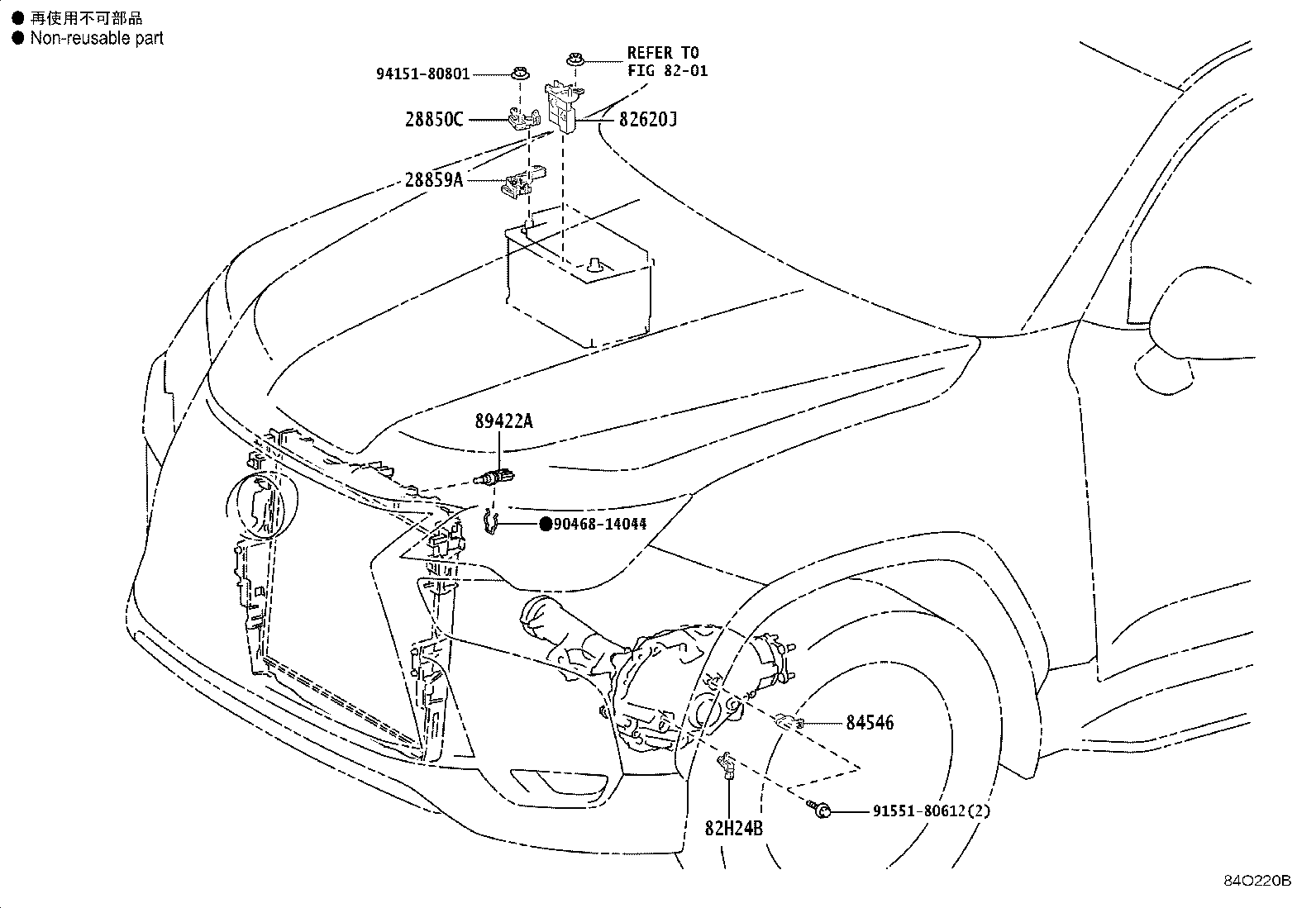

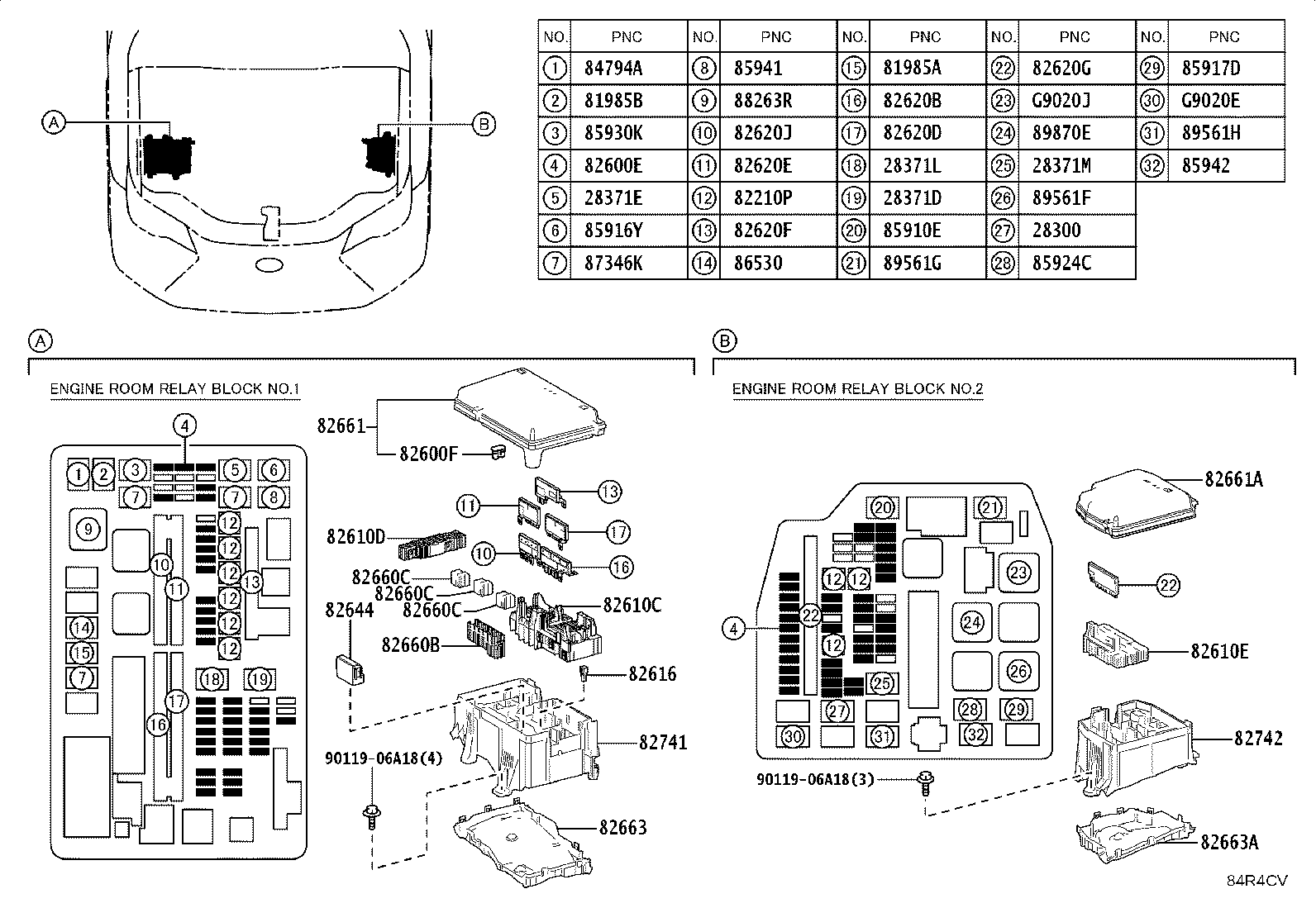

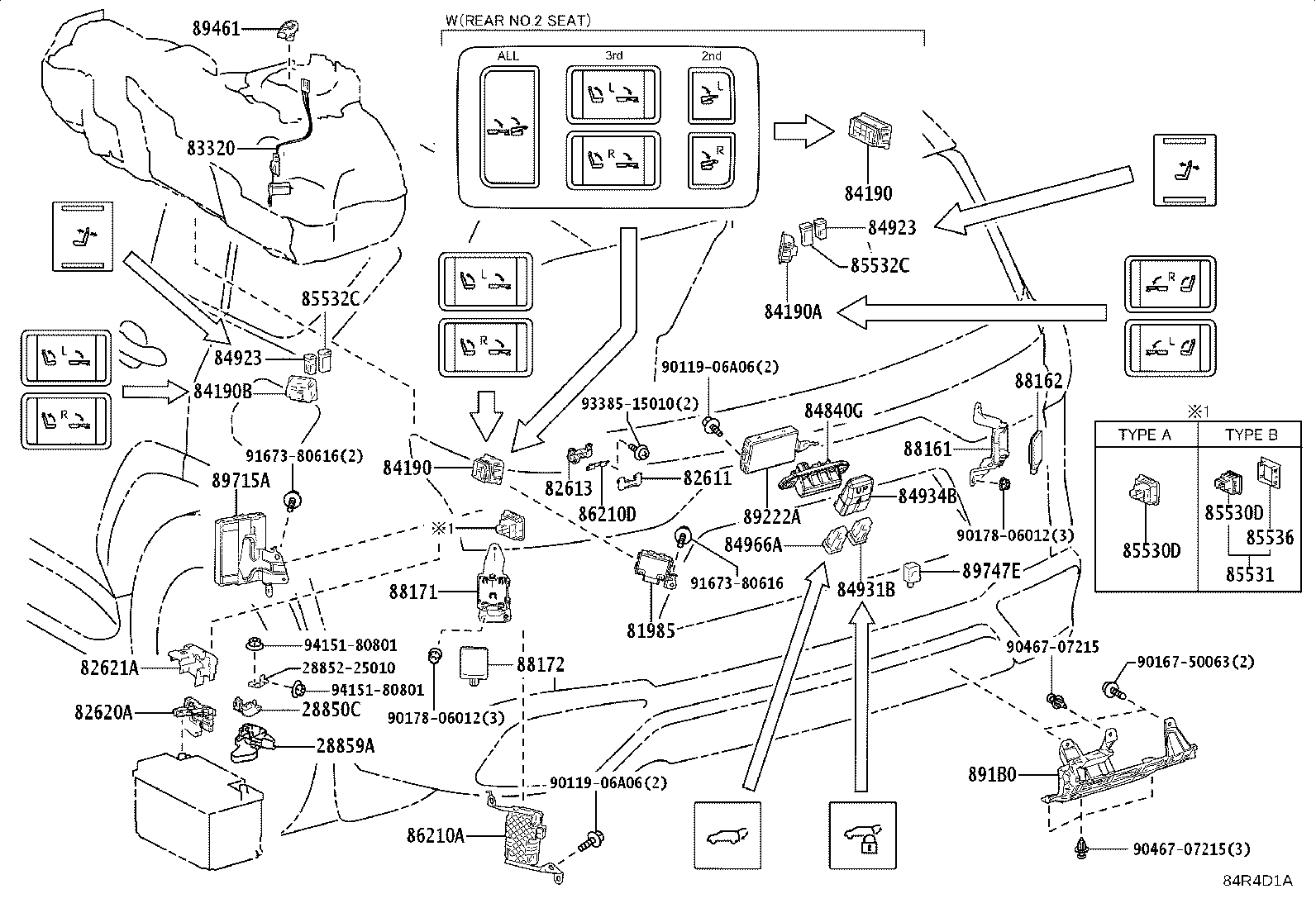

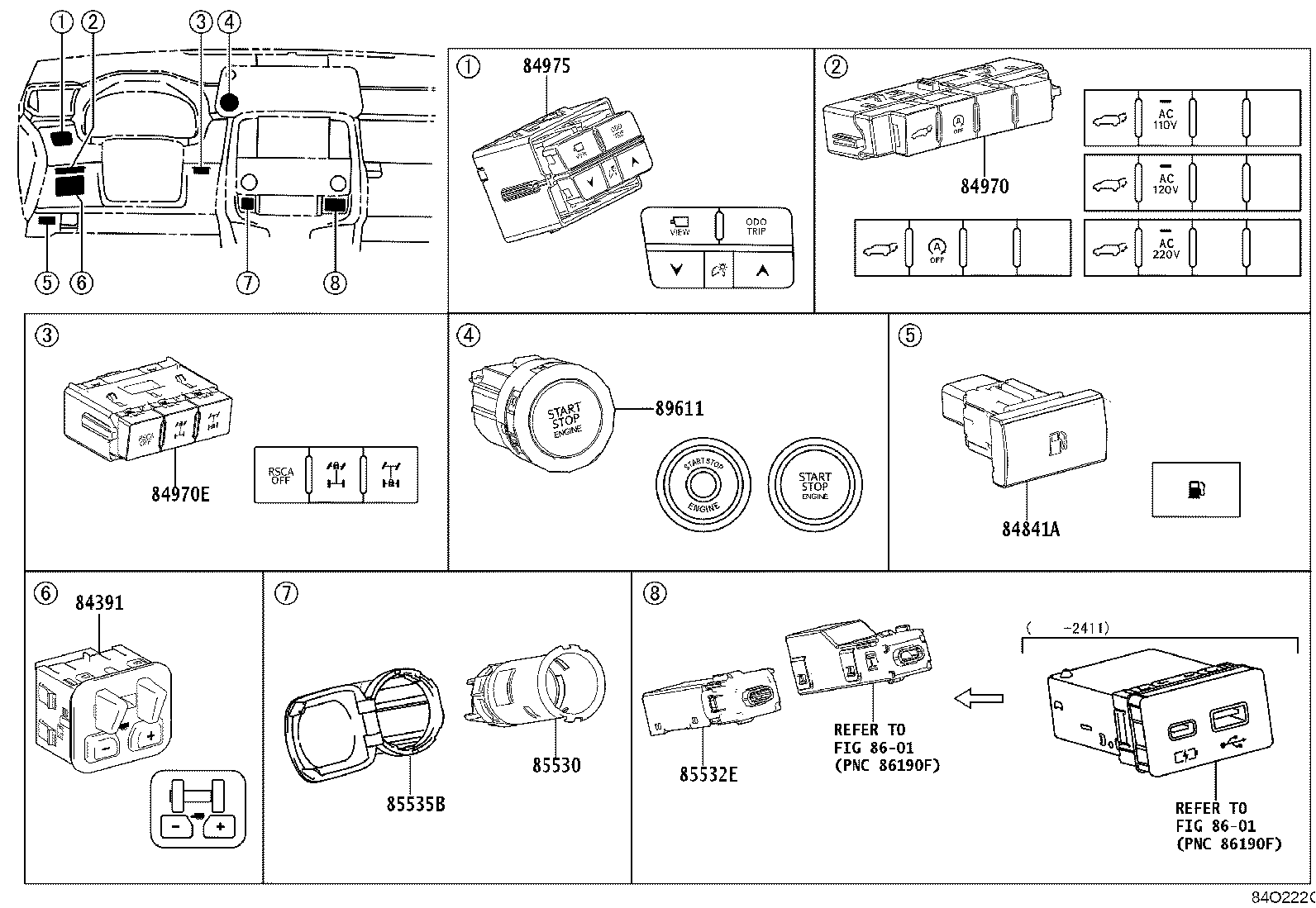

Figure 84O190E 84O190E 2021-12 → — Figure 84R4CU 84R4CU 2024-11 → — Figure 84O220B 84O220B 2021-12 → — Figure 84O359B 84O359B 2021-12 → — Figure 84R4CV 84R4CV 2024-11 → — Figure 84O221C 84O221C 2021-12 → — Figure 84O222C 84O222C 2021-12 → — Figure 84O213A 84O213A 2021-12 → — Figure 84O358A 84O358A 2021-12 → — Figure 84O223A 84O223A 2021-12 → — Figure 84O215D 84O215D 2021-12 → — Figure 84O216D 84O216D 2021-12 → — Figure 84O200 84O200 2021-12 → — Figure 84O201 84O201 2021-12 → — Figure 84O224A 84O224A 2021-12 → — Figure 84O225 84O225 2021-12 → 2024-11 Figure 84R4D1A 84R4D1A 2024-11 → — Figure 84O219 84O219 2021-12 → 2024-11 Figure 84R4D2 84R4D2 2024-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300F Relay Assy, Starter, NO.2
28371D Relay, Ignition, NO.3
28371E Relay, Ignition, NO.4
28371L Relay, Igp
28371M Relay, Igp, NO.2
28371N Relay, Igp, NO.3
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28911 Bracket, Integration Control Supply, NO.1
28911A Bracket, Integration Control Supply, NO.2
28912 Supply, Integration Control
81985 Relay, Towing Converter
81985A Relay, Towing Back-up
81985B Relay, Towing Stop Lamp
82210P Engine Room Fusible Link
82210R Luggage Room Fusible Link
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82600L Luggage Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82610D Block Assy, Fuse
82610E Block Assy, Fuse
82611 Cover, Fuse Block
82613 Cover, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82620G Block Assy, Fusible Link
82620J Block Assy, Fusible Link
82621A Cover, Fusible Link
82644 Computer, Semiconductor Power Integration
82660B Block Assy, Relay
82660C Block Assy, Relay
82660F Block Assy, Relay
82660Q Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82661J Cover, Relay Block, NO.4
82661K Cover, Relay Block, NO.5
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663C Cover, Relay Block Lower, NO.4
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82716F Bracket, Wiring Harness Clamp, NO.4
82730G Box Assy, Power Distribution
82741 Block, Engine Room Relay
82741E Block, Luggage Room Relay, NO.1
82742 Block, Engine Room Relay, NO.2
82744 Block, Engine Room Relay, NO.4
82877 Box, Computer Integration, RH
82H24B Connector, Wiring Harness
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
840A0 Switch Assy, Power Window Master, W/Bezel
840B0 Switch Assy, Power Window W/Bezel
840C0A Control Assy, Integration
84190 Switch Assy, Fold Seat
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84391 Switch, Trailer Brake Control
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84546 Switch, 4 Wheel Drive Position, NO.1
84610G Switch Assy, Transmission Shift, NO.1
84610H Switch Assy, Transmission Shift, NO.2
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84752 Switch, Refreshing Seat
84752C Switch, Refreshing Seat, NO.2
84794A Relay, FR Wiper Deicer
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84923 Switch, Rear Power Seat
84923G Switch, Rear Power Seat, NO.1, RH
84923H Switch, Rear Power Seat, NO.1, LH
84927 Switch, Seat Memory
84931B Switch, Door Control
84934B Cover, Door Control Switch
84966A Switch, Power Back Door Control, NO.1
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84970F Switch Assy, Combination, NO.3
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85532E Socket, Usb Charger, NO.4
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85536 Bezel, Power Outlet Socket
85910E Relay, Injector
85916Y Relay, Towing Tail
85917D Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C Relay, Igct
85930K Relay, Acc, NO.2
85930R Relay, +BA
85934A Relay Condenser Fan
85940 Relay Assy, Windshield Wiper
85941 Relay, Windshield Washer
85942 Relay, Headlamp Cleaner Control
85965 Relay, Room Lamp Control
8598A Battery, Door Control
86210A Inverter Assy, Voltage
86210D Fuse, High Voltage
86220A Relay, Inverter
86247A Bracket, Voltage Inverter
86247C Bracket, Voltage Inverter, NO.2
8624A Inverter, Voltage
86530 Relay Assy, Horn
87211Y Duct, Air
87346K Relay, Ptc Heater
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
88263R Relay, Ahc
88660C Switch Assy, Cooler Control
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B0 Sensor Assy, Kick Door Control
89221 Computer, Multiplex Network Body
89222 Computer, Multiplex Network Door, Front RH
89222A Computer, Multiplex Network Door
89223 Computer, Multiplex Network Door, Front LH
89224 Computer, Multiplex Network Door, Rear RH
89225 Computer, Multiplex Network Door, Rear LH
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
8934C Circuit, Second Power Supply Remote Parking
89422A Sensor, Water Temperature
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89467D Sensor, Air Fuel Ratio, NO.3
89467E Sensor, Air Fuel Ratio, NO.4
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89533 Computer, 4 Wheel Drive Control
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89710 Computer Assy, Position Control
89710C Computer Assy, Position Control, RH
89710D Computer Assy, Position Control, LH
89710E Computer Assy, Position Control, NO.2
89715 Computer, Fold Seat Control
89715A Computer, Fold Seat Control
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
G9020E Relay, Hybrid Water Pump
G9020J Relay, Oil Pump
G9230A Relay, Battery Fan, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
