Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06
Camshaft & Valve

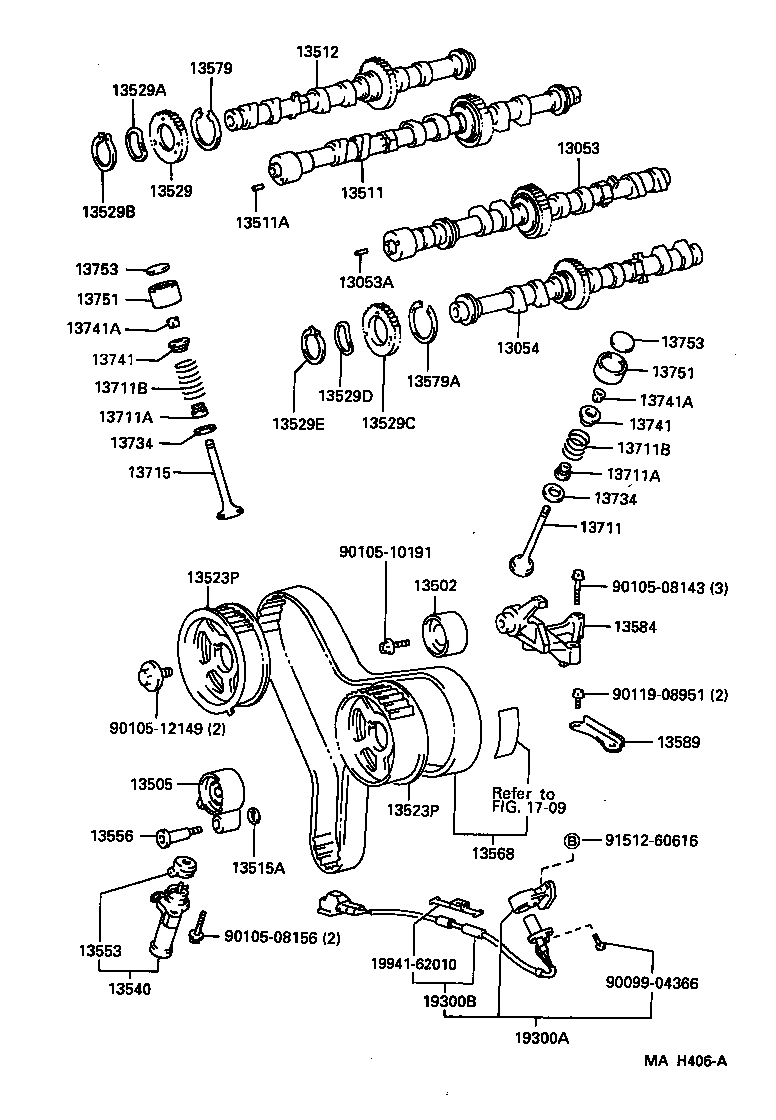

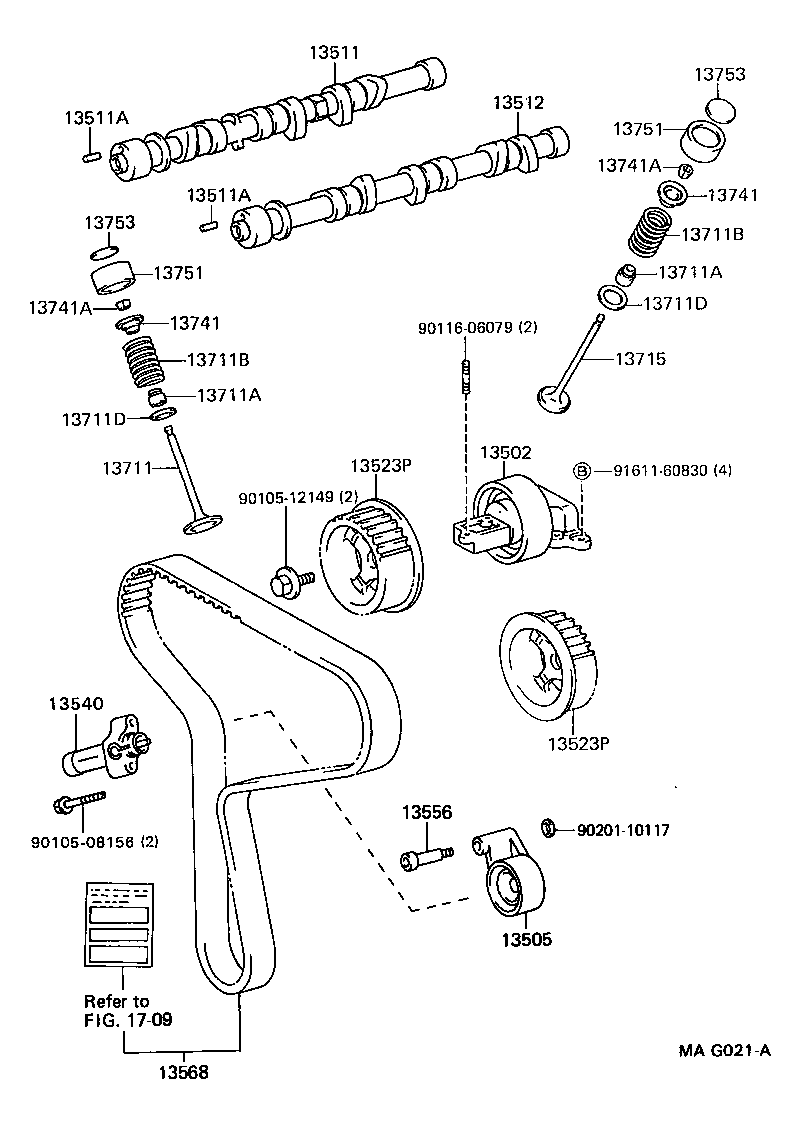

51 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 13053 | Camshaft Sub-assy, NO.3 |
| 13053A | Pin, Straight, NO.3(FOR CAMSHAFT KNOCK) |
| 13054 | Camshaft Sub-assy, NO.4 |
| 13063 | Gear Sub-assy, Balanceshaft Drive |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13506 | Chain Sub-assy |
| 13507 | Chain Sub-assy, NO.2 |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13515 | Gear, Distributor Drive |
| 13515A | Washer, Plate(FOR DISTRIBUTOR DRIVE GEAR) |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523P | Pulley, Camshaft Timing |
| 13529 | Gear, Camshaft Sub |
| 13529A | Washer, Wave(FOR CAMSHAFT SUB GEAR) |
| 13529B | Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR) |
| 13529C | Gear, Camshaft Sub, NO.3 |
| 13529D | Washer, Wave(FOR CAMSHAFT SUB GEAR, NO.3) |
| 13529E | Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR, NO.3) |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13550 | Tensioner Assy, Chain, NO.2 |
| 13553 | Cover, Chain Tensioner Dust |
| 13554 | Damper, Chain Vibration, NO.4 |
| 13556 | Shaft, Timing Belt Idler |
| 13559 | Slipper, Chain Tensioner |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13563 | Damper, Chain Vibration, NO.3 |
| 13568 | Belt, Timing |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13579A | Washer, Camshaft Timing Gear Bolt, NO.3 |
| 13584 | Bracket, Timing Belt Idler |
| 13589 | Stay, Idler Bracket |
| 13597 | Sprocket, Crankshaft Timing, NO.2 |
| 13633A | Gear, Balanceshaft Driven, NO.2 |
| 13636 | Shaft, Balanceshaft Drive Gear |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13753 | Shim, Valve Adjusting |
| 19300A | Sensor Assy, Cam Position |
| 19300B | Sensor, Cam Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
