Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

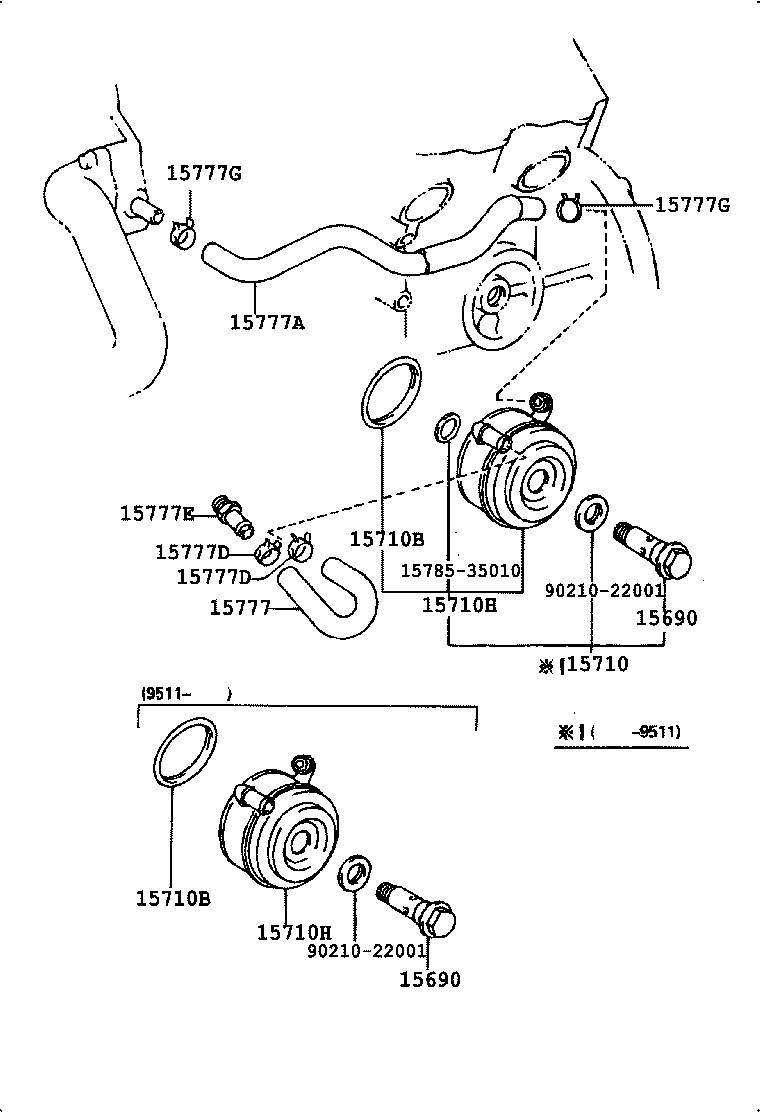

Engine Oil Cooler
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15690 | Valve Assy, Oil Cooler Relief |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710H | Cooler Assy, Oil, NO.2 |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777E | Union |
| 15777G | Clamp OR Crip, Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
