Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

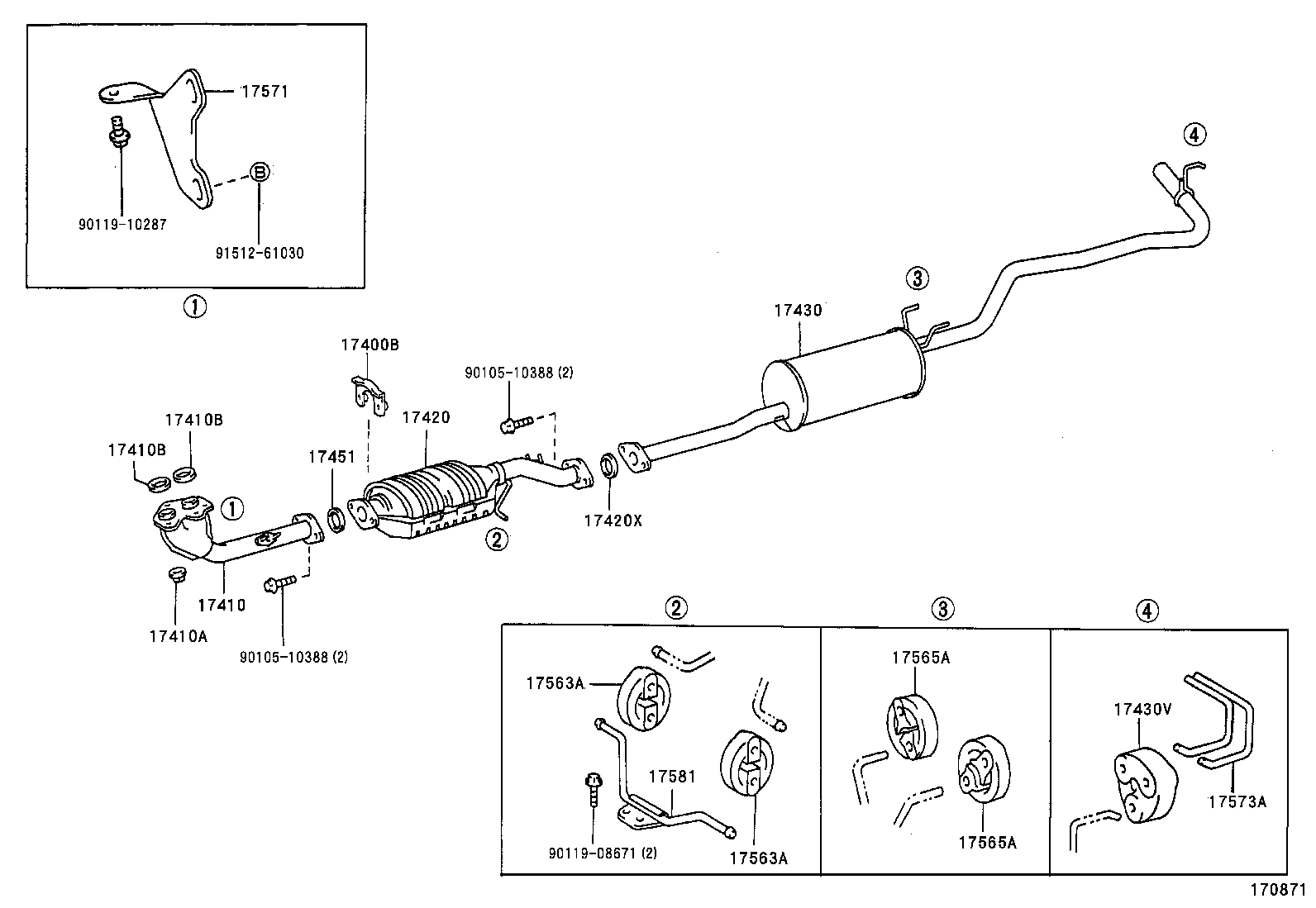

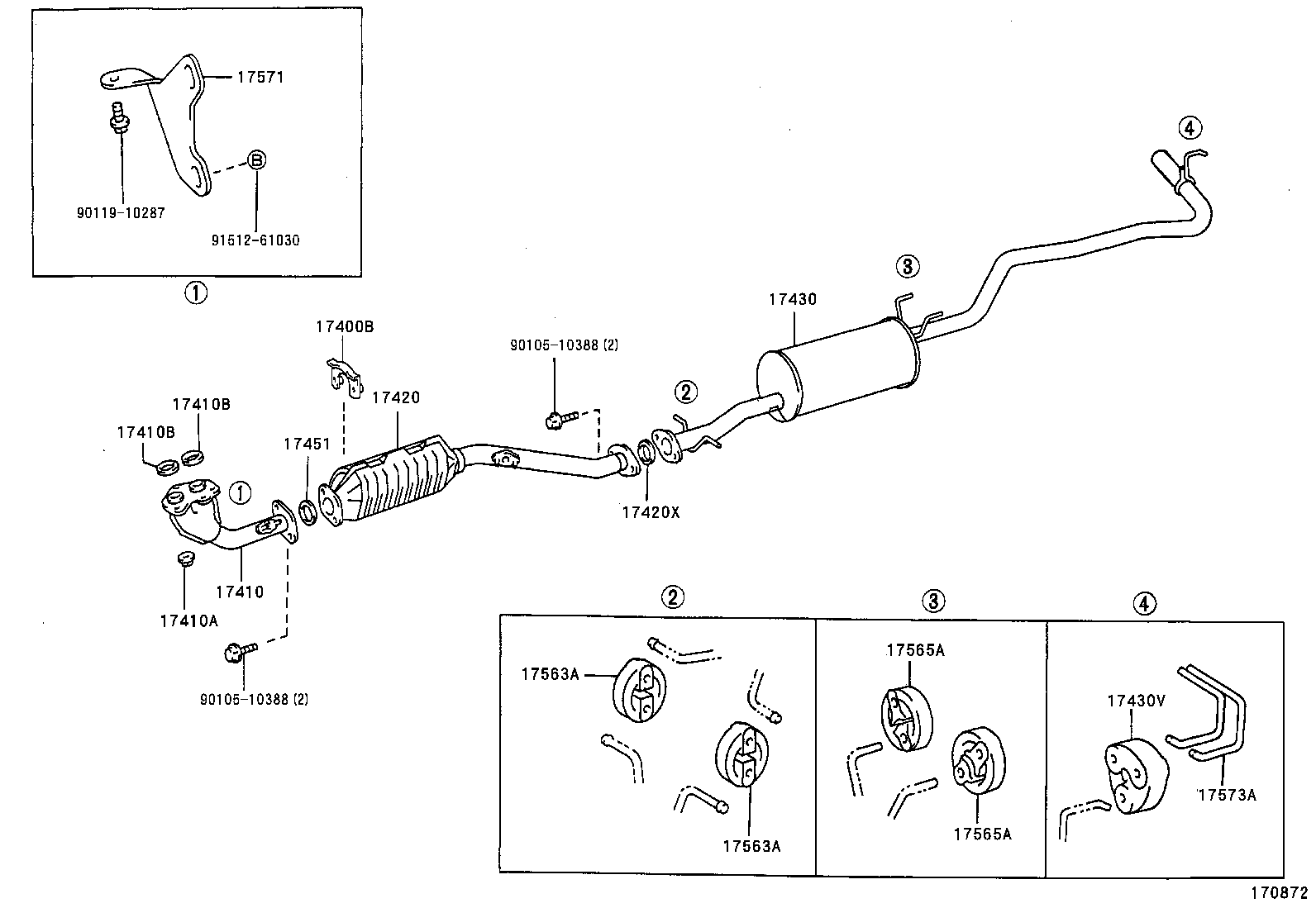

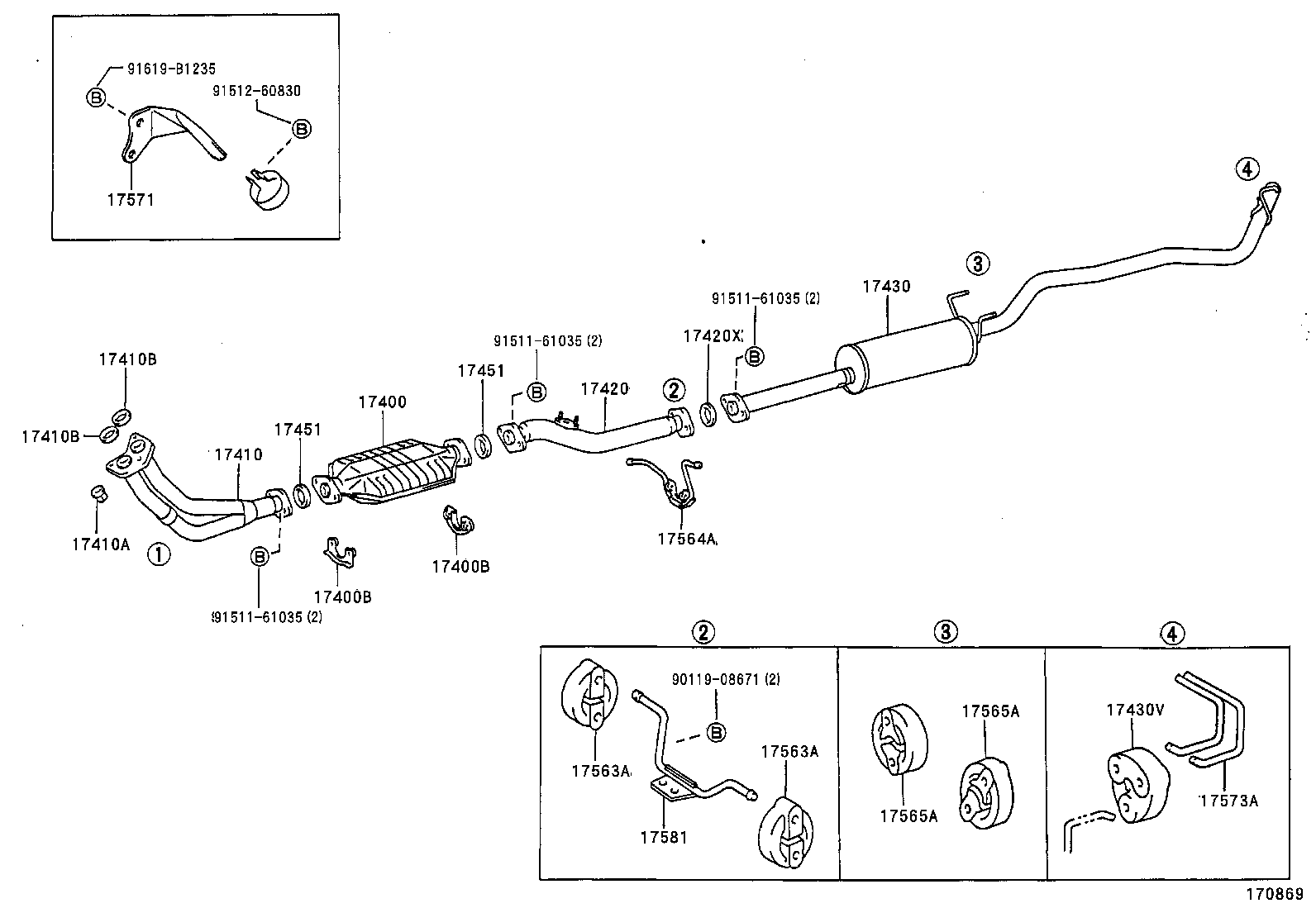

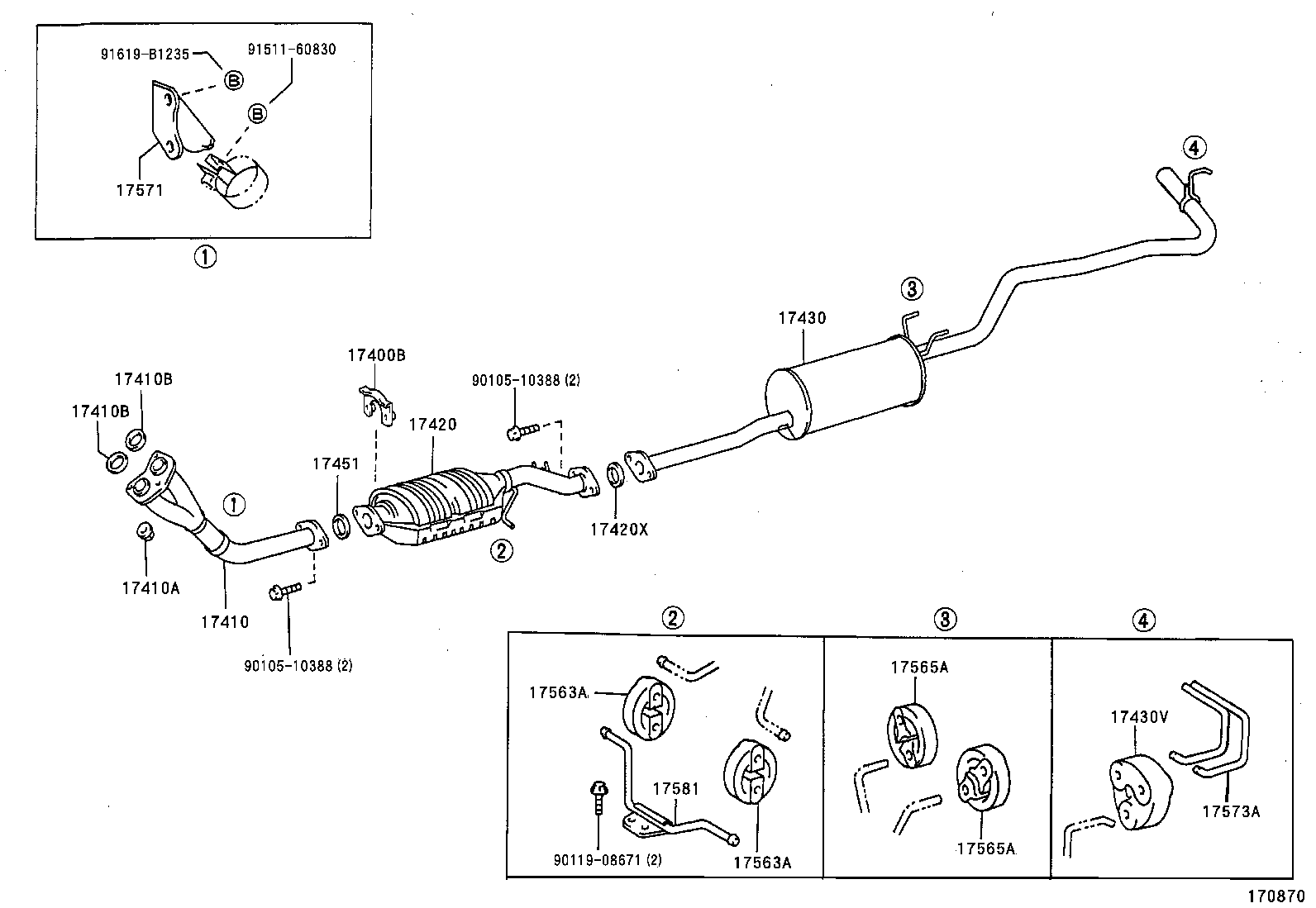

Exhaust Pipe
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17564A | Support, Catalytic Converter, RH |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17581 | Bracket, Exhaust Pipe NO.1 Insulator Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
