Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

30 part groups · 3 illustrations

Illustrations

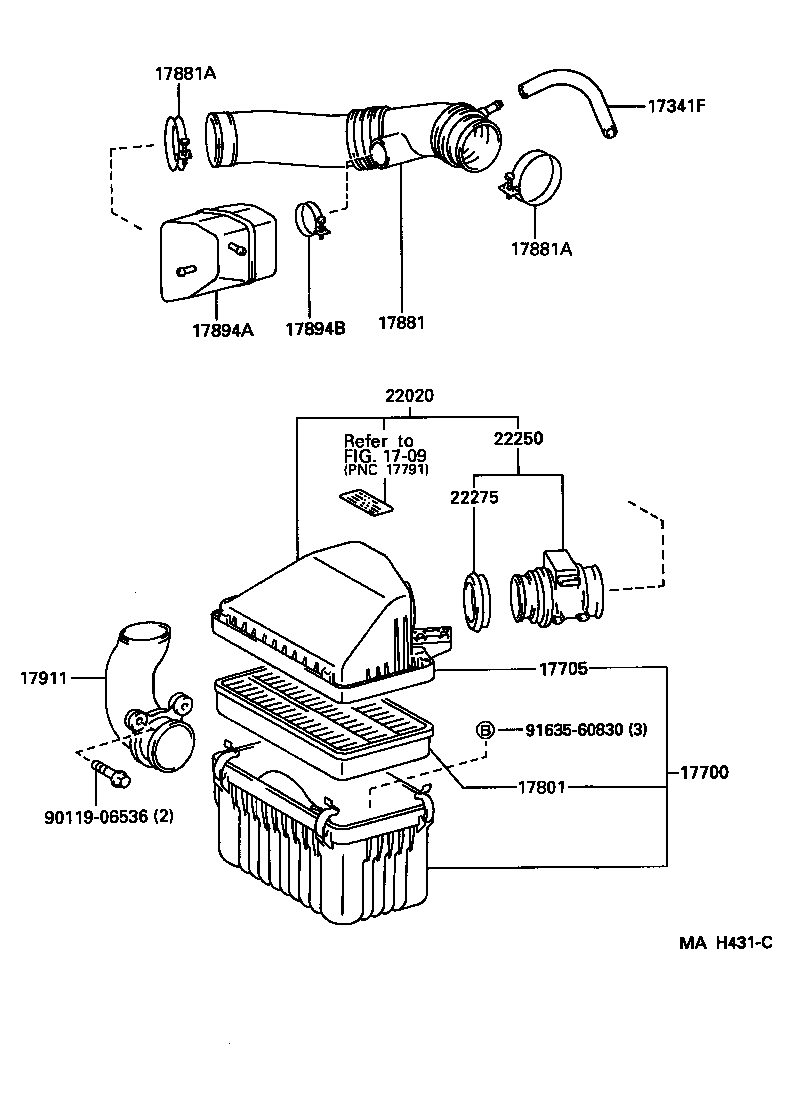

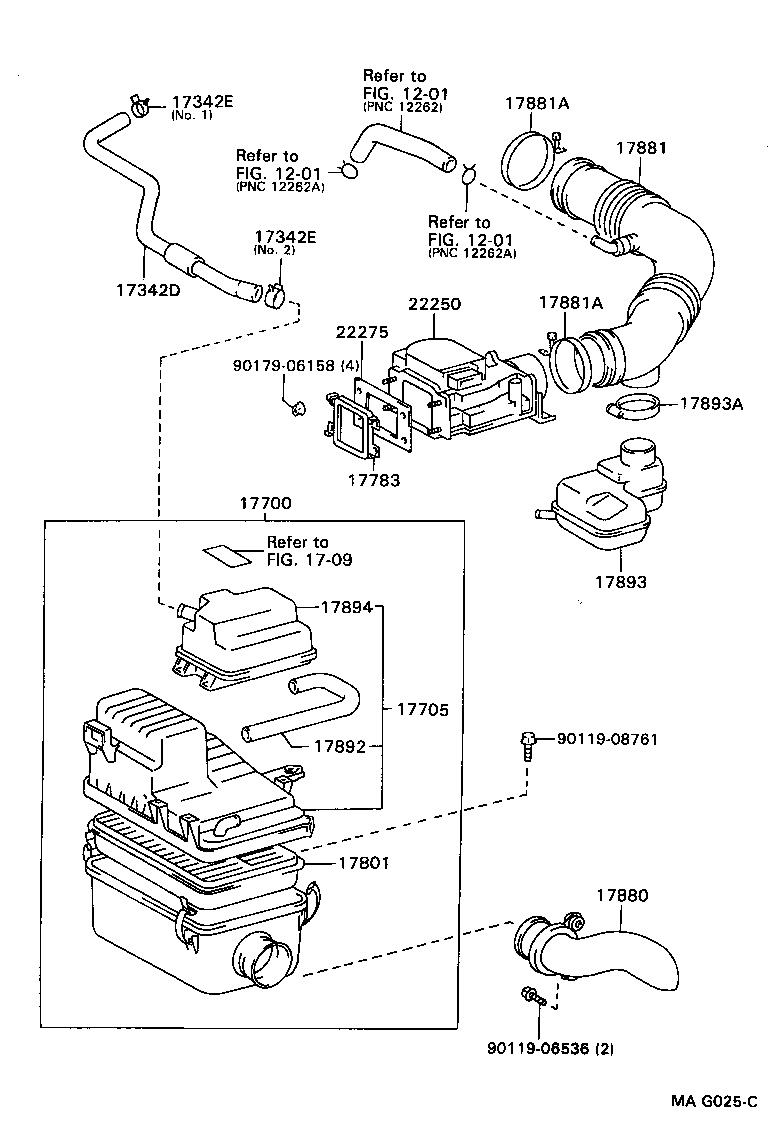

Figure 170955 170955 1993-10 → — Figure MAG025C MAG025C 1992-08 → 1994-08 Figure MAH431C MAH431C 1994-08 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17853 Insulator, Air Cleaner Bracket
17871 Stay, Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17893A Clamp, Hose
17894 Bracket, Resonator
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17911 Duct, Cool Air Intake, NO.1
22020 Meter Assy, Air Flow W/Air Cleaner
22204 Meter Sub-assy, Intake Air Flow
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
