Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06

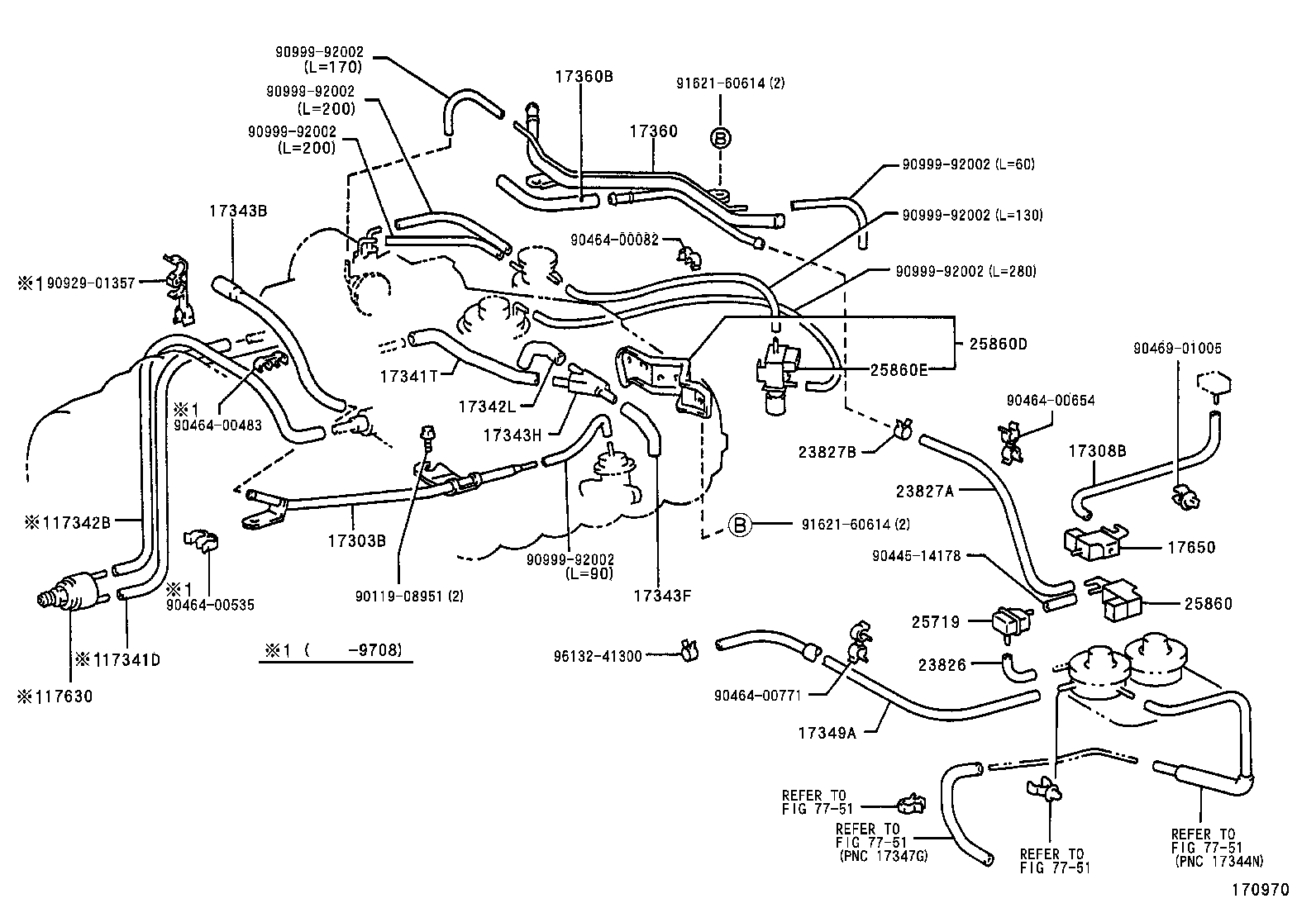

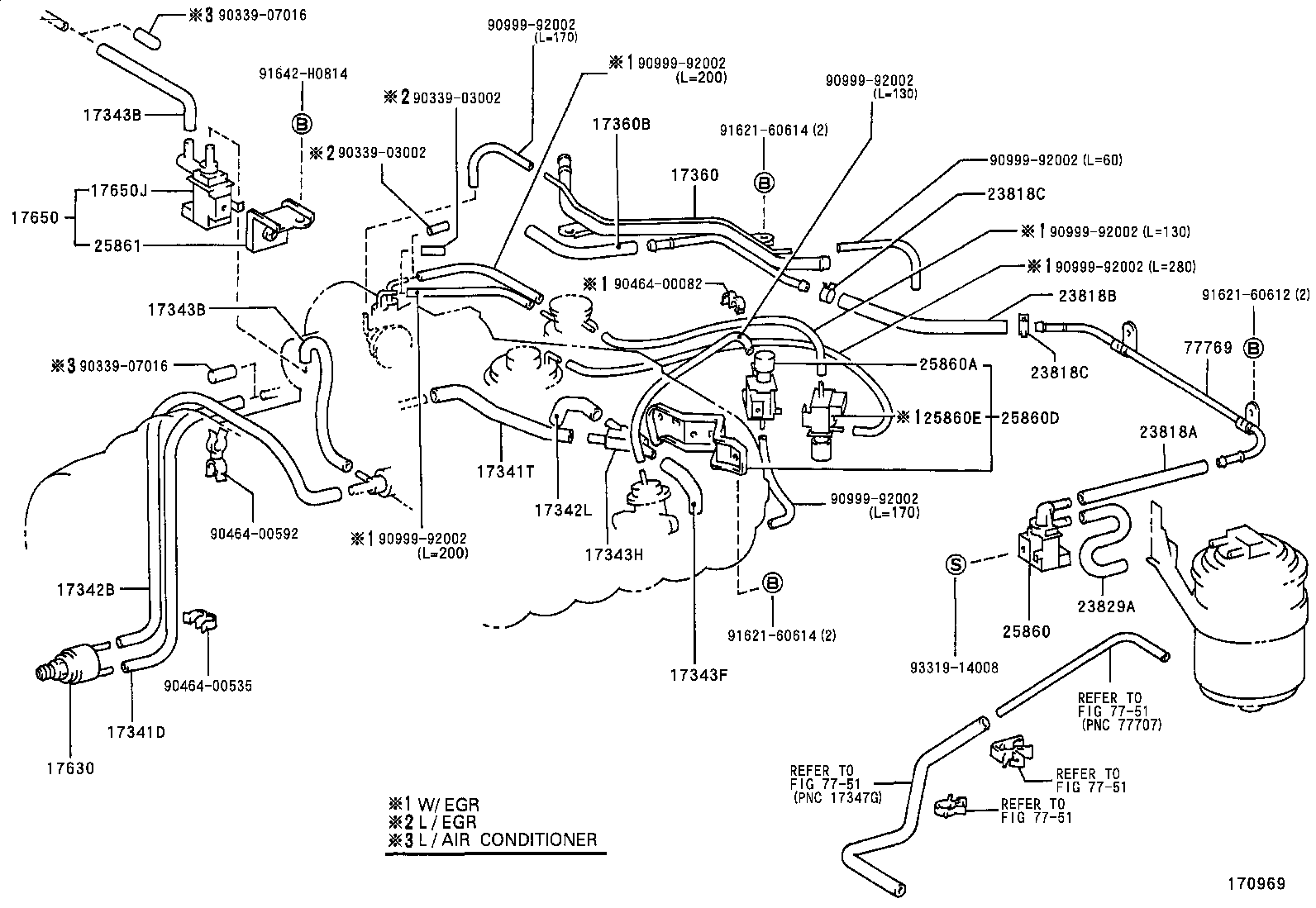

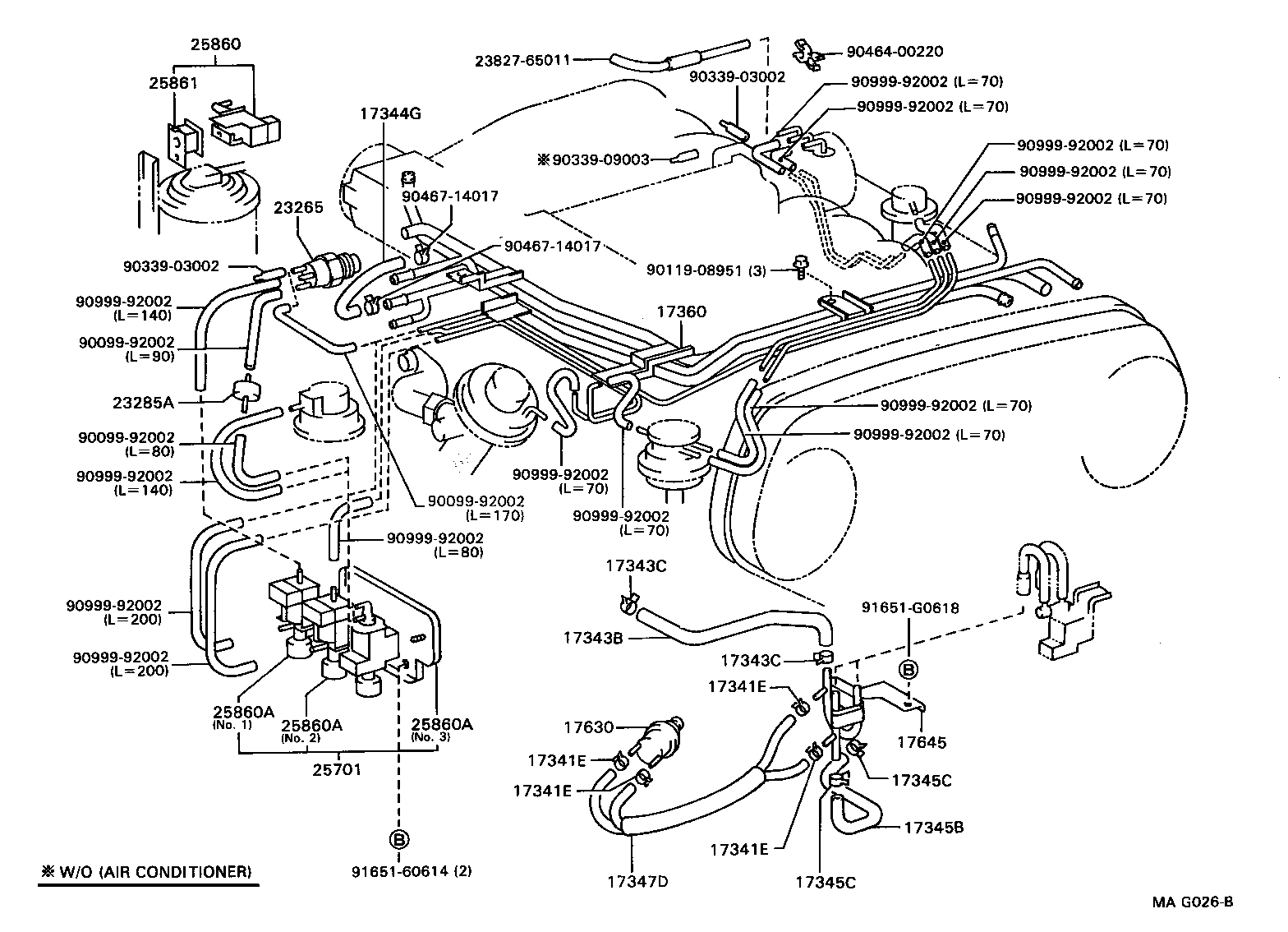

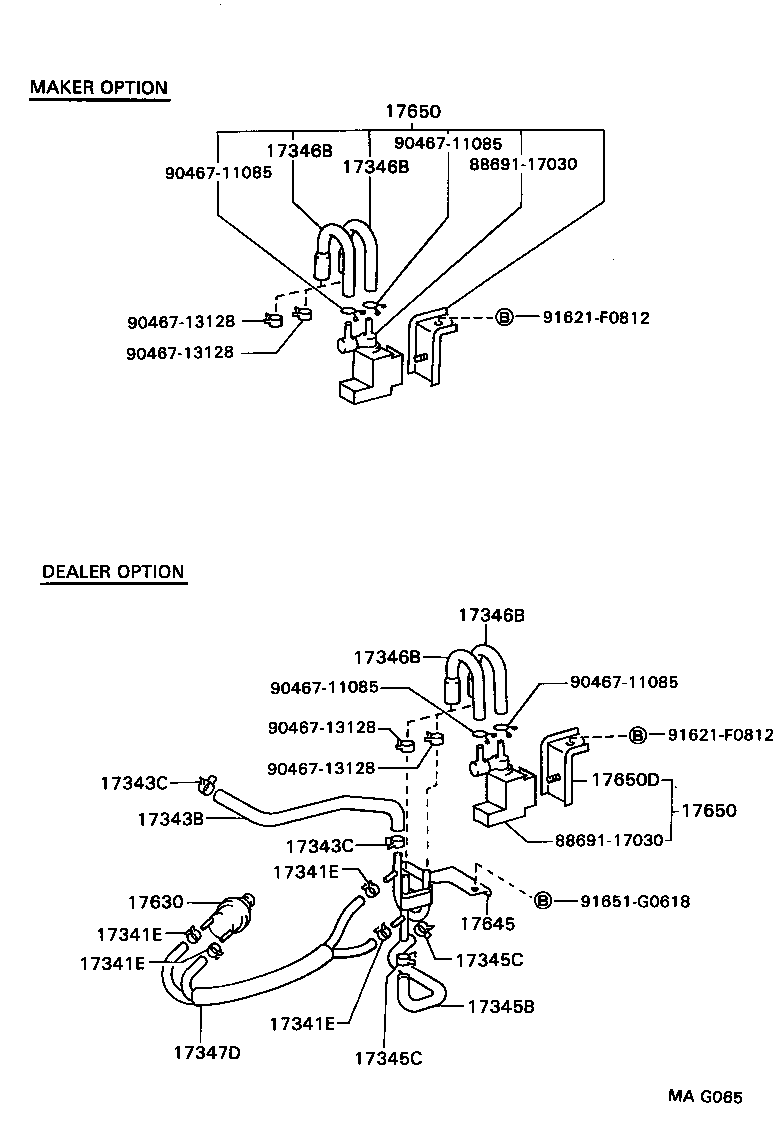

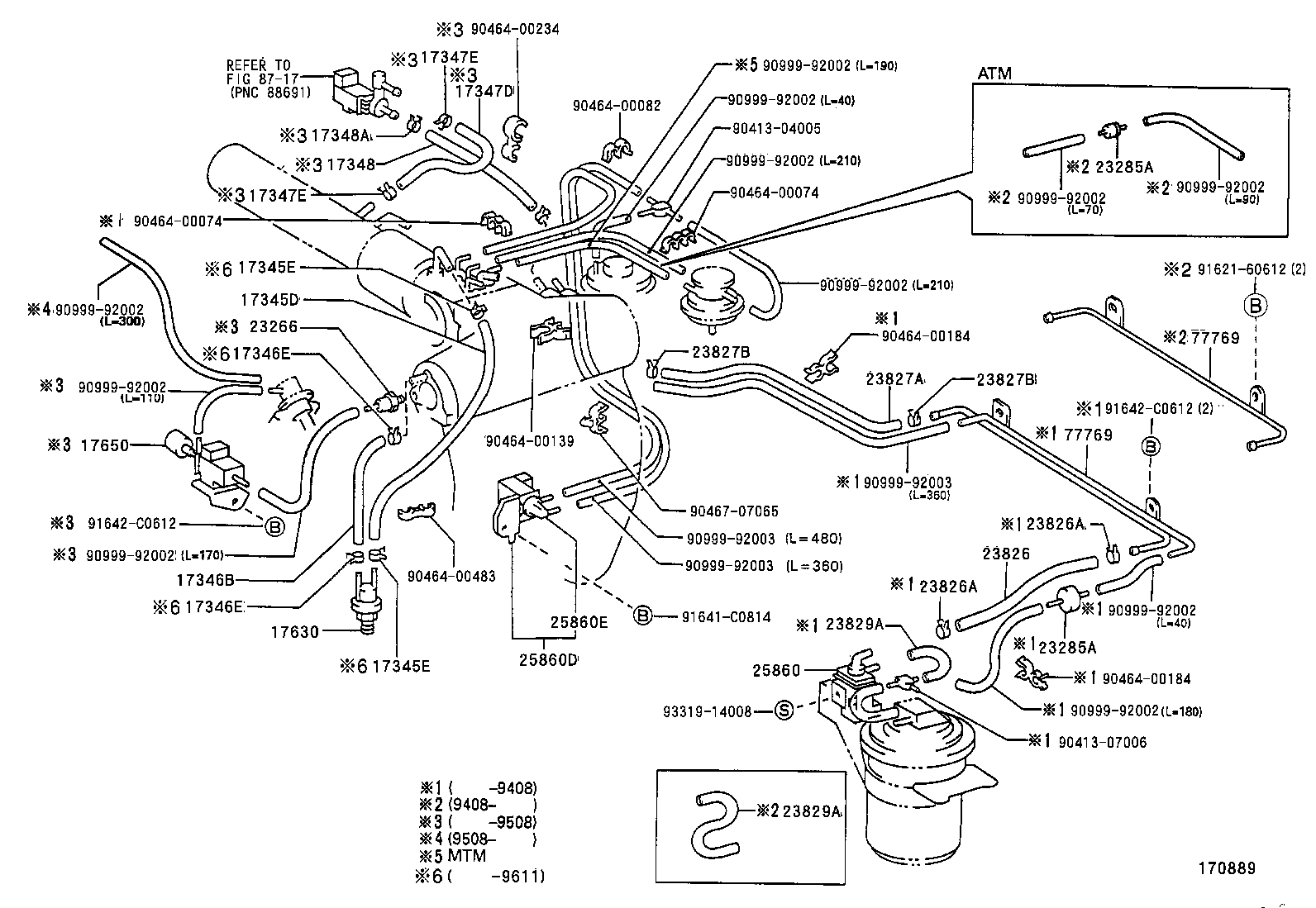

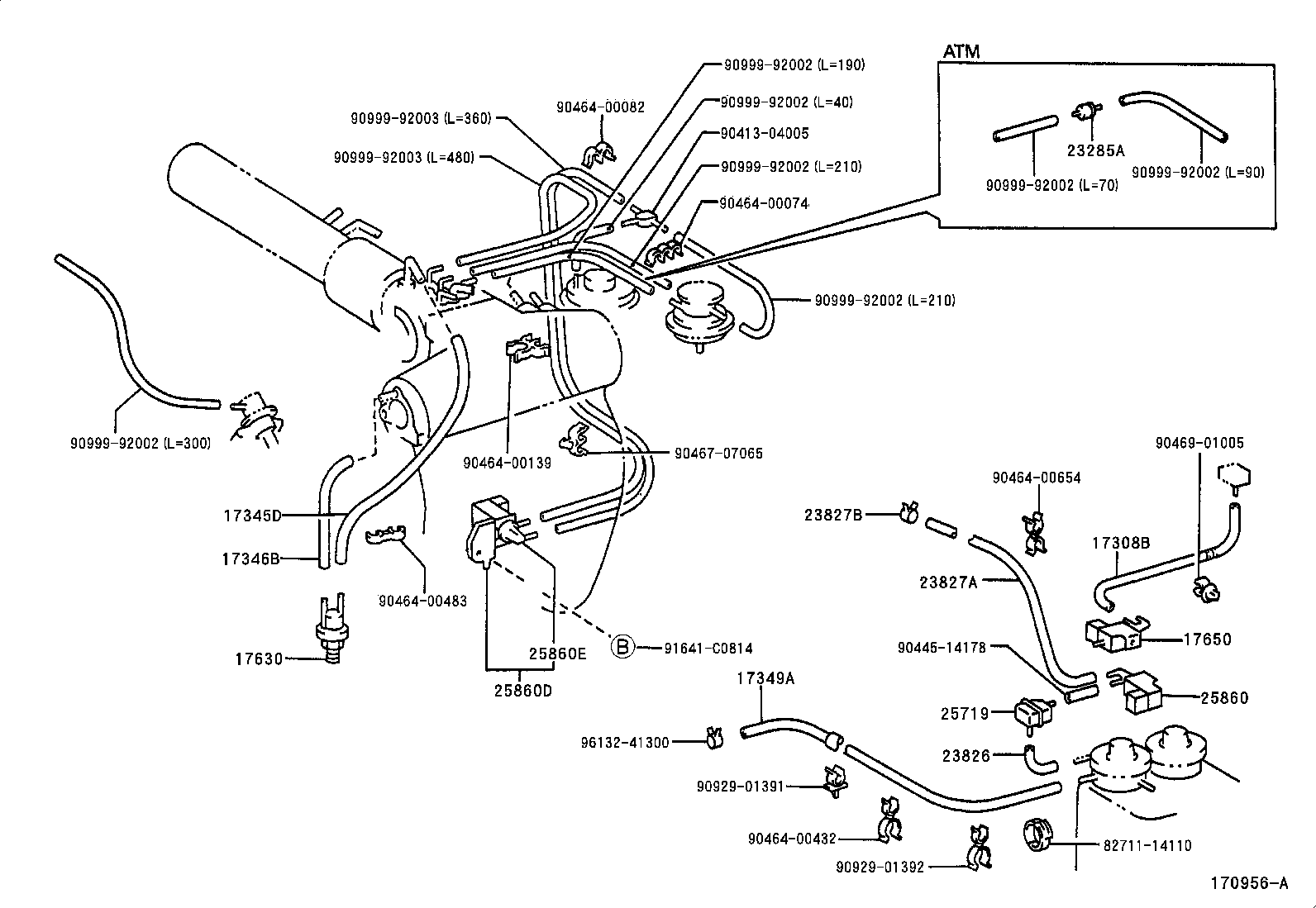

Vacuum Piping

49 part groups · 7 illustrations

PNC	Description
17303B	Pipe Sub-assy, Air, NO.1
17308B	Hose Sub-assy, Vacuum
17341D	Hose, NO.1(FOR IDLE-UP)
17341E	Clip, NO.1(FOR IDLE-UP HOSE)
17341T	Hose, Air, NO.1
17342B	Hose, NO.2(FOR IDLE-UP)
17342L	Hose, Air, NO.2
17343B	Hose, NO.3(FOR IDLE-UP)
17343C	Clip, NO.3(FOR IDLE-UP HOSE)
17343F	Hose, Air, NO.3
17343H	Way, 3(FOR AIR HOSE)
17344G	Hose, Air, NO.4
17345B	Hose, NO.5(FOR IDLE-UP)
17345C	Clip, NO.5(FOR IDLE-UP HOSE)
17345D	Hose, Air, NO.5
17345E	Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B	Hose, Air, NO.6
17346E	Clip(FOR AIR HOSE NO.6)
17347D	Hose, Air, NO.7
17347E	Clip(FOR AIR HOSE NO.7)
17348	Hose, Air, NO.8
17348A	Clip(FOR AIR HOSE NO.8)
17349A	Hose, Air, NO.9
17360	Tube Assy, Air
17360B	Hose(FOR AIR PIPE)
17630	Valve Assy, Air Control
17645	Pipe, Idle UP
17650	Valve Assy, Vacuum Switching
17650D	Bracket, Vacuum Switching Valve
17650J	Valve, Solenoid W/Adjust Screw
23265	Filter, Gas, NO.1
23266	Filter, Gas, NO.2
23285A	Valve, Check, NO.1
23818A	Hose(FOR FUEL VAPOR FEED PIPE)
23818B	Hose, NO.2(FOR FUEL VAPOR FEED PIPE)
23818C	Clip(FOR FUEL VAPOR FEED HOSE)
23826	Hose, Fuel Vapor Feed, NO.1
23826A	Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A	Hose, Fuel Vapor Feed, NO.2
23827B	Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A	Hose, Fuel Vapor Feed
25701	Valve Set, Emission Control
25719	Tank, Vacuum Surge
25860	Valve Assy, Vacuum Switching, NO.1
25860A	Valve, Vacuum Switching, NO.1
25860D	Valve Assy, Vacuum Switching, NO.2
25860E	Valve, Vacuum Switching, NO.2
25861	Bracket, Vacuum Switching Valve
77769	Pipe, Vapor Guide

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
