Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 4 illustrations

Illustrations

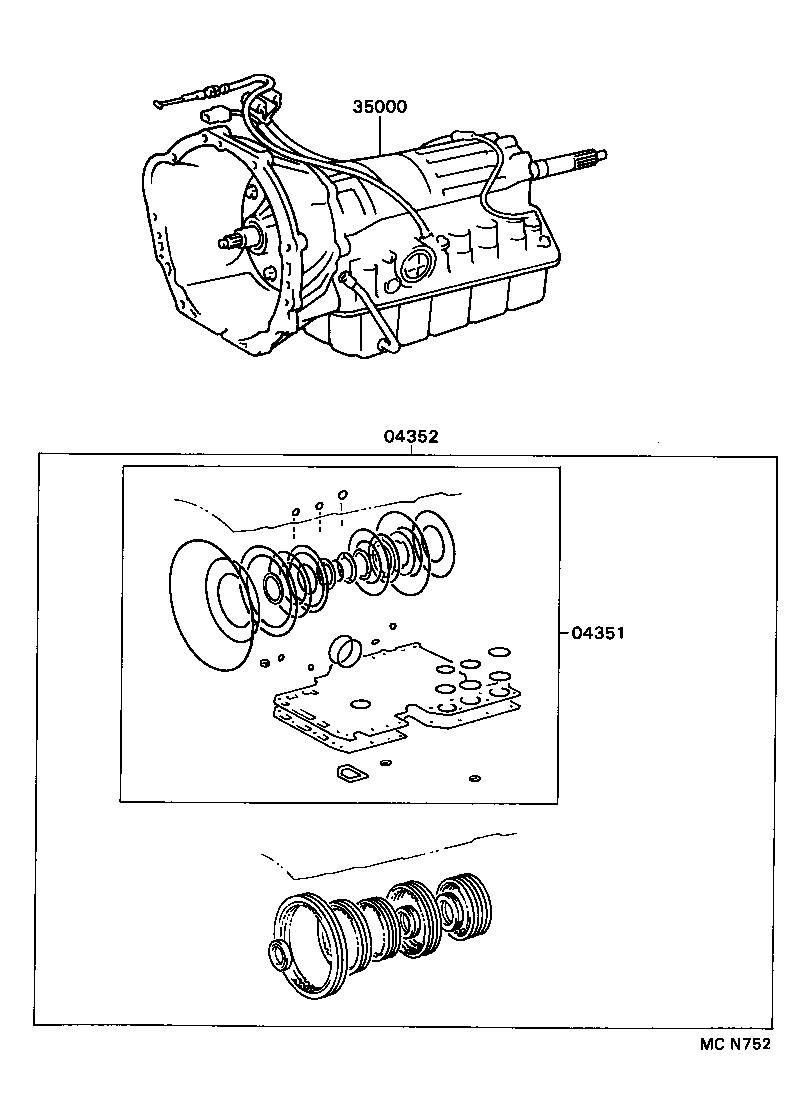

Figure MCN668 MCN668 1992-08 → 1994-08 Figure MCN668 MCN668 1994-08 → — Figure MCN752 MCN752 1992-08 → 1994-08 Figure MCN752 MCN752 1994-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
04352 Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
