Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

16 part groups · 4 illustrations

Illustrations

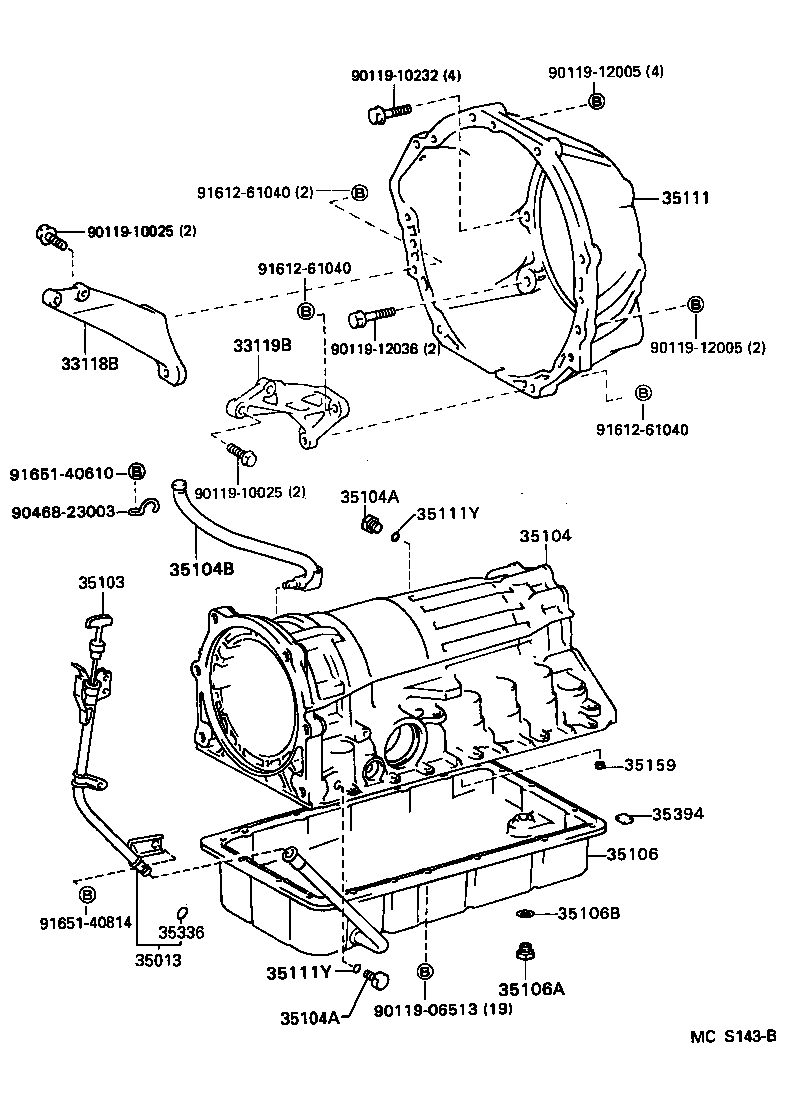

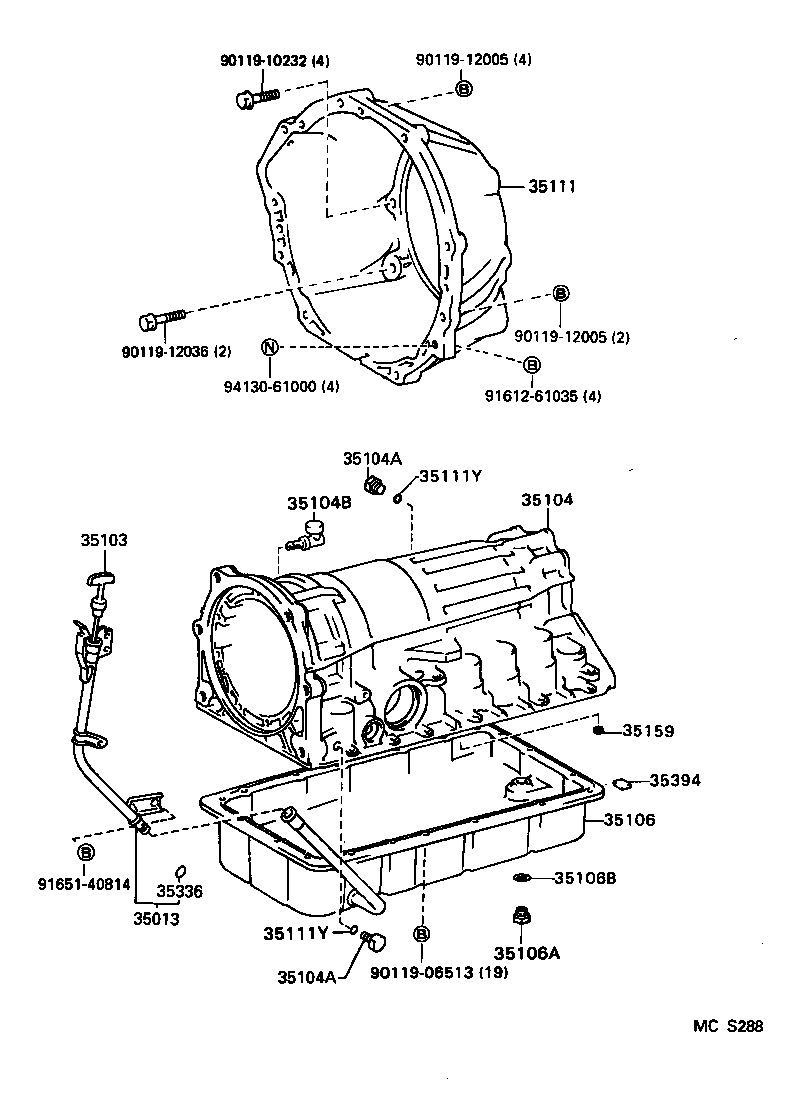

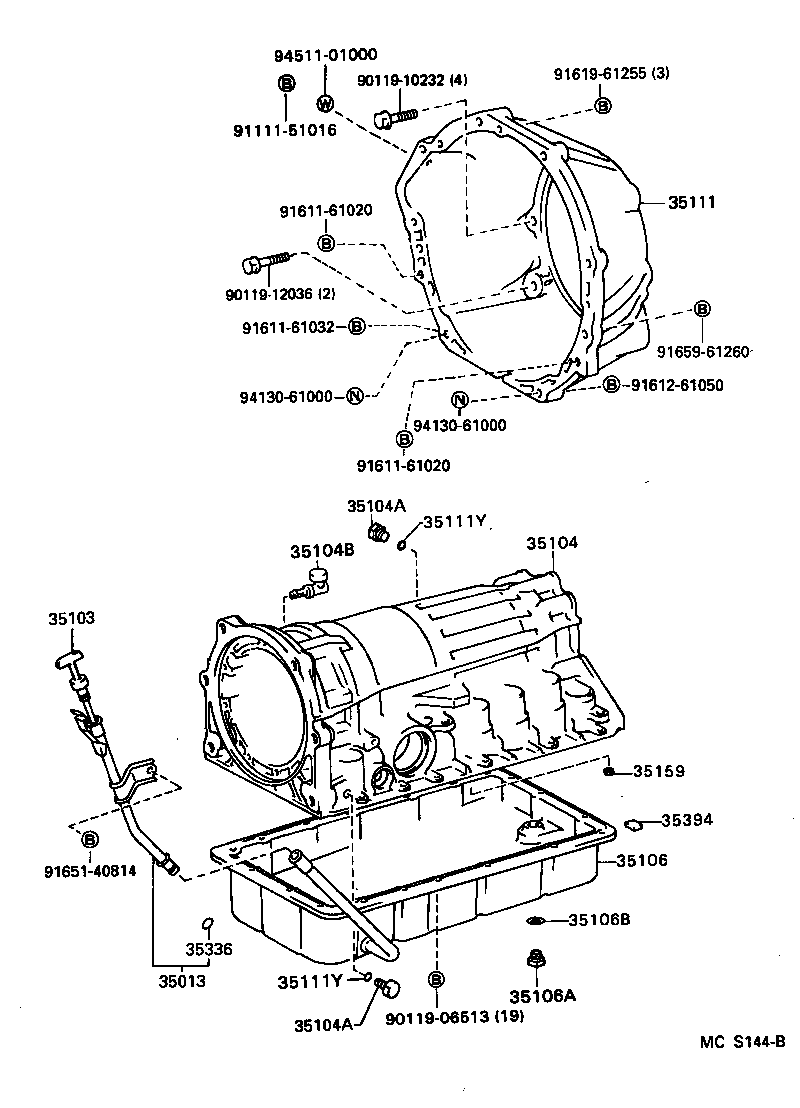

Figure MCN674D MCN674D 1992-08 → 1994-08 Figure MCS288 MCS288 1994-08 → — Figure MCS143B MCS143B 1994-08 → — Figure MCS144B MCS144B 1994-08 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
33119B Plate, Stiffener, LH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35111 Housing, Automatic Transmission
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35159 Gasket, Brake Drum
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
