Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06

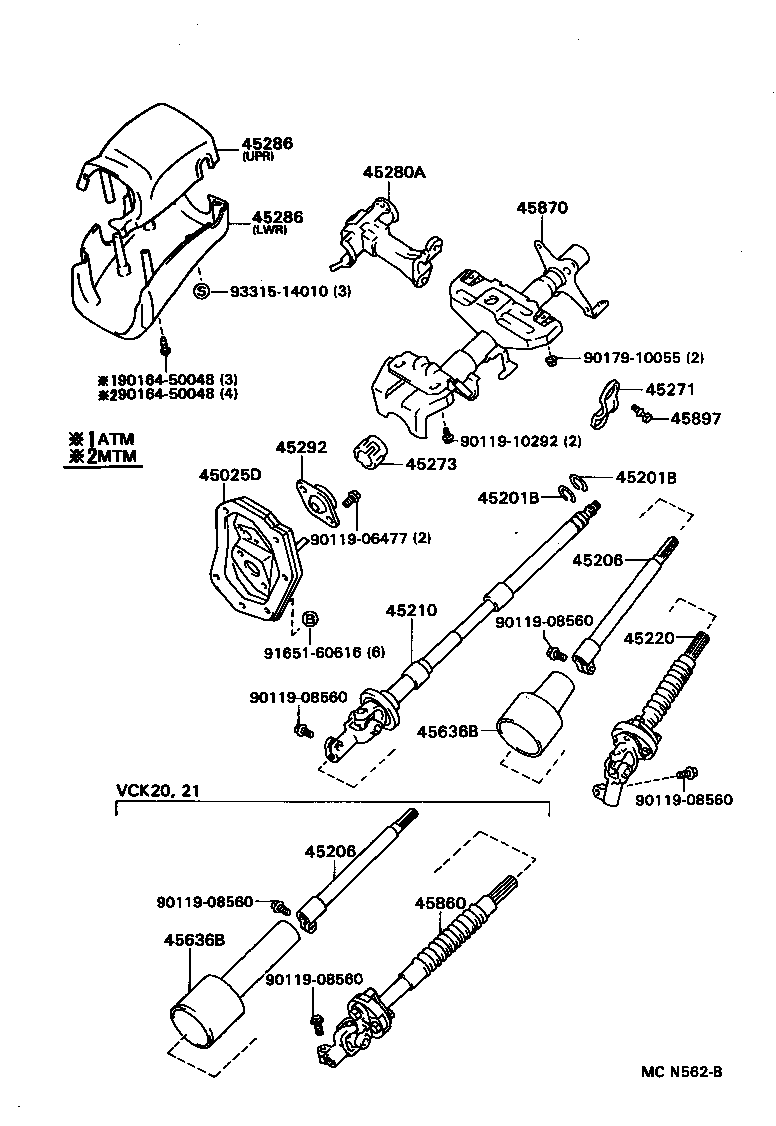

Steering Column & Shaft

38 part groups · 2 illustrations

PNC	Description
45025D	Cover Sub-assy, Steering Column Hole, NO.1
45201A	Bearing(FOR STEERING MAIN SHAFT)
45201B	Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G	Spring, Compression(FOR STEERING MAIN SHAFT)
45205J	Tube Sub-assy, Steering Column, Upper
45205L	Screw(FOR STEERING COLUMN TUBE)
45206	Yoke Sub-assy, Steering Sliding W/Shaft
45209	Yoke Sub-assy, Steering Sliding
45210	Shaft Assy, Steering Main
45215	Collar, Main Shaft Bearing Thrust
45220	Shaft Assy, Steering Intermediate
45231D	Ring, Hole Snap(FOR STEERING MAIN SHAFT)
45271	Clamp, Steering Column, Upper
45273	Bush, Steering Main Shaft
45280A	Bracket Assy, Steering Column, Upper
45286	Cover, Steering Column
45292	Seal, Main Shaft Lower Dust
45636B	Protector, Intermediate Link Joint
45819	Retainer, Tilt Lever
45820	Spring Assy, Tilt Steering Support
45826	Lever, Steering Tilt
45827A	Lever, Steering Tilt Sub
45831C	Shaft, Tilt Lever Lock
45855	Bolt, Tilt Steering, NO.1
45856	Bolt, Tilt Steering, NO.2
45860	Shaft Assy, Steering Intermediate, NO.2
45865	Collar, Steering Main Shaft
45866A	Stopper, Steering Main Shaft Bush
45870	Tube Assy, Steering Column
45880	Lever Assy, Steering Tilt
45880A	Bolt(FOR STEERING TILT LEVER)
45880B	Screw(FOR STEERING TILT LEVER)
45890A	Pawl Assy, Tilt Steering
45890D	Spring, Tension(FOR TILT STEERING PAWL ASSY)
45893B	Spring, Tension(FOR TILT STEERING PAWL STOPPER)
45893C	Stopper, Steering Pawl, RH
45893D	Stopper, Steering Pawl, LH
45897	Bolt, Steering Lock Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
