Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

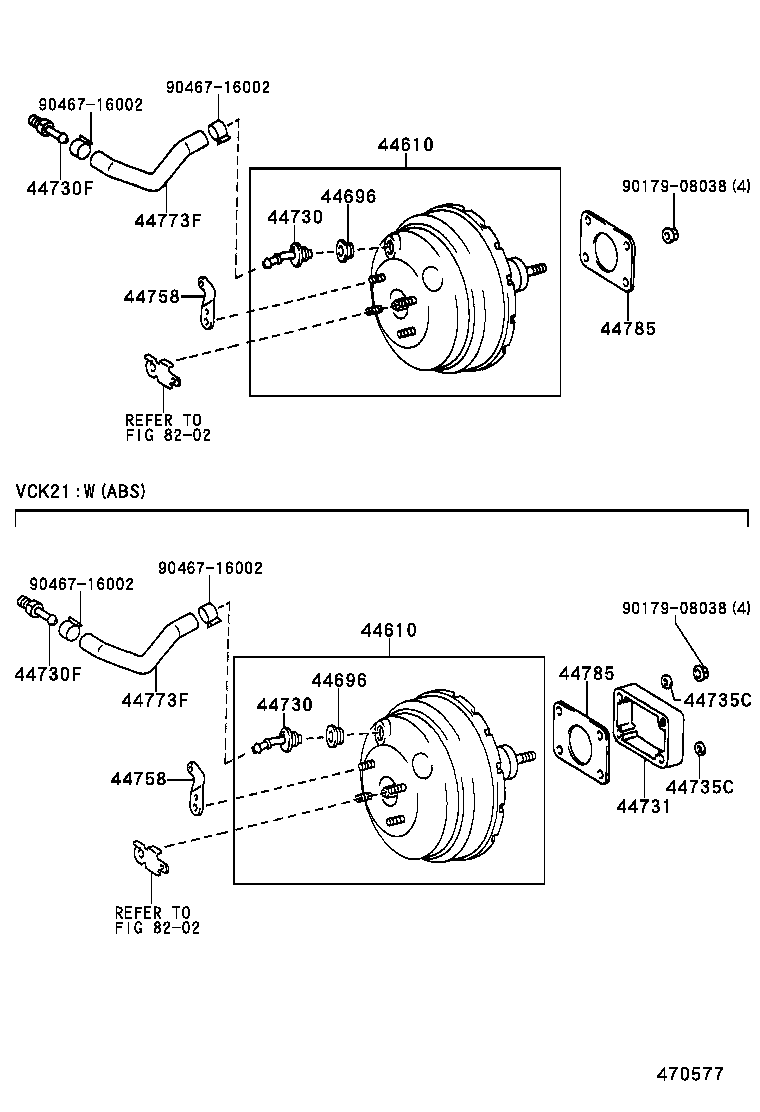

Brake Booster & Vacuum Tube
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44731 | Bracket, Brake Booster, Front |
| 44735C | Ring, Booster Bracket Stopper |
| 44758 | Bracket, Vacuum Check Valve |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44773F | Hose, Union TO Check Valve |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44779 | Hose, Union TO Connector |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
