Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

58 part groups · 14 illustrations

Illustrations

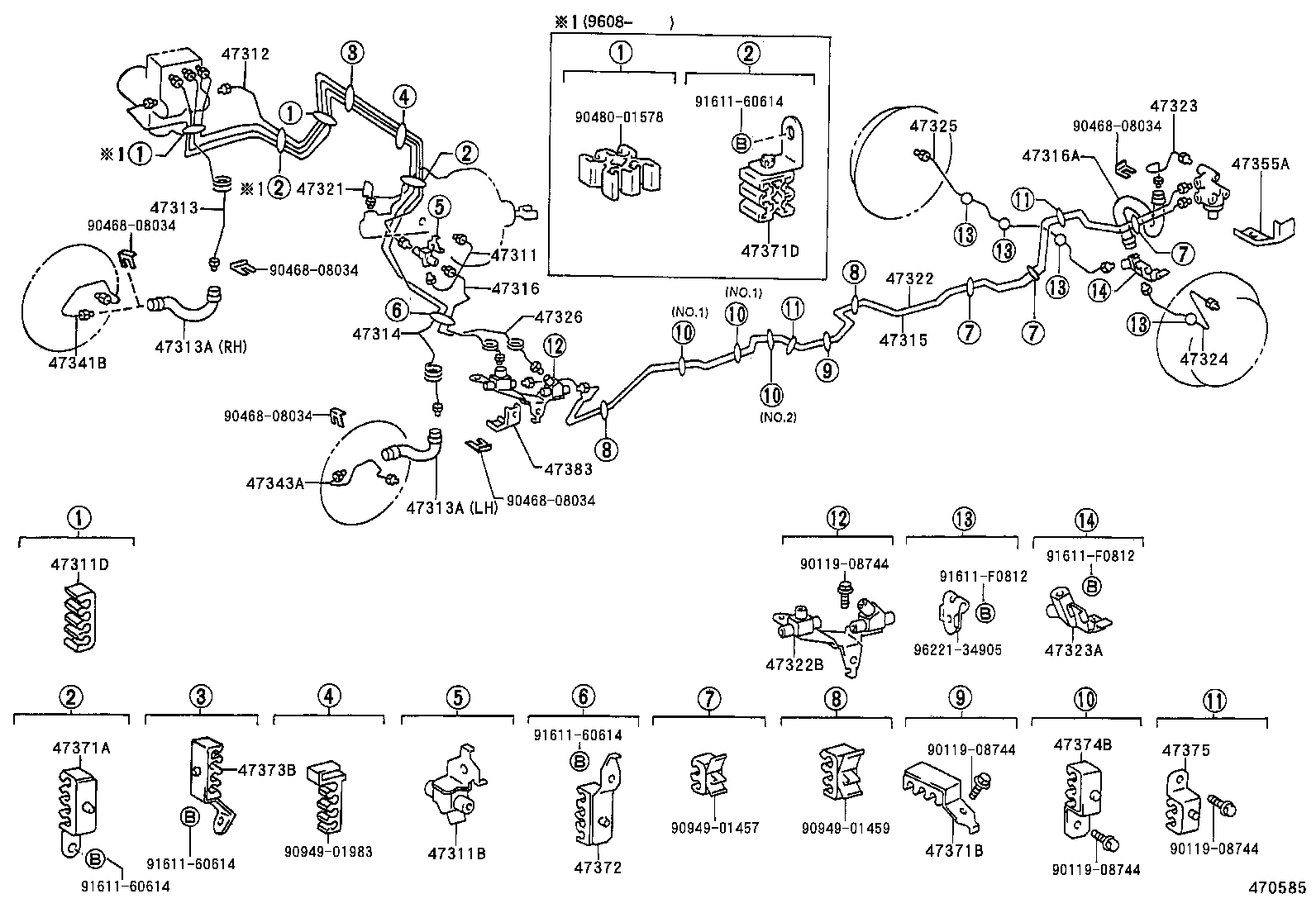

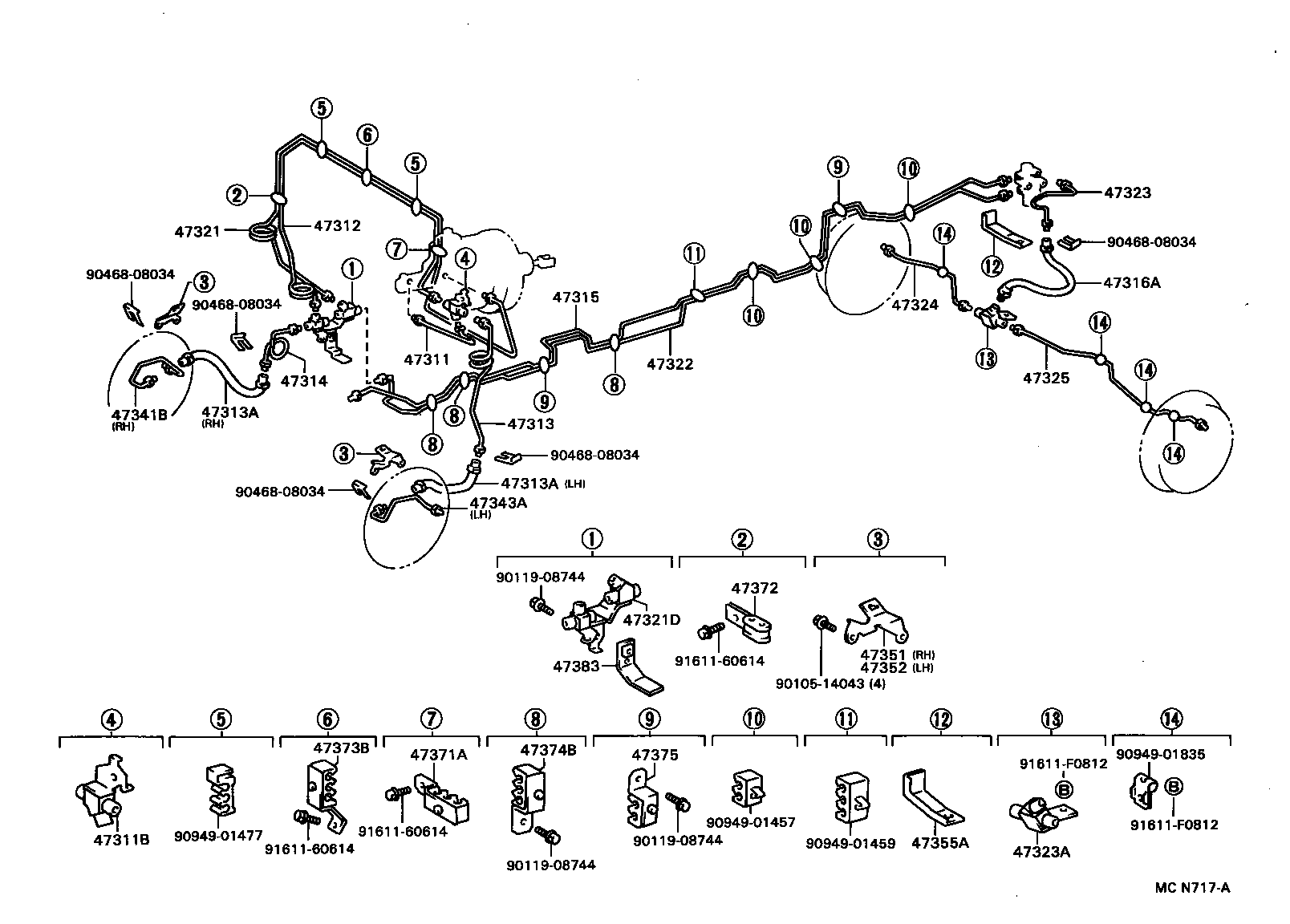

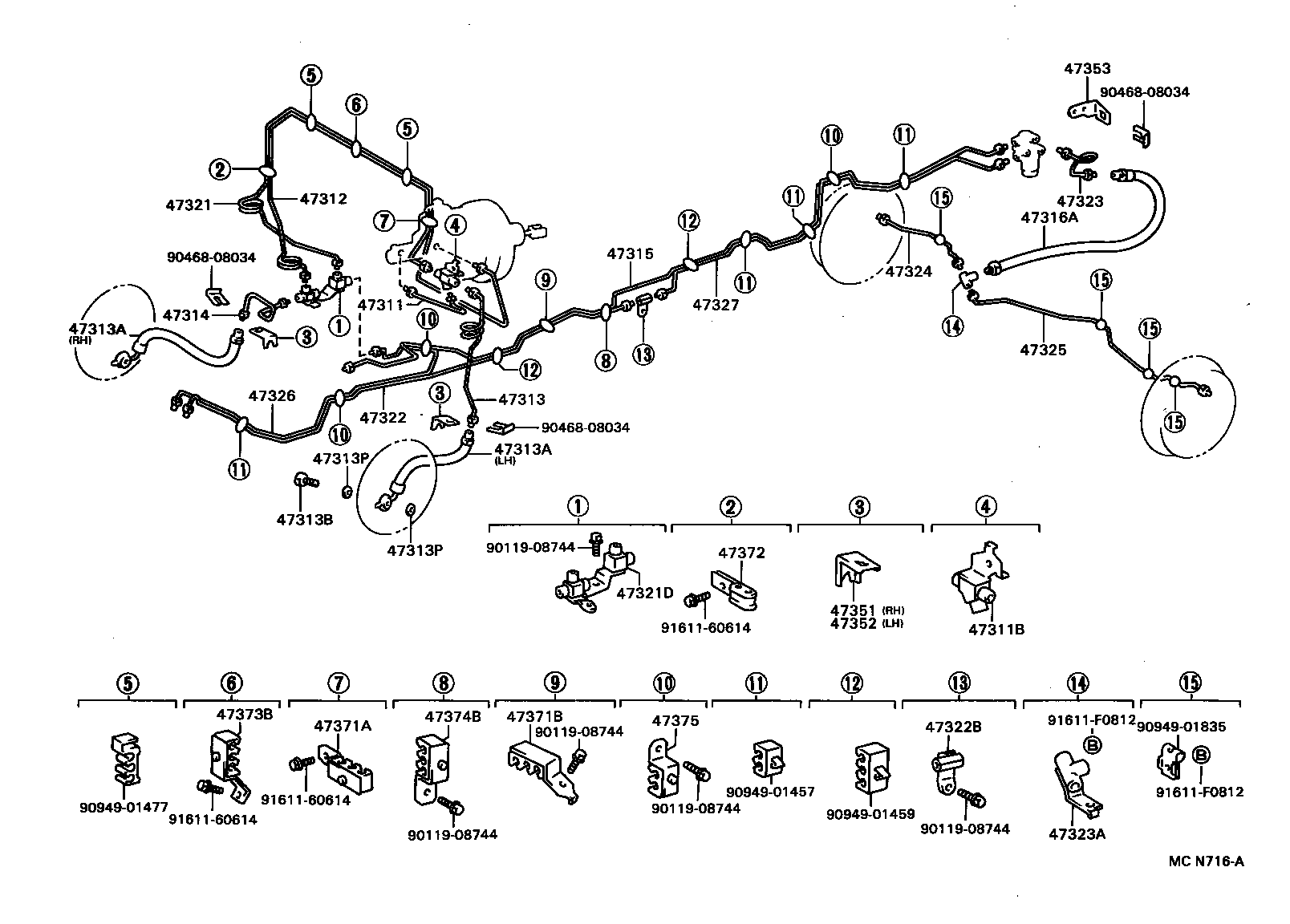

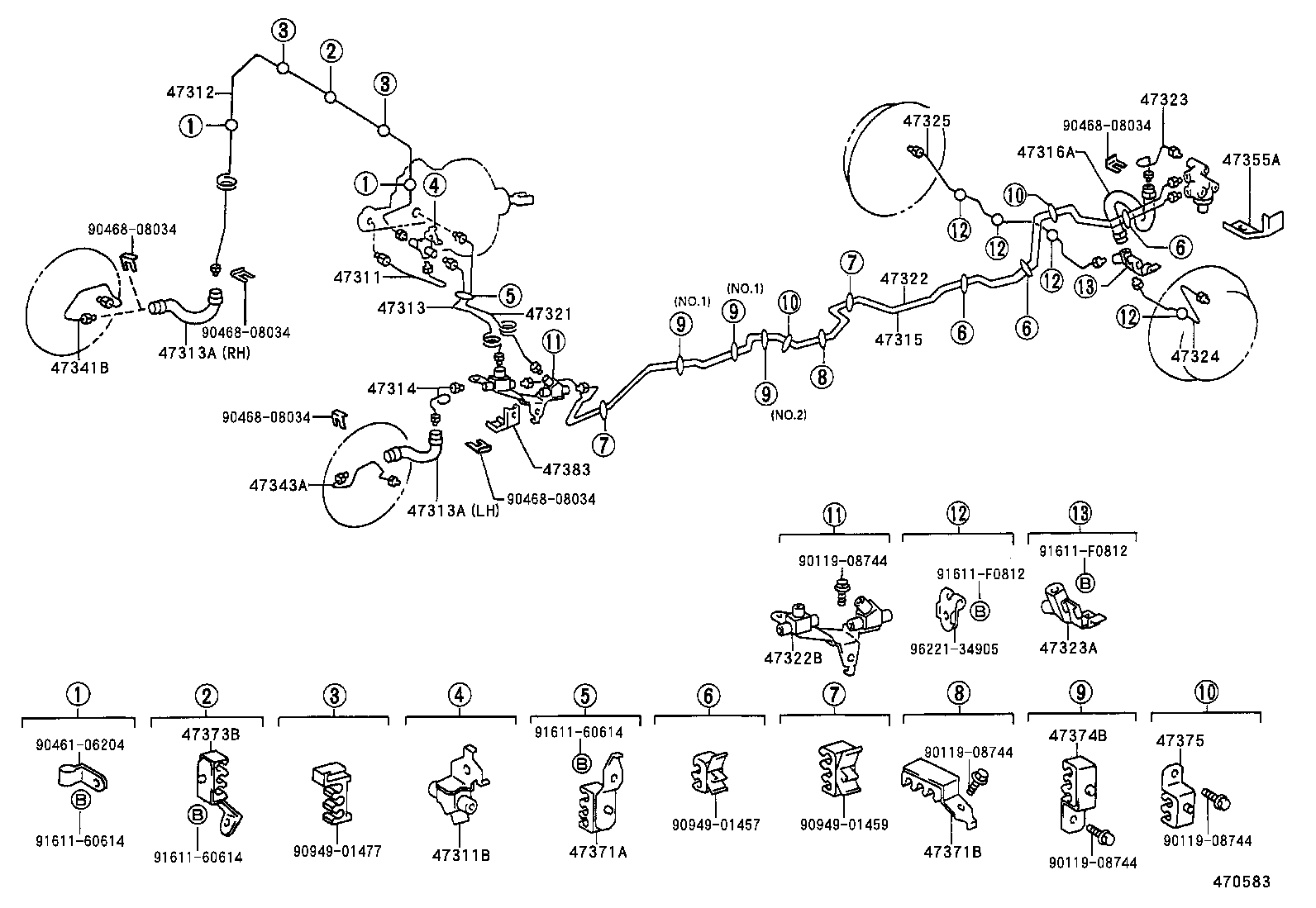

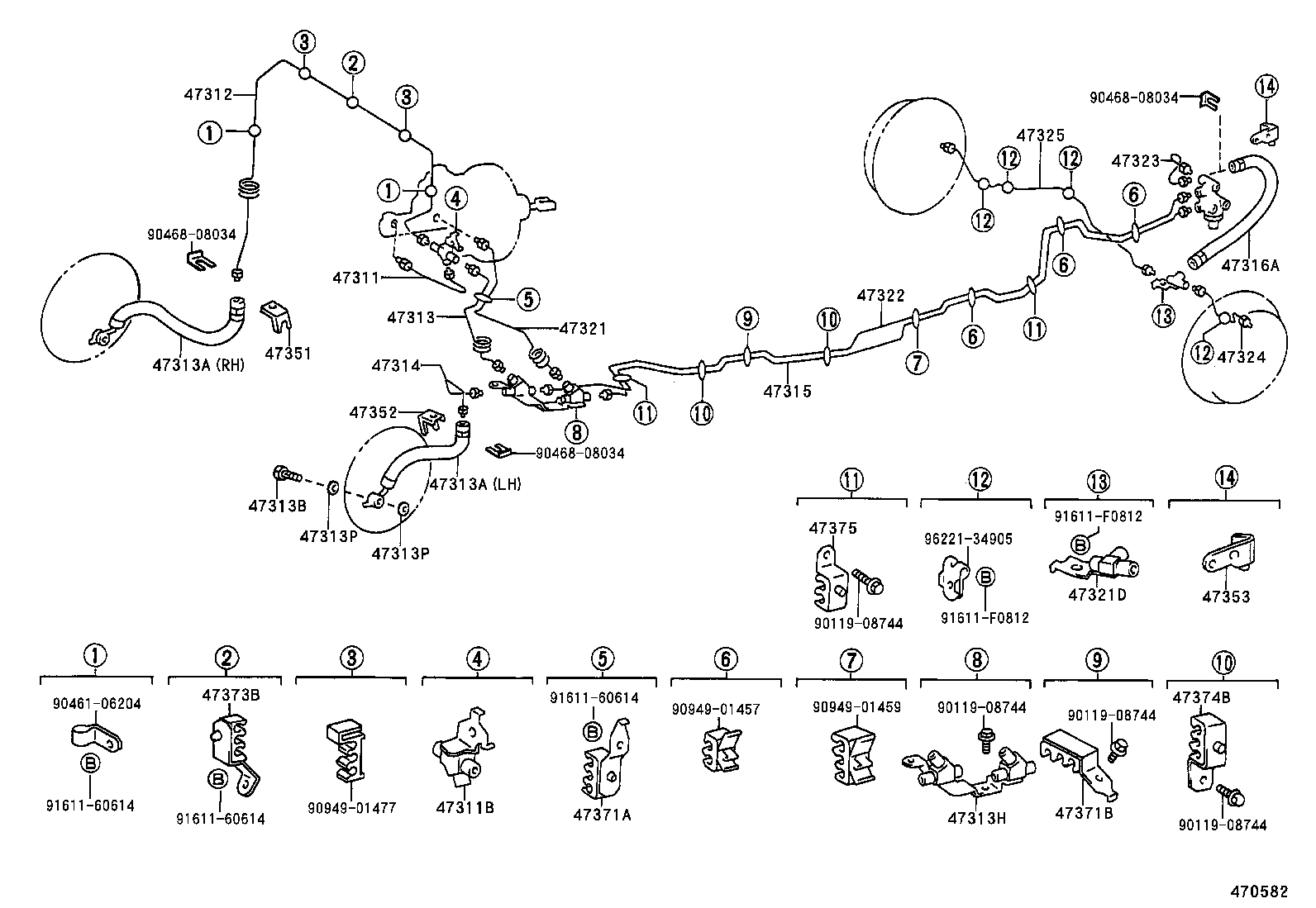

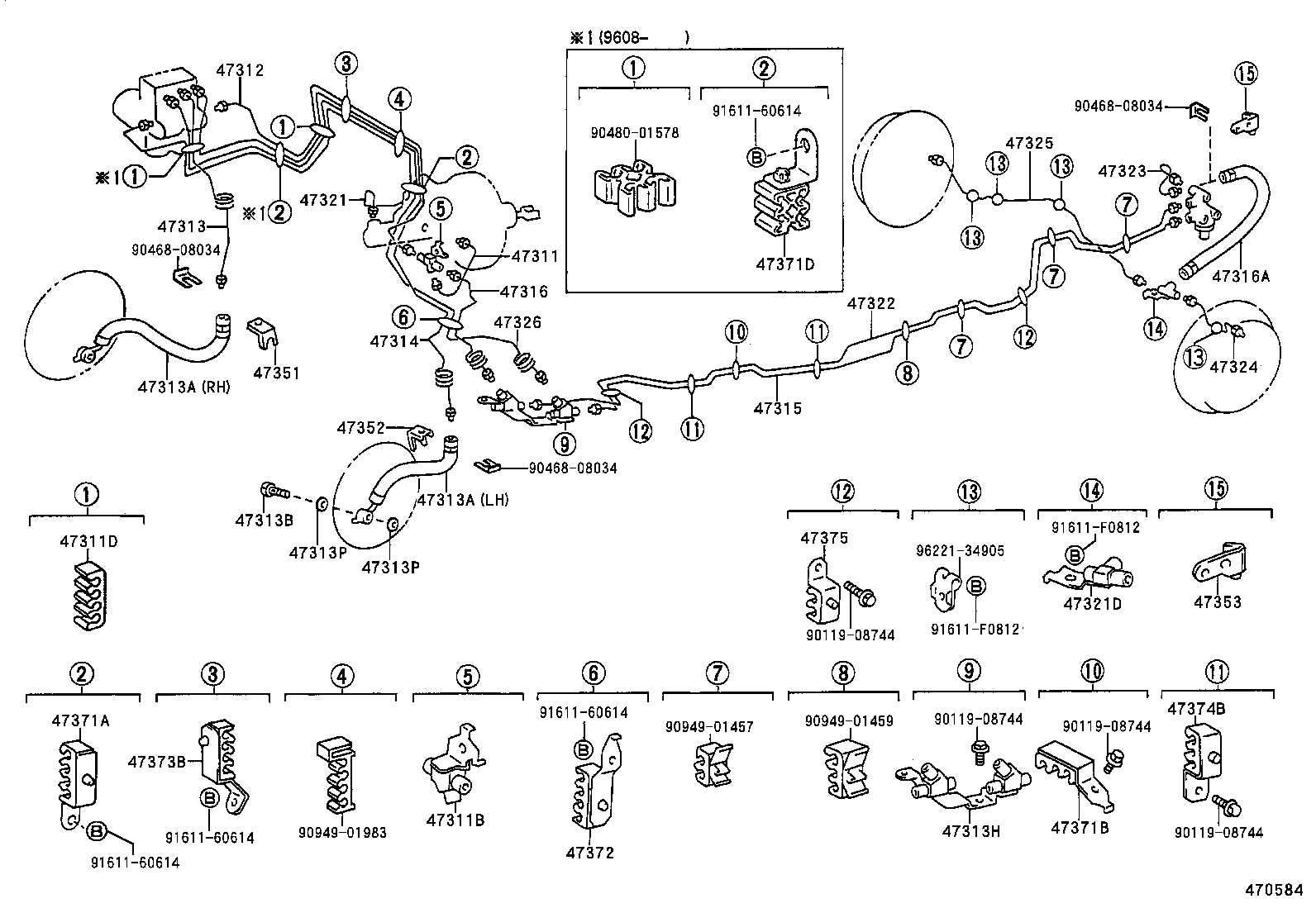

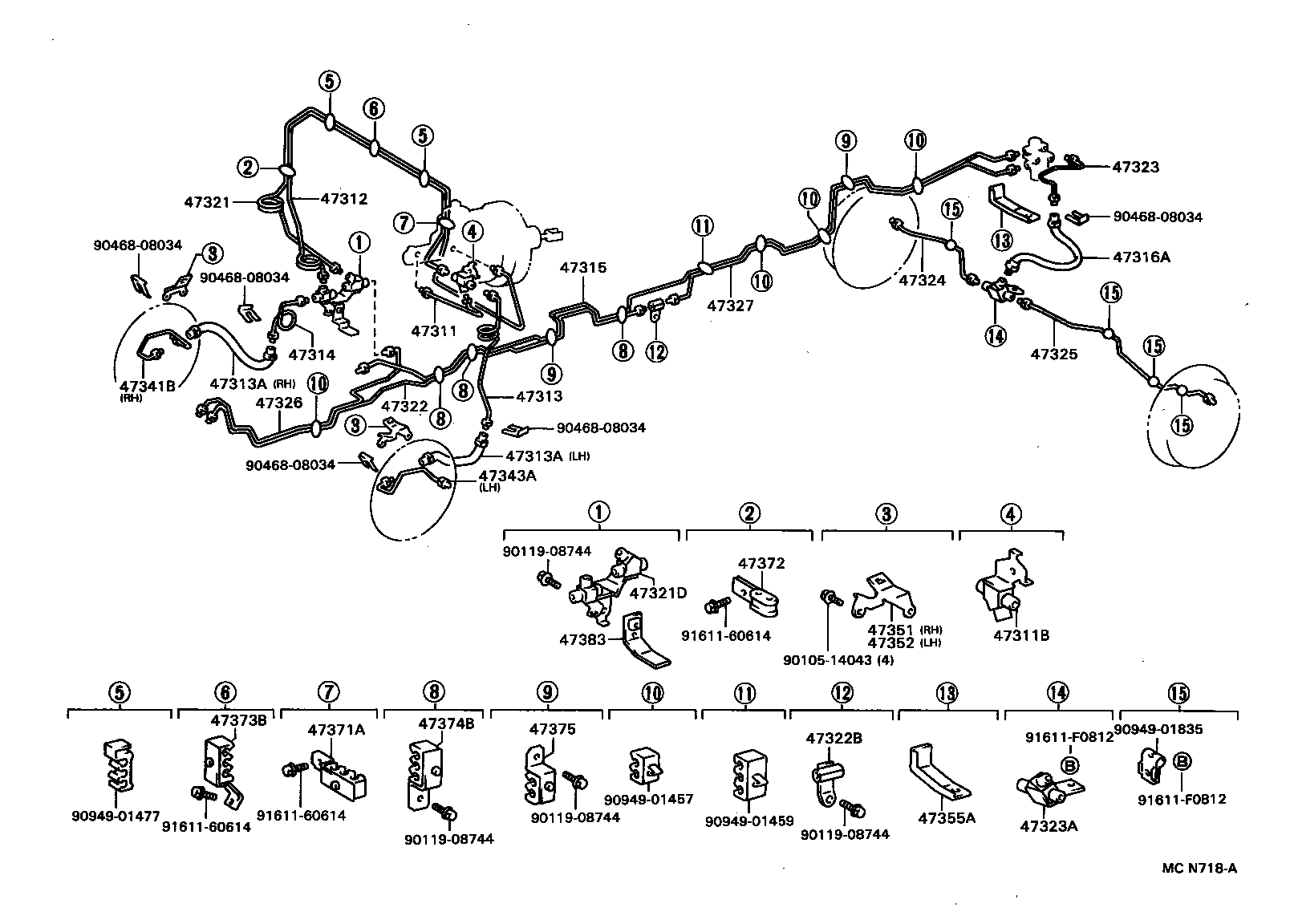

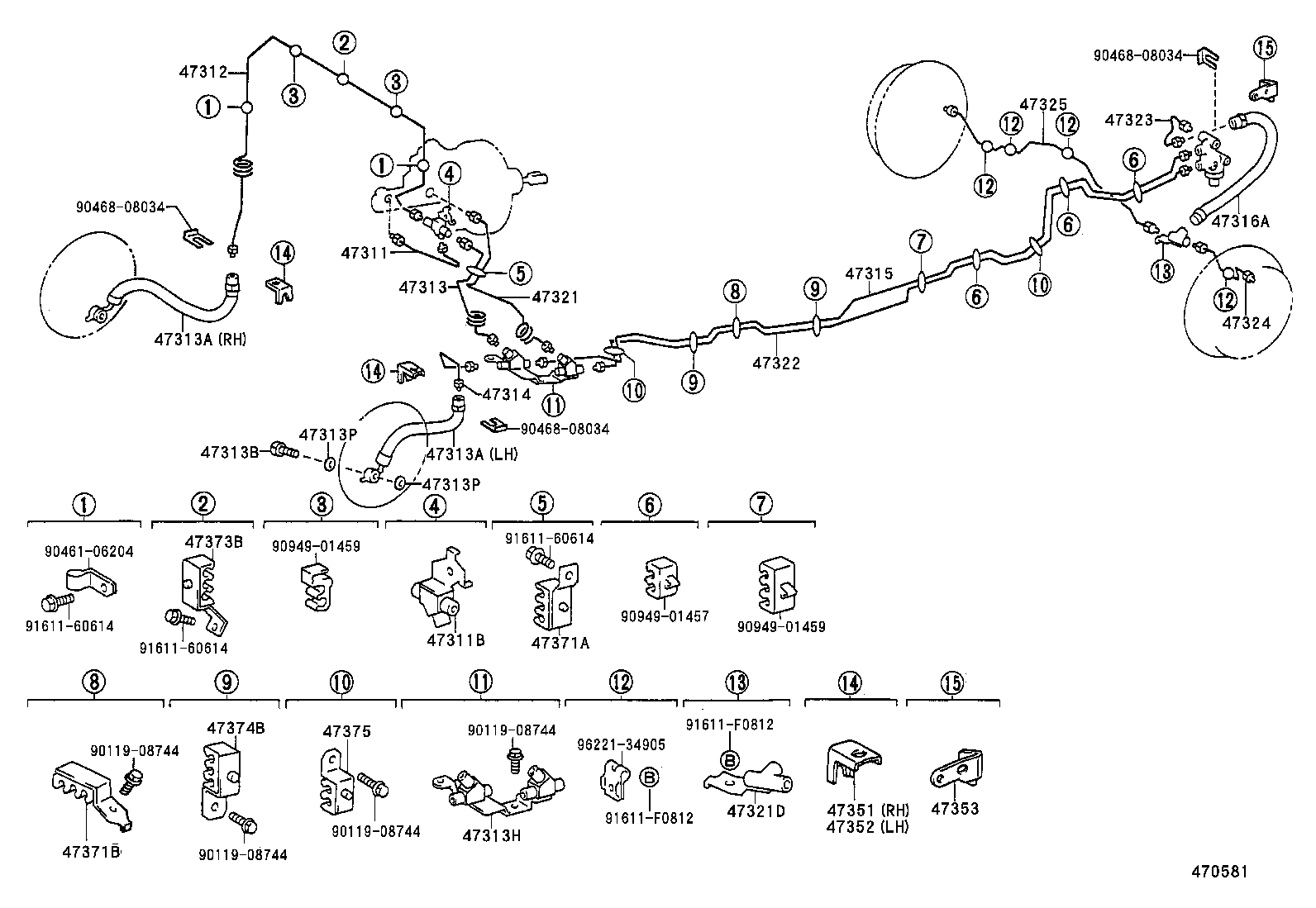

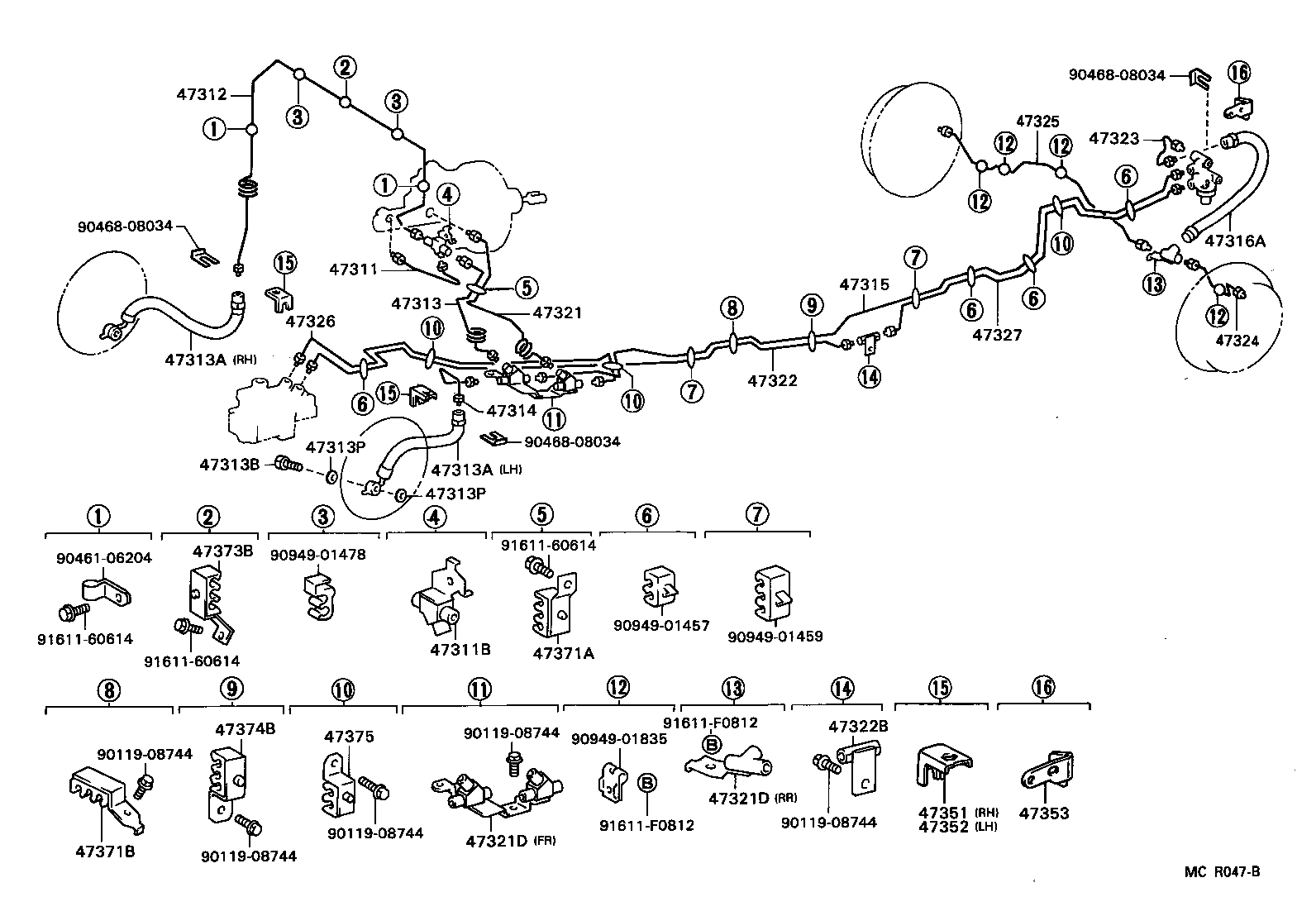

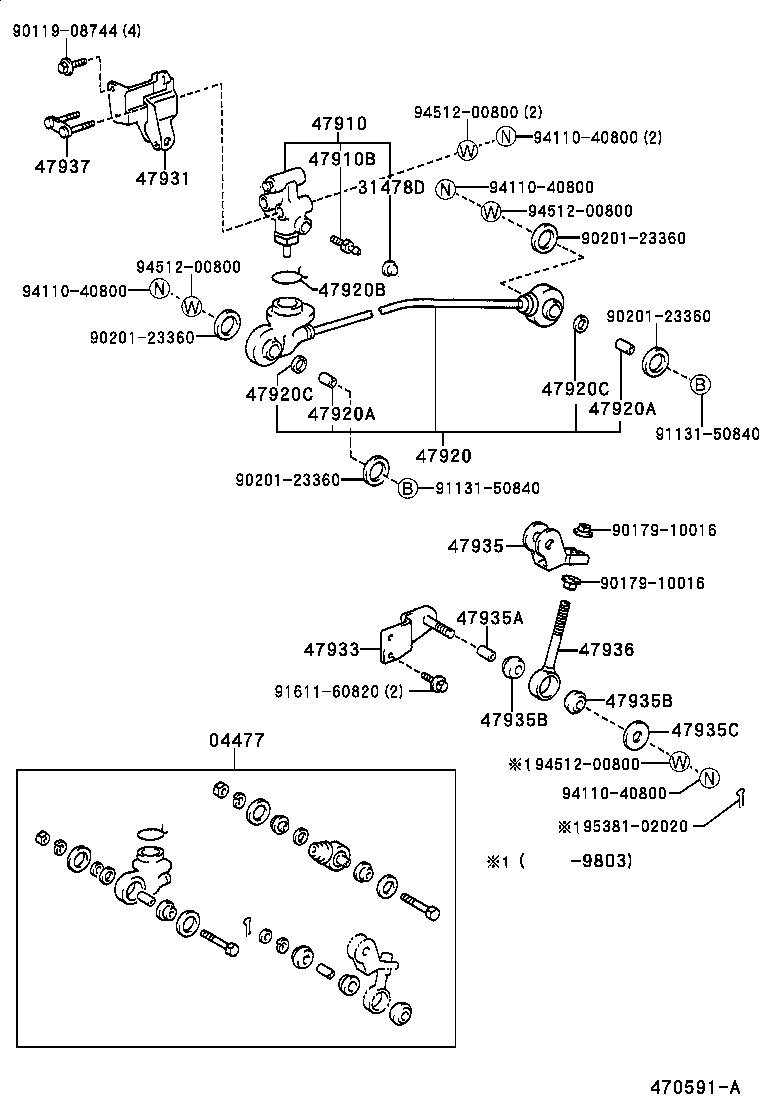

Figure MCN715A MCN715A 1992-08 → 1994-08 Figure MCN717A MCN717A 1992-08 → 1994-08 Figure 470581 470581 1993-10 → — Figure MCN716A MCN716A 1992-08 → 1994-08 Figure MCN718A MCN718A 1992-08 → 1994-08 Figure MCR047B MCR047B 1993-10 → 1994-08 Figure 470582 470582 1994-08 → — Figure 470583 470583 1994-08 → — Figure 470585 470585 1994-08 → — Figure 470584 470584 1994-08 → — Figure MCN720 MCN720 1992-08 → 1994-08 Figure MCR952B MCR952B 1994-08 → 1996-08 Figure MCV627 MCV627 1996-08 → — Figure 470591A 470591A 1992-08 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44591 Bracket, Brake Actuator, NO.1
44597 Clamp, Brake Actuator Connector, NO.1
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311D Grommet(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371D Clamp, Brake Tube, NO.8
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47383 Bracket, Connector
47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
