Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

35 part groups · 16 illustrations

Illustrations

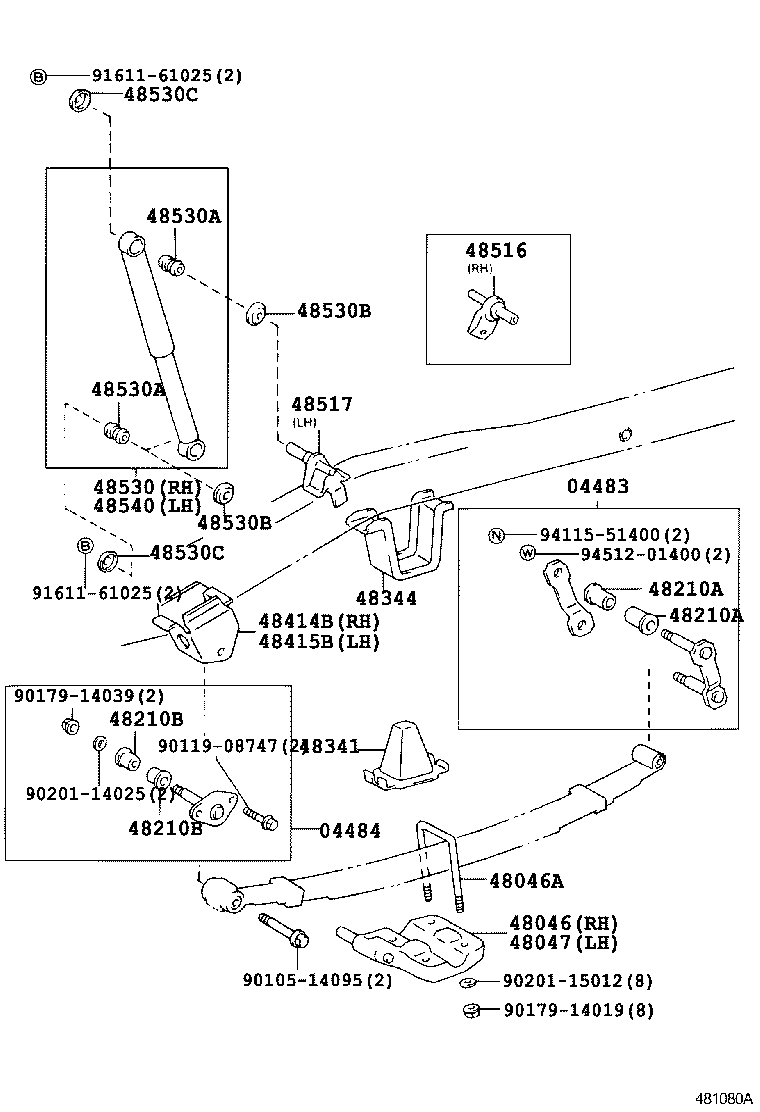

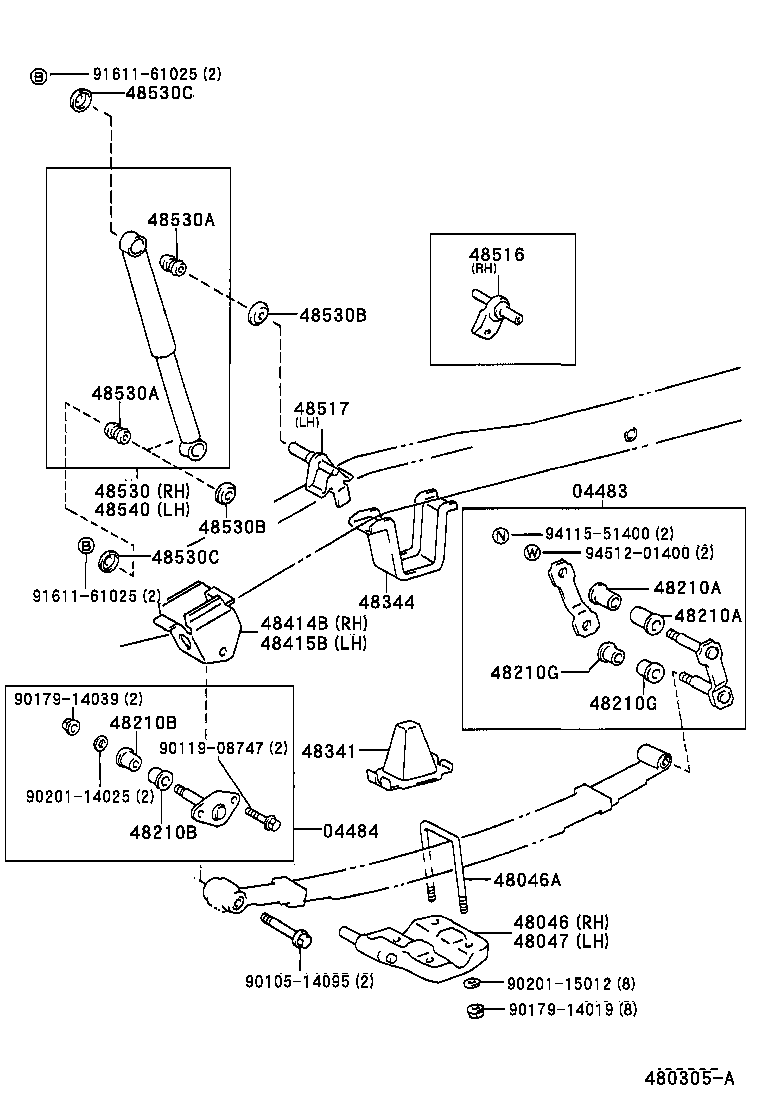

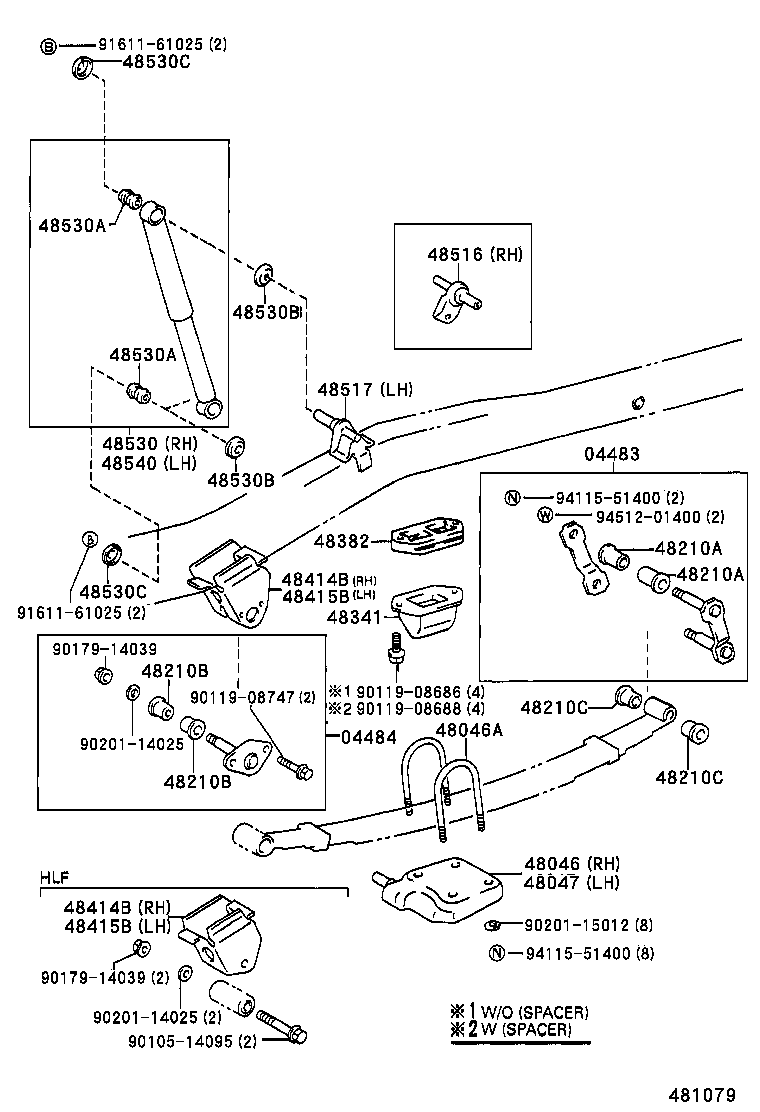

Figure 480304 480304 1992-08 → — Figure 481079 481079 1992-08 → — Figure 481080A 481080A 1992-08 → 1995-08 Figure 480305A 480305A 1994-10 → — Figure 480305A 480305A 1995-08 → — Figure MCS339B MCS339B 1994-05 → 1994-11 Figure 481081 481081 1992-08 → 1994-05 Figure 481081 481081 1994-05 → 1994-11 Figure MCT791 MCT791 1992-08 → — Figure MCT791 MCT791 1994-10 → — Figure MCT791 MCT791 1994-11 → — Figure 482787 482787 1992-08 → 1994-05 Figure 482787 482787 1994-05 → 1995-08 Figure 481082 481082 1994-10 → 1995-08 Figure 480695 480695 1995-08 → — Figure 480696A 480696A 1995-08 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48284 Nut, Rear Spring Center Bolt
48341 Bumper, Rear Spring
48344 Stopper, Bumper, Rear
48382 Spacer, Bumper Block
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
