Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06

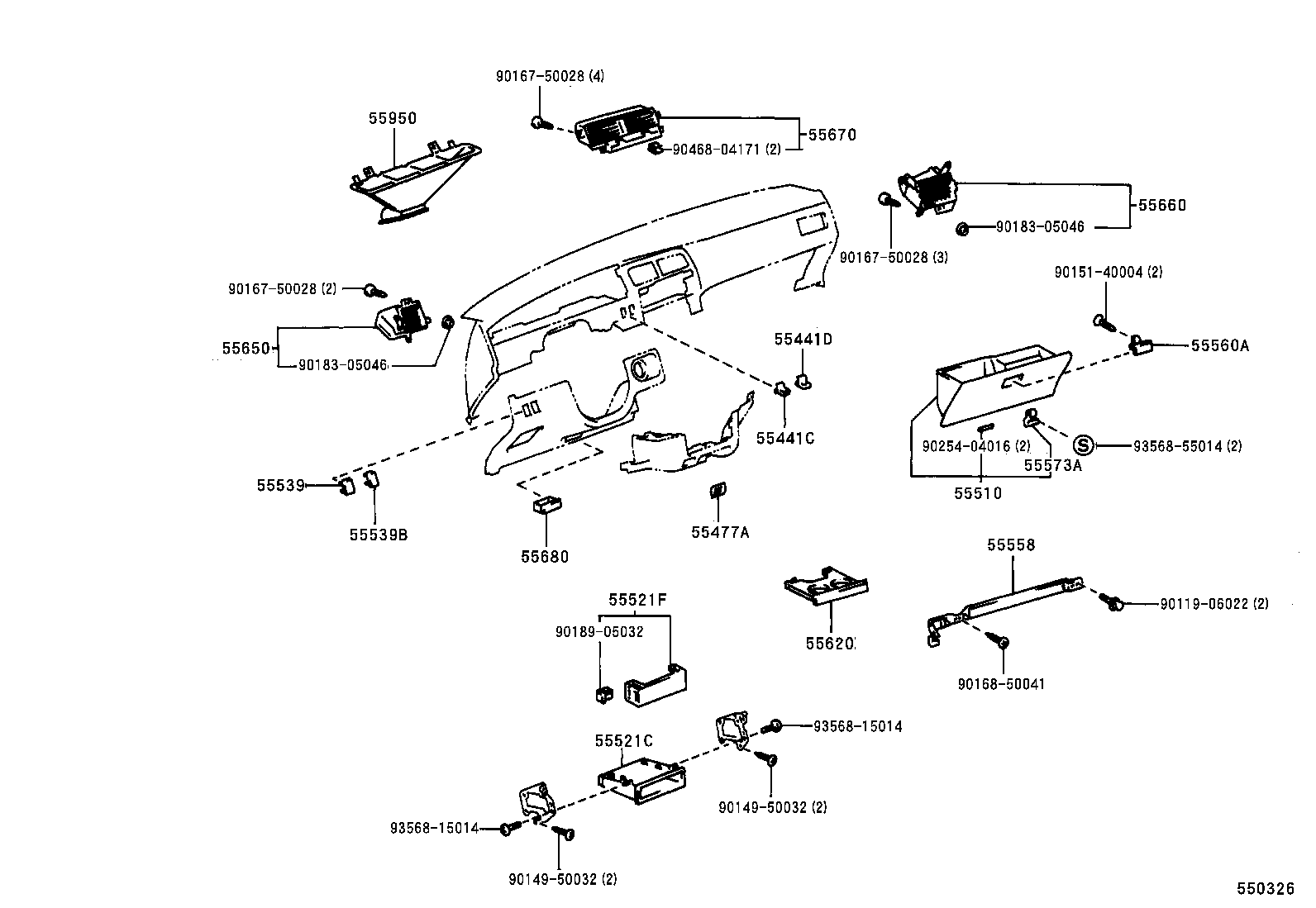

Instrument Panel & Glove Compartment

37 part groups · 2 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55327A	Stay, Instrument Panel, NO.2
55328	Pin, Instrument Panel, NO.1
55331	Reinforcement, Instrument Panel
55344A	Brace, Instrument Panel TO Cowl, NO.3
55376	Bracket, Instrument Panel Mounting, NO.1
55377A	Bracket, Instrument Panel Mounting, NO.2
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55413D	Panel, Instrument Cluster Finish, Center Lower
55432D	Panel, Instrument Panel Finish, Lower NO.1
55433B	Panel, Instrument Panel Finish, Lower NO.2
55441C	Box, Instrument Panel Coin
55441D	Box, Instrument Panel Coin
55445B	Plate, Instrument Panel Finish
55454A	Case, Instrument Accessory
55477A	Bezel, Cigarette Lighter Hole
55479B	Cover, Instrument, Lower Center
55479C	Clip(FOR INSTRUMENT LOWER COVER)
55510	Door Assy, Glove Compartment
55521C	Cover, Stereo Opening
55521F	Cover, Stereo Opening, NO.2
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55558	Reinforcement, Glove Compartment Door
55560A	Lock Assy, Glove Compartment Door
55573A	Hinge, Glove Compartment Door
55620	Holder Assy, Instrument Panel Cup
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680	Register Assy, Instrument Panel, Lower NO.1
55950	Nozzle Assy, Defroster
61181	Bracket, Instrument Panel Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
