Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

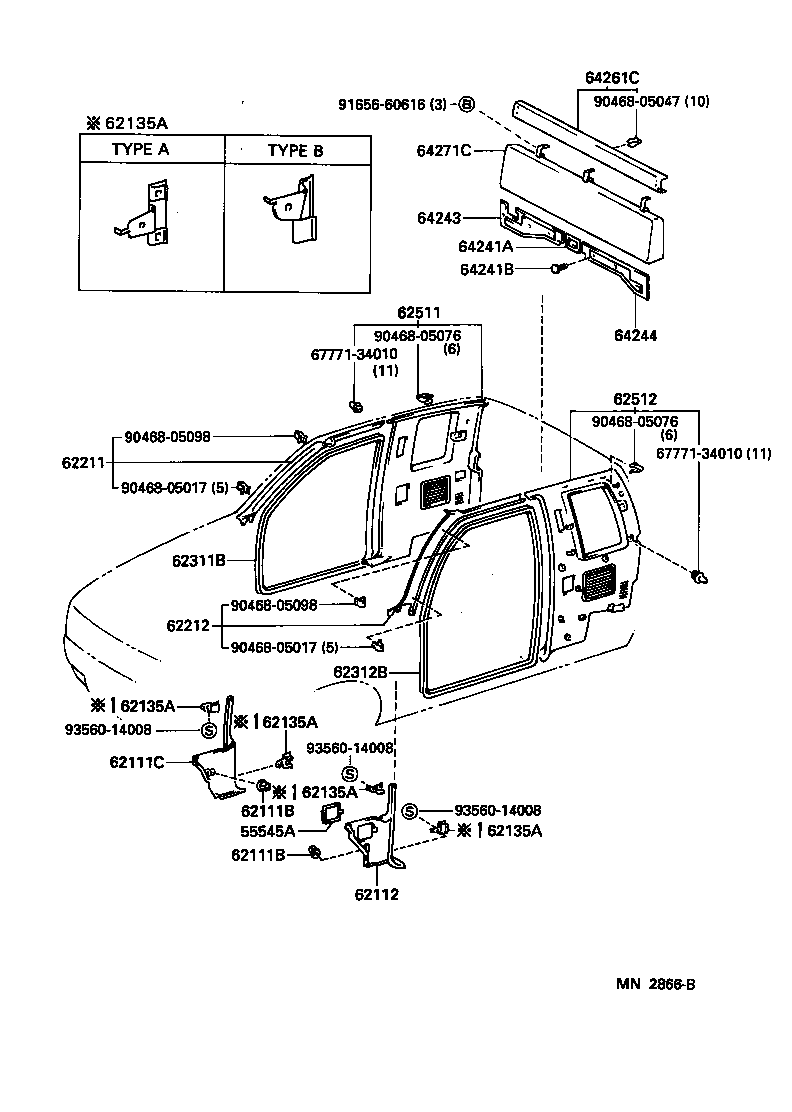

Inside Trim Board
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55545A | Cover, Fuse Box Opening |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62135A | Retainer, Cowl Side Cover |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 64241A | Panel, Room Partition |
| 64241B | Clip, Room Partition Panel |
| 64243 | Panel, Room Partition, NO.2 RH |
| 64244 | Panel, Room Partition, NO.2 LH |
| 64261C | Garnish, Back Panel, Upper |
| 64271C | Trim, Back Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
