Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 8 illustrations

Illustrations

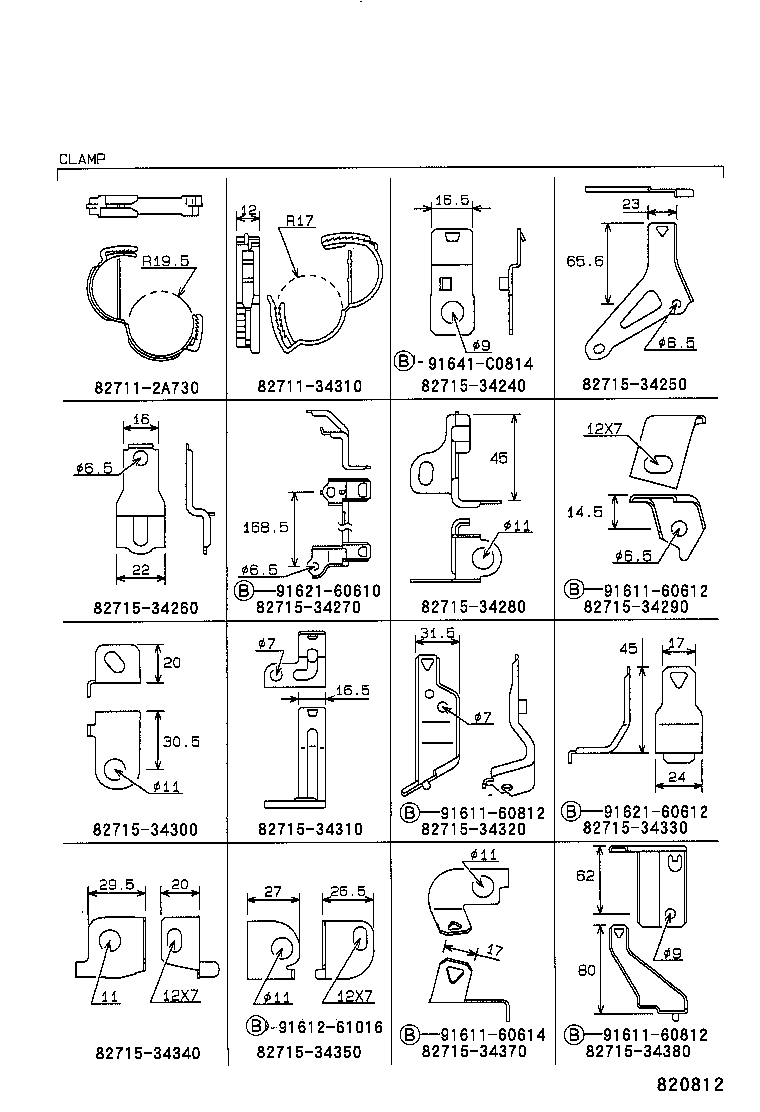

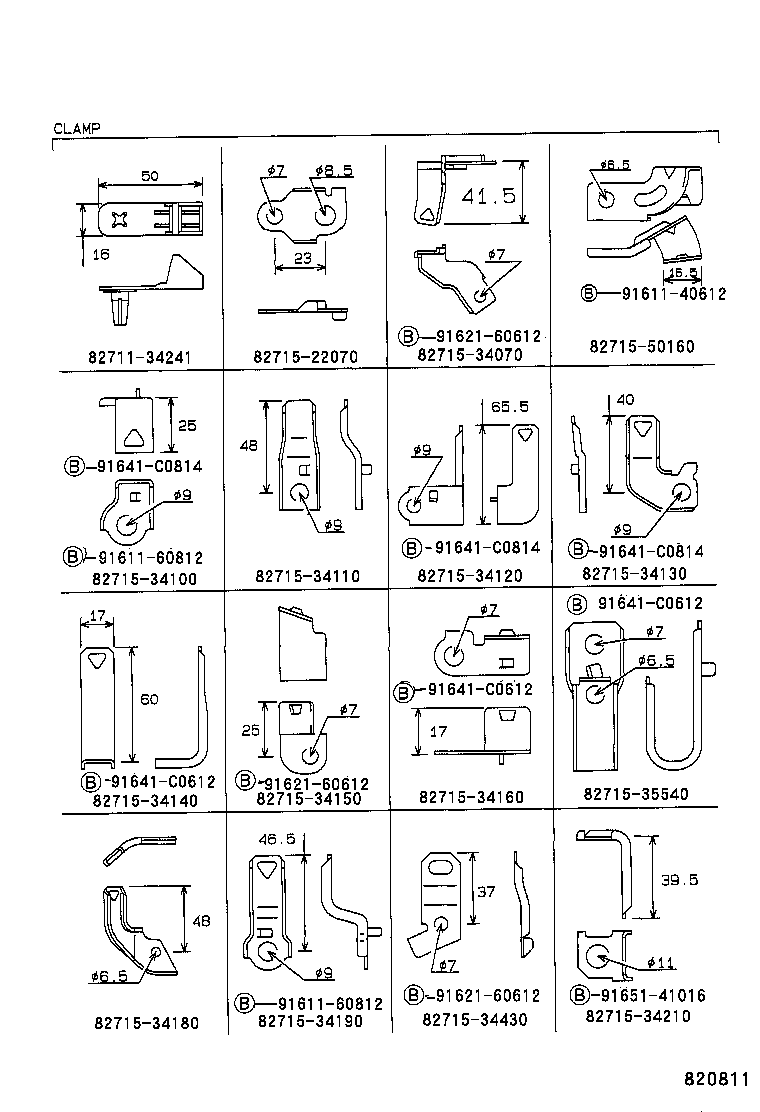

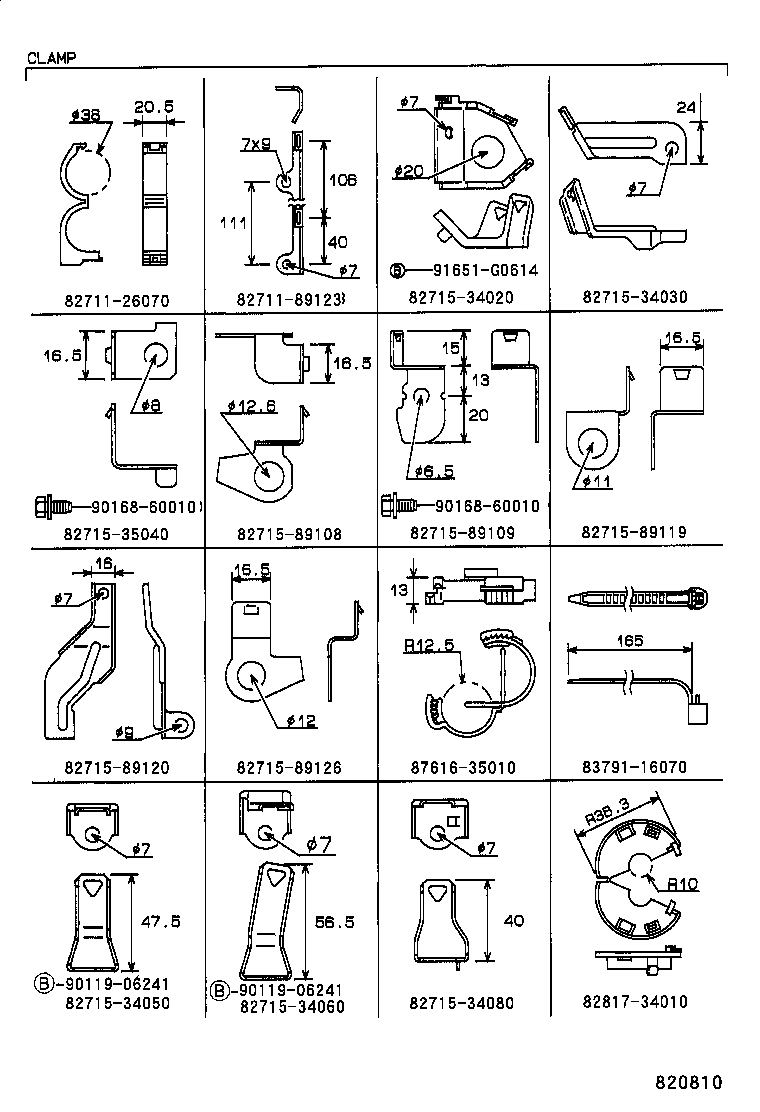

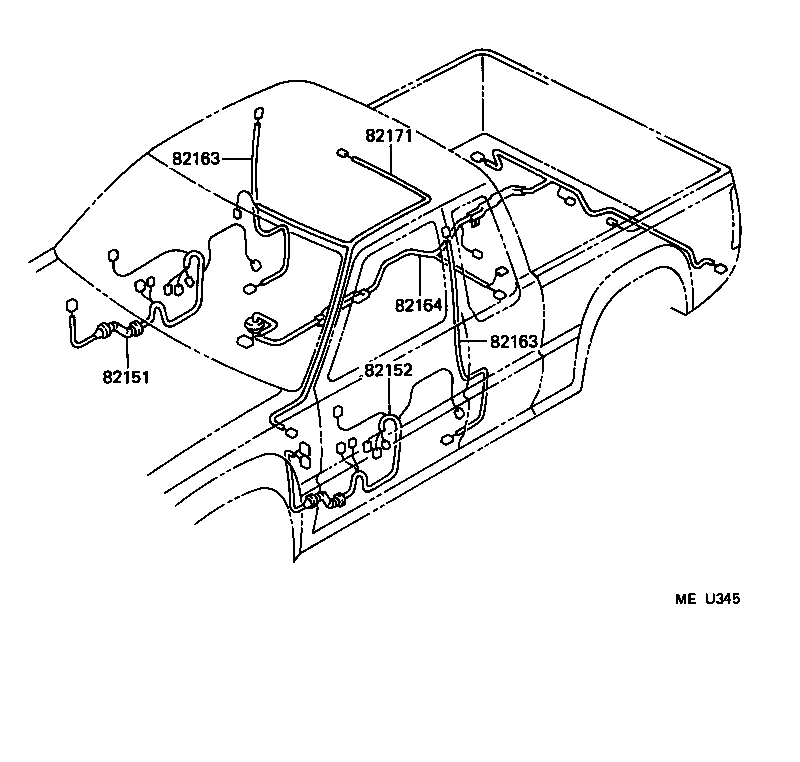

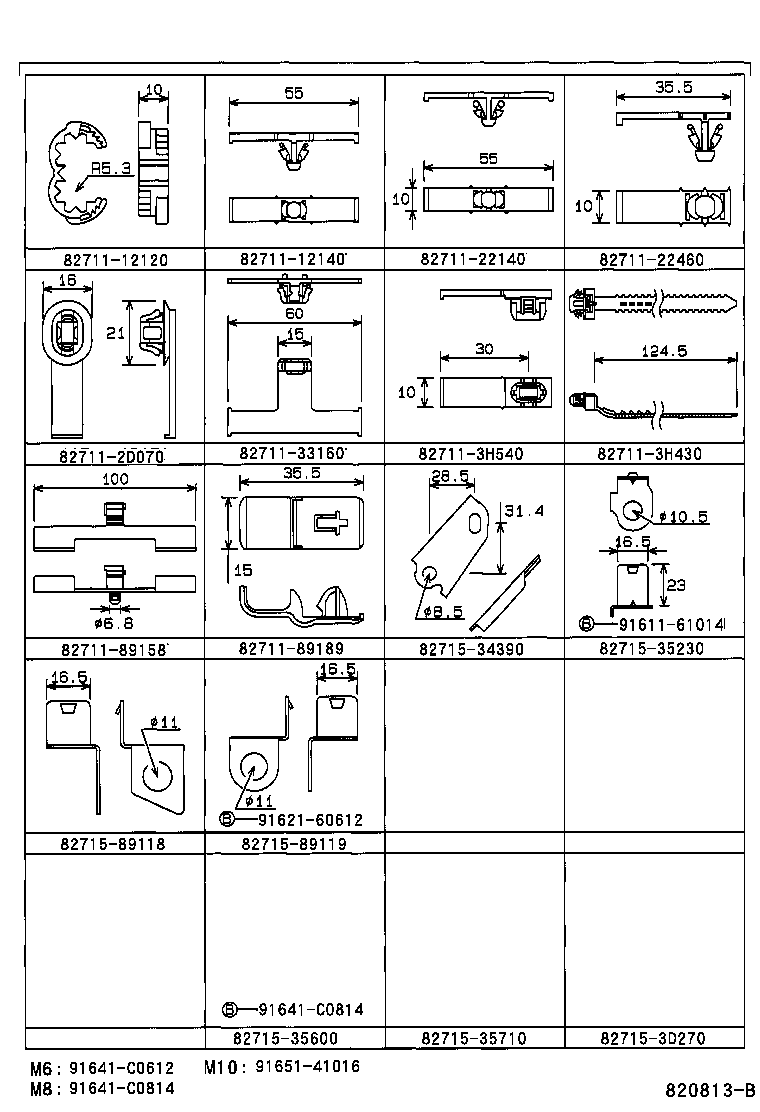

Figure 820859A 820859A 1992-08 → — Figure MEU345 MEU345 1992-08 → — Figure 820809 820809 1992-08 → — Figure 820810A 820810A 1992-08 → — Figure 820811 820811 1993-08 → — Figure 820812 820812 1994-08 → — Figure 820813B 820813B 1994-08 → — Figure 820814 820814 1993-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82127 Wire, Differential
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82345 Diode
82620 Block Assy, Fusible Link
82821 Retainer, Headlamp Harness
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
