Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

10 part groups · 2 illustrations

Illustrations

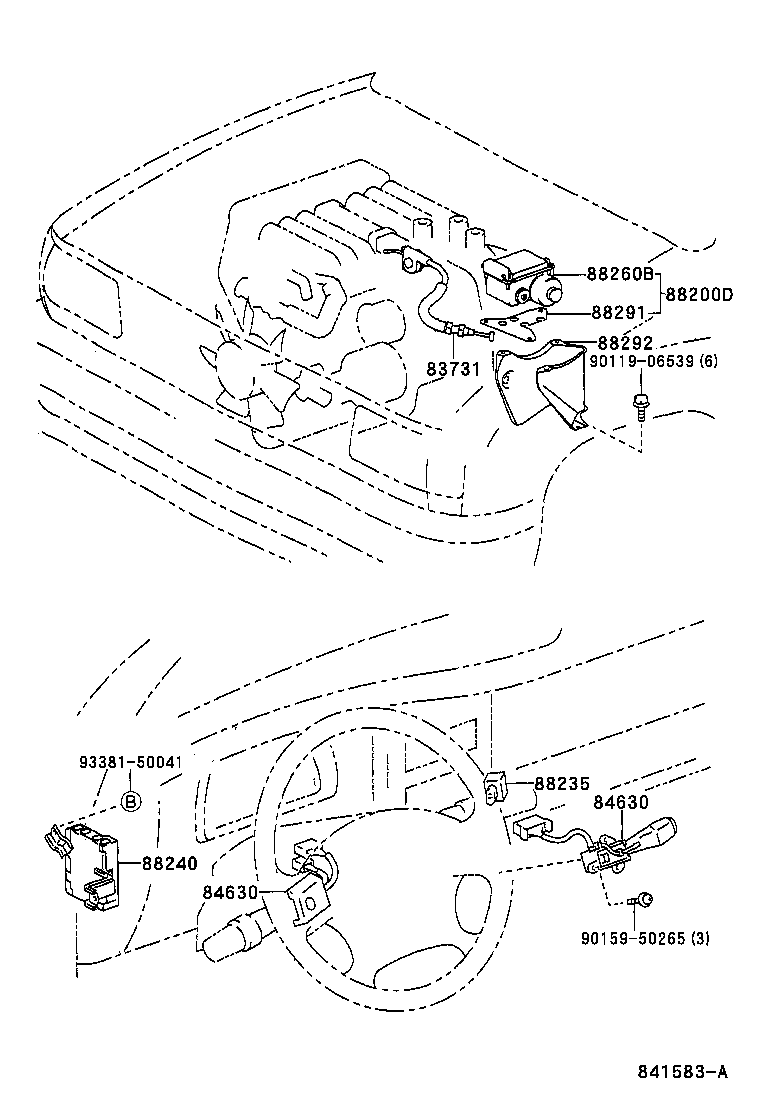

Figure 841582 841582 1992-08 → 1996-08 Figure 841583A 841583A 1996-08 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
88260B Actuator Assy, Cruise Control W/Computer
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
88292 Bracket, Cruise Control(AUTO DRIVE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
