Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

12 part groups · 3 illustrations

Illustrations

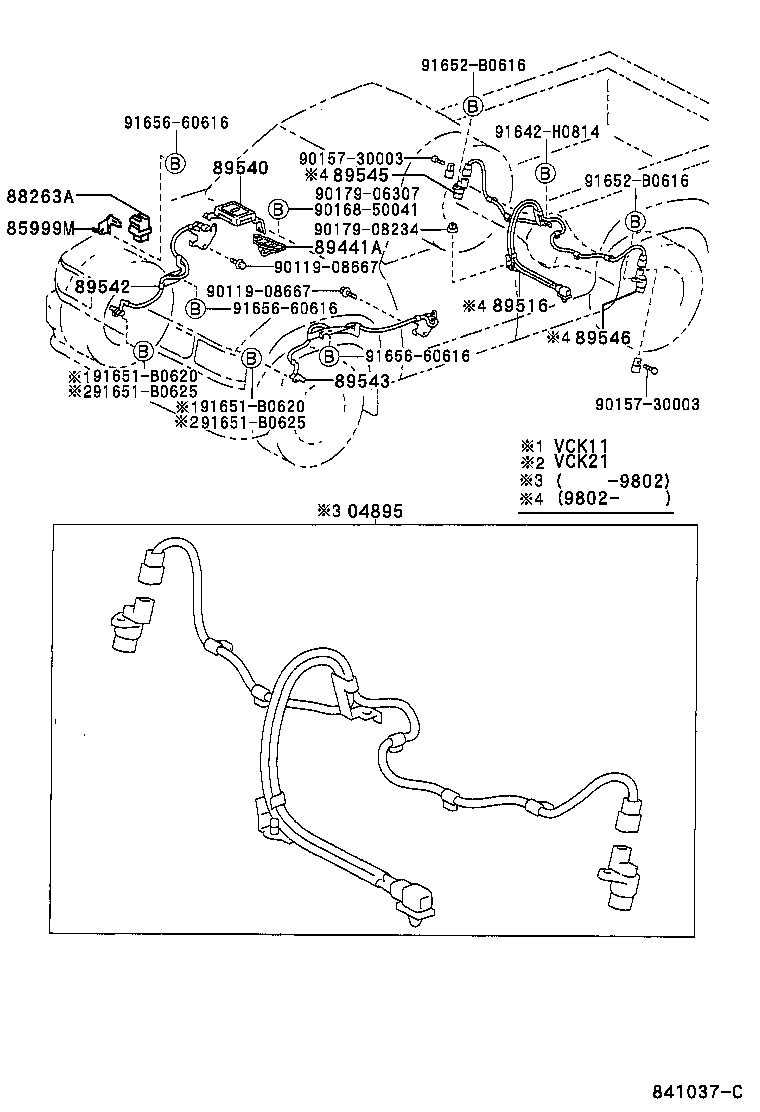

Figure 841574 841574 1992-08 → 1994-08 Figure 841037C 841037C 1994-08 → — Figure 841575B 841575B 1994-08 → —

Part groups

PNCDescription
04895 Speed Sensor Kit, Abs
85999M Bracket, Relay
88263A Relay, Skid Control
89439B Bracket, Sensor
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
