Toyota T100

1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States

Discontinued model Data version 1999-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 7 illustrations

Illustrations

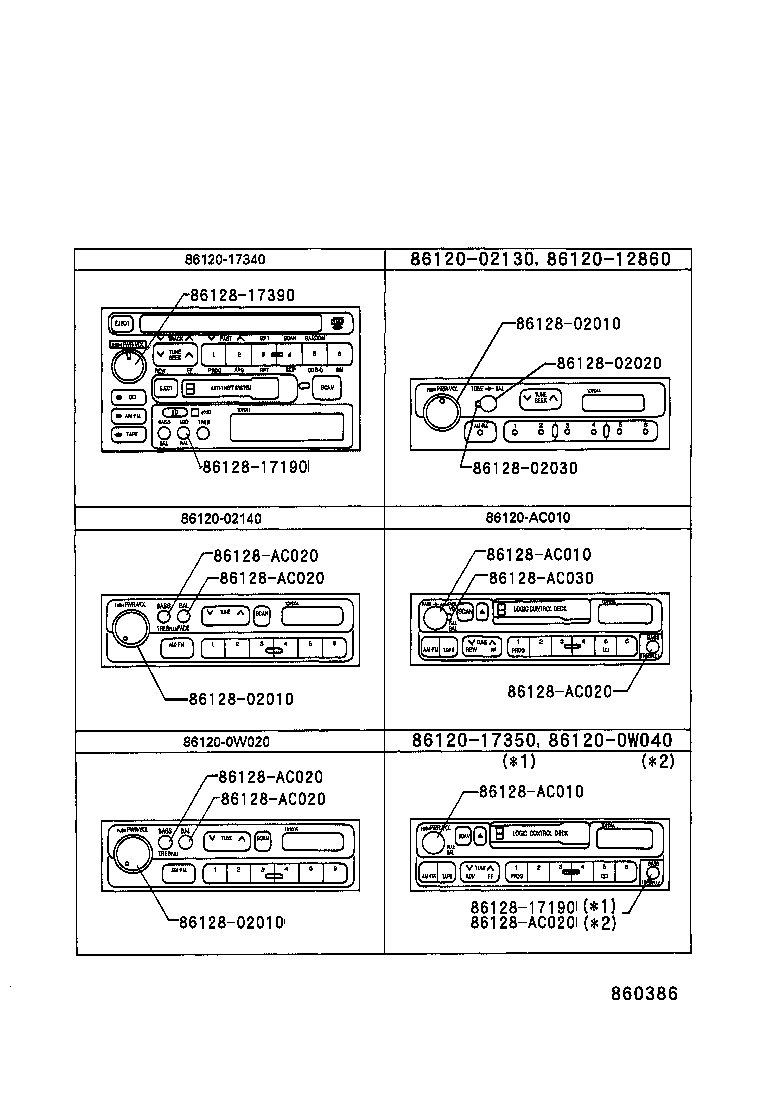

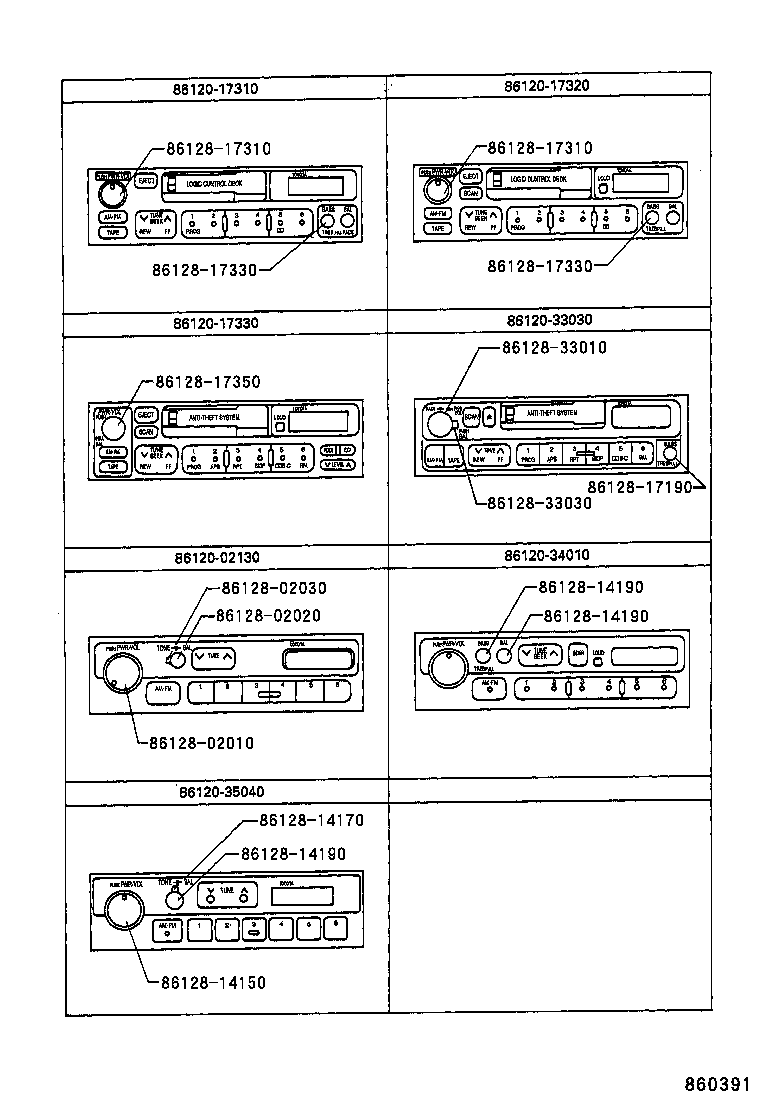

Figure 860387 860387 1992-08 → — Figure 860388 860388 1992-08 → — Figure 860389 860389 1994-08 → — Figure 860391 860391 1992-08 → — Figure 860386 860386 1992-08 → — Figure 860392A 860392A 1992-08 → — Figure 860536 860536 1997-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
