Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

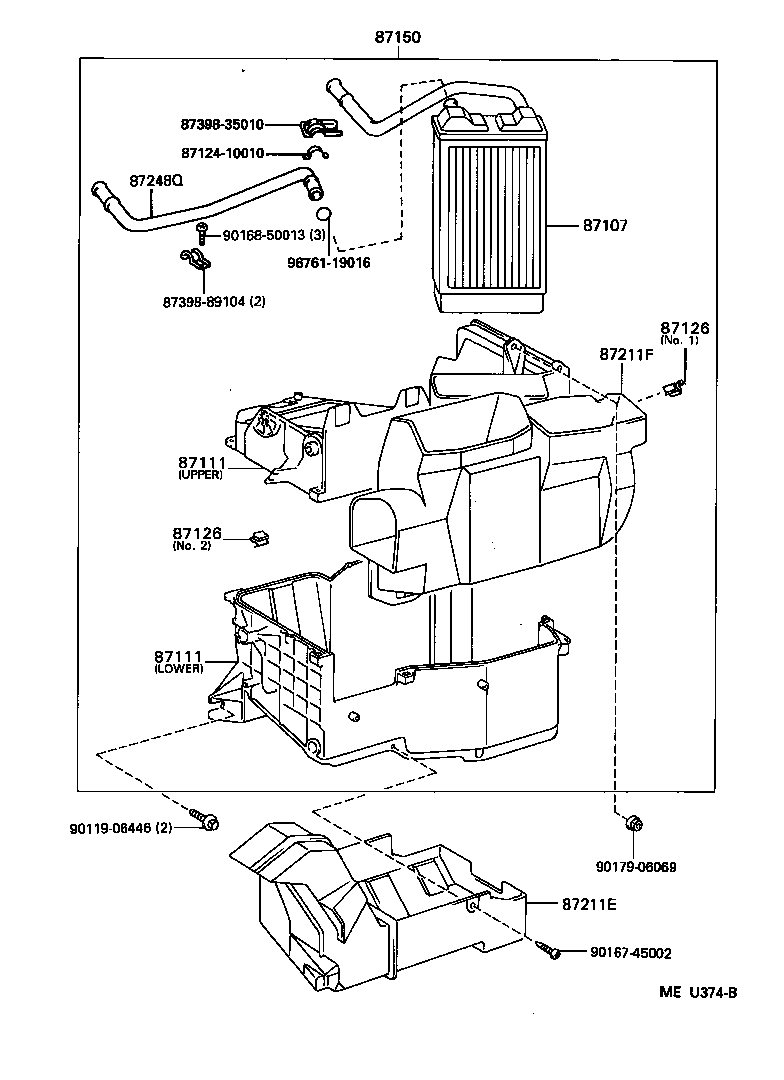

Heating & Air Conditioning - Heater Unit & Blower
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87111 | Case, Heater |
| 87126 | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
