Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

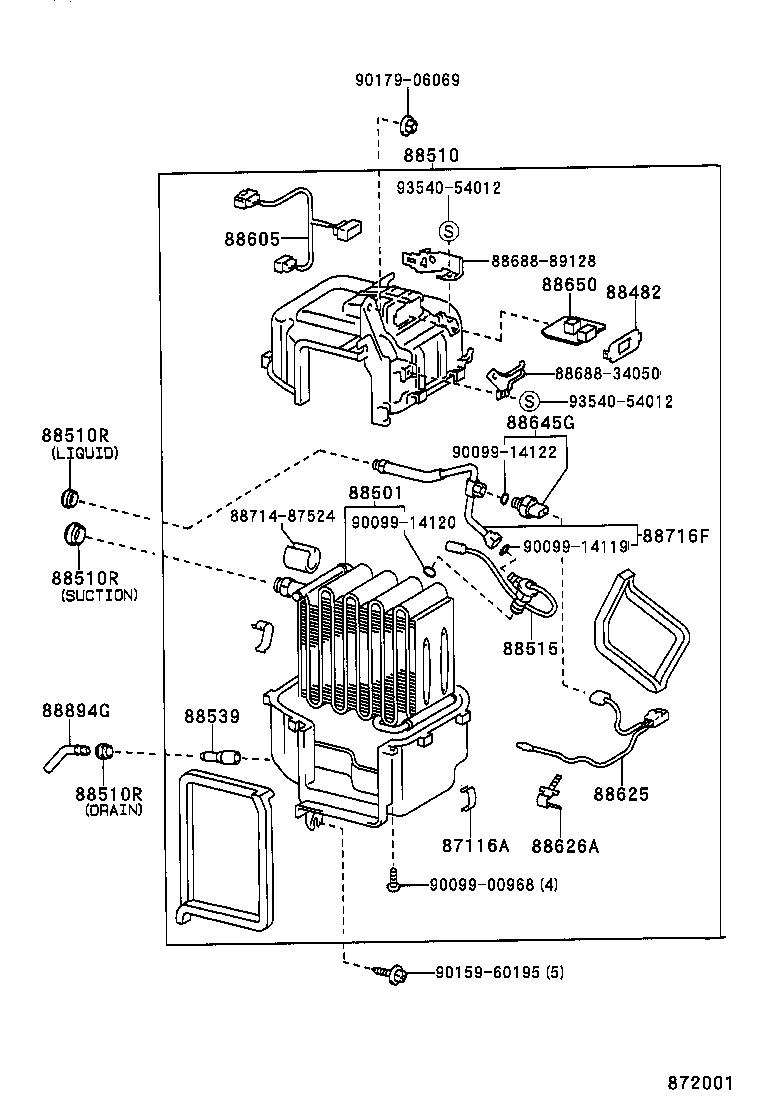

Heating & Air Conditioning - Cooler Unit
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 88482 | Cap, Cooler |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88510R | Grommet (FOR COOLER UNIT) |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88626A | Holder, Thermistor |
| 88645G | Switch, Pressure |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88894G | Connector, Drain Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
