Toyota T100
1992-08 → 1998-07 · chassis RCK10,VCK1#,2# · catalogue 841410 · United States
Discontinued model
Data version 1999-06

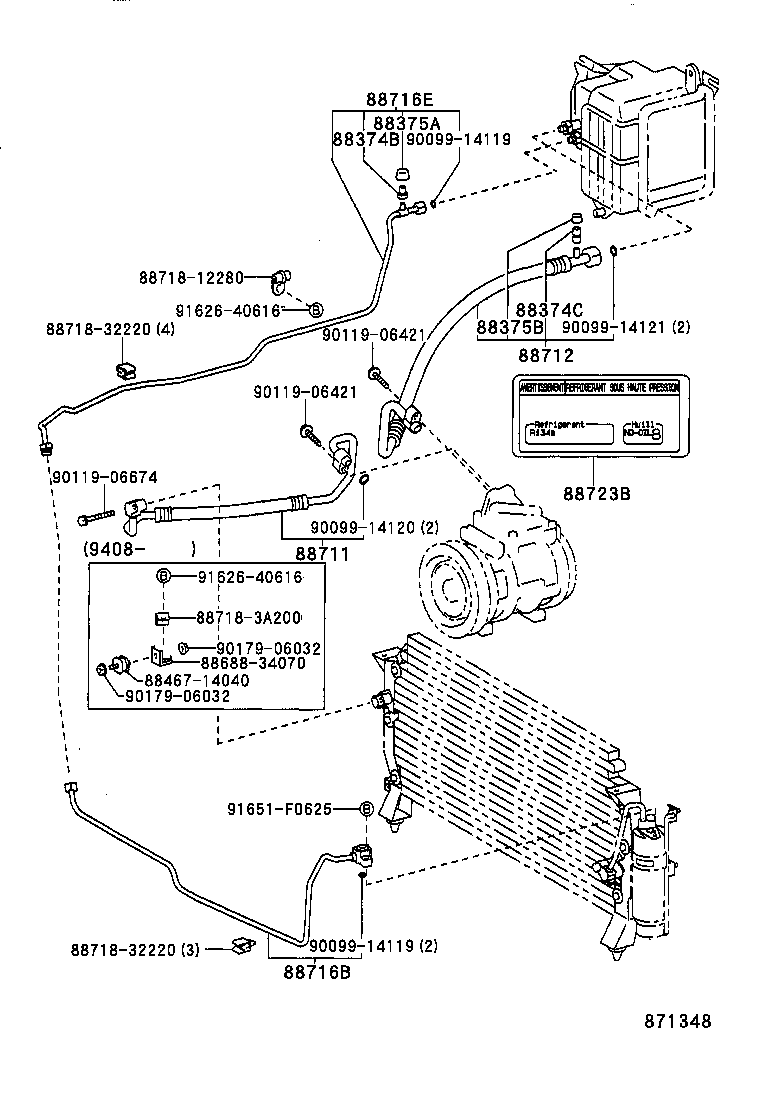

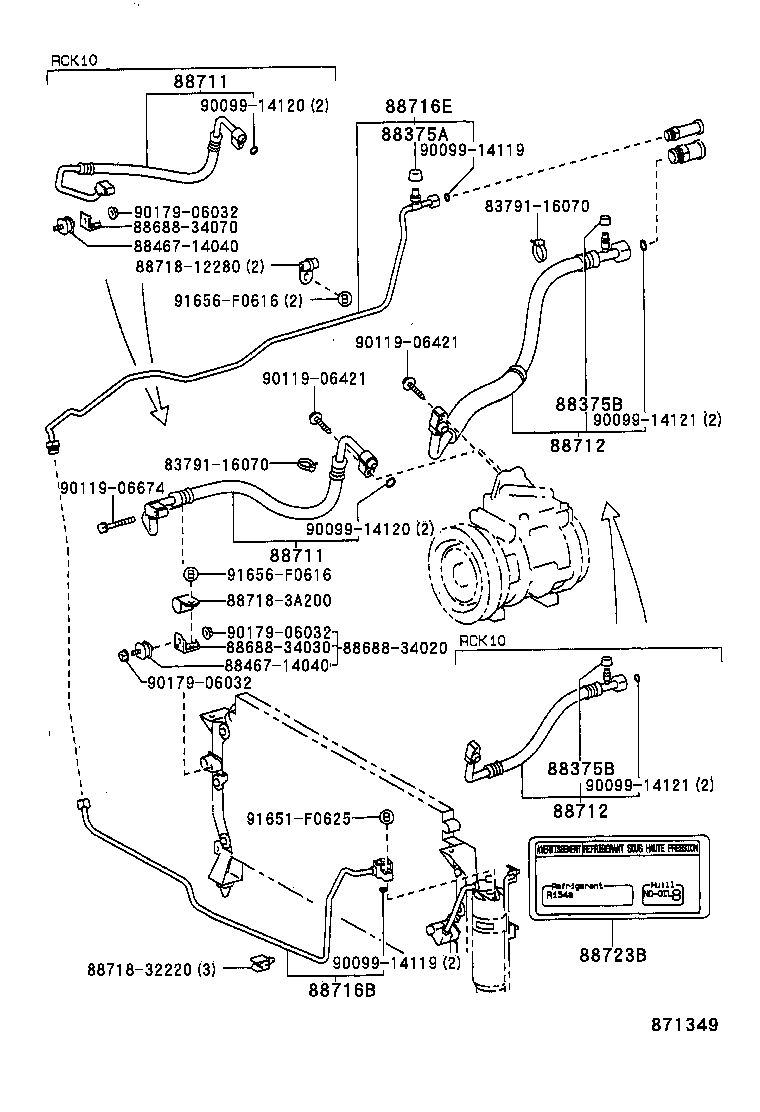

Heating & Air Conditioning - Cooler Piping
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88375B | Cap, Service Valve, NO.1 |

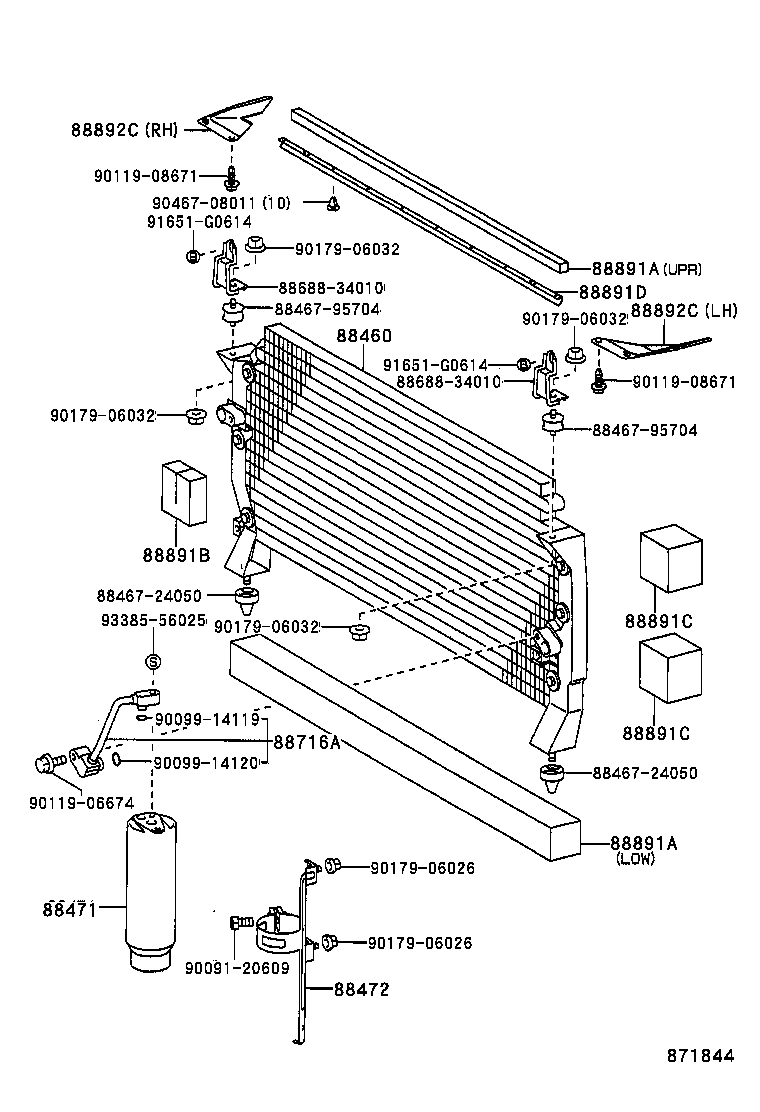

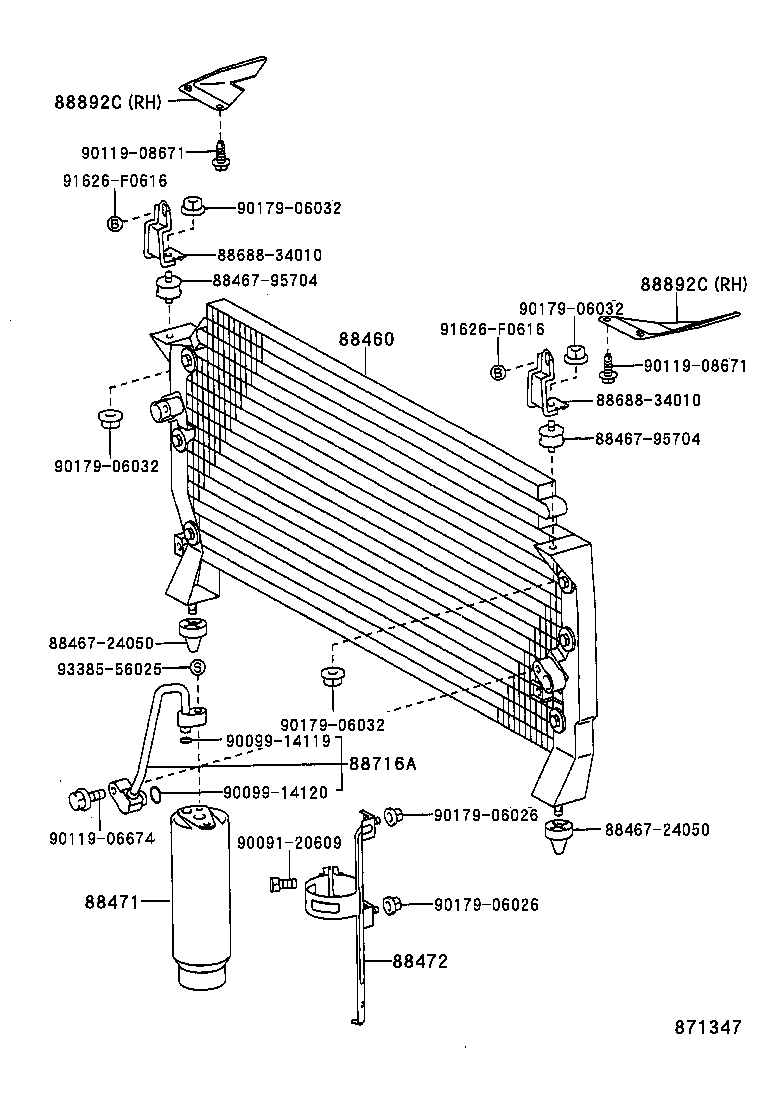

| 88460 | Condenser Assy, Cooler |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88723B | Label, Cooler Service Caution |
| 88891A | Packing A (FOR COOLER) |
| 88891B | Packing B (FOR COOLER) |
| 88891C | Packing C (FOR COOLER) |
| 88891D | Packing D (FOR COOLER) |
| 88892C | Plate, Condenser, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
