Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

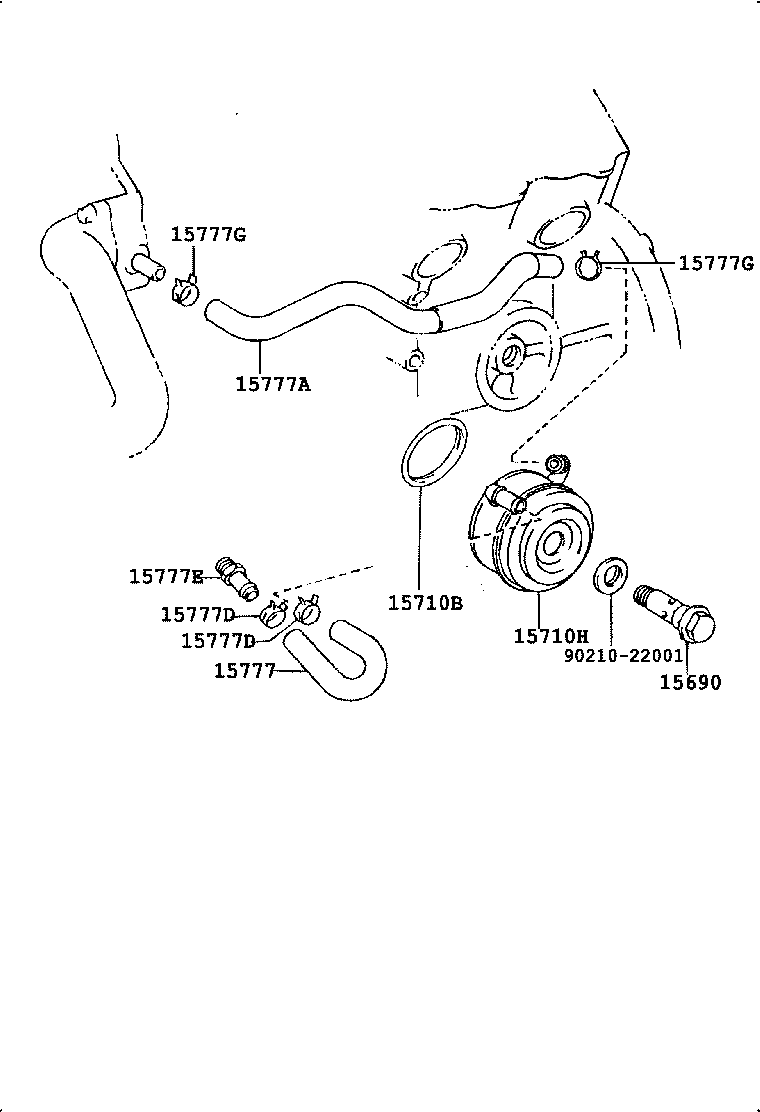

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15690 — Valve Assy, Oil Cooler Relief | ||||
| 15695-50010 |
Valve Assy, Oil Cooler Relief
1999-02 → 2002-08
ended
|
2UZFE UCK30,40 | — | |
| 15695-62030 |
Valve Assy, Oil Cooler Relief
1999-02 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15695-50010 |
Valve Assy, Oil Cooler Relief
2002-08 → 2004-08
ended
|
2UZFE UCK3#,4# | — | |
| 15695-62030 |
Valve Assy, Oil Cooler Relief
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15695-50010 |
Valve Assy, Oil Cooler Relief
2004-08 → —
|
2UZFE UCK3#,4# | — | |
| 15710B — Ring, O(FOR OIL COOLER) | ||||
| 90301-67004 |
Ring, O(FOR OIL COOLER)
1999-02 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2002-08 → 2004-08
ended
|
2UZFE UCK30,40 | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2003-10 → 2004-08
ended
|
2UZFE UCK31,41 | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2004-08 → 2006-12
ended
|
2UZFE UCK3#,4# | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2004-08 → —
|
1GRFE GSK30 | — | |
| 15710H — Cooler Assy, Oil, NO.2 | ||||
| 15710-62060 |
Cooler Assy, Oil, NO.2
1999-02 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15710-62060 |
Cooler Assy, Oil, NO.2
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15777 — Hose, Oil Cooler | ||||
| 15777-50060 |
Hose, Oil Cooler
1999-02 → 2002-08
ended
|
2UZFE UCK30,40 | — | |
| 15777-62020 |
Hose, Oil Cooler
1999-02 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15777-50060 |
Hose, Oil Cooler
2002-08 → 2004-08
ended
|
2UZFE UCK3#,4# | — | |
| 15777-62020 |
Hose, Oil Cooler
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15777-31010 |
Hose, Oil Cooler
2004-08 → —
|
1GRFE GSK30 | — | |
| 15777-50060 |
Hose, Oil Cooler
2004-08 → —
|
2UZFE UCK3#,4# | — | |
| 15777A — Hose, Oil Cooler | ||||
| 15778-62030 |
Hose, Oil Cooler
1999-02 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15778-62030 |
Hose, Oil Cooler
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15777D — Clamp OR Clip, Hose(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
1999-02 → 2002-04
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 96134-41900 |
Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
2002-04 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 96134-41900 |
Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15777E — Union | ||||
| 90404-53070 |
Union
1999-02 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 90404-53070 |
Union
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 15777G — Clamp OR Crip, Hose | ||||
| 90467-20005 |
Clamp OR Crip, Hose
1999-02 → 2002-04
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 96134-41900 |
Clamp OR Crip, Hose
2002-04 → 2002-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
| 96134-41900 |
Clamp OR Crip, Hose
2002-08 → 2004-08
ended
|
5VZFE VCK40;5VZFE VCK30 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
