Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

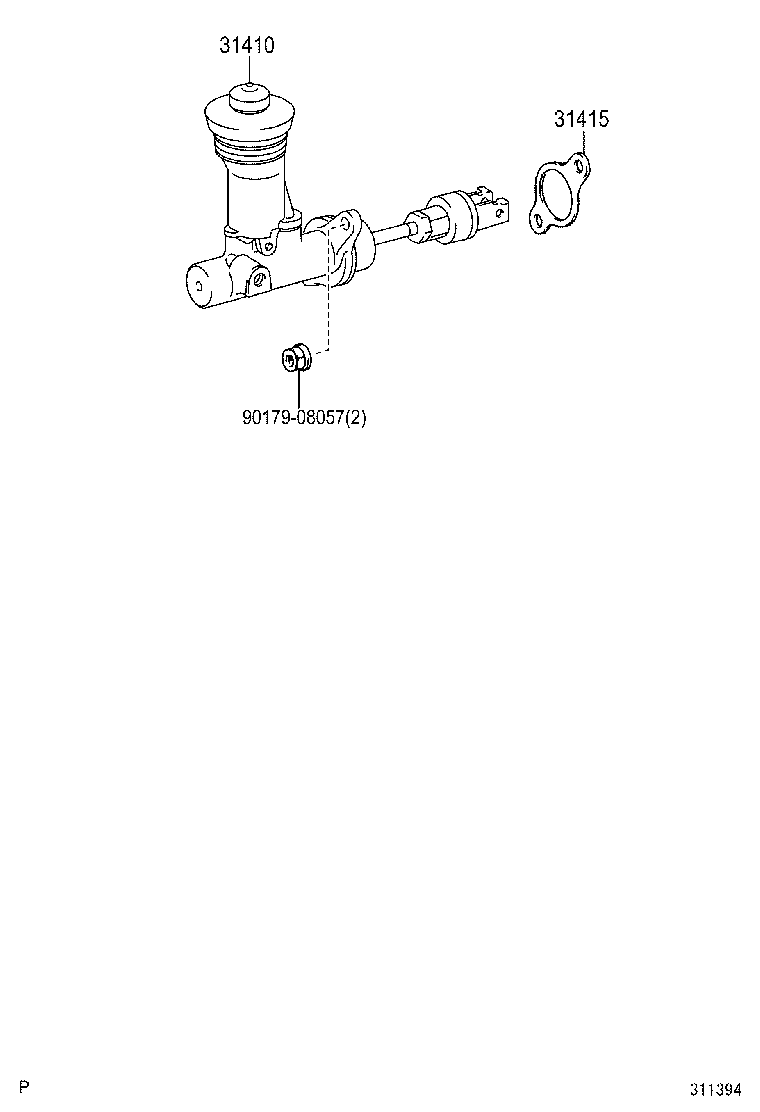

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31410 — Cylinder Assy, Clutch Master | ||||
| 31410-34020 |
Cylinder Assy, Clutch Master
1999-02 → 2002-08
ended
|
VCK30,40 5F | — | |
| 31410-34020 |
Cylinder Assy, Clutch Master
2002-08 → 2004-08
ended
|
VCK30,40 5F | — | |
| 31410-34030 |
Cylinder Assy, Clutch Master
2004-08 → —
|
GSK30 6F | — | |
| 31415 — Gasket, Clutch Master Cylinder | ||||
| 31415-10010 |
Gasket, Clutch Master Cylinder
1999-02 → 2002-08
ended
|
VCK30,40 5F | — | |
| 31415-10010 |
Gasket, Clutch Master Cylinder
2002-08 → 2004-08
ended
|
VCK30,40 5F | — | |
| 31415-60020 |
Gasket, Clutch Master Cylinder
2004-08 → —
|
GSK30 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
