Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

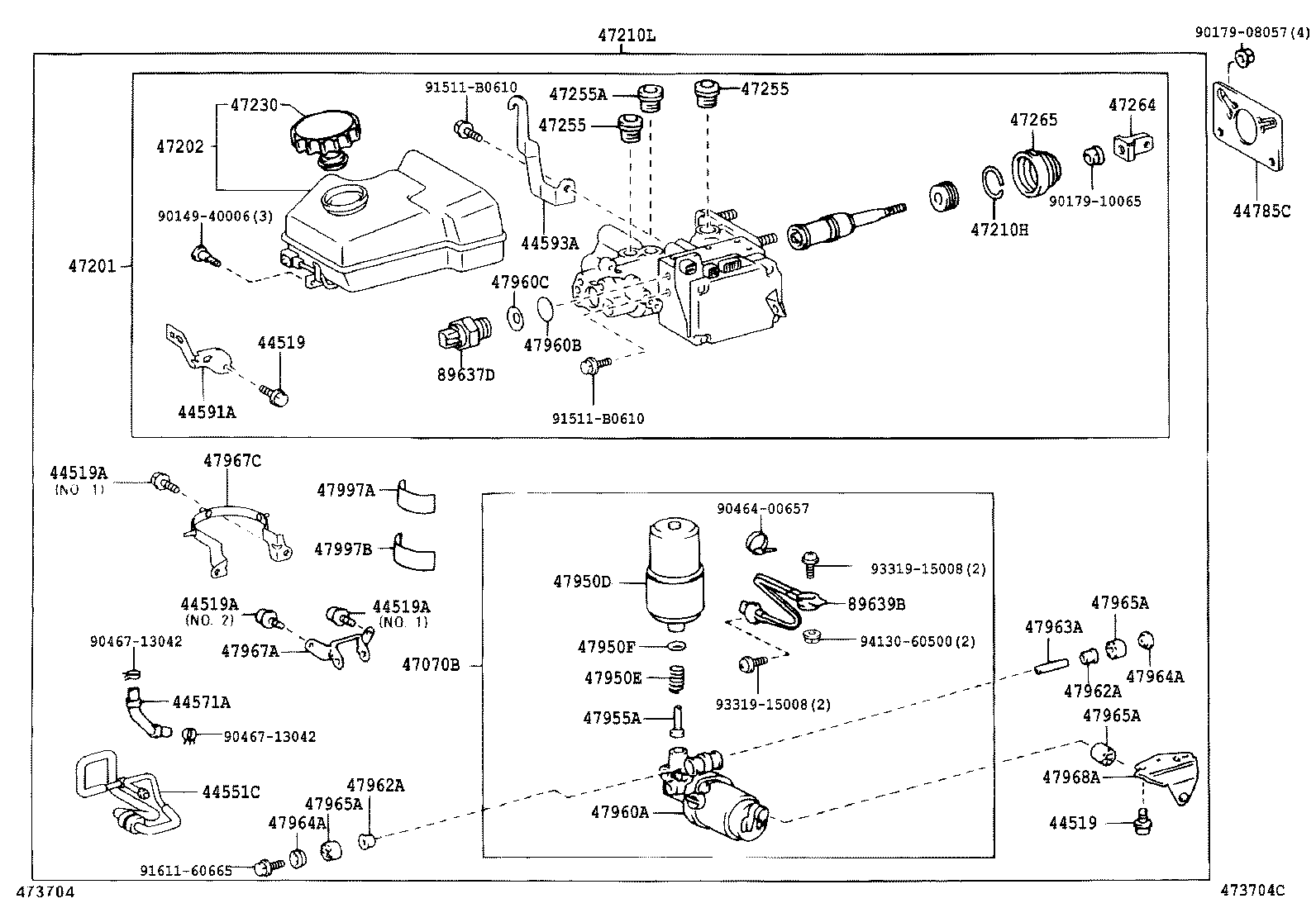

Exploded illustration 473704C 47210L — BRAKE BOOSTER ASSY, W/MASTER CYLINDER (8 parts) 47255 — GROMMET, MASTER CYLINDER RESERVOIR (8 parts) 47255A — GROMMET, MASTER CYLINDER RESERVOIR, NO.2 (2 parts) 47255 — GROMMET, MASTER CYLINDER RESERVOIR (8 parts) 44593A — BRACKET, BRAKE ACTUATOR, NO.3 (1 parts) 47960C — SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) (1 parts) 47960B — RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) (1 parts) 91511B0610 — not listed in this catalogue 91511B0610 — not listed in this catalogue 47230 — CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER (7 parts) 47202 — RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER (9 parts) 47201 — CYLINDER SUB-ASSY, BRAKE MASTER (14 parts) 44519 — BOLT, BRAKE ACTUATOR (3 parts) 9014940006 — not listed in this catalogue 44591A — BRACKET, BRAKE ACTUATOR, NO.1 (2 parts) 44519A — BOLT(FOR BRAKE BOOSTER PUMP) (4 parts) 47967C — BRACKET, BRAKE BOOSTER PUMP, NO.2 (1 parts) 47997A — LABEL, ACCUMULATOR CAUTION, NO.1 (1 parts) 47997B — LABEL, ACCUMULATOR CAUTION, NO,2 (1 parts) 44519A — BOLT(FOR BRAKE BOOSTER PUMP) (4 parts) 44519A — BOLT(FOR BRAKE BOOSTER PUMP) (4 parts) 47967A — BRACKET, BRAKE BOOSTER PUMP, NO.1 (2 parts) 47070B — PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR (2 parts) 44571A — HOSE, BRAKE ACTUATOR, NO.1 (2 parts) 44551C — TUBE, BRAKE ACTUATOR, NO.1 (2 parts) 47962A — COLLAR, BRAKE BOOSTER PUMP (2 parts) 47965A — BUSH, BRAKE BOOSTER PUMP (2 parts) 47964A — WASHER, BRAKE BOOSTER PUMP (1 parts) 9046713042 — not listed in this catalogue 9161160665 — not listed in this catalogue 9046713042 — not listed in this catalogue 47950D — ACCUMULATOR ASSY, BRAKE BOOSTER (2 parts) 47950F — RING, O(FOR BRAKE BOOSTER ACCUMULATOR) (2 parts) 47950E — SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) (1 parts) 47955A — PIPE, BRAKE BOOSTER ACCUMULATOR (2 parts) 47960A — PUMP ASSY, BRAKE BOOSTER (2 parts) 9331915008 — not listed in this catalogue 9331915008 — not listed in this catalogue 89639B — WIRE, BRAKE CONTROL (1 parts) 9413060500 — not listed in this catalogue 9046400657 — not listed in this catalogue 47965A — BUSH, BRAKE BOOSTER PUMP (2 parts) 47963A — SHAFT, BRAKE BOOSTER PUMP (1 parts) 47964A — WASHER, BRAKE BOOSTER PUMP (1 parts) 47962A — COLLAR, BRAKE BOOSTER PUMP (2 parts) 47965A — BUSH, BRAKE BOOSTER PUMP (2 parts) 47968A — BRACKET, BRAKE BOOSTER PUMP, NO.2 (1 parts) 44519 — BOLT, BRAKE ACTUATOR (3 parts) 44785C — GASKET, BRAKE BOOSTER (3 parts) 47210H — RING, SNAP(FOR BRAKE MASTER CYLINDER) (2 parts) 47264 — CLEVIS, MASTER CYLINDER PUSH ROD (9 parts) 47265 — BOOT, MASTER CYLINDER (2 parts) 9017910065 — not listed in this catalogue 89637D — SENSOR, OIL PRESSURE (1 parts) 9017908057 — not listed in this catalogue
473704C · 43 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
105 parts on this figure
Part number Description Fitment Price
44519 — Bolt, Brake Actuator
44519-24020 Bolt, Brake Actuator
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44519-24020 note Bolt, Brake Actuator
2005-08 → 2006-12 ended
GSK30,UCK30,40 —
90016-AA701 note Bolt, Brake Actuator
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
44519A — Bolt(FOR BRAKE BOOSTER PUMP)
44519-24020 note Bolt(FOR BRAKE BOOSTER PUMP)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44519-30010 note Bolt(FOR BRAKE BOOSTER PUMP)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44519-24020 note Bolt(FOR BRAKE BOOSTER PUMP)
2005-08 → 2006-12 ended
GSK30,UCK30,40 —
90016-AA701 note Bolt(FOR BRAKE BOOSTER PUMP)
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
44551C — Tube, Brake Actuator, NO.1
44551-34020 Tube, Brake Actuator, NO.1
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44551-04010 Tube, Brake Actuator, NO.1
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
44571A — Hose, Brake Actuator, NO.1
44571-60010 Hose, Brake Actuator, NO.1
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44571-04010 Hose, Brake Actuator, NO.1
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
44591A — Bracket, Brake Actuator, NO.1
44591-60050 Bracket, Brake Actuator, NO.1
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44591-04030 Bracket, Brake Actuator, NO.1
2004-08 → —
GSK30,UCK3#,4# —
44593A — Bracket, Brake Actuator, NO.3
44593-60010 Bracket, Brake Actuator, NO.3
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44785C — Gasket, Brake Booster
44785-35030 Gasket, Brake Booster
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
44785-0C020 Gasket, Brake Booster
2004-08 → 2005-07 ended
GSK30,UCK3#,4# —
44785-0C020 Gasket, Brake Booster
2005-08 → —
GSK30,UCK3#,4# —
47070B — Pump Assy, Brake Booster W/Accumulator
47070-60010 Pump Assy, Brake Booster W/Accumulator
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47070-04010 Pump Assy, Brake Booster W/Accumulator
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
47201 — Cylinder Sub-assy, Brake Master
47201-0C010 Cylinder Sub-assy, Brake Master
1999-02 → 2001-09 ended
UCK30,40,VCK30,40 —
47201-0C011 Cylinder Sub-assy, Brake Master
2001-09 → 2002-08 ended
UCK30,40,VCK30,40 —
47025-34020 note Cylinder Sub-assy, Brake Master
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47201-0C011 Cylinder Sub-assy, Brake Master
2002-08 → 2003-09 ended
UCK30,40,VCK30,40 —
47201-0C012 Cylinder Sub-assy, Brake Master
2003-09 → 2004-08 ended
UCK30,40,VCK30,40 —
47207-0C010 Cylinder Sub-assy, Brake Master
2004-07 → 2004-08 ended
UCK31,41 —
47207-34010 Cylinder Sub-assy, Brake Master
2003-10 → 2004-07 ended
UCK31,41 —
47025-0C020 note Cylinder Sub-assy, Brake Master
2004-08 → 2005-08 ended
GSK30,UCK30,40 —
47025-0C021 Cylinder Sub-assy, Brake Master
2005-08 → —
GSK30,UCK30,40 —
47025-0C030 note Cylinder Sub-assy, Brake Master
2004-08 → 2005-08 ended
UCK31,41 —
47025-0C031 note Cylinder Sub-assy, Brake Master
2005-08 → —
UCK31,41 —
47201-0C012 note Cylinder Sub-assy, Brake Master
2004-08 → 2005-07 ended
GSK30,UCK30,40 —
47201-0C012 note Cylinder Sub-assy, Brake Master
2005-08 → —
GSK30,UCK30,40 —
47207-0C010 Cylinder Sub-assy, Brake Master
2004-08 → —
UCK31,41 —
47202 — Reservoir Sub-assy, Brake Master Cylinder
47220-0C010 Reservoir Sub-assy, Brake Master Cylinder
1999-02 → 2001-09 ended
UCK30,40,VCK30,40 —
47220-0C030 Reservoir Sub-assy, Brake Master Cylinder
2001-09 → 2002-08 ended
UCK30,40,VCK30,40 —
47220-0C030 Reservoir Sub-assy, Brake Master Cylinder
2002-08 → 2003-09 ended
UCK30,40,VCK30,40 —
47220-0C031 Reservoir Sub-assy, Brake Master Cylinder
2003-09 → 2004-08 ended
UCK30,40,VCK30,40 —
47220-0C040 Reservoir Sub-assy, Brake Master Cylinder
2003-10 → 2004-08 ended
UCK31,41 —
47220-60190 note Reservoir Sub-assy, Brake Master Cylinder
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47220-04060 note Reservoir Sub-assy, Brake Master Cylinder
2004-08 → —
GSK30,UCK3#,4# —
47220-0C031 Reservoir Sub-assy, Brake Master Cylinder
2004-08 → —
GSK30,UCK30,40 —
47220-0C040 Reservoir Sub-assy, Brake Master Cylinder
2004-08 → —
UCK31,41 —
47210H — Ring, Snap(FOR BRAKE MASTER CYLINDER)
90520-32012 Ring, Snap(FOR BRAKE MASTER CYLINDER)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
90520-32012 Ring, Snap(FOR BRAKE MASTER CYLINDER)
2004-08 → —
GSK30,UCK3#,4# —
47210L — Brake Booster Assy, W/Master Cylinder
47050-34010 note Brake Booster Assy, W/Master Cylinder
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47200-0C072 Brake Booster Assy, W/Master Cylinder
2003-10 → 2004-08 ended
UCK31,41 —
47050-0C020 Brake Booster Assy, W/Master Cylinder
2004-08 → 2005-07 ended
GSK30,UCK30,40 —
47050-0C021 Brake Booster Assy, W/Master Cylinder
2005-08 → —
GSK30,UCK30,40 —
47050-0C030 note Brake Booster Assy, W/Master Cylinder
2004-08 → 2005-07 ended
UCK31,41 —
47050-0C031 note Brake Booster Assy, W/Master Cylinder
2005-08 → —
UCK31,41 —
47200-0C072 Brake Booster Assy, W/Master Cylinder
2004-08 → 2005-07 ended
UCK31,41 —
47200-0C073 Brake Booster Assy, W/Master Cylinder
2005-08 → —
UCK31,41 —
47230 — Cap Assy, Brake Master Cylinder Reservoir Filler
47230-0C010 Cap Assy, Brake Master Cylinder Reservoir Filler
1999-02 → 2002-08 ended
UCK30,40,VCK30,40 —
47230-01030 Cap Assy, Brake Master Cylinder Reservoir Filler
2003-10 → 2004-08 ended
UCK31,41 —
47230-0C010 Cap Assy, Brake Master Cylinder Reservoir Filler
2002-08 → 2004-08 ended
UCK30,40,VCK30,40 —
47230-30130 note Cap Assy, Brake Master Cylinder Reservoir Filler
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47230-01030 Cap Assy, Brake Master Cylinder Reservoir Filler
2004-08 → —
UCK31,41 —
47230-0C010 Cap Assy, Brake Master Cylinder Reservoir Filler
2004-08 → —
GSK30,UCK30,40 —
47230-24010 note Cap Assy, Brake Master Cylinder Reservoir Filler
2004-08 → —
GSK30,UCK3#,4# —
47255 — Grommet, Master Cylinder Reservoir
47255-20010 Grommet, Master Cylinder Reservoir
1999-02 → 2002-08 ended
UCK30,40,VCK30,40 —
47255-16010 note Grommet, Master Cylinder Reservoir
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47255-20010 Grommet, Master Cylinder Reservoir
2002-08 → 2003-09 ended
UCK30,40,VCK30,40 —
47255-20010 Grommet, Master Cylinder Reservoir
2003-09 → 2004-08 ended
UCK30,40,VCK30,40 —
90029-48001 Grommet, Master Cylinder Reservoir
2003-10 → 2004-08 ended
UCK31,41 —
47255-16010 note Grommet, Master Cylinder Reservoir
2004-08 → —
GSK30,UCK3#,4# —
47255-20010 Grommet, Master Cylinder Reservoir
2004-08 → —
GSK30,UCK30,40 —
90029-48001 Grommet, Master Cylinder Reservoir
2004-08 → —
UCK31,41 —
47255A — Grommet, Master Cylinder Reservoir, NO.2
31417-35010 Grommet, Master Cylinder Reservoir, NO.2
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
31417-35010 Grommet, Master Cylinder Reservoir, NO.2
2004-08 → —
GSK30,UCK3#,4# —
47264 — Clevis, Master Cylinder Push Rod
47264-60020 Clevis, Master Cylinder Push Rod
1999-02 → 2002-08 ended
UCK30,40,VCK30,40 —
47264-0C010 Clevis, Master Cylinder Push Rod
2003-10 → 2004-08 ended
UCK31,41 —
47264-22050 note Clevis, Master Cylinder Push Rod
2003-09 → 2004-08 ended
UCK30,40,VCK30,40 —
47264-22050 note Clevis, Master Cylinder Push Rod
2003-10 → 2004-08 ended
UCK31,41 —
47264-60020 Clevis, Master Cylinder Push Rod
2002-08 → 2004-08 ended
UCK30,40,VCK30,40 —
47264-0C010 Clevis, Master Cylinder Push Rod
2004-08 → 2005-07 ended
UCK31,41 —
47264-0C010 Clevis, Master Cylinder Push Rod
2005-08 → —
UCK31,41 —
47264-22050 note Clevis, Master Cylinder Push Rod
2004-08 → —
GSK30,UCK3#,4# —
47264-60020 Clevis, Master Cylinder Push Rod
2004-08 → —
GSK30,UCK30,40 —
47265 — Boot, Master Cylinder
90029-70001 Boot, Master Cylinder
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
90029-70001 note Boot, Master Cylinder
2004-08 → —
GSK30,UCK3#,4# —
47950D — Accumulator Assy, Brake Booster
47950-60010 Accumulator Assy, Brake Booster
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47950-04010 Accumulator Assy, Brake Booster
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
47950E — Spring, Compression(FOR BRAKE BOOSTER ACCUMULATOR)
90501-16160 Spring, Compression(FOR BRAKE BOOSTER ACCUMULATOR)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47950F — Ring, O(FOR BRAKE BOOSTER ACCUMULATOR)
90301-13014 Ring, O(FOR BRAKE BOOSTER ACCUMULATOR)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
90301-13014 Ring, O(FOR BRAKE BOOSTER ACCUMULATOR)
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
47955A — Pipe, Brake Booster Accumulator
47955-30010 Pipe, Brake Booster Accumulator
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47955-04010 Pipe, Brake Booster Accumulator
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
47960A — Pump Assy, Brake Booster
47960-60010 Pump Assy, Brake Booster
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47960-04020 Pump Assy, Brake Booster
2004-08 → 2006-12 ended
GSK30,UCK3#,4# —
47960B — Ring, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)
90301-15014 Ring, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47960C — Spacer(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)
90561-16009 Spacer(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR)
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47962A — Collar, Brake Booster Pump
47962-60010 Collar, Brake Booster Pump
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47962-04020 Collar, Brake Booster Pump
2004-08 → —
GSK30,UCK3#,4# —
47963A — Shaft, Brake Booster Pump
47963-24010 Shaft, Brake Booster Pump
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47964A — Washer, Brake Booster Pump
47964-24010 Washer, Brake Booster Pump
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47965A — Bush, Brake Booster Pump
47965-24010 Bush, Brake Booster Pump
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47965-30010 Bush, Brake Booster Pump
2004-08 → —
GSK30,UCK3#,4# —
47967A — Bracket, Brake Booster Pump, NO.1
47967-60010 Bracket, Brake Booster Pump, NO.1
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47967-04020 Bracket, Brake Booster Pump, NO.1
2004-08 → —
GSK30,UCK3#,4# —
47967C — Bracket, Brake Booster Pump, NO.2
47967-35010 Bracket, Brake Booster Pump, NO.2
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47968A — Bracket, Brake Booster Pump, NO.2
47968-60011 Bracket, Brake Booster Pump, NO.2
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47997A — Label, Accumulator Caution, NO.1
47997-60010 Label, Accumulator Caution, NO.1
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
47997B — Label, Accumulator Caution, NO,2
47997-60030 Label, Accumulator Caution, NO,2
2003-10 → 2004-08 ended
UCK3#,4#,VCK30,40 —
89637D — Sensor, Oil Pressure
89637-30050 Sensor, Oil Pressure
2003-12 → 2004-08 ended
UCK3#,4#,VCK30,40 —
89639B — Wire, Brake Control
89639-30100 Wire, Brake Control
2003-09 → 2004-08 ended
UCK3#,4#,VCK30,40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
